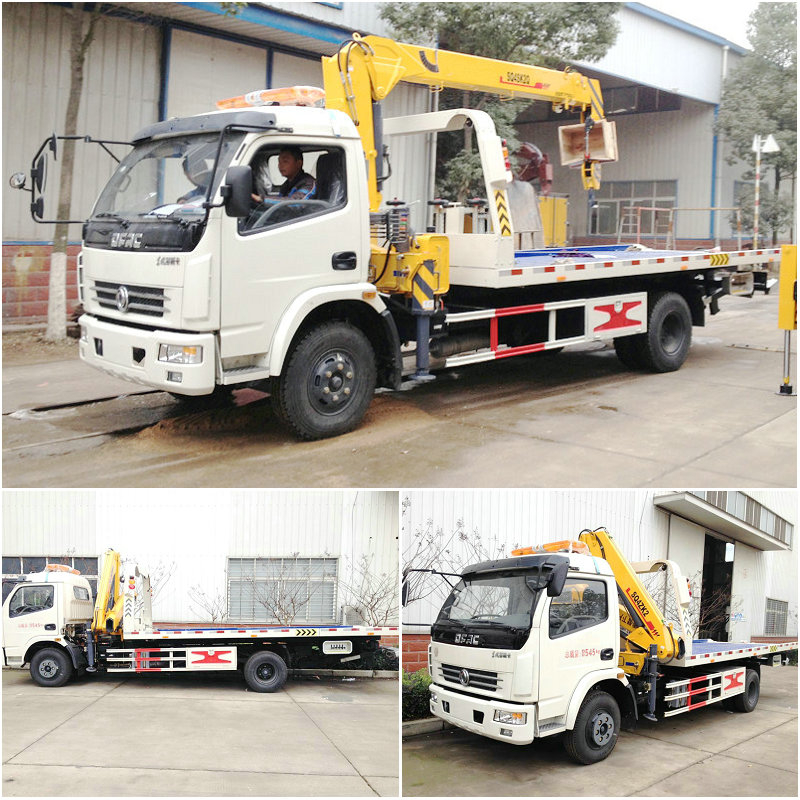

Dongfeng 5T Tow Wrecker Tow Truck with 4T Crane

Dongfeng 5T Tow Wrecker Tow Truck with 4T Crane
Availability:
Quantity:

Dongfeng 5T tow wrecker tow truck with crane
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 Description


           Technical Parameters




           Total Mass(kg)




           8495




            Curb Weight(kg)




           6600




            Rated quality(kg)




            XX




            Chassis Model




           DFA1090SJ11D5




            Approach/departure angle




           25.5/11




            Front / rear overhang




           1180/2420




            Dimensions(mm)




           8000*2350*3300




            Number of spring




           11/13+8,8/10+7




            Number of axes




           2




            Maximum speed




           99




            Tire Specifications




           8.25-16 14PR,8.25R16 14PR




            Number of tires




           6




            Front track




           1835,1770,1845,1750




            Rear track




           1640,1640,1640,1610




            Wheelbase




           4400




            Axle load




           3600/5800




             Emission Standards




            Euro3/Euro4




            Type of fuel




            Diesel




           Engine parameters




            Engine Model




           CY4102-CE4C




            Engine Manufacturer




           Dongfeng Chaochai Diesel Engine




            Engine Displacement(ml)




           3856




            Engine power(kw)




           91




            Modified
            Description




           1. Unitary body, two sides with combined operation device, front bumper with a counterweight.
           2. Equipped with winch, supporting forks, supporting forks stand, chain hook and warning lights.




           Component




           Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights.




           Purpose




           This truck  is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.




            Product advantage




            high quality with best price






Dongfeng Recovery Trucks with crane

 In need of a custom built Recovery Vehicle?



 Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!



 Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.



 That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.

  8T12D2  Two 80KN hydraulic winch 40m
 Rating Towing Mass 16000 Kg~25000KG




       Boom        Max lifting capacity:       12T
              Max Extended lifting capacity:       5.75T
              Max. Lifting Height mm       4830



        Under lift       Original Lifting Mass Kg       4500

       Rating Lifting Mass Fully Extended Kg
       3500





16T18D2  Two 100KN hydraulic winch 40m
 Rating Towing Mass 25000 Kg~31000KG



        Boom       Max lifting capacity:       18T
          Max Extended lifting capacity:       8T
             Max. Lifting Height mm       6500



      Under lift       Original Lifting Mass Kg       6500 / 7470 / 10120
           Rating Lifting Mass Fully Extended Kg       5500/7310



20T20D2  Two 100KN hydraulic winch 40m
 Rating Towing Mass 25000 Kg~31000KG



        Boom        Max lifting capacity:       20T
               Max Extended lifting capacity:       9T
             Max. Lifting Height mm       6400



       Under lift       Original Lifting Mass Kg       9778
           Rating Lifting Mass Fully Extended Kg       7310




30DZ3+16T+40ZT1  Two 150KN hydraulic winch 55m
 Rating Towing Mass 38000 Kg~48000KG



       Boom        Max lifting capacity:       25T
               Max Extended lifting capacity:       3.5T
               Max. Lifting Height mm       12000



       Under lift       Original Lifting Mass Kg       12500/16000

       Rating Lifting Mass Fully Extended Kg
       9500

With 360-degree rotation ,Remote operating device



40DZ3+25T+40ZT1  Two 250KN hydraulic winch 55m
 Rating Towing Mass   48000~58000KG



       Boom       Max lifting capacity:       40T
              Max Extended lifting capacity:       4.5T
               Max. Lifting Height mm       12070



        Under lift       Original Lifting Mass Kg       12500/25000

       Rating Lifting Mass Fully Extended Kg
       9500 /12500

With 360-degree rotation ,Remote operating device
