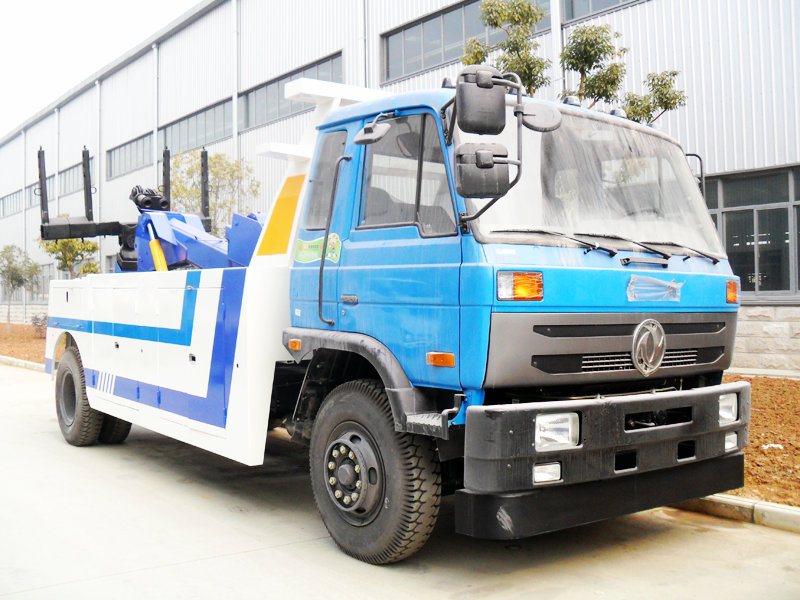

Dongfeng 8T Towing Conjoined Wrecker Truck

Dongfeng 8T Towing Conjoined Wrecker Truck
Availability:
Quantity:

Dongfeng 8T towing conjoined wrecker truck
8T12D2 two  8T  80 kn hydraulic winch   40M Steel Wire Rope
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

  Description



               Technical Parameters




               Total Mass(kg)




               15990




                Curb Weight(kg)




               10495




                Rated quality(kg)




                XX




                Chassis Model




               EQ1160GK1




                Approach/departure angle




               30/16




                Front / rear overhang




               1250/1700




                Dimensions(mm)




               7900*2480*3300




                Number of spring




               9/10+8




                Number of axes




               2




                Maximum speed(km/h)




               85




                Tire Specifications




               10.00-20 16PR,10.00R20




                Number of tires




               6




                Front track




               1940,1900




                Rear track




               1860,1800




                Wheelbase




               4500,4700,4950,4800,5100




                Axle load




               5995/9995




                 Emission Standards




                Euro3/Euro4




                Type of fuel




                Diesel




               Engine parameters




                Engine Model




               YC6J180-42




                Engine Manufacturer




               Guangxi yuchai machinery




                Engine Displacement(ml)




               6500




                Engine power(kw)




               132




                Modified
                Description




               1. Unitary body, two sides with combined operation device, front bumper with a counterweight.
               2. Equipped with winch, supporting forks, supporting forks stand, chain hook and warning lights.




               Component




               Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights.




               Purpose




               This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.




                Product advantage




                high quality with best price






Dongfeng Recovery Trucks with crane


 In need of a custom built Recovery Vehicle?



 Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!



 Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.



 That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.

  8T12D2  Two 80KN hydraulic winch 40m
 最大牵引质量:Rating Towing Mass 16000 Kg~25000KG



       吊臂Boom        最大起吊质量Max lifting capacity:        12T
               最远起吊质量全伸出Max Extended lifting capacity:        5.75T
               最大起吊高度:Max. Lifting Height mm        4830

       托臂Under lift        原地托举质量最短伸出时:Original Lifting Mass Kg        4500
               全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       3500




16T18D2  Two 100KN hydraulic winch 40m
最大牵引质量:Rating Towing Mass 25000 Kg~31000KG


       吊臂Boom        最大起吊质量Max lifting capacity:        18T
               最远起吊质量全伸出Max Extended lifting capacity:        8T
               最大起吊高度:Max. Lifting Height mm        6500

       托臂Under lift        最短伸出时原地托举质量:Original Lifting Mass Kg        6500 / 7470 / 10120
               全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       5500/7310


20T20D2  Two 100KN hydraulic winch 40m
最大牵引质量:Rating Towing Mass 25000 Kg~31000KG


       吊臂Boom        最大起吊质量Max lifting capacity:        20T
               最远起吊质量全伸出Max Extended lifting capacity:        9T
               最大起吊高度:Max. Lifting Height mm        6400

       托臂Under lift        原地托举质量最短伸出时:Original Lifting Mass Kg        9778
               全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       7310



30DZ3+16T+40ZT1  Two 150KN hydraulic winch 55m
最大牵引质量:Rating Towing Mass 38000 Kg~48000KG


       吊臂Boom        最大起吊质量Max lifting capacity:        25T
               最远起吊质量全伸出Max Extended lifting capacity:        3.5T
               最大起吊高度:Max. Lifting Height mm        12000

       托臂Under lift        最短伸出时原地托举质量 :Original Lifting Mass Kg        12500/16000
               全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       9500
With 360-degree rotation ,Remote operating device



40DZ3+25T+40ZT1  Two 250KN hydraulic winch 55m
最大牵引质量:Rating Towing Mass   48000~58000KG


       吊臂Boom        最大起吊质量Max lifting capacity:        40T
               最远起吊质量全伸出Max Extended lifting capacity:        4.5T
               最大起吊高度:Max. Lifting Height mm        12070

       托臂Under lift        最短伸出时原地托举质量 :Original Lifting Mass Kg        12500/25000
               全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       9500 /12500
With 360-degree rotation ,Remote operating device
