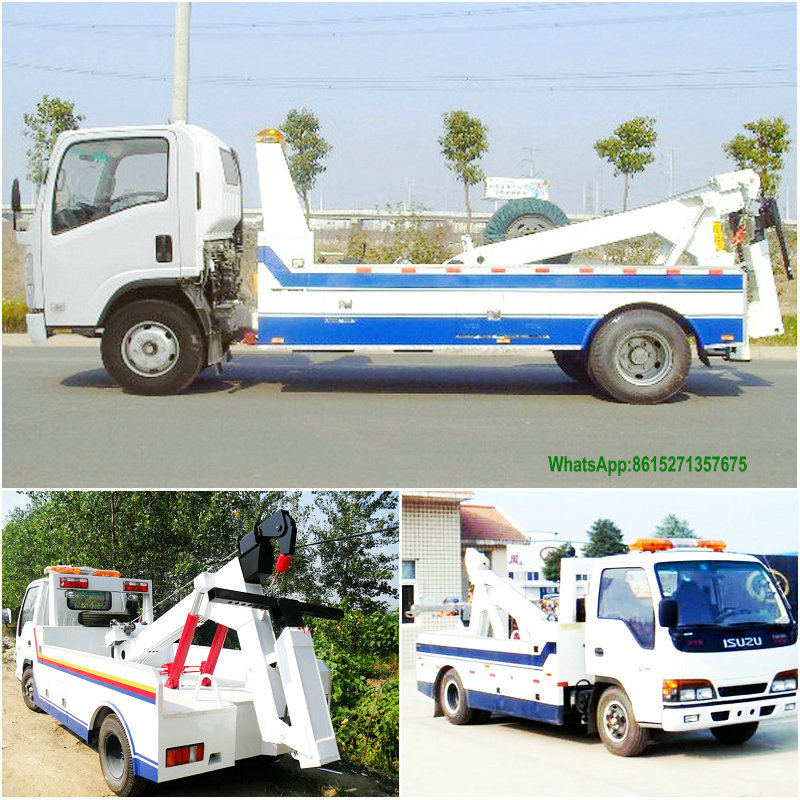

Isuzu 3T Wrecker Towing Conjoined Truck
| Quantity: | |
|---|---|
ISUZU Road recovery wrecker truck 4x2 Vehicle optional all wheel drive off road 4*2
Left hand driving service truck
| Technical Parameters | |||
| Total Mass(kg) | 5300 | Curb Weight(kg) | 3670 |
| Rated quality(kg) | XX | Chassis Model | QL10503HARY |
| Approach/departure angle | 24/16 | Front / rear overhang | 1015/1615 |
| Dimensions(mm) | 5990*2000*2250 | Number of spring | 8/6+5 |
| Number of axes | 2 | Maximum speed(km/h) | 90 |
| Tire Specifications | 7.00-15 10PR,7.00R15 10PR | Number of tires | 6 |
| Front track | 1385 | Rear track | 1425 |
| Wheelbase | 3360 | Axle load | 1920/3380 |
| Emission Standards | Euro3/Euro4 | Type of fuel | Diesel |
| Engine parameters | |||
| Engine Model | 4JB1CN | Engine Manufacturer | Isuzu (chongqing) engine |
| Engine Displacement(ml) | 2771 | Engine power(kw) | 72 |
| Modified | 1. Unitary body, two sides with combined operation device, front bumper with a counterweight. | ||
| Component | Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights. | ||
| Purpose | This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc. | ||
| Product advantage | high quality with best price | ||
