Availability: | |
---|---|
Quantity: | |
LED Truck, with sound system |
LED Truck, with sound system |

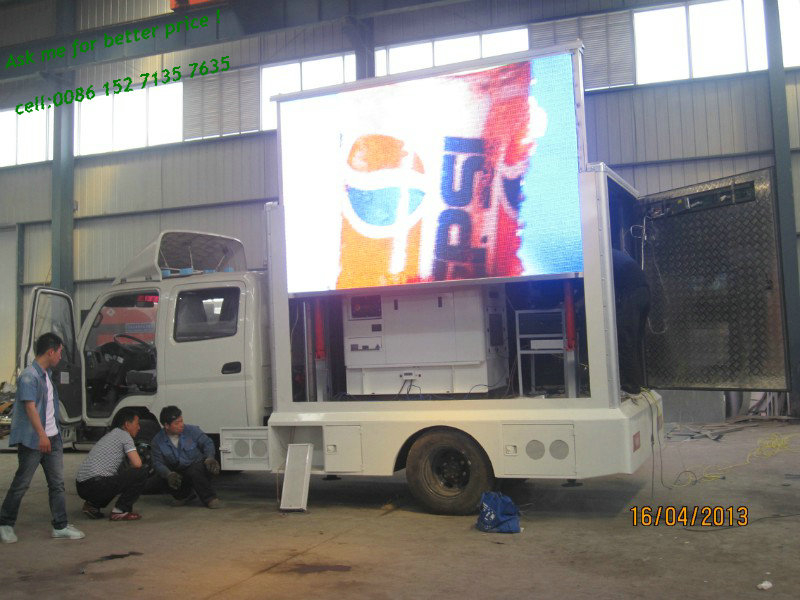

P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale
FORLAND LED Advertising Truck is also called Advertising Screen Truck , led advertising truck, mobile exhibition truck, led display truck, digital screening truck,etc. It generally consists of four parts, including generator sets, projectors, computers, LED screen .It is mainly used for film screening , also with two side LED Screen used in productpromotion, brand promotion, draft activities, sales live shows , sporting events, concerts with two side LEC Screen etc.
Product Note:
1.FORLAND 4*2 new type chassis, P8 fullcolor screen, optional P10, P6 fullcolor screen
2. Factory direct sale
3. Many kind of option, high quality low price
Production Features:
1.Compared to traditional media, it can accept more than one or dozens of customers and the
media placement .
2. Compared to traditional media, can reducing complex manufacturing processes and cost, and
could according to the customer requirements to update the vedio.
3.Using the medium size LED screen, optional single side screen, two sides screen or three side screen,also optional the lifting screen ,the cost is far lower than the large LED screen which was installed on the wall .
4. New design,pretty innovative, become a beautiful landscape line of the urban development
and construction .
5. Compared to traditional media ,associated activity and inertia ,close to the audience strong
visual impact ,good effect.
6.Truck Can receive the signals of Vedio and TV , could be used as the platform of outdoor
live broadcast and live broadcast .
Main Parameter of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
Whole Main Technical Parameter | |||
Product Model | FORLAND LED Advertising Truck | Overall Dimension(L*W*H)(mm) | 5995×2025×2995 |
Wheelbase(mm) | 3360 | Number of Axles | 2 |
Curb Weight (kg) | 4300 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Flat proof, single row |
Chassis Technical Parameter | |||
Chassis Model | BJ1042 | Chassis manufacturer | BEIQI FONTON Motor Co., Ltd |
Transmission type | Manual | Gear Box | 5 speed forward and 1 reverse |
Steering Type | LHD with power steering | Traction Type | 4*2 |
Brake System | oil brake | Tire size/type | 6.50R16LT |
Rear axle loading capacity(Kg) | 5000 | Number of Tires | 6 with a spare |
Engine Technical Parameter | |||
Engine Model |
4B2-95C40
| Engine manufacturer | ANHUI Quanchai |
Fuel type | Diesel | Displacement( ml) | 2545 |
Emission stand | Euro 3 | Power/Horse power(KW)/(HP) | 70(95hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Superstructure parameter | 1. main used in Advertising display Show, special devices: generator sets, projectors, computers, LED screen, two waterproof speaker, one side P8 lifting Led screen area: 6.8m2, another side is rolling type, rear Led screen area: 1.8m2 or 2.56m2 | ||
2. Thickness 5cm Composite steel box body, outside cold rolled steel sheet, inside aluminum alloy plate floor, wood floor or high-grade floor leather | |||
3. Four hydraulic legs, preciseness unilateral lifting-up LED screen, Electromechanical integration control | |||
4.Circulating ventilation cooling system | |||
5.Safe-intelligent inner and outer power distribution switch net system | |||
6.High-performance silent diesel generator unit 17KW | |||
7.Computer intelligent switch 2-7 pair pictures and lamp | |||
8. Full waterproof highlight P8 fullcolor car LED screen | |||
9. Gigabit streaming media control system | |||
Warranty | 12 months, from the date of supply |
Multi-faceted show of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
BJ1049V8ADA-1 | BJ493ZLQ3 | 5995×2000×2860 | 2720*1760 | 4.8 | 2.56 |
BJ1046V9JB5-H1 | 4A1-68C40 | 5130×1900×2750 | 2800*1600 | 4.6 | 2.56 |
ZZ1047C3414D145 | 4B2-95C40 | 5995×2025×2995 | 3840*1760 | 6.8 | 2.6 |
BJ1043V9JEA-A | 4B2-95C40 | 5995×2025×2990 | 3840*1760 | 6.8 | 2.6 |
HFC1041K7T | 4D25F | 5995×2030×2900 | 3840*1760 | 6.8 | 2.6 |
BJ1049V9PD6-FE | ISF2.8s4129T | 5995×2000×2860 | 3520*1760 | 6.8 | 2.56 |
BJ1049V9PD6-FE | CY4102-CE4F | 5995×2000×2900 | 3840*1760 | 6.8 | 2.56 |
BJ1089VDPFG-SD | YC4E140-31 | 7970×2190×3730 | 4800*2240 | 10.8 | 2.56 |
Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard | |||||
Module | Pitch/mm | P10 | P16 | P20 | P25 |
Module size/mm | 160x160 | 128x256 | 320x160 | 200x200 | |
Density of pixel/(dots/m2) | 10,000 | 3,906 | 2,500 | 1,600 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | DIP | DIP | DIP | DIP | |
Resolution of module | 16X16 | 32X16 | 32X16 | 8X8 | |
Main | Optimum viewing distance | ≥10 | ≥15 | ≥17 | ≥23 |
View angle / ° | 110 H,60 V | 110 H,60 V | 110 H,60 V | 110 H,60 V | |
Average power consumption/W/M2 | 300 | 300 | 350 | 400 | |
Max power consumption/W/M2 | 750 | 600 | 850 | 650 | |
Size of cabinet/mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
Resolution of cabinet | 96X96 | 64x48 | 64X48 | 40X40 | |
Weight of cabinet/kg | 58 | 60 | 65 | 80 | |
Driving method | 1/4 scan constant current | Static constant current | Static constant current | Static constant current | |
Frame frequency / Hz/S | ≥60 | ≥60 | ≥60 | ≥60 | |
Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 | |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥5500 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
IP rating | IP65 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | >50,00h | ||||
Life span | >100,000h | ||||
Functionaless dot rate | <0.0001 |
4. MOQ:1PCPrice: FOB/DAF/CNF/CIF
