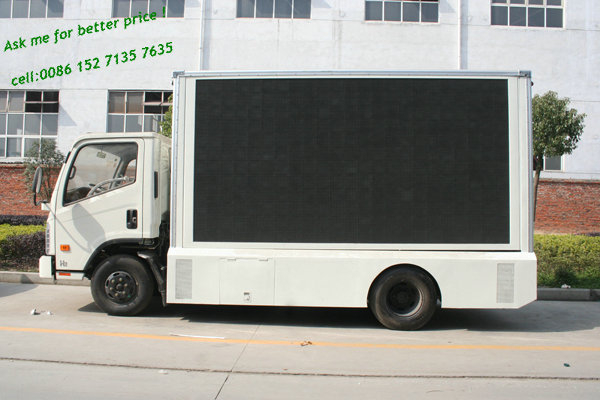

Foton Led Stage Truck(6.2 M2) Beijing Foton Cummins Engine

Foton Led Stage Truck(6.2 M2) Beijing Foton Cummins Engine

 publicize truck Customization Foton led stage truck(6.2 m2) Beijing Foton Cummins Engine disseminate truck, LED advertise truck, mobile stage truck, mobile stage truck for sale, propagate truck,advertise truck, publicize truck, Stage truck



          Factory Customization!   Cost  Control ! Built How You Want it ! at a Price You Can Afford !




          Online   call me Call me!Tom   LinkedIn Facebook Blogger   Cell: +861527135767


LED Trucks  -32- HINO

  publicize truck Customization Foton  LED stage truck show mobile stage truck


 Foton 4*2  mobile stage truck for sale

       Classification        Item        Unit        Parameter
       Vehicle        Vehicle model                Foton led advertising truck
       Manufacturer                TIC
       Overall dimensions        mm        5995×2000×2860
       Curb weight        kg        4360
       Traction system                4×2
       Max speed        km/h        110
       Chassis        Chassis model                BJ1049V9PD6-FE
       Manufacturer                Beiqi Foton Motor Co., Ltd.
       Number of axles                2
       Wheel base        mm        3360
       Tire specification                6.50-16,6.50R16
       Number of tires                6+1 spare
       F/R track base        mm        1530/1485
       Engine        Engine model
       Manufacturer                Beijing Foton Cummins Engine Co., Ltd
       Fuel type                diesel
       Power        kw        96
       Engine horse power        hp        130
       Displacement        ml
       emission standard                Euro IV
       Driver’s cab        Brand                FOTON
       Model                Flat head,single row with 1 bunk
       Allowable seats                3
       Steering                Left hand drive
       Transmission                5-speed with over drive
       Operation control system                Electrically hydraulic control
       Opition                Air-conditioner,air deflector
         1> One side LED full color screen, the other side advertising light box with subtitle
         2> 5cm Composite steel box body, outside cold rolled steel sheet, inside aluminum alloy plate floor,wood floor or high-grade floor leather
         3> 4 hydraulic legs,preciseness unilateral lifting-up LED screen, Electromechanical integration control
         4> Circulating ventilation cooling system
         5> Safe-intelligent inner and outer power distribution switch net system
         6> High-performance silent diesel generator unit
         7> Computer intelligent switch 2-7 pair pictures and lamp
         8> Full waterproof highlight P10 truecolor car LED screen
         9> Gigabit streaming media control system
         Pls contact us directly as it depends on your requirements.WhatsApp :8615271357675 Skype: tomsongking

  Bottom price Best-Selling chinese advertising truck led billboard


   Product Description

     Specifications of chinese advertising truck led billboard:





         Vehicle main dimension


         Overall dimension(LxWxH)mm




         Chassis model




         wheel base(mm)




         wheel track(front/rear)(mm)




         Approach/Departure angle




         Weight in KGS






         Curb weight




         Rear axles loading capacity




         Max driving speed(km/h)








         Dongfeng Cummins










         Emission standard


         Europe II






         Drive system










         One spare tyre,power steering ,120L oil tanker






         LED screen square meter




         Box module




         Display scale




         Screen resolution




         right side is LED screen , left side is light box ,




         OUMA,High-performance silent diesel


         5CM composite steel cabinet, external cold rolled steel, aluminum interior, wooden floor, four hydraulic legs, unilateral display can be lifted by 1.5M with slideway ,legs and lifting are key control,cyliic ventilation and cooling systems, intelligent power distribution switching systems,computer auxiliary lamp only 2-7 painting switching. Send a Taiwan high with industrial computer, 2 waterproof speakers, a broadcast amplifier, one control station
