Mobile LED Trailer Series
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ1058TC
-
Dong run ze
-
8716400000

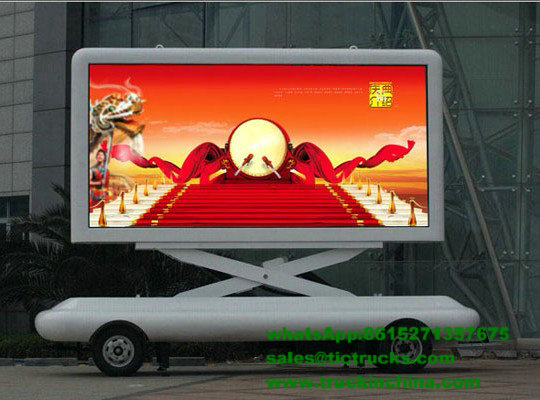

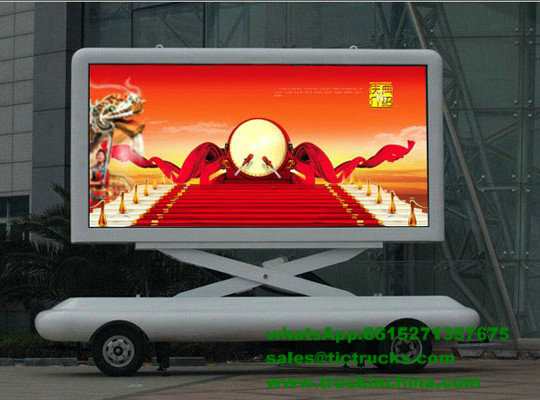

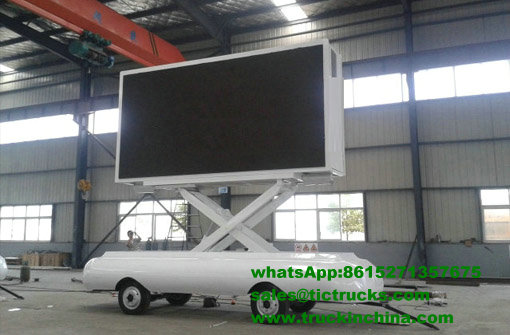

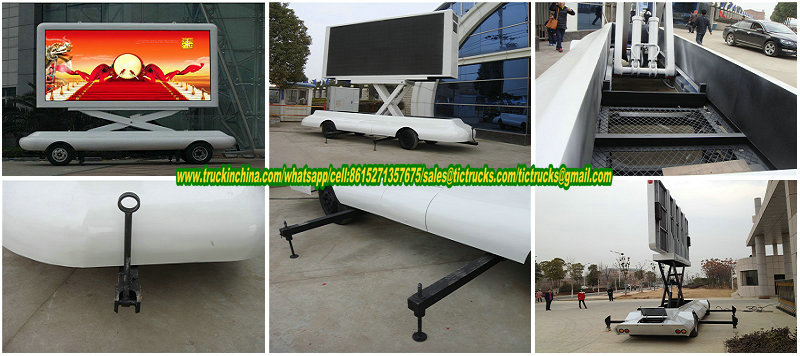

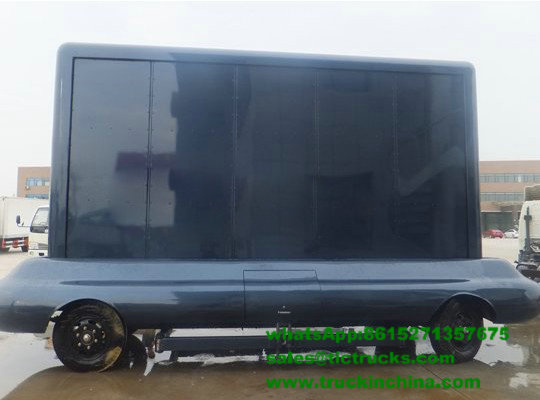

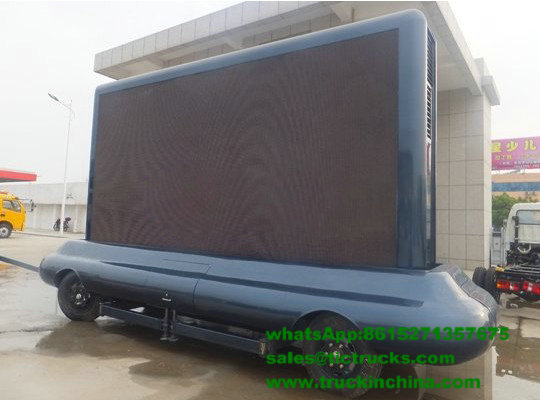

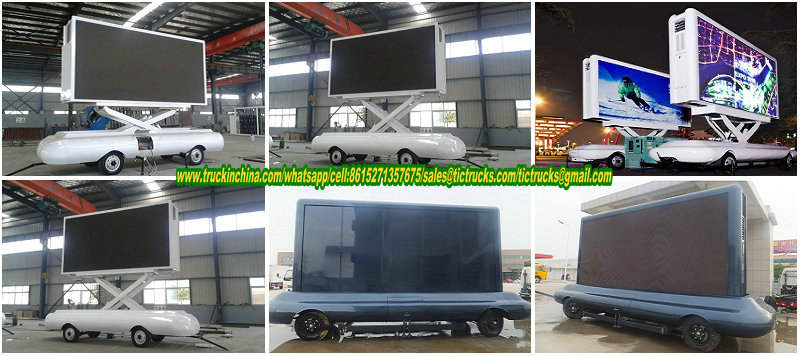

P10 mobile led display trailer
LED trailer standard configuration parameters | ||||
Device name | Specifications | No. | Configuration | |
Display | Main screen | 4800mm*2400mm P10 Outdoor full color display screen | 1 | Standard |
Master Part | Computer | (IPC) LCD display | 1 | Standard |
Display controller | LD66 | 1 | Standard | |
Power amplifier | High power amplifier | 1 | Standard | |
Speakers | Waterproof column speaker | 3 | Standard | |
Standard power distribution Cabinet | 1 | Standard | ||
Lift System | Home screen lift | Two Hydraulic lift hosts | 1 | Standard |
Stability system | 4 Semi-automatic screw chiller | 1 | Standard | |
Power Part | Product name | LD- | 1 | Standard |
Product model | LDJN1058TC | |||
Chassis model | LD825-16 | |||
Car dimensions | 6500mm*1800mm*3700mm 7000*2500*3500/6400×2000×4000mm | |||
led advertising (P10), full color, high brightness, stable performance, impact resistance.
the picture three-dimensional lifelike, clear and dynamic, and equipped with the light control system, can be based on the outdoor lighting control screen brightness, mobile convenience, can change location, change information at any time, no need to install or dis assembly process. It can complete multiple forms, multi-directional, various types of information dissemination. It equipped with a TV receiver card, can receive cable or wireless STB TV signal. Wide visual range, audio-visual shock strength, dissemination effect is obvious. the actual size of the display: (P10) 4800x2400mm .total weight: 5500Kg
Horizontal perspectives: 110 (± 55) degree vertical angle: 50 (± 25) degree
Min Visual Distance: 5m Lifting Range: 400mm-2000mm
Led Advertising , using trailer chassis walking-carrier, structural stability, and nimble. Equipped with professional audio, TV card, use can be set more than 20 square meters of the stage in the front, can realize local conferences, teleconferencing, local products, Kara OK and other activities, and live event activities, outdoor activities, Roadshow. |
Product advantages |
① shape smooth lines, attractive appearance; paint according to user requirements (Users can customize colors and ad) |
Optional screen list Video led screen outdoor design
Specification | PH8 | PH10 | PH12 | PH16 | PH20 | PH25 |
Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 2R1G1B |
Density of pixel | 1/4 scan | 1/4 scan | 1/4 scan | Static | Static | Static |
Module Resolution | 32*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*8(W*H) | 16*8(W*H) | 8*8(W*H) |
Pixel density | 15625 | 10000 | 6400 | 3906 | 2500 | 1600 |
Pixel Pitch | 8mm | 10mm | 12mm | 16mm | 20mm | 25mm |
Best Viewing Distance | 6~12m | 8~15m | 10~20m | 12~24mm | 16~30mm | 20~40m |
Working Voltage | AC220/110 ± 10%, 47~63Hz | |||||
Waterproof Rate | IP65 | |||||
Maxim Power | ≤780W | |||||
Average Power | ≤450W | |||||
Viewing Angle | Horizontal:≥ 120° Vertical:≥60° | |||||
Brightness | ≥8000 nits | |||||
Working Temperature | -20ºC to +60ºC | |||||
Operating humidity | 20% to 90% | |||||
Lifespan (50% Brightness) | 100,000 hours | |||||
Technical parameters | |||
Dimensions (mm): | 6500mm*1800mm*3700mm | Platform size (mm): | 3200x750x400mm |
Total mass (kg): | 5600 | Loading capacity (kg): | 5000 |
Bodywork: | Front + rear | Brake: | Front wheel brakes, brake lights |
Body material: | 1.5mm plate | Front/rear suspension (mm): | 1100/1420,1100/1540 |
Number of tires: | 4 | Wheelbase (mm): | 3000,3200,3600 |
Tire size: | 750-16 | Axle load: | 1575/2570 |
Axis: | 2 | Front track (mm): | 1345,1385,1415 |
Turning diameter (mm): | ≤12000mm | Rear track (mm): | 1240,1340,1280 |
Detailed configuration instructions | |||
Device Name | Specifications | Number | |
Master section: | Computer | I4 with high Industrial computer | 1 |
Amplifier machine | Yvette broadcast | 1 | |
Stereo | Wan shengda waterproof column speaker | 4 | |
Power distribution Cabinet | Waterproof and flame retardant power distribution Cabinet | 1 | |
Lift system: | Home screen lift | Two Hydraulic lift hosts | 1 |
Stability system | Semi-automatic screw-type host 4 | 1 | |
Display (optional) | Strong P10 outdoor HD color | 4800mm*2400mm | 11.52 sq m |
Strong P8 outdoor HD color | 4608mm*2304mm | 10.62 square meters | |
Strong P10 outdoor HD color | 4800mm*3200mm | 15.36 square meters | |
Strong P6 outdoor HD color | 4608mm*2304mm | 10.62 square meters | |
P10 mobile led display trailer
LED trailer standard configuration parameters | ||||
Device name | Specifications | No. | Configuration | |
Display | Main screen | 4800mm*2400mm P10 Outdoor full color display screen | 1 | Standard |
Master Part | Computer | (IPC) LCD display | 1 | Standard |
Display controller | LD66 | 1 | Standard | |
Power amplifier | High power amplifier | 1 | Standard | |
Speakers | Waterproof column speaker | 3 | Standard | |
Standard power distribution Cabinet | 1 | Standard | ||
Lift System | Home screen lift | Two Hydraulic lift hosts | 1 | Standard |
Stability system | 4 Semi-automatic screw chiller | 1 | Standard | |
Power Part | Product name | LD- | 1 | Standard |
Product model | LDJN1058TC | |||
Chassis model | LD825-16 | |||
Car dimensions | 6500mm*1800mm*3700mm 7000*2500*3500/6400×2000×4000mm | |||
led advertising (P10), full color, high brightness, stable performance, impact resistance.
the picture three-dimensional lifelike, clear and dynamic, and equipped with the light control system, can be based on the outdoor lighting control screen brightness, mobile convenience, can change location, change information at any time, no need to install or dis assembly process. It can complete multiple forms, multi-directional, various types of information dissemination. It equipped with a TV receiver card, can receive cable or wireless STB TV signal. Wide visual range, audio-visual shock strength, dissemination effect is obvious. the actual size of the display: (P10) 4800x2400mm .total weight: 5500Kg
Horizontal perspectives: 110 (± 55) degree vertical angle: 50 (± 25) degree
Min Visual Distance: 5m Lifting Range: 400mm-2000mm
Led Advertising , using trailer chassis walking-carrier, structural stability, and nimble. Equipped with professional audio, TV card, use can be set more than 20 square meters of the stage in the front, can realize local conferences, teleconferencing, local products, Kara OK and other activities, and live event activities, outdoor activities, Roadshow. |
Product advantages |
① shape smooth lines, attractive appearance; paint according to user requirements (Users can customize colors and ad) |
Optional screen list Video led screen outdoor design
Specification | PH8 | PH10 | PH12 | PH16 | PH20 | PH25 |
Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 2R1G1B |
Density of pixel | 1/4 scan | 1/4 scan | 1/4 scan | Static | Static | Static |
Module Resolution | 32*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*8(W*H) | 16*8(W*H) | 8*8(W*H) |
Pixel density | 15625 | 10000 | 6400 | 3906 | 2500 | 1600 |
Pixel Pitch | 8mm | 10mm | 12mm | 16mm | 20mm | 25mm |
Best Viewing Distance | 6~12m | 8~15m | 10~20m | 12~24mm | 16~30mm | 20~40m |
Working Voltage | AC220/110 ± 10%, 47~63Hz | |||||
Waterproof Rate | IP65 | |||||
Maxim Power | ≤780W | |||||
Average Power | ≤450W | |||||
Viewing Angle | Horizontal:≥ 120° Vertical:≥60° | |||||
Brightness | ≥8000 nits | |||||
Working Temperature | -20ºC to +60ºC | |||||
Operating humidity | 20% to 90% | |||||
Lifespan (50% Brightness) | 100,000 hours | |||||
Technical parameters | |||
Dimensions (mm): | 6500mm*1800mm*3700mm | Platform size (mm): | 3200x750x400mm |
Total mass (kg): | 5600 | Loading capacity (kg): | 5000 |
Bodywork: | Front + rear | Brake: | Front wheel brakes, brake lights |
Body material: | 1.5mm plate | Front/rear suspension (mm): | 1100/1420,1100/1540 |
Number of tires: | 4 | Wheelbase (mm): | 3000,3200,3600 |
Tire size: | 750-16 | Axle load: | 1575/2570 |
Axis: | 2 | Front track (mm): | 1345,1385,1415 |
Turning diameter (mm): | ≤12000mm | Rear track (mm): | 1240,1340,1280 |
Detailed configuration instructions | |||
Device Name | Specifications | Number | |
Master section: | Computer | I4 with high Industrial computer | 1 |
Amplifier machine | Yvette broadcast | 1 | |
Stereo | Wan shengda waterproof column speaker | 4 | |
Power distribution Cabinet | Waterproof and flame retardant power distribution Cabinet | 1 | |
Lift system: | Home screen lift | Two Hydraulic lift hosts | 1 |
Stability system | Semi-automatic screw-type host 4 | 1 | |
Display (optional) | Strong P10 outdoor HD color | 4800mm*2400mm | 11.52 sq m |
Strong P8 outdoor HD color | 4608mm*2304mm | 10.62 square meters | |
Strong P10 outdoor HD color | 4800mm*3200mm | 15.36 square meters | |
Strong P6 outdoor HD color | 4608mm*2304mm | 10.62 square meters | |
