DRZ5080TXFXC08
-
DRZ
-
8705909990

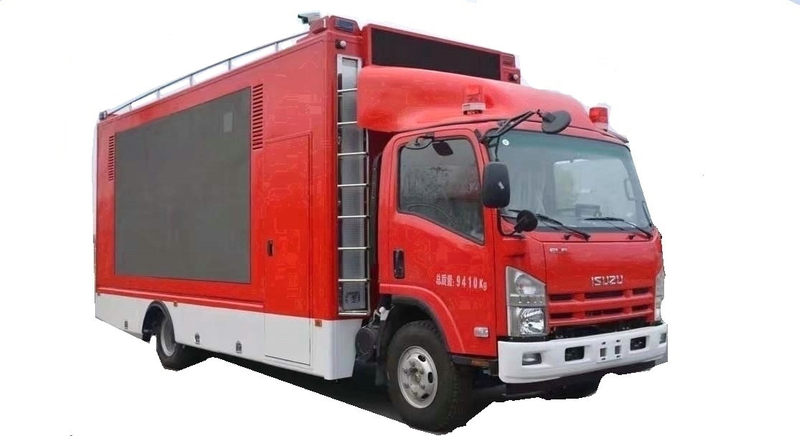

ISUZU Fire AD Propaganda LED Truck
Fire protection publicity vehicle, fire protection spread education, AR system.
Outdoor LED screen advertising mobile truck,Fire propaganda and education vehicle
Video playback system.
The P6 LED full color, size 3840 mm * 1920 mm, with 17 inch car monitor, industrial control machine (8 g memory, hard disk 1000 g, keyboard mouse, U disk), video synchronous control system, the 360 w power amplifier, wireless microphone, vehicle-mounted high quality audio * 2 sets can play at the beginning of the typical cases of storage, fire prevention, fire fighting and rescue, to escape, such as fire control propaganda video, cooperate to use simulated fire drill education system.
4.2. Simulated alarm experience system.
Fire control knowledge integrated multimedia system, including software: fire case query, laws and regulations inquiry, simulated 119 fire alarm, fire small game, fire control knowledge quiz, can achieve a machine.
System parameters: touch screen computer (32-inch touchscreen all-in-one)
Windows 7 32-bit flagship quad-core processor.
4G memory 60G solid-state drive.
Hd camera
Explosion-proof telephone
Intelligent voice box
4.3 simulation of fire-fighting demonstration system.
Equipped with simulated fire bottle of four, the use of car LED, 3 d scene simulation of four kinds of common fire, according to the characteristics of the scene, setting the scene of the different types of fire simulation, and provides four simulated fire extinguisher is choice, selection and use of fire extinguisher guidance in the process of choosing. System for the dosage of the fire and the type of fire extinguishers, fire extinguisher and use time, the judgement of the fire and other data on the complete simulation, exercise person by simulating extinguishing system for practical operation experience, can learn and master the correct selection and use of fire extinguishers.
4.4 simulation demonstration system of building fire control facilities.
Set up building fire control facilities and structure section, using the 3 d architectural animation, and lighting process demonstration method to explain the composition of building fire control facilities and capabilities, and set the fire alarm linkage module, used to have the experience to understand the building automatic fire alarm linkage system working principle and method of use.
System parameters: architectural scene model.
Integrated central controller module.
Linkage demonstration module
Synchronize the display screen.
Fire linkage facility synchronization demonstration system.
4.5 fire escape education drilling system.
This system installed in the upper carriage floor knotting escape, and is equipped with fence, prevent slippery pattern plate, let participants experience in two or three storeys in case a fire occurs in a building, how to reasonable use of the surrounding environment, let his escape from the fire as soon as possible.
System parameters: folding floor rope escape rack.
Inside the gym
Roof fence.
The roof skid plate.
Cushion cover
Escape.
4.6. Demonstration system for the cause of electrical fire.
Common faults in the operation of the system is to use electrical appliances cause fires based on the situation of physical experiments, demonstration experiment wire by fever, softening, smoking, combustion and short circuit, real effect, can better explain the reason of the electrical fires and consequences. It mainly reminds people to use electricity and electric appliances correctly.
4.7 electrical fire cause demonstration system.
Common faults in the operation of the system is to use electrical appliances cause fires based on the situation of physical experiments, demonstration experiment wire by fever, softening, smoking, combustion and short circuit, real effect, can better explain the reason of the electrical fires and consequences. It mainly reminds people to use electricity and electric appliances correctly.
4.8. LED display system.
In the front of the car, the P10 single red strip screen is installed, which is mainly used to scroll the theme of each promotional activity and the language of fire protection propaganda.
4.9 power supply assurance and control system.
An 8.5kVA silent generator set is installed to ensure the electric power of the whole vehicle, which can be removed from the body in an external structure to facilitate heat dissipation and maintenance. Equipped with external power supply interface and 220V mobile wire disk, convenient for the use of municipal power. Equipped with power centralized control box, make the whole vehicle electrical equipment operation safer, more convenient, more human. The generator can be pulled.
ISUZU fire promotion education vehicle commercial vehicle,
Chassis No. : QL1100A8MAY
Drive type: 4 x 2.
Maximum speed: 110km/h.
Fuel type: diesel.
Emissions EURO Ⅴ
Steering: steering wheel.
Total mass: 10000kg.
Overall quality: 3210kg.
Axial distance: 4475 mm
Work rate: 141 kw
Engine model: 4hk1-tc51.
Optional installation or replacement of other modules:
1. Fire identification system terminal xf-22pa.
Industrial control board i5,4G, 64G solid-state LCD screen, 22-inch LCD touch screen, including power system and speaker system.
2. Fire identification system terminal xf-32pa.
15 identification light boxes, light box control system, industrial control motherboard i5,4G, 64G solid-state LCD screen, 22-inch LCD touch screen, including power system and speaker system.
3. Fire hazard troubleshooting game terminal.
Industrial control board i5,4G, 64G solid-state LCD screen, 19-inch LCD touch screen, wireless game controller including power system and speaker system.
4. Electric control fire fighting equipment and equipment display.
G-kong motherboard i5, 4 g, 64 g solid-state disk/LCD screen: 32 inch LCD/touch screen/heat detector, smoke detector, fire hydrant wrench, emergency lighting, sound and light alarm, manual alarm button, fire telephone, fire hose, automatic sprinkler, open nozzle, fire hydrant interface, and the fire extinguishers/wireless keyboard/light green/power system
5. Kitchen fire safety demonstration experience system.
Onboard motherboard i5,4G,64G solid disk/LCD screen: 32-inch LCD /32 touch screen/fire cooker, kettle, wok, pan cover, gas pipe, gas tank, microwave oven, indicator light/power system /.
The horn sound
6. Fire protection popular science knowledge interactive answering game.
Vehicle-mounted motherboard i5,4G,128G solid-state disc/LCD screen: 65-inch LCD /65 touch screen /3 touch-tone buzzer (optional 3 touch screen type buzzer)/wireless keyboard/power system/speaker system.
7. Comprehensive knowledge inquiry system for fire fighting.
Industrial control board i5,2G,64G solid liquid crystal.
Screen: 32-inch LCD /32 touch screen/power.
Source system/speaker system.
8. Introduction of safety knowledge for household use of fire electricity.
Industrial control board i5,4G,64G solid-state LCD screen: 32-inch LCD /32 touch screen/wireless game controller/power system/speaker system.
