SJH5130XSS
-
Dong Run Ze
-
8705904000
-
Shanghai, China
-
1000
-
T/T, Western Union

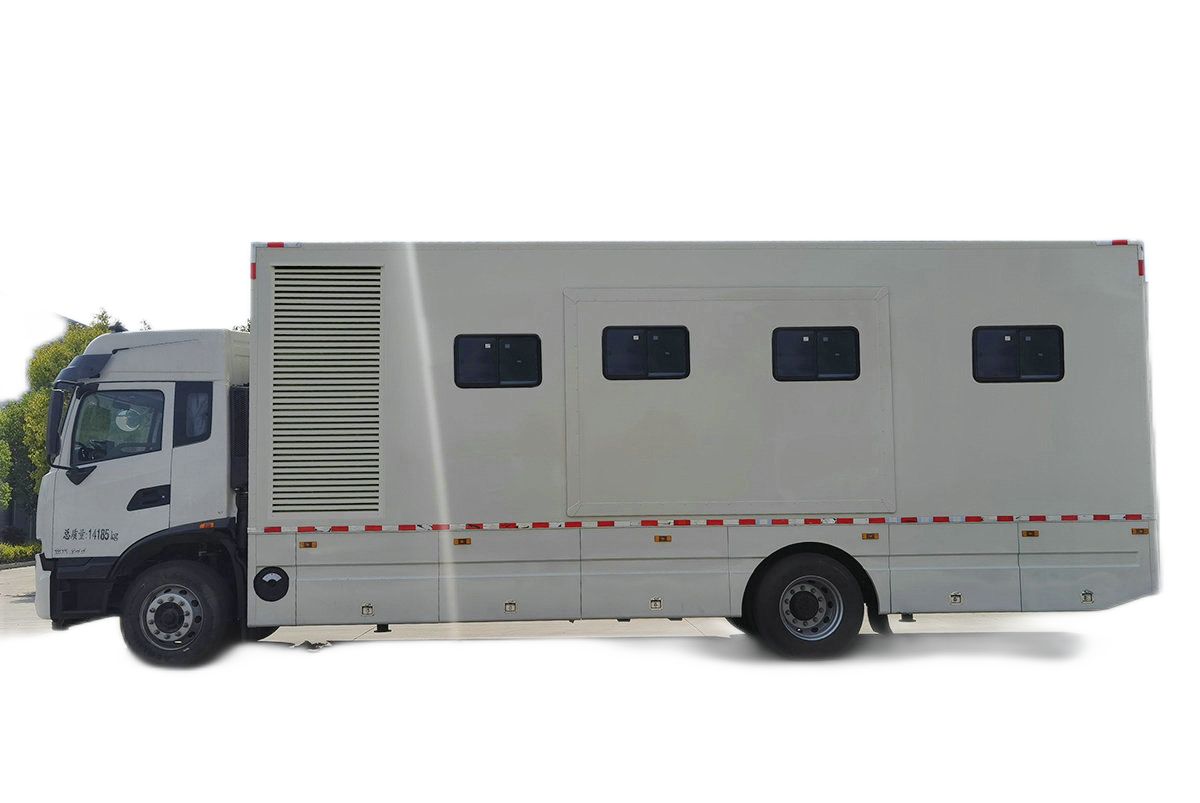

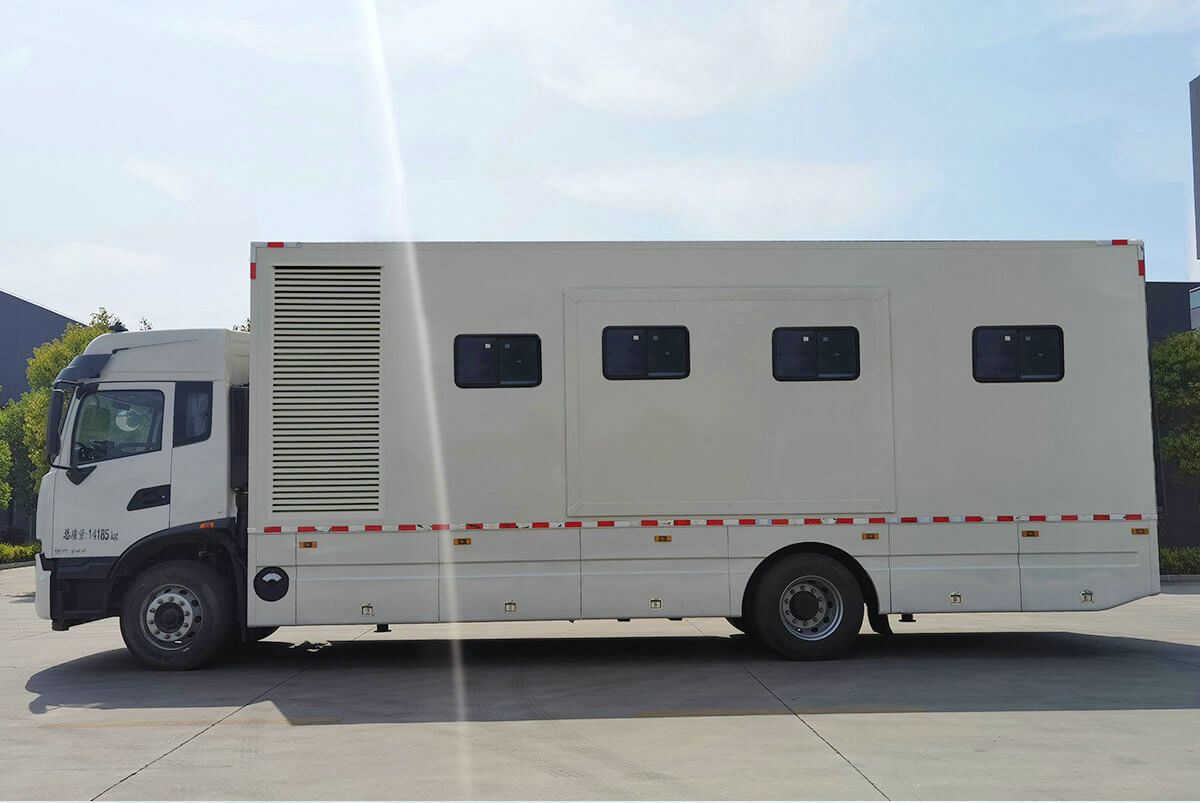

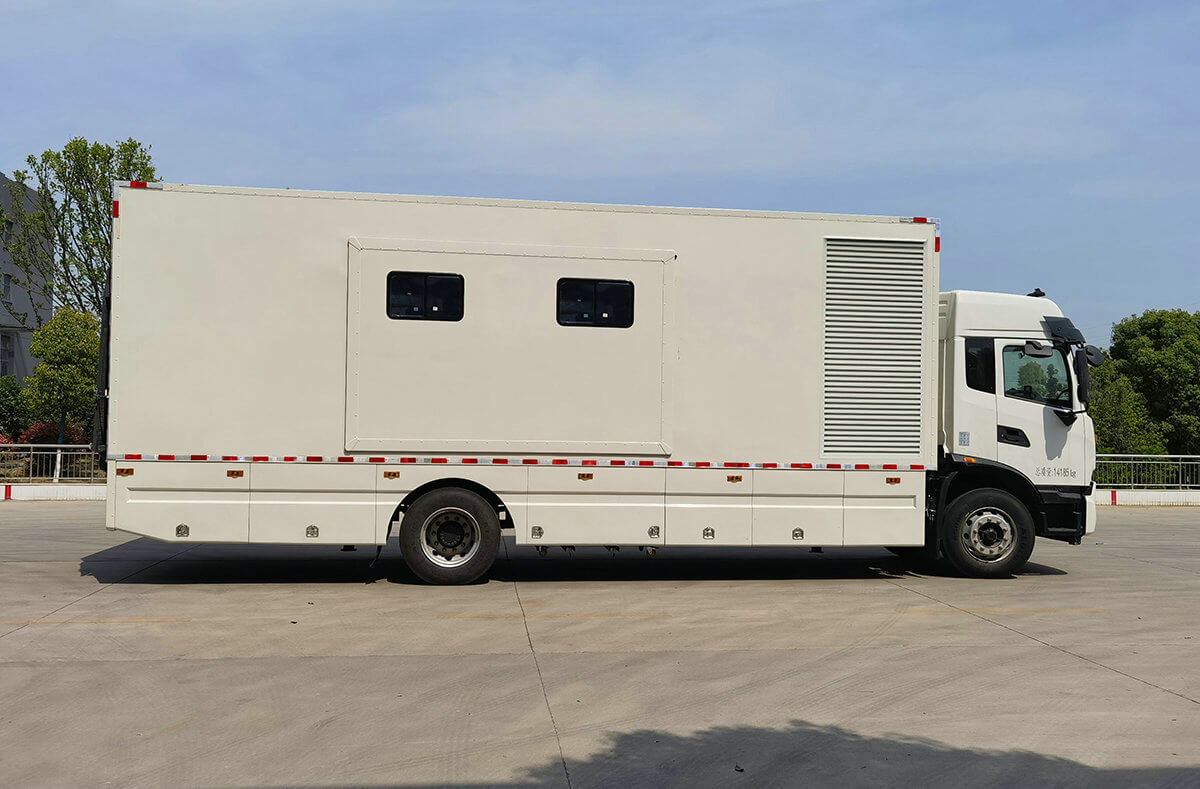

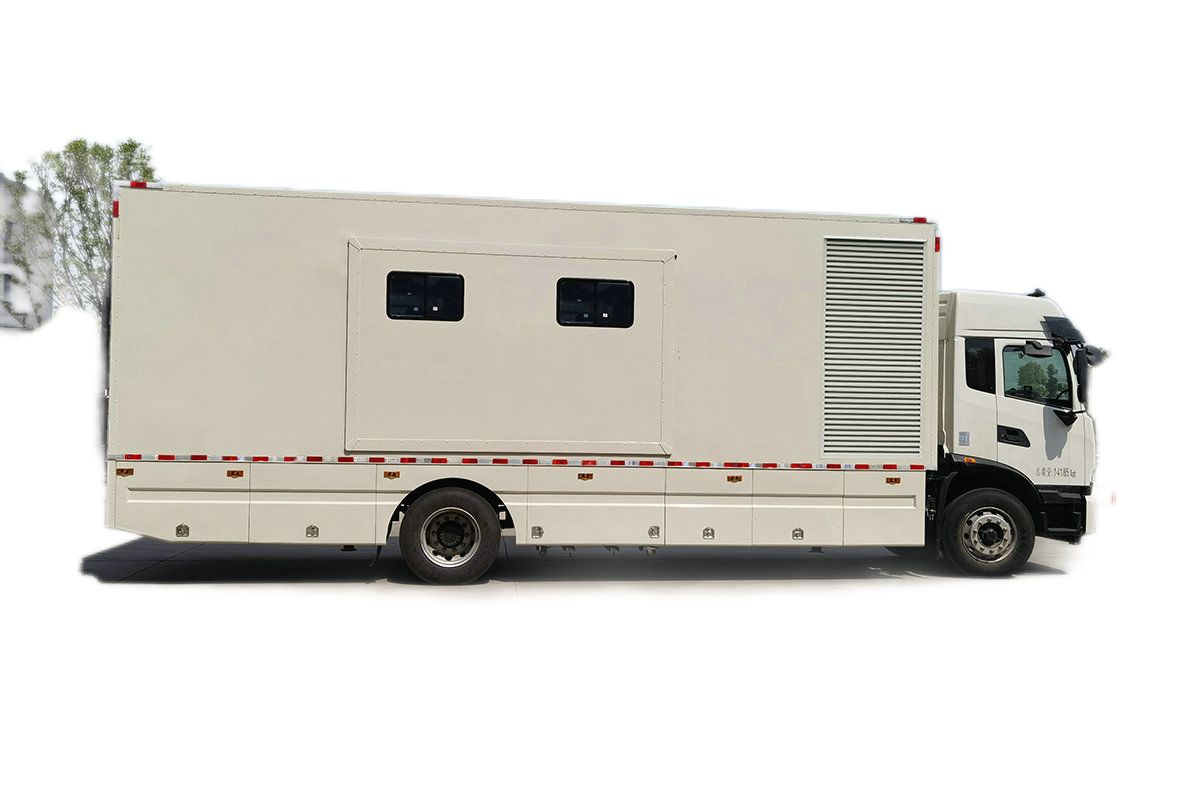

KingRun Mobile Ambulatory Surgery Operating Vehicle
Equipped with an operating bed inside the car; Surgical device; Monitor and other equipment, this vehicle is used for emergency surgery. Fix with Operating table, operating shadowless lamp and Oxygen tank

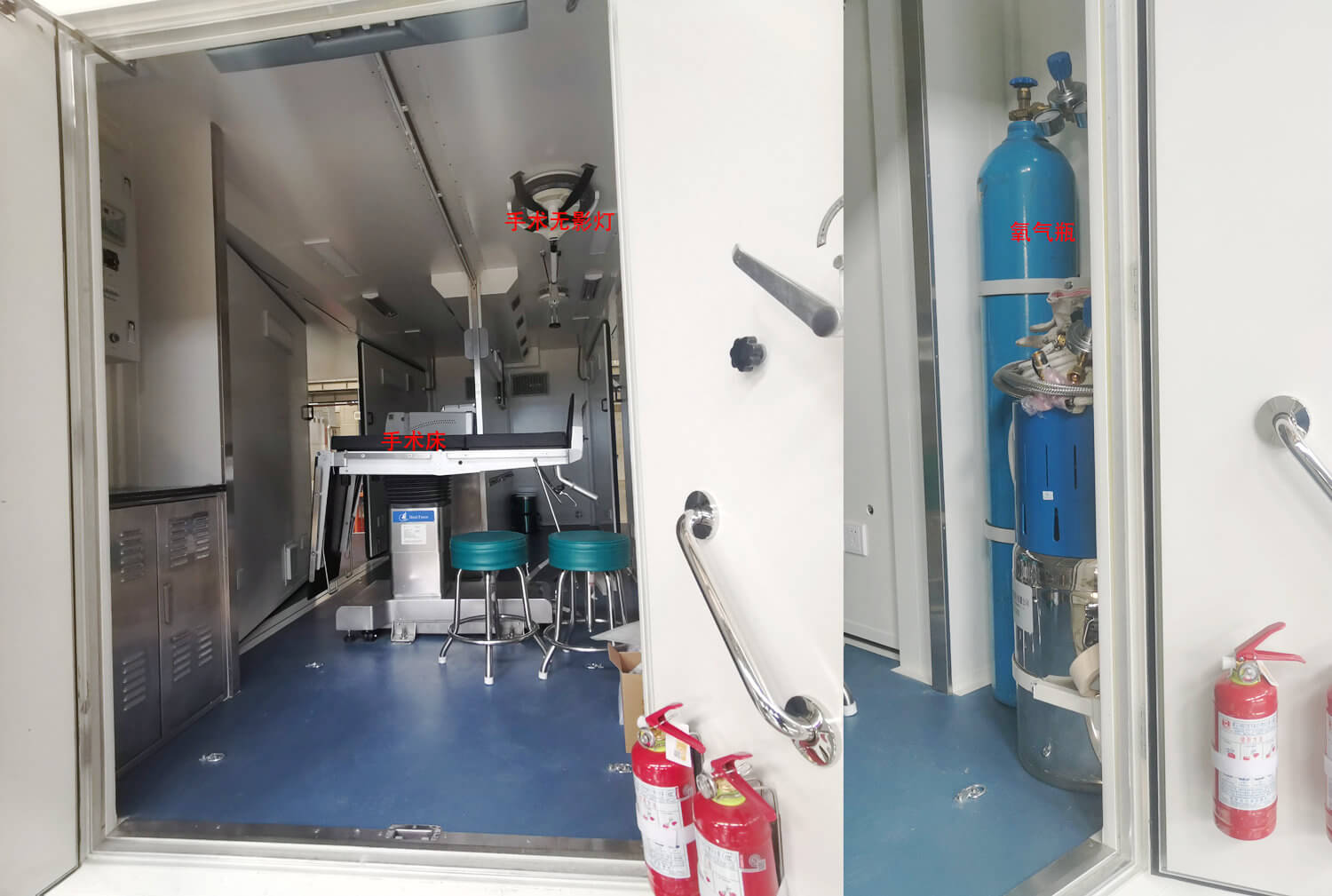

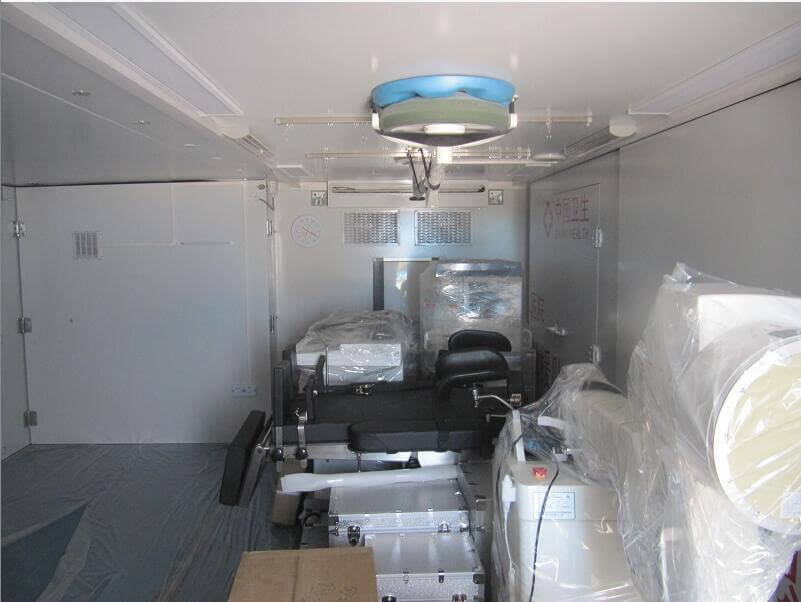

The interior space of the carriage is divided into two areas: preoperative preparation area and surgical area. The preoperative preparation area is mainly used for washing and disinfecting surgical instruments and medical personnel before and after surgery. Configure equipment and facilities such as hand washing devices, rapid steam sterilizers, instrument benches, and work cabinets. The surgical area is equipped with film viewing lights, surgical lights, anesthesia machines, and operating beds, which are the places for performing surgerie
Dongfeng Cummins D6.7NS6B230 230 HP 6.7L
Engine: | D6.7 NS6B230 | Engine brand: | Dongfeng Cummins | Series: | D6.7 Series |
Engine Manufacturer: | Dongfeng Cummins Engine Co., LTD | Number of cylinders: | 6 | Fuel Type: | Diesel oil |
Cylinder arrangement: | orthostitial | Displacement: | 6.7 L | Emission standard: | Euro 6 |
Maximum output power: | 169kW | Rated speed: | 2300rpm | Maximum horsepower: | 230 horsepower |
Maximum torque: | 900N.m | Maximum torque speed: | 900-1700rpm |
Dongfeng Cummins B6.2NS6B210 210 HP 6.2L national six diesel engine configuration parameters
Engine: | B6.2 NS6B210 | Engine brand: | Dongfeng Cummins | Series: | B6.2 Series |
Engine Manufacturer: | Dongfeng Cummins Engine Co., LTD | Number of cylinders: | 6 | Fuel Type: | Diesel oil |
Cylinder arrangement: | orthostitial | Displacement: | 6.2 L | Emission standard: | Kokuroku |
Maximum output power: | 154kW | Rated speed: | 2300rpm | Maximum horsepower: | 210 horsepower |
Maximum torque: | 850N.m | Maximum torque speed: | 1100-1700rpm | Net engine weight: | 510kg |
Main technical parameters
Overall dimensions: | 8870×2530×3600(mm) | Vehicle type: | |
Total mass: | 13000(Kg) | Net weight | 12805(Kg) |
Approach Angle/Departure Angle: | 17/11 (°) | Front/rear overhang: | 1430/2440(mm) |
Fuel Type: | Diesel oil | Emission standard: | Kokuroku |
Axle Load: | 4000/9000 | Wheelbase: | 3800395 0420 0450 0470 0500 0530 0580 0560 0510 0 (mm) |
Number of shafts: | 2 | Maximum speed: | 89(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 10.00R20 18PR,275/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 7/9 + 6, 8/10 + 8, 8, 9 + 6, 11/10 + 8, 3/10 + 8 |
Front wheel base: | 1876189 6192 0195 0191 4193 4198 0200 0181 5186 0 (mm) | Rear wheel base: | 1820186 0180 0184 0 (mm) |
Vin Vehicle Identification Code: | LGAX3A12××××××××× LGAX3B12××××××××× LGAX3C12××××××××× LGAX3A13××××××××× LGAX3B13××××××××× LGAX3C13××××××××× LGAX3A14××××××××× LGAX3B14××××××××× LGAX3C14××××××××× | ||
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D4.5 NS6B190; D6.7 NS6B230; B6.2 NS6B210; D4.0 NS6B185; DDi50E220-60; B6.2 NS6B230; DDi50E190-60; D4.0 NS6B195; D6.7 NS6B260; D4.5 NS6B220; DDi47E210-60 | Dongfeng Cummins Engine Co., LTD.; | 4500; 6700; 6200; 4000; 5000; 6200; 5000; 4000; 6700; 4500; 4750 | 140; 169; 154; 136; 162; 169; 147; 143; 191; 162; 154 |

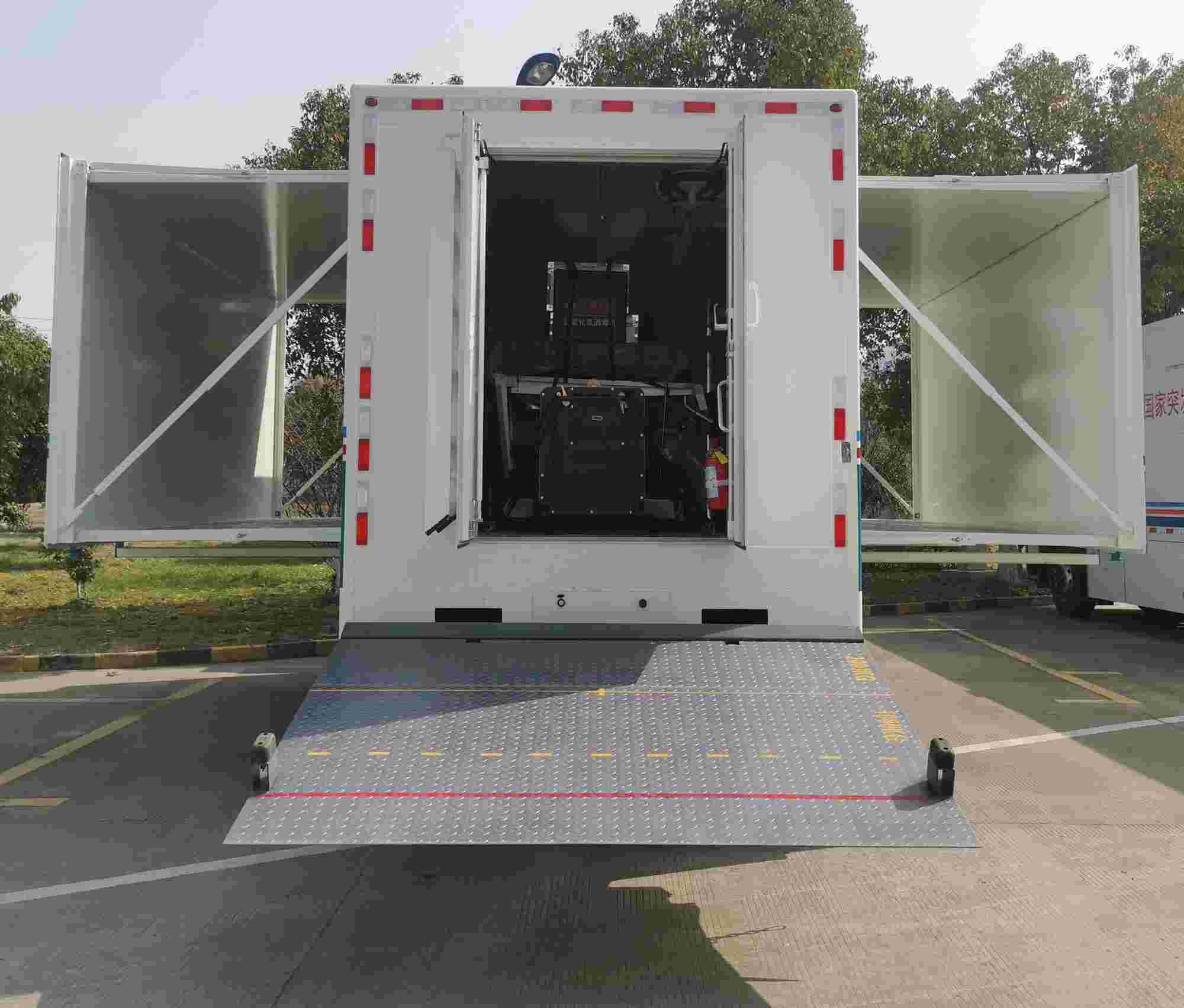

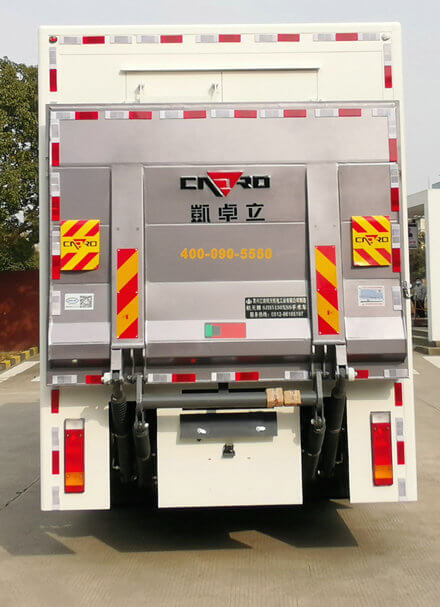

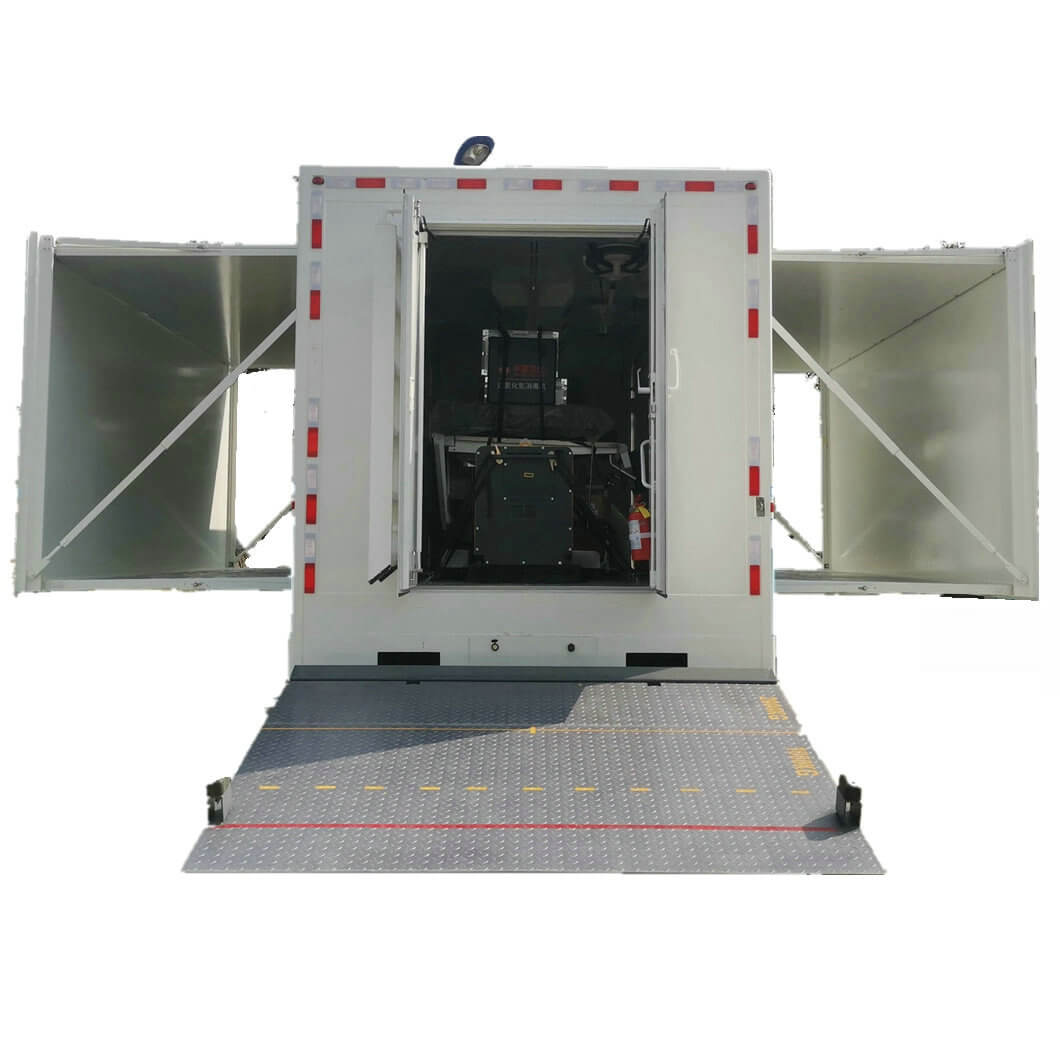

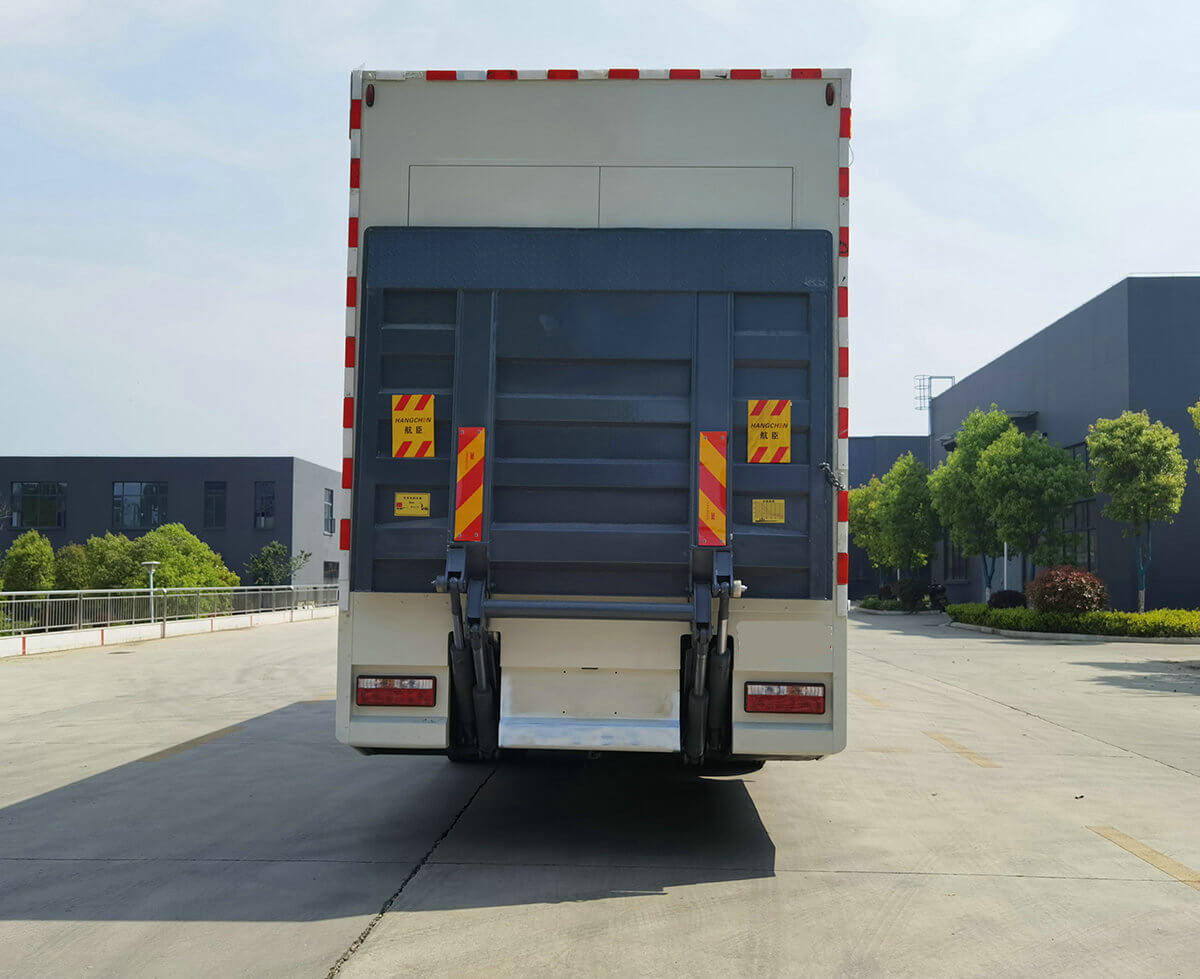

The top of the carriage is closed and cannot be opened; ABS Model :ABS 8,4460046450,3631010-C2000 corresponding ABS manufacturers: East Kokoor Commercial Vehicle Braking System (Shiyan) Co., LTD., WABCO Automotive Control System (China) Co., LTD., East Kokoor Commercial Vehicle Braking System (Shiyan) Co., LTD. A speed limiting device is installed; Speed limit (km/h):89; Equipped with hydraulic tailboard, the horizontal length of the tailboard in the state of retraction is 295mm, and the mass of the tailboard is 550kg; The vehicle only uses the following engines: engine model D6.7NS6B230, maximum net power 166KW, corresponding fuel consumption 23.7L/100km; Side and rear protection: Skirt structure is adopted for both left and right side protection, the protection material is Q235A, and the height from the ground is 400mm. The rear protection adopts skirt box structure, the protection material is Q235A, and the height off the ground is 430mm. Special functions and devices: The compartment is equipped with an operating bed, operating shadowless lamp and oxygen cylinder for routine operation. Other notes: Only 5000 wheelbase is used; Optional Part 2 Status cabin is only deployed in the parking state. | |||
