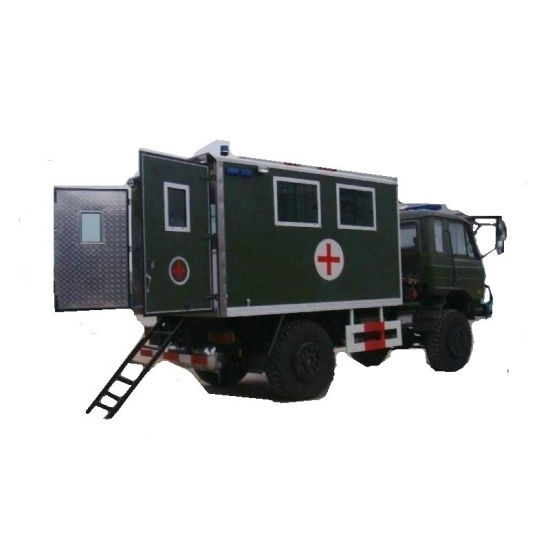

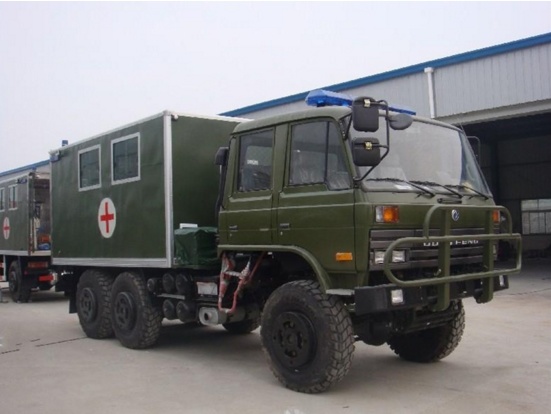

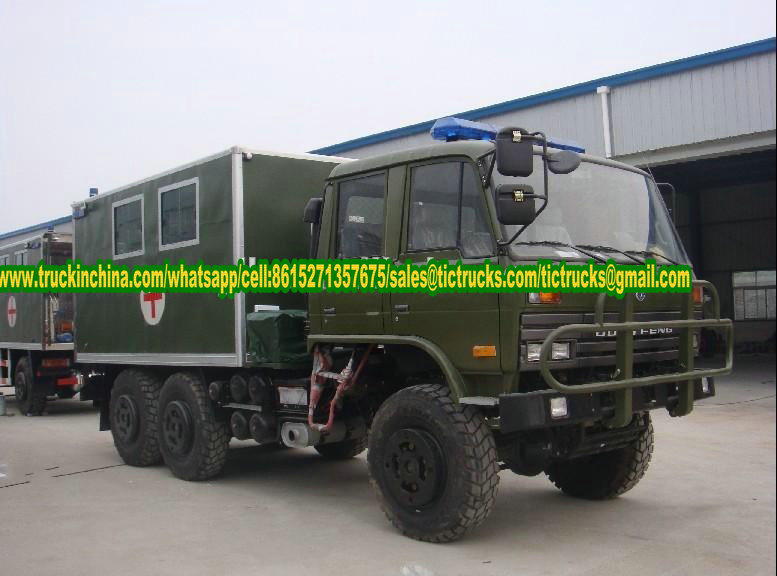

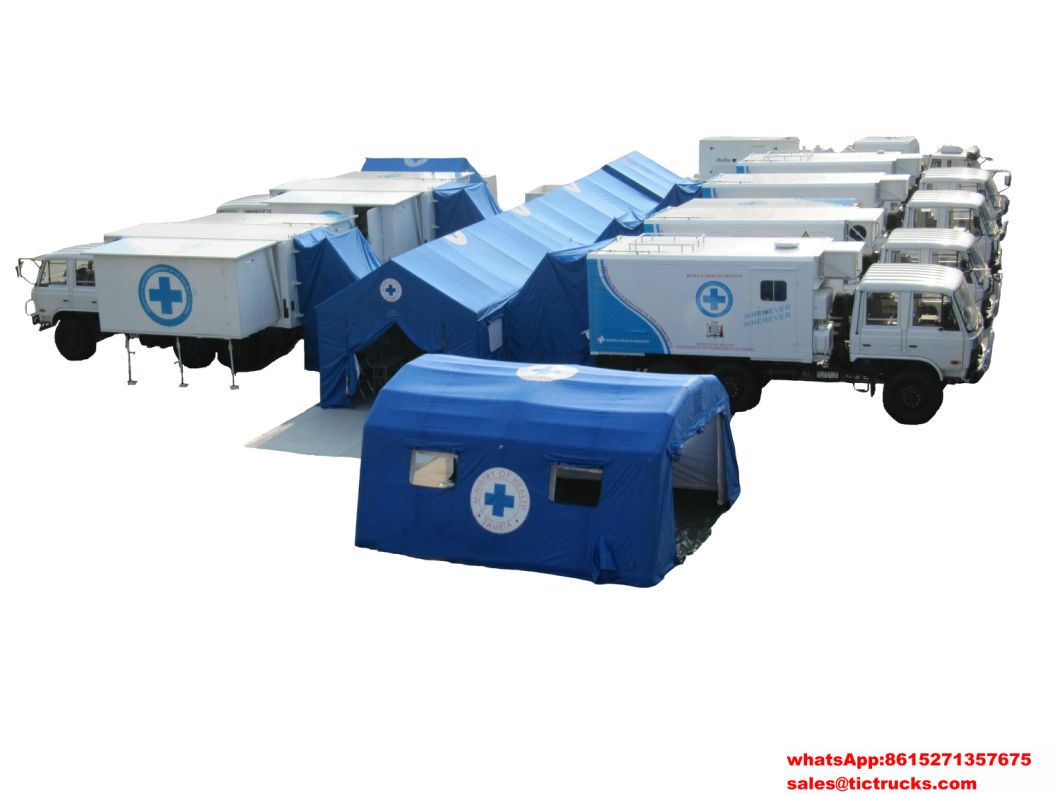

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
| Quantity: | |
|---|---|
- Shanghai, China
- 10000
- T/T, Western Union
Off Road Service Trucks

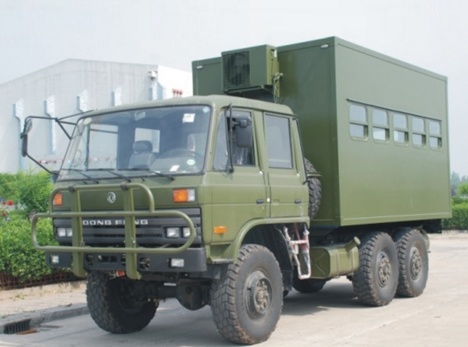

Military Troop Offroad 4x4 6x6 Mobile Camp Showers Vehicle For Satisfy 30 Soldiers Road Shower
Cell /+8615271357675
The pictures are for your reference only.
Shower Vehicle , Vehicle Mounted Showers ,Hot Camp Showers, Road Shower
6x6 / 4x4 Offorad Customizing Portable Shower, Vehicle Mounted Shower,
Dongfeng Off road All wheels Drive Hot Water Shower | Vehicle Mounted
Ambulance equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
160HP Emergency Vehicles Ambulance
Main Specs | |
Overall dimension | 6500mm * 2550mm * 3550mm |
Box overall dimension | 3545mm * 2294mm * 2480mm |
Wheelbase | 3600mm |
Max gross weight | 8510kg |
Specified load weight | 2500kg |
Cab passengers | 3 |
Engine | Cummins EQB160-33 |
Transmission | Manual 5-speed |

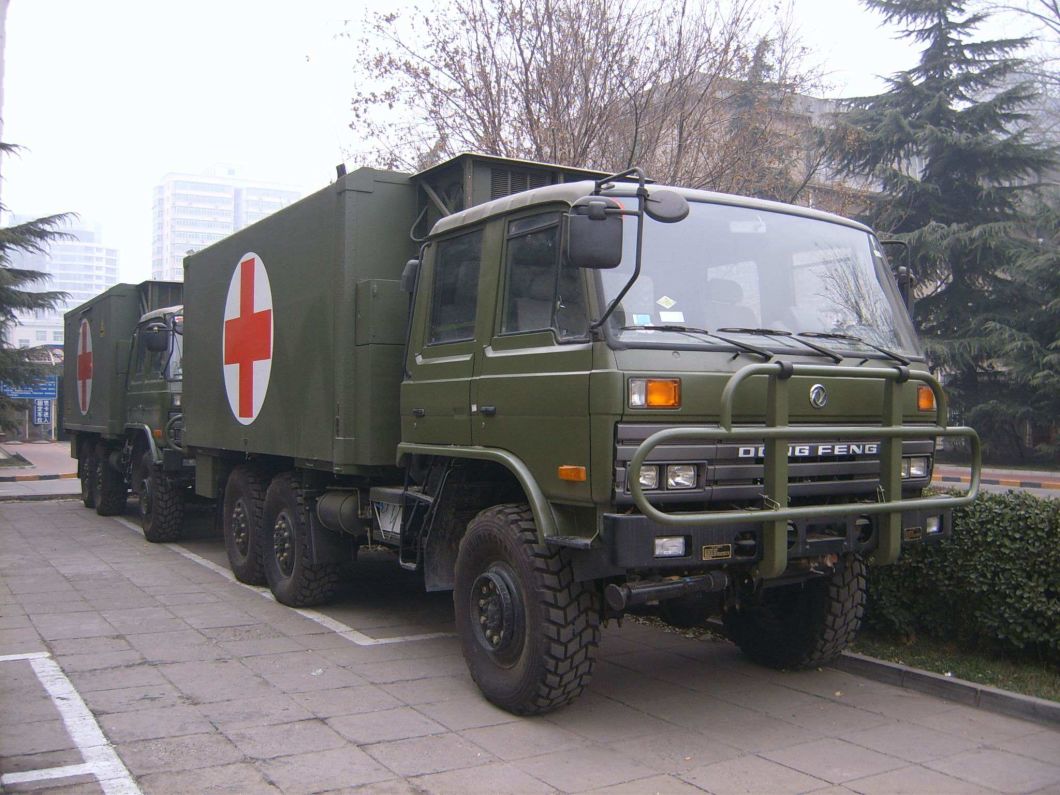

170HP 4x4 Military Ambulance / Emergency Vehicles Ambulance
Items | Descriptions | Specifications |
General | Vehicle name | Ambulance |
Driving type | 4x4 | |
The total mass(kg) | 12000 | |
Curb weight(kg) | 7195 | |
Payload weight (kg) | 5000 | |
Overall dimensions (mm) | 6500x2470x3550 | |
Cargo box size(mm) | 3545x2294x2480 | |
Engine | Fuel type | Diesel |
Engine brand | Cummins | |
Engine model | B170-33 | |
Engine power(kw) | 125 | |
Displacement(ml) | 5900 | |
Emission standard | Euro III | |
Chassis | Chassis model | EQ2090GJ |
Steering wheel | Left hand drive | |
Axle | 2 | |
Front/rear axle load(T) | 3860/4650 | |
Tire specification | 12.5R20 | |
Wheelbase (mm) | 3600 | |
Wheel tread(mm) | 1876/1870 | |
Front/rear suspension(mm) | 1408/1492 | |
Approach/departure angle | 35/33 | |
Top speed(km/h) | 90 | |
Box Equipments | 1. Emergency room non-slip floor : 1 set | |
2. Integratd interior decoration : 1 set | ||
3. Partition(fixed toughened glass windows) :1set | ||
4. Emergency room lighting: 1 set | ||
5. Medical equipment cabinet: 1 set | ||
6. Safety handrails : 1 set | ||
7. Oxygen supply system: 1 set | ||
8. Mobile self-lifting stretcher: 2 sets | ||
9. Inverter: 1 set | ||
10. External power supply: 1 set | ||
11. Ultraviolet radiation disinfector system :1 set | ||
12. Blue and white marking lights: 1 set | ||
13. Long line of warning light: 1 set | ||
14. Long line of warning light: 1 set | ||
15. Forced ventilation system : 1 set | ||
16. Doctor chair: 1 set | ||
17. Patient beds : 4 units | ||
18. Operation panel : 1 set | ||
19. Fire extinguisher: 2 sets | ||
20. Anti-collision head restrain: 1 set | ||
21. Waste can : 1 set | ||
22. Intercom system: 1 set | ||
Main Specifications For Your Reference
military vehicles accessories, EQ240 (EQ2081E), EQ245 (EQ2100E), EQ1093F6D, EQ1118G, dongfeng days kam military vehicles DFL1120GAJ, dongfeng brave warrior EQ2050 series, EQ2070, EQ2090, EQ2102, EQ2102G, EQ2102N, EQ2162, EQ2162G, EQ2162N, EQ2082E6D, EQ2100E6D, EQ5118G caravanning series, EQ6689PT EQ6670PT cross-country bus series.
Description:
To Provide Bath Protection During Field Operation, The Water From Rivers And Reservoirs That Meet The Requirements Of Use Can Be Absorbed Through The Water Purification Device.
Provide Shower Water, Or Use Municipal Pipe Network Or Other Water Supply Equipment For Water Supply.
Protect Ability: One Hour Can Satisfy 30 People To Shower.
Within The Car Equipped With: Shower Head; The Shower Pump; Automatic Oil-Burning Boiler; Diesel Generating Set; Fuel Air Heater;
Water Purification Equipment; Water Tank; Electric Control Cabinet, Etc.
Main Parameters:
Dimension: 5800 x 2,200 x 3150 Mm Or Customizing
Bath Room Size : 4100 x 2200 x 2100 Mm Or Customizing
Maximum Speed: 90 Km/h
Height Region: No More Than 2500 m;
Water Temperature: 40 ~ 45 ºC;
Fuel : Diesel Oil
