Customized Jmc Rescue Vehicle Workshop Truck with Sany Palfinger Spk6500 Crane 3.3 Ton
| Quantity: | |
|---|---|
-
Shanghai, China
-
100
-
T/T, Western Union

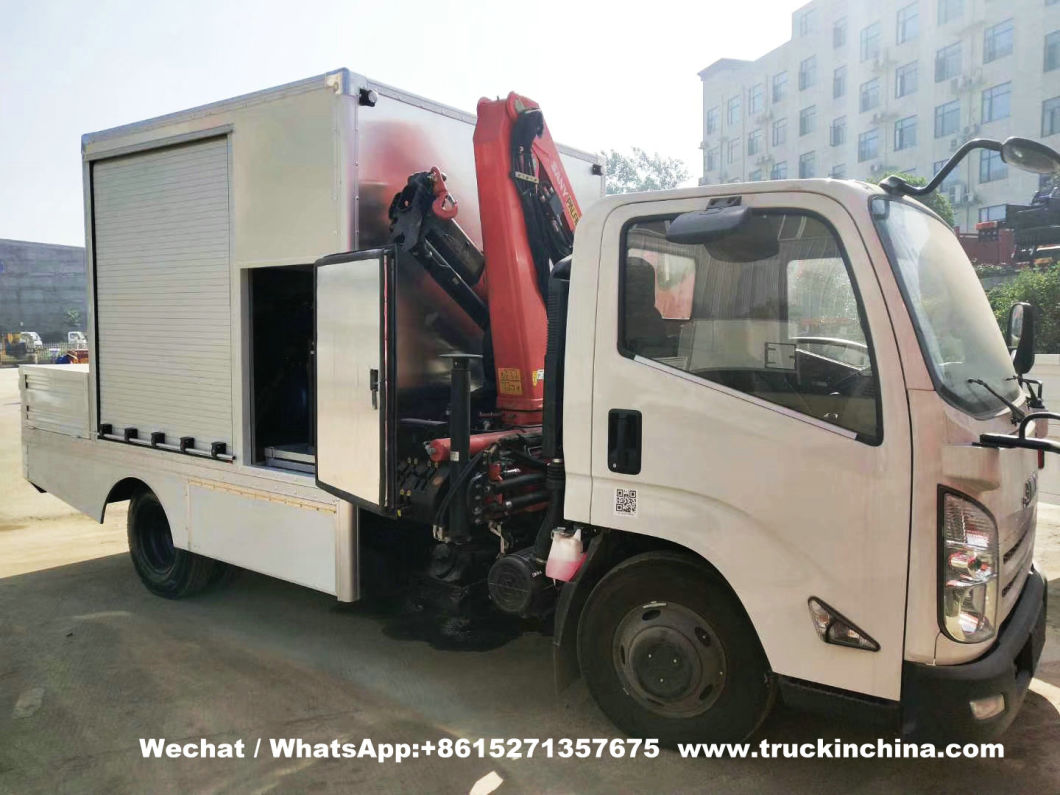

Customized JMC Rescue vehicle Workshop Truck with SANY Palfinger SPK6500 Crane 3.3 Ton
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair
Mobile Workshop
Road Service Trucks
Tool Truck

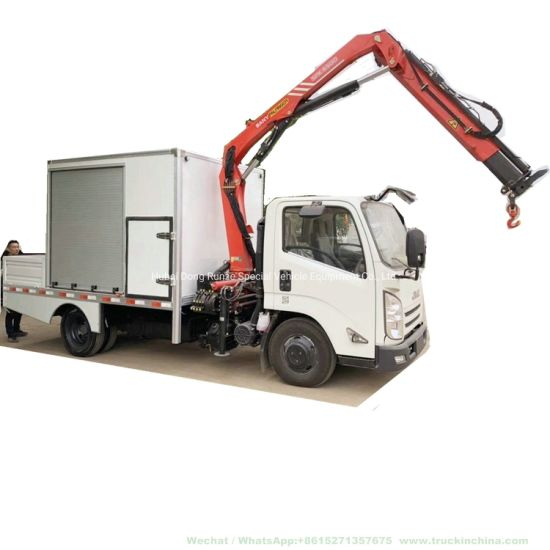

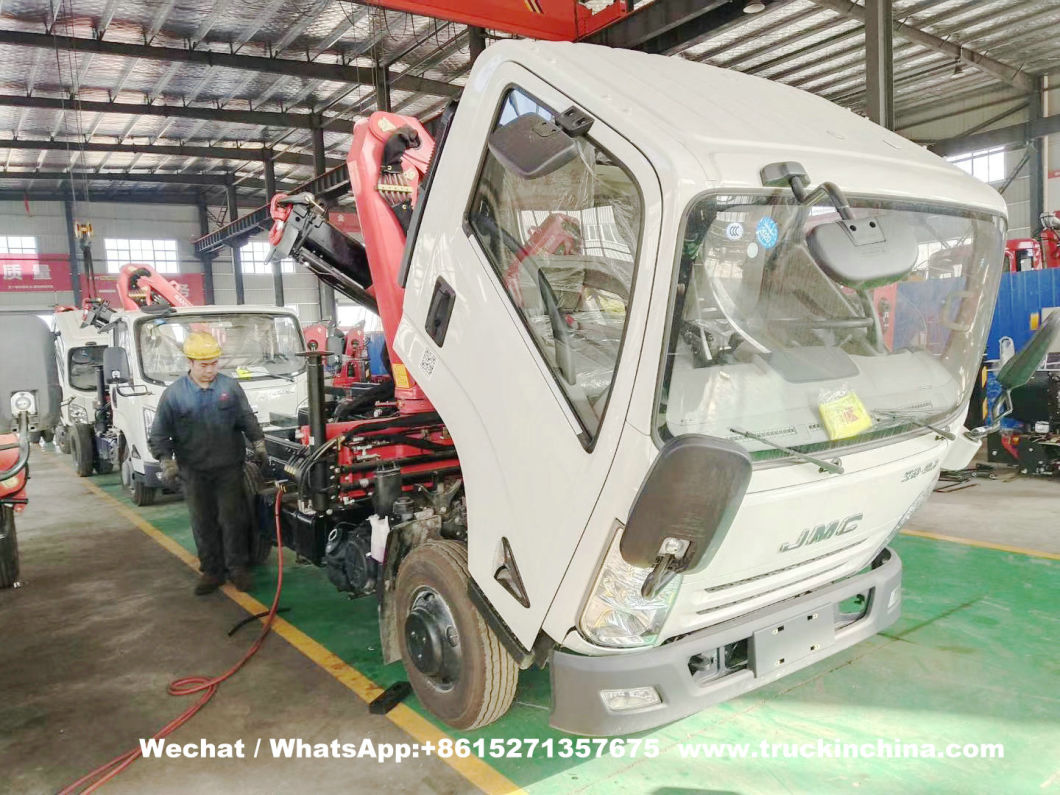

5.8 T.M folding arm crane spk6500 Sany Palfinger Rescue crane truck
The pictures are for your reference only.
| Main technical parameters | |||
| Project | UNIT | SPK6500 | |
| Max lifting weight | 3300 | Kg | 3300 |
| Lifting moment | 5.8 | T.m | 5.8 |
| Max hydraulic outreach | 9.6 | m | 9.6 |
| Slewing angle | 400 | . | 400 |
| Slewing torque | 6.9 | kNm | 6.9 |
| Operating pressure | 31.5 | Mpa | 31.5 |
| Pump capacity | 20-30 | L/min | 20-30 |
| Pump capacity by RC,LS-type | 40 | L/min | 40 |
| Crane Moment(dynamic) | 77 | kNm | 77 |
| Weight of the crane(dynamic) | 8.7 | kNm | 8.7 |
| SPK6500 | ||||
| hydr.boom extensions | 1 | 2(B) | 3(C) | |
| Max outreach | 5.7m | 7.6M | 9.6M | |
| Crane weight | 708KG | 775KG | 836KG | |
JMC N800
| Basic information: | ||
| Product Name | jmc van truck | |
| Product Model | JX5047XXYXSGA2 | |
| Drive type | 4X2 | |
| Gross weight | 4495kgs | |
| Rated load | 2805kgs | |
| Kerb weight | 1300kgs | |
| Wheelbase | 3360mm | |
| Front tread | 1565mm | |
| Rear trend | 1508mm | |
| Overall size: | 5995*2020*2980mm | |
| Max. speed | 110km/h | |
| Tonnage level | light truck | |
| Cargo body: | ||
| Length | 3000mm | |
| Width | 1910mm | |
| Height | 1930mm | |
| Engine: | ||
| Engine | JX4D24A3H/Jmc | |
| Displacement | 2402ml | |
| Power | 90kw | |
| Horsepower | 120hp | |
| Fuel type | Diesel | |
| Emission standard | Euro 3 | |
| Gearbox: | ||
| Gearbox | 6MTI420 | |
| Forward gear/Reverse gear | 6/1 | |
| Tyre: | ||
| Tyre no. | 6 | |
| Tyre specification | 7.00R16LT 8PR | |
| Cab: | ||
| Passengers in cab | 6 with double row of seats | |
| Oil box: | ||
| Oil box capacity | 100L | |
mobile workshop truck

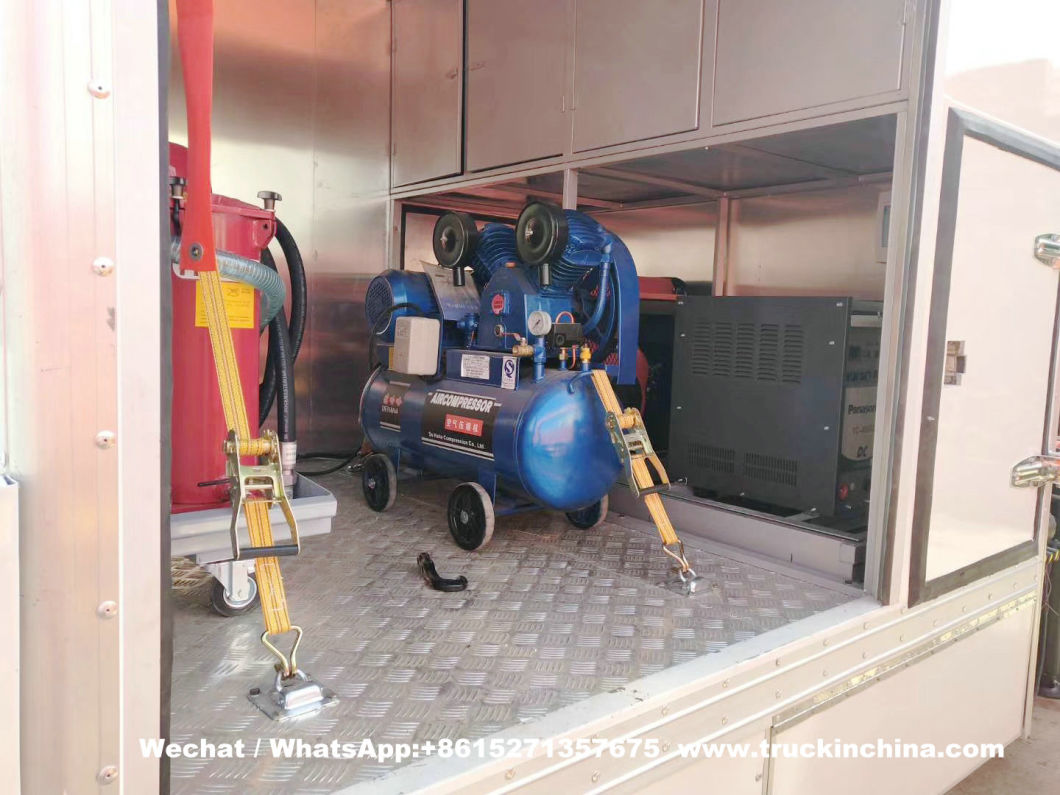

Equipment for Mobile Workshop | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Optional | |||
2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |
Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner
maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | |||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
