CLH5140XSSD6
-
Dong Run Ze
-
8705904000
-
Shanghai, China
-
1000
-
T/T, Western Union

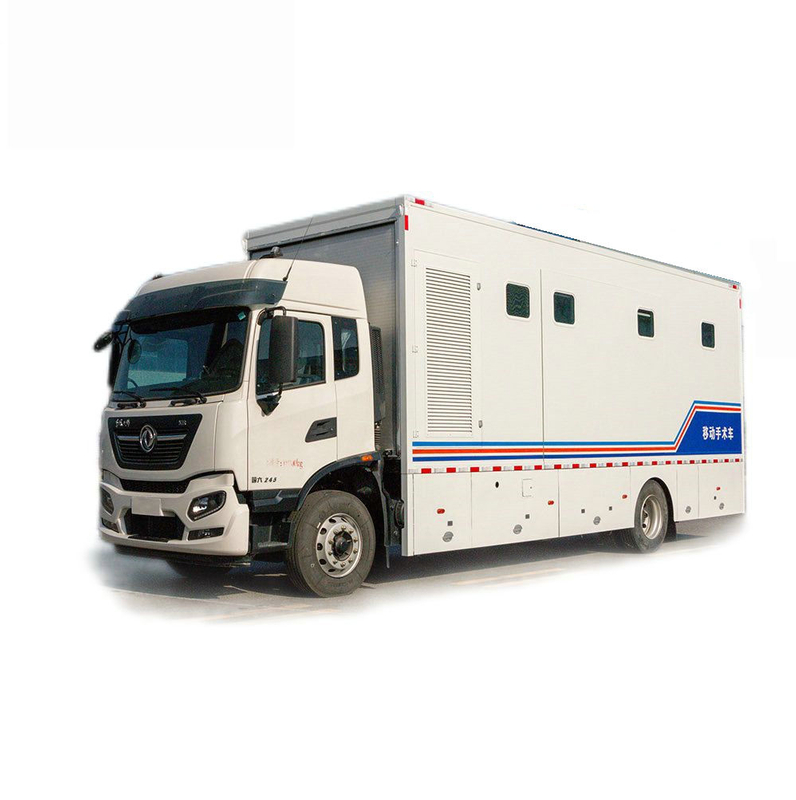

KingRun Mobile Ambulatory Surgery Operating Vehicle

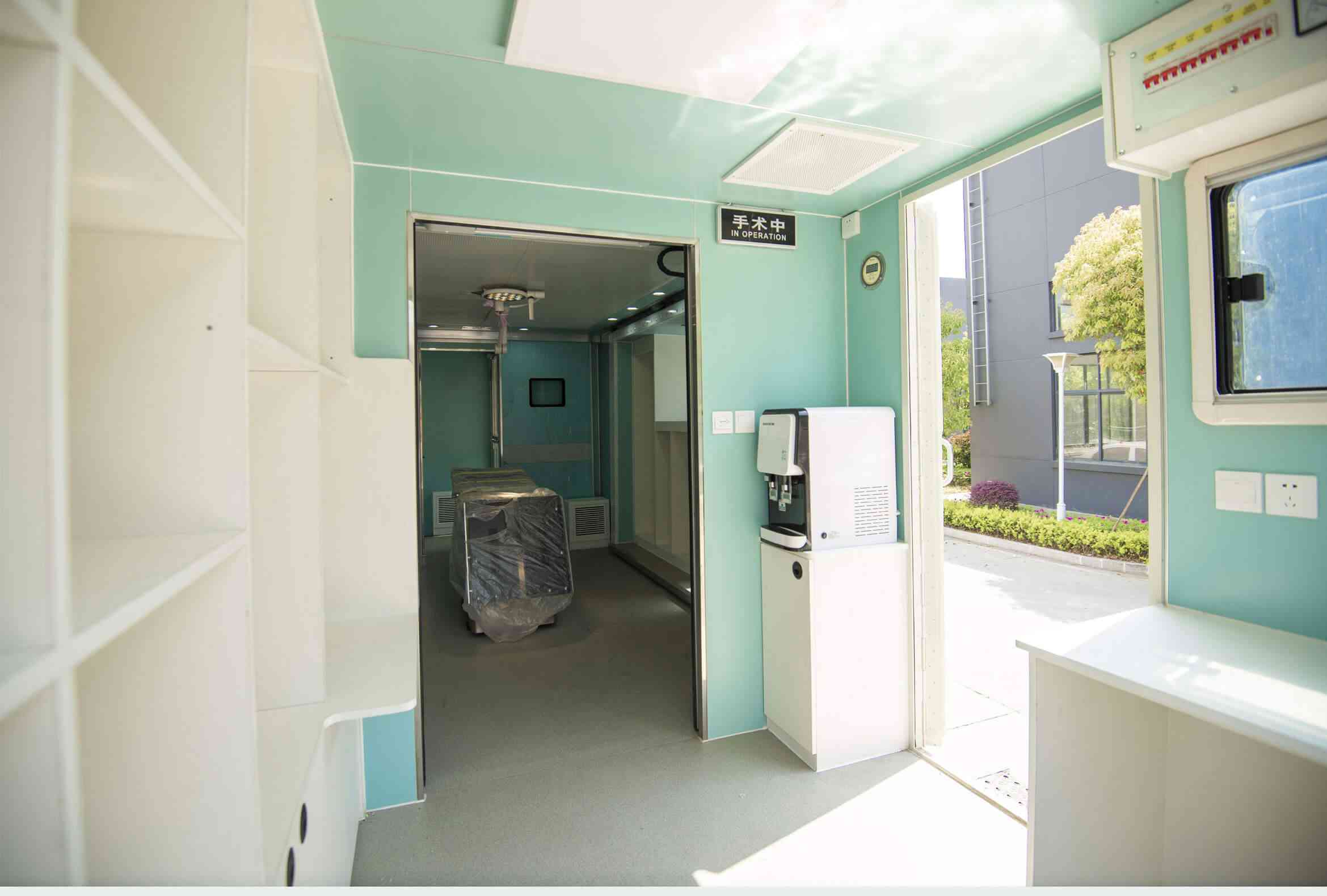

The interior space of the carriage is divided into two areas: preoperative preparation area and surgical area. The preoperative preparation area is mainly used for washing and disinfecting surgical instruments and medical personnel before and after surgery. Configure equipment and facilities such as hand washing devices, rapid steam sterilizers, instrument benches, and work cabinets. The surgical area is equipped with film viewing lights, surgical lights, anesthesia machines, and operating beds, which are the places for performing surgerie
Main technical parameters
Overall dimensions: | 10465×2540×3950(mm) | Vehicle type: | |
Total mass: | 14185(Kg) | Net weight | 13990(Kg) |
Approach Angle/Departure Angle: | 16/9 (°) | Front/rear overhang: | 1400/3265(mm) |
Fuel Type: | Diesel oil | Emission standard: | Kokuroku |
Axle Load: | 5670/8515 | Wheelbase: | 5800,7150(mm) |
Number of shafts: | 2 | Maximum speed: | 89(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 10.00R20 18PR,275/80R22.5 18PR,11R22.5 18PR,295/60R22.5 18PR,315/60R22.5 20PR,295/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 8/10 + 8, 3/4 + 2 + 3, 8 /, / - 8, 3/2 + -, 3 / - |
Front wheel base: | 1934,1860,1910,1915,2000,2020,1980,2040,2060(mm) | Rear wheel base: | 1820,1800,1846,1862,1880(mm) |
Vin Vehicle Identification Code: | LGAX3CG4××××××××× LGAX3CG5××××××××× LGAX3DG4××××××××× LGAX3DG5××××××××× | ||
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
B6.2 NS6B245; B6.2 NS6B260; B6.2 NS6B230; D6.7 NS6B290 | Dongfeng Cummins Engine Co., LTD.; | 6200; 6200; 6200; 6700 | 180; 191; 169; 213 |

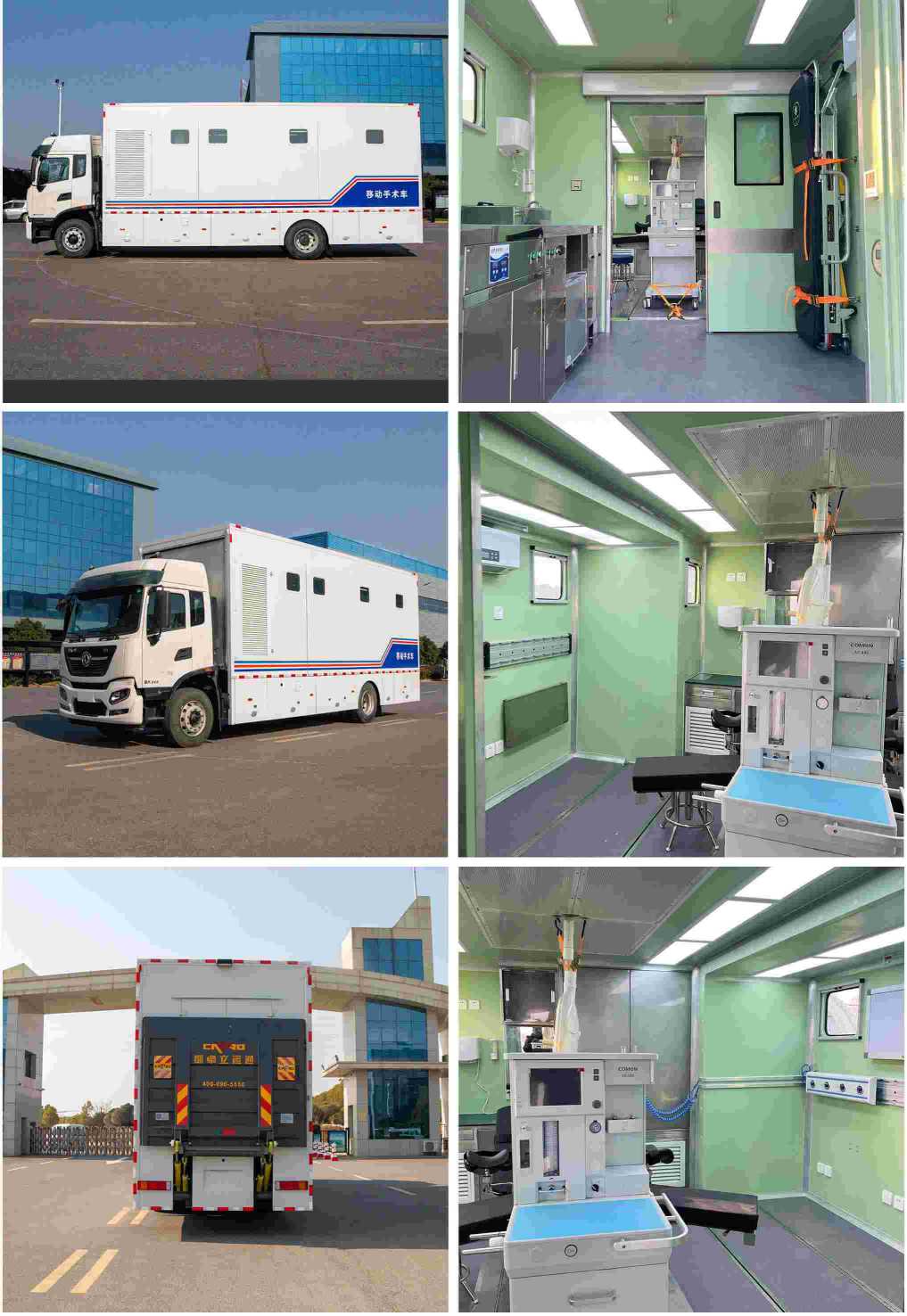

Vehicle Photos
1. Only the chassis with wheelbase (mm) of 5800 is selected for refit.2. The manufacturer/model of ABS system controller is :ABS 8/ East Cocconor Commercial Vehicle Braking System (Shiyan) Co., LTD.,ABS-E 4S/4M/ ZF Commercial Vehicle System (Qingdao) Co., LTD.,J ABS/ Jiaozuoruke Control Technology Co., LTD.3. Install speed limiting device, speed limiting 89km/h.4. Side protection is skirt structure, material is Q235, and the lower edge of side protection is 390mm above the ground. The rear protective material is Q235B carbon steel, the section size of the rear protective device (width × height) is 70×150(mm), and the height off the ground is 500mm.5, special functions and device description: The operating bed, medical equipment and other equipment are equipped in the carriage, mainly for medical surgery. The mass of the hydraulic tailboard is 350kg, and the horizontal length of the hydraulic tailboard in the state of folding is 275mm.7, optional appearance and interior. |
