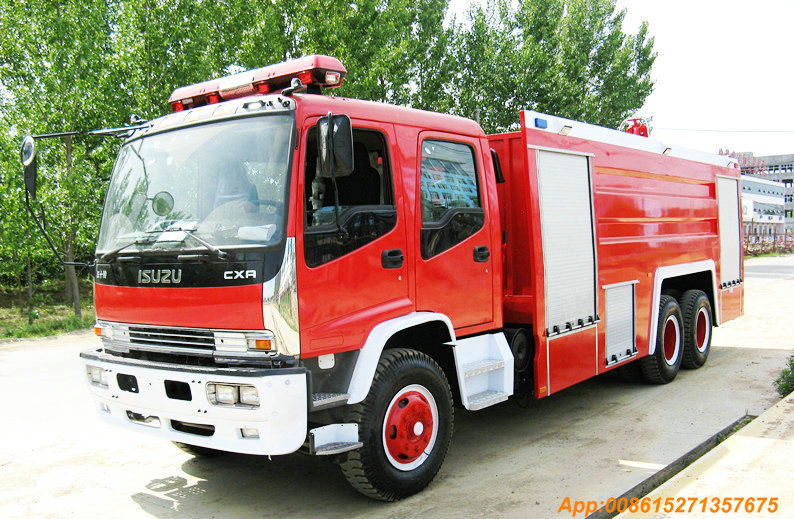

ISUZU Fire Truck 10T Water Foam Tanker
| Quantity: | |
|---|---|
ISUZU Fire Truck FVZ CXA34T
tank capacity:water tank:7.0m3;foam tank:2 m3
tank capacity:water tank:4.0m3;foam tank:5 m3
| Project l | Parameters | ||
| Water-tank fire /Foam Fire | DTA5210GXFSG90 DTA5220GXFPM90 | ||
| Chassis | FVZ34Q | ||
| Dimensions(mm) | 9380×2470×3350 | ||
| Division passengers | 6 | ||
| Engine Model | 6HK1-TC（Ⅲ） | ||
| Engine Power(kW) | 191（2500r/min） | ||
| Wheelbase(mm) | 4650+1300 | ||
| The maximum speed(km/h) | 90 | ||
| Fluid volume contained(kg) | 9000 | Water：4000 | |
| Foam：5000 | |||
| Fire Pump Model | CB20.10/30.60 | ||
| Fire pump flow (L/s) | Pressure60/1.0MPa MV30/2.0MPa | ||
| Fire Gun | Model | PL48/PS80W | |
| Traffic(L/s) | 48/50 | ||
| Range(m) | Water≥65,Foam≥60 | ||
ISUZU Fire Truck FVZ CXA34T
| Engine model | Manufacturer | Displacement | Power |
| 6HK1-TC | ISUZU ENGINE | 5900CC | 191KW |
9. Tyre: 11.00-20-18PR,11.00R20-16PR
10. Other equipment of ISUZU FVZ FIRE TRUCK:
ISUZU MLD GEAR BOX, 6 FORWARDS, 1 Reverse.
ISUZU 6.3Tons front axle, 13Tons double axles.
Power steering, air brake, turning cabin. Japanese telechnology.
Description
Features:
| |||
| Name: | Isuzu 6*4 foam fire truck | L×W×H mm: | 9485×2480×3480(mm) |
| Chassis Model: | FVZ34Q | Cargo body Dimension(mm): | ××(mm) |
| total mass: | 22000(Kg) | Approach/Departure angle: | 26/13(°) |
| Rated mass: | 10000(Kg) | front/rear suspension: | 1335/2200(mm) |
| curb mass: | 11550(Kg) | Max. speed: | 90(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
| 6HK1-TC | Qingling Motors Co., Ltd. | 7790 | 191 |
| Emission standard | EuroⅢ | ||
| Axle: | 3 | front tread: | 1960/1855/1855(mm) |
| wheelbase: | 4650+1300mm | rear tread: | 1855/1855(mm) |
| tyre: | 10 | tyre size: | 10.00-20-16PR,10.00R20-16PR,11.00-20-18PR |
| fuel type: | diesel | spring: | 9/10 |
| axle load: | 6900/15100(double axles) | cab passenger: | 6 |
| Note : | tank capacity:water tank:7.0m3;foam tank:2.655m3 | ||
| Special performance: | ※The fire trucks are modified on chassis of motor truck, and the special purpose part consists of fluid container, pump room, hose box, power output & transmission system, pipe system and electrical system. It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment. ※The fire truck has streamline design, nice appearance, flexible control, economical and practical. The inside separated material is made of high-strength aluminum alloy. The layout is reasonable and every part is fixed by special fixture. ※The fire truck adopts double rows integral structure, and can take 6-8passengers; it can put out fire while running, which has a long distance range and strong extinguish power. Normal pressure, medium-low pressure, high-low pressure pump is optional. ※If you have special demand of fire truck, please call us, and we may design, modify it according to your demand. We also can add warm device, power steering and A/C. | ||
| Availble items for free |
| ||
| Advantages of factory
| |||
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
| series | cab | Models tonnage | EngineModel | Wheel Base |
| 100P EUR 3 | short | QL10408EARY 1.45T | 4JB1-TC1 | 2490 |
| Double Standard | QL10408EWRY 1.25T | 4JB1-TC1 | 2490 | |
| short | QL10408FARY 1.99T | 4JB1-TC1 | 2765 | |
| Double | QL10508FWRY 1.43T | 4JB1-TC1 | 2765 | |
| short | QL10508HARY 2.75T | 4JB1-TC1 | 3360 | |
| QL10408HARY 1.75T | 4JB1-TC1 | 3360 | ||
| Double | QL10508HWRY 2.45T | 4JB1-TC1 | 3360 | |
| QL10408HWRY 1.49T | 4JB1-TC1 | 3360 | ||
| 600P EUR 3 | short | QL1040HEARY 1.45T | 4KH1-TC | 2490 |
| Double Standard | QL1040HEWRY 1.25T | 4KH1-TC | 2490 | |
| QL1041HEARY 1.75T | 4KH1-TC | 2490 | ||
| short | NKR77GLLACJAY 3.5T | 4KH1-TC | 2765 | |
| NKR77GLNACJAY 4T | 4KH1-TC | 2765 | ||
| KNR77GLEACJAY 1.95T | 4KH1-TC | 2765 | ||
| Double | NKR77GLCWCJAY 1.48T | 4KH1-TC | 2765 | |
| short | KNR77LLLACJAY 3.5T | 4KH1-TC | 3360 | |
| NKR77LLNACJAY 4T | 4KH1-TC | 3360 | ||
| NKR77LLPACJAY 4.5T | 4KH1-TC | 3360 | ||
| NKR77LLDACJAY 1.85T | 4KH1-TC | 3360 | ||
| NKR77LLGACJAY 2.5T | 4KH1-TC | 3360 | ||
| Double | NKR77LLLWCJAY 3.5T | 4KH1-TC | 3360 | |
| NKR77LLGWCJAY 2.5T | 4KH1-TC | 3360 | ||
| NKR77LLEWCJAY 1.95T | 4KH1-TC | 3360 | ||
| NKR77LLCWCJAY 1.75T | 4KH1-TC | 3360 | ||
| short | NKR77PLLACJAY 3.5T | 4KH1-TC | 3815 | |
| NKR77PLNACJAY 4T | 4KH1-TC | 3815 | ||
| NKR77PLPACJAY 4.5T | 4KH1-TC | 3815 | ||
| Double | NKR77PLLWCJAY 3.5T | 4KH1-TC | 3815 | |
| short | NKR77PLNACJAKY 4T | 4KH1-TC | 3815 | |
| QL1060HKARY 2.35T | 4KH1-TC | 3815 | ||
| 700P EUR 3 | QL1080TKARY/QL1090TKARY/QL1100TKARY | 4HK1-TC | 3815 | |
| QL1080TLARY/QL1090TLARY/QL1100TLARY | 4HK1-TC | 4175 | ||
| QL1090TMARY/QL1091TMARY/QL1100TMARY | 4HK1-TC | 4475 | ||
| QL1090TPARY/QL1100TPARY | 4HK1-TC | 5200 | ||
| 700P 4×4 | QL1070TKASY | 4HK1-TCN1 | 3840 | |
| 700P automatic transmission QL1080ZKARZY/QL1080ZLARZY | 4HK1-TCN2 | |||
| FTR EUR 3 | 7-8 T 4*2 | QL1140TKFR | 4HK1-TC | 3900 |
| 7-8 T 4*2 | QL1140TMFR | 4HK1-TC | 4500 | |
| 7-8 T 4*2 | QL1140TAFRY | 4HK1-TC | 4700 | |
| 7-8 T 4*2 | QL1140TNFR | 4HK1-TC | 5000 | |
| 7-8 T 4*2 | QL1140TQFR | 4HK1-TC | 5550 | |
| 7-8 T 4*2 | QL5140TRFR | 4HK1-TC | 5800 | |
| FVR EUR 3 | 7-8 T 4*2 | QL1150WKFR FVR34G2 | 6HK1-TCN | 3900 |
| 7-8 T 4*2 | QL1150WMFR 、 FVR34J2 | 6HK1-TCN | 4500 | |
| 7-8 T 4*2 | QL1160WAFRY | 6HK1-TCN | 4700 | |
| 7-8 T 4*2 | QL1160WNFRY | 6HK1-TCN | 5000 | |
| 7-8 T 4*2 | QL1150WQFR 、 FVR34P2 | 6HK1-TCN | 5550 | |
| 7-8 T 4*2 | QL1160WRFRY | 6HK1-TCN | 5800 | |
| FVZ EUR 3 | 14-15T 6*4 | QL1250RPFZ 、 FVZ34Q | 6HK1-TCS | 4.65+1.3 |
| 14-15T 6*4 | QL1250RQFZY | 6HK1-TCS | 4.9+1.3 | |
| 14-15T 6*4 | QL1250RRFZ 、 CXA34T | 6HK1-TCS | 5.1+1.3 | |
| 14-15T 6*4 | QL1250RSFZY | 6HK1-TCS | 5.4+1.3 | |
| 14-15T 6*4 | QL1250RTFZ 、 FVZ34V | 6HK1-TCS | 5.7+1.3 | |
| series | Name | Models tonnage | Engine Model | Wheel Base |
| 100P EUR 4 | short | QL10403EARY 1.99T | 4JB1CN | 2490 |
| Double Standard | QL10403EWR1Y 1.25T | 4JB1CN | 2490 | |
| QL10403EWRY 1.75T | 4JB1CN | 2490 | ||
| short | QL10403FARY 1.99T | 4JB1CN | 2765 | |
| Double | QL10403FWRY 1.43T | 4JB1CN | 2765 | |
| QL10503FWRY 1.75T | 4JB1CN | 2765 | ||
| short | QL10403HARY 1.95T | 4JB1CN | 3360 | |
| QL10503HARY 2.75T 1.75T | 4JB1CN | 3360 | ||
| QL10603HARY 3.15T | 4JB1CN | 3360 | ||
| QL10703HARY 3.3T | 4JB1CN | 3360 | ||
| Double | QL10403HWRY 1.75T | 4JB1CN | 3360 | |
| QL10503HWRY 2.45T | 4JB1CN | 3360 | ||
| short | QL10703KARY 4.5T | 4JB1CN | 3815 | |
| QL10703KAR1Y 4.4T | 4JB1CN | 3815 | ||
| Double | QL10703KWRY 4.3T | 4JB1CN | 3815 | |
| 600P EUR 4 | short | |||
| Double Standard | ||||
| short | ||||
| short | ||||
| short | ||||
| Double | ||||
| short | ||||
| Double | ||||
| short | ||||
| 700P EUR 4 | QL10809TKARY/QL10909TKARY/QL11009TKARY | 4HK1-TCG40 | 3815 | |
| QL10809TLARY/QL10909TLARY/QL11009TLARY | 4HK1-TCG40 | 4175 | ||
| QL10909TMARY/QL10919TMARY/QL11009TMARY | 4HK1-TCG40 | 4475 | ||
| QL10909TPARY/QL11009TPARY | 4HK1-TCG40 | 5200 | ||
| 700P 4×4 | QL1070TKASY | 3840 | ||
| 700P automatic transmission QL1080ZKARZY/QL1080ZLARZY | ||||
| FTR EUR 4 | 7-8 T 4*2 | QL11409TKFR | 4HK1-TCG40 | 3900 |
| 7-8 T 4*2 | QL11409TMFR | 4HK1-TCG40 | 4500 | |
| 7-8 T 4*2 | QL11409TAFRY | 4HK1-TCG40 | 4700 | |
| 7-8 T 4*2 | QL11409TNFR | 4HK1-TCG40 | 5000 | |
| 7-8 T 4*2 | QL11409TQFR | 4HK1-TCG40 | 5550 | |
| 7-8 T 4*2 | QL51409TRFR | 4HK1-TCG40 | 5800 | |
| 8-10T 4*2 | QL11609KFRY | 4HK1-TCG40 | 3900 | |
| 8-10T 4*2 | QL11609MFRY | 4HK1-TCG40 | 4500 | |
| 8-10T 4*2 | QL11609AFRY | 4HK1-TCG40 | 4700 | |
| 8-10T 4*2 | QL11609NFRY | 4HK1-TCG40 | 5000 | |
| 8-10T 4*2 | QL11609QFRY | 4HK1-TCG40 | 5550 | |
| 8-10T 4*2 | QL5160XXY9RFRY | 4HK1-TCG40 | 5800 | |
| FVR EUR 4 | 7-8 T 4*2 | QL1150AKFR | 6HK1-TCNG40 | 3900 |
| 7-8 T 4*2 | QL1150AMFR | 6HK1-TCNG40 | 4500 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 4700 | ||
| 8-10T 4*2 | 6HK1-TCNG40 | 5000 | ||
| 7-8 T 4*2 | QL1150AQFR | 6HK1-TCNG40 | 5550 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 5800 | ||
| FVZ EUR 4 | 14-15T 6*4 | QL1250DPFZ | 6HK1-TCSG40 | 4.65+1.3 |
| 14-15T 6*4 | 6HK1-TCSG40 | 4.9+1.3 | ||
| 14-15T 6*4 | QL1250DRFZ | 6HK1-TCSG40 | 5.1+1.3 | |
| 14-15T 6*4 | 6HK1-TCSG40 | 5.4+1.3 | ||
| 14-15T 6*4 | QL1250DTFZ | 6HK1-TCSG40 | 5.7+1.3 | |
