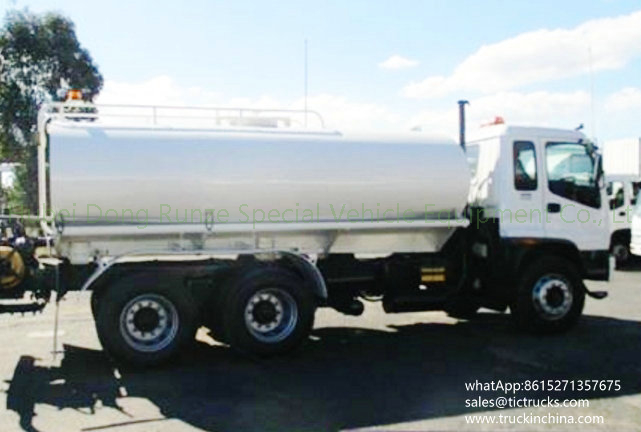

ISUZU 20000L-24000L FVZ 6x4 Water Spraying Truck 6x4

ISUZU 20000L-24000L FVR 6x4 Water Spraying Truck 6x4
Overall dimensions 9480X2495X3550mm Curb weight 10650kg
Tank dimensions 6950×2460×1630mm Tank volume 20000L
Price: $ 24000  -  99900
Discount Price: $ 22200  -  89000
FOB:
Availability:
Quantity:

  • DRZ5250GSSQ

  • ISUZU

  • 8705909990

ISUZU FVZ water tanker 18000L sale price

ISUZU FVZ wate tanker truck-18cbm_1ISUZU FVZ wate tanker truck-19cbm_1

ISUZU 20000L-24000L FVZ 6x4 Water Spraying Truck 6x4

Isuzu FVZ Water tank TruckWater Truck structure_1

ISUZU FVR 4x2 12000L-16000L Water Tanker Truck

Hot sale ISUZU water trucks_16T

ISUZU 4000L-6000L water tank for sale

Isuzu stainless water Truck 6000L- Isuzu water-Spraying Tru_0001


ISUZU dust control water truck 50-120M

multifunctional dust suppresion truck
Dust control truck water tanker with Fan pump sprinkler pump Range up to ≥ 48 M   mobile dust control solution.
Truck mounted power sprayers for Pest, Weed, Termite Control, Landscape & fertilizer spray rigs

ISUZU dust control water truc-21T ISUZU dust control water_1ISUZU dust control water truc-11T ISUZU dust control water_1ISUZU dust control water truc-25T ISUZU dust control water_1ISUZU dust control water truc-27T ISUZU dust control water_1ISUZU dust control water truc-28T ISUZU dust control water_1ISUZU dust control water truc-29T ISUZU dust control water_1




ISUZU FVZ water tanker 18000L sale price


ISUZU 20000L-24000L FVZ 6x4 Water Spraying Truck 6x4

Overall dimensions 9480X2495X3550mm Curb weight 10650kg
Tank dimensions 6950×2460×1630mm Tank volume 20000L

Chassis parameters
Chassis model QL1250DNFZY Chassis brand ISUZU
Overall dimensions 9000x2465x2810mm Wheel base 4350+1300mm
Front/rear wheel track 1960/1855/1855mm Front/rear suspension 1335/2015mm
Approach/departure angle 26/14° Maximum speed 90km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration FVZ, a row and a half cab(with sleeping berth),allowable 3 passengers, with air conditioner, central locking, electric windows, USB audio, cab can be flipped.
Color White, other color is optional
Engine Model 6HK1-TCSG40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke,exhaust gas turbo, air-to-air inter-cooling, diesel engine
Rated power 280hp
Displacement 7790ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 11.00-20 18PR nylon tire
Number 10+1 nos
Frame 258X85(10+4)mm
Front axle 7.0 tons
Rear axle 18.0 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119TA,9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire:1000R20,1100-20,1100R20
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 6950×2460×1630mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

-------------------

ISUZU FVR 4x2 12000L-16000L Water Tanker Truck

Overall dimensions 9000X2465X2900mm Curb weight 7500kg
Tank dimensions 5800×2400×1400mm Tank volume 16000L

Chassis parameters
Chassis model QL1160ANFRY Chassis brand ISUZU
Overall dimensions 8785x2465x2810 Wheel base 5000mm
Front/rear wheel track 1960/1855mm Front/rear suspension 1335/2450mm
Approach/departure angle 26/11° Maximum speed 95km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration FVR,a row and a half cab(with sleeping berth),allowable 3 passengers, with air conditioner, central locking, electric windows, USB audio, cab can be flipped.
Color White, other color is optional
Engine Model 6HK1-TCNG40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke,Exhaust gas turbo, air-to-air inter-cooling ,diesel engine
Rated power 240hp
Displacement 7790ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 10.00-20 16PR nylon tire
Number 6+1 nos
Frame 258X85(10+4)mm
Front axle 6.3 tons
Rear axle 13.0 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire :1000R20,1100-20,1100R20
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Water tank structure
Tank dimensions 5800×2400×1400mm Tank volume 16000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

---------------------------------------------------------------

ISUZU 4000L-6000L water tank for sale

Overall dimensions 7250X2300X2350mm Curb weight 3510kg
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White, other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Tank material Carbon steel /stainless steelTank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank, Insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.



Dust control truck water tanker with Fan pump

4x2, 4x4, 6x4, 6x6, 8x4 Pesticide Truck for your selection, LHD and RHD cabin are both available.

Tanker mobile dust control solution.

Material Steel

Thickness of shell 4 ,5,6mm

Thickness of dish 5,6mm

Inside baffles 3mm

Compartments 1 compartments

Volume 5000L to 12000L+ 5% expansion

Option: Water Pump, Sprinkler ,fine water mist /fog pump cannon


ISUZU 6*4,8*4 euro 4/5chassis list:


6HK1-TCSG40 280HP 10.00-20,10.00R20,11.00-20,11.00R20

4000+1300 QL1250DAFZY

4350+1300 QL1250DNFZY

4650+1300 QL1250DPFZY

4900+1300 QL1250DQFZY

5100+1300 QL1250DRFZY

5400+1300 QL1250DSFZY

5700+1300 QL1250DTFZY QL1240DTFZY

6HK1-TCH 300HP 11.00R2

4000+1300

4350+1300

4650+1300 QL1250WPFZY

4900+1300

5100+1300 QL1250WRFZY

5400+1300

5700+1300 QL1250WTFZY

VC46 euro4 6UZ1-TCG40 350HP 11.00-20,11.00R20, 18PR,295/80R22.5

3600+1300 QL1250ULCZY

4025+1300 QL1250UACZY

4605+1300 QL1250UPCZY

5100+1300 QL1250URCZY

5820+1300 QL1250UTCZY

4605+1300 QL5320THBUPCZY QL5330GXFUPCZY

1850+3320+1300 QL1310URCHY

1850+4615+1300 QL1310UVCHY QL5400GXFUVCHY

VC46 euro5 6UZ1-TCG51/ 350HP ;6UZ1-TCG50 /380HP ;6WG1-TCG51/460HP 315/80R22.5,12.00R22.5

3985+1370 QL1250U1QDZY

4605+1370

5100+1370

1850+4575+1370 QL1310U1VDHY QL1311U1VDHY

1850+3280+1370 QL1310U2TDHY

1850+4575+1370 QL1310U2VDHY QL1311U2VDHY

3985+1370 QL5330GXFW2QDZY

4565+1370 QL5330GXFW2SDZY

1850+3280+1370

1850+4575+1370 QL5400GXFW2VCHY QL5420THBW2TDHY




ISUZU FVZ


FVZ EUR 425T 6*4

QL1250DPFZ

QL1250DRFZ

QL1250DTFZ QL1250DAFZY QL1250DNFZY QL1250DPFZY QL1250DQFZY QL1250DRFZY QL1250DSFZY QL1250DTFZY

6HK1-TCSG40 300HP


FVZ chassis with 300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission / air conditioning / 7 tons front axle, rear axle 18 tons and mounted biaxial / optional tire 1000-20,1000R20, 1100-20, 1100R20 / standard direction of power / central locking / electric windows / steam brake / USB Interface audio / cab frame // flip-section: 258 * 85 * 10 + 4mm

4000+1300 4350+1300 4650+1300 4900+1300 5100+1300 5400+1300 5700+1300

ISUZU FTR

FTR EUR 4Rate loading 7-8 T 4*2QL11409TKFR

4HK1-TCG40 190HP 4strock

FTR with 190 horsepower Isuzu engine 4HK1-TCG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t / optional tire 900-20, 900R20 tires, 1000-20, 1000R20 tire / standard direction of power / central locking / electric windows / steam brake / USB audio / spacious cab flip / frame cross-section: 258 * 85 * 10 + 4mm

3900

7-8 T 4*2QL11409TMFR
4500

7-8 T 4*2QL11409TAFRY
4700

7-8 T 4*2QL11409TNFR
5000

7-8 T 4*2QL11409TQFR
5550

7-8 T 4*2QL51409TRFR
5800

8-10T 4*2QL11609KFRY
3900

8-10T 4*2QL11609MFRY
4500

8-10T 4*2QL11609AFRY
4700

8-10T 4*2QL11609NFRY
5000

8-10T 4*2QL11609QFRY
5550

8-10T 4*2QL5160XXY9RFRY
5800


ISUZU FVR

FVR EUR 4

G.W 15~16T 4*2

Rate loading

9~10T

QL1150AKFR

QL1150AMFR

QL1150AQFR QL1160AKFRY QL1160AMFRY QL1160AAFRY QL1160ANFRY

QL1160AQFRY

QL5160XXYAQFR QL5160XXYARFR

6HK1-TCNG40 - 240HP 6strock


FVR chassis with 240-horsepower Isuzu engine 6HK1-TCNG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /Optional 1000-20 ,1000R20 , 1100-20,1100R20 / standard direction of power / central locking / electric windows / steam brake / USB audio / cab flip / frame cross-section: 258 * 85 * 10 + 4mm

Wheelbase

3900

4500
4700
5000
5550
5800
FVR EUR 4

19T G.W 4x2 Rate loading

9~10T

QL5190GXFDMFRY

6HK1-TCSG40 300HP


300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission, 1100R20 tire, the remaining configuration with the above FVR

4500


Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

fog cannon option list

100M80M60M50M
110-180 L/min60-118 L/min60-85 L/min42-52 L/min
2.0-4.0 MPa2.0-3.5 MPa2.0-3.5 MPa1.5-3.5 MPa
50-200um50-200um50-200um50-150um
1450 Pa1300 Pa1080 Pa1080 Pa
3050㎡/min1800㎡/min990㎡/min990㎡/min
360°359°±320°-0°~280°
-10°~55°-10°~55°-10°~55°-10°~55°
120KW100KW50KW30KW

Our water tank series:

-----water tanker truck

-----sanitation water tank truck

-----sprinkler truck

-----water wagon truck

-----insulation water tank truck

-----pesticide sprinkling truck

-----water spraying truck

-----Mild steel water tank cart

-----Stainless steel tank water truck

-----Aluminum alloy water tanker

-----RHD watering cart

-----Water tank semi trailer

-----Storage water tanker

Water Truck
30000L Water Truck
24000L Water Bowser
6000L Spraying Truck
4000L Pesticide Truck
3000L Water Cart
22000L Water Tanker
20000L Water Wagon
12000L Water Tanker Truck
10000L Water Sprinkler Truck
8000L Watering Vehicle
7000L Watering Cart


Water Truck,ISUZU 20000L Water Truck,ISUZU20000L Water Bowser,ISUZU 20000L Spraying Truck,ISUZU 20000L water tank lorry,ISUZU 20000L Water Cart,ISUZU 20000L Water Tanker, ISUZU 20000L Water Wagon,ISUZU 20000L Water Tanker Truck,ISUZU 20000L Water Sprinkler Truck,ISUZU 20000L Watering Vehicle,ISUZU 20000L Watering Cart
