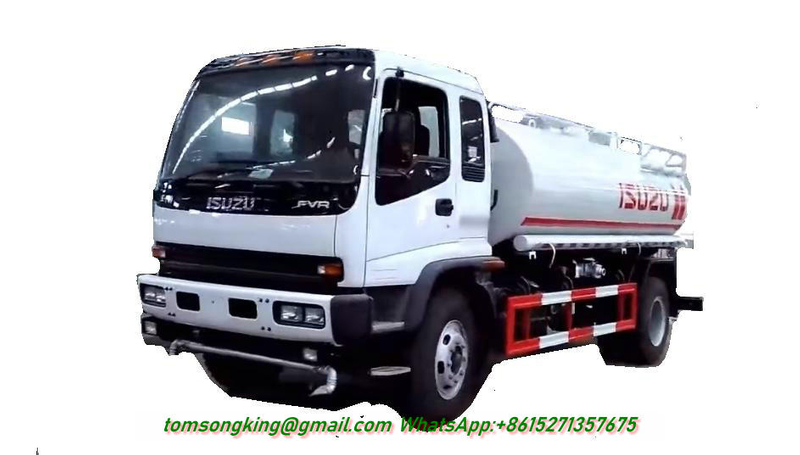

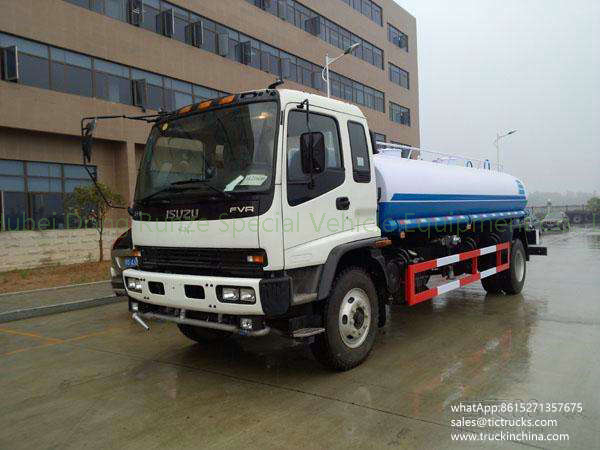

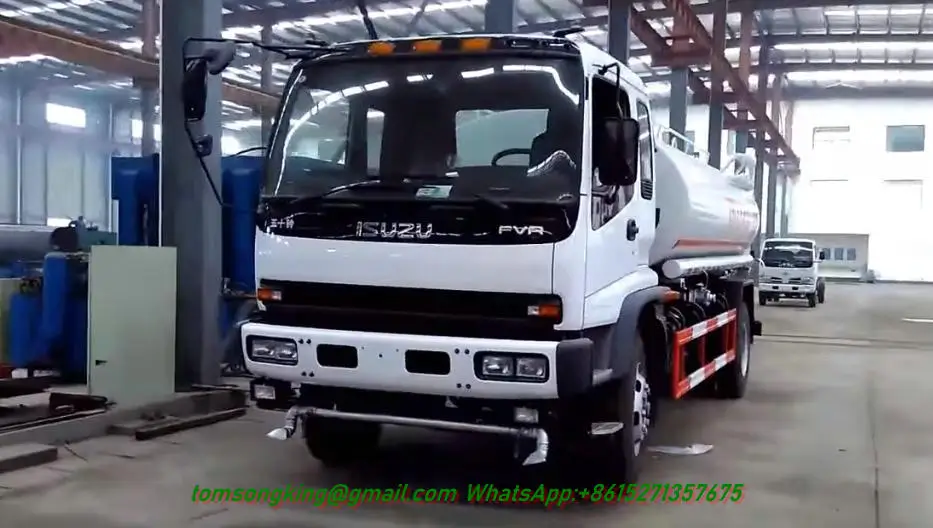

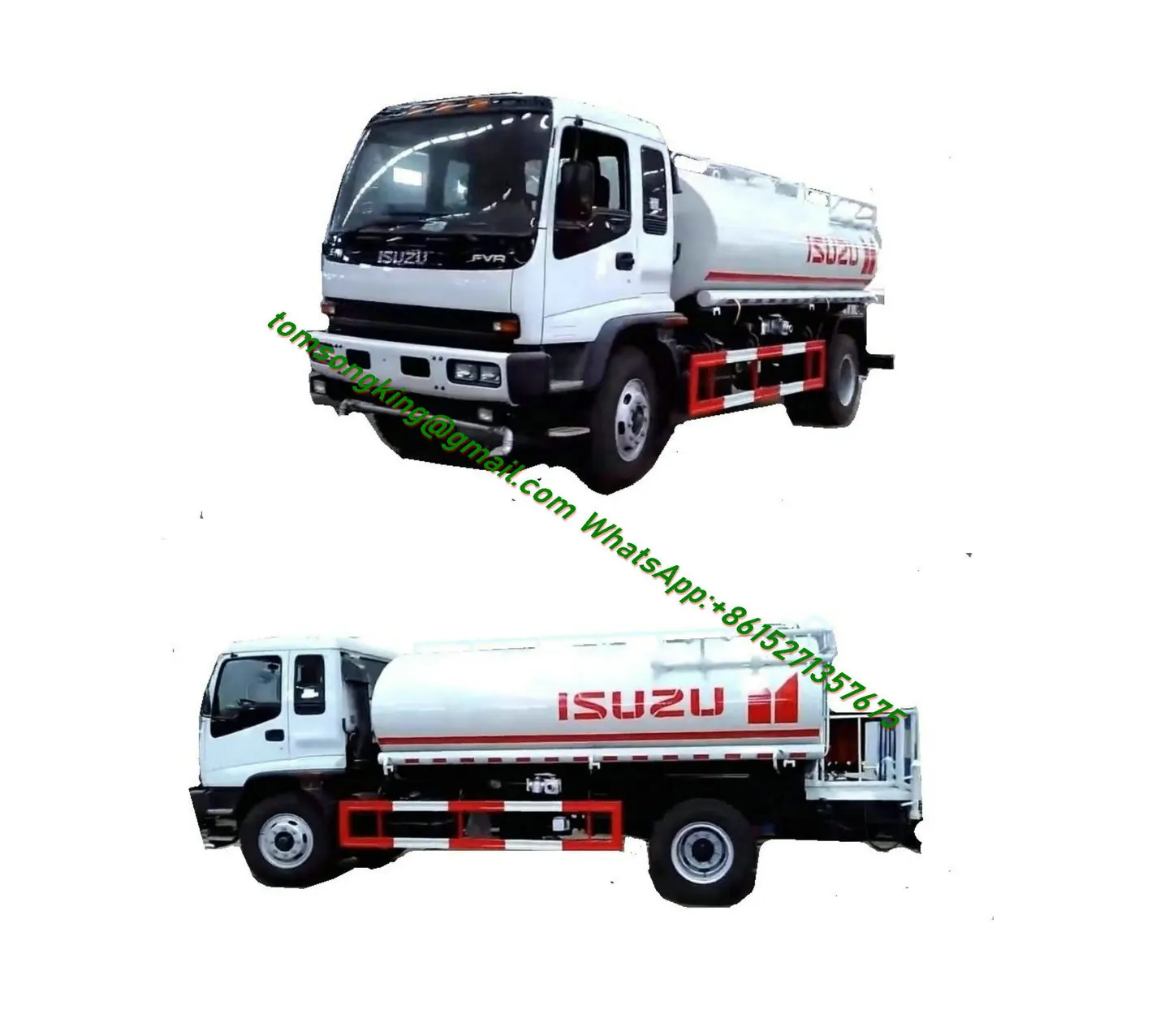

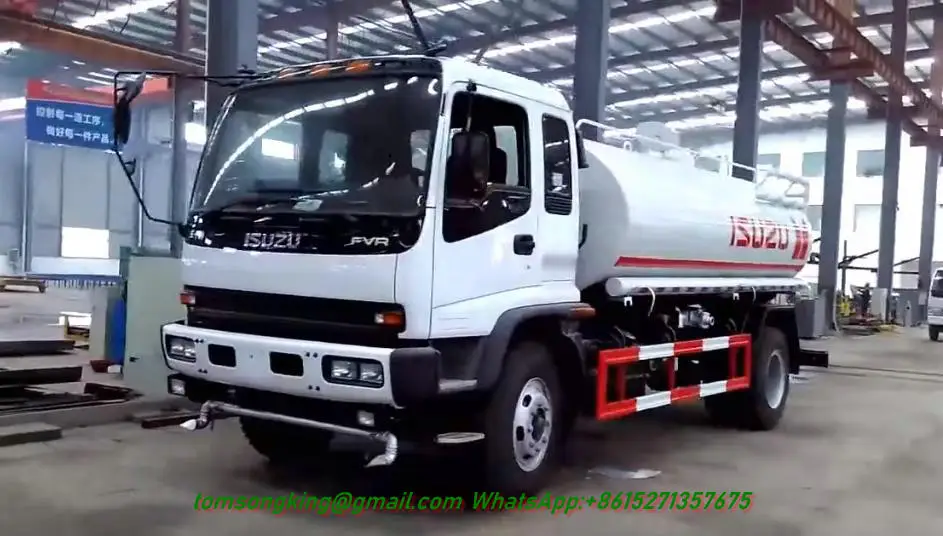

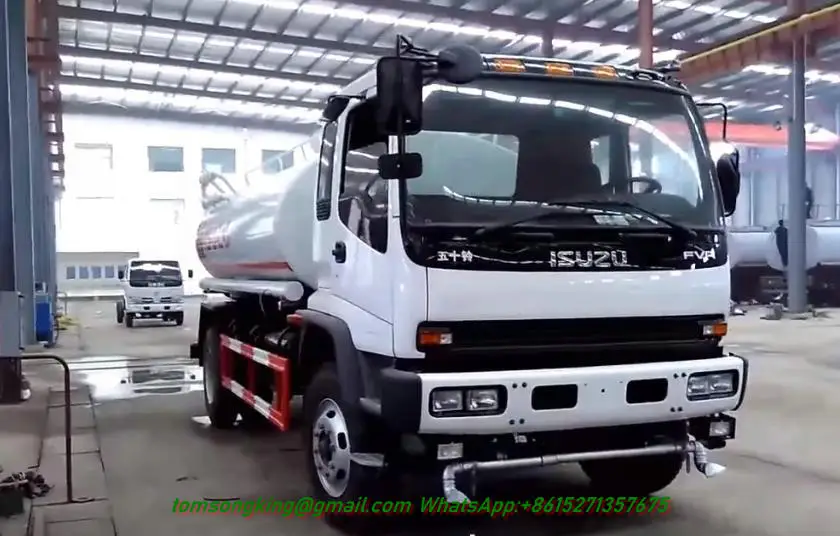

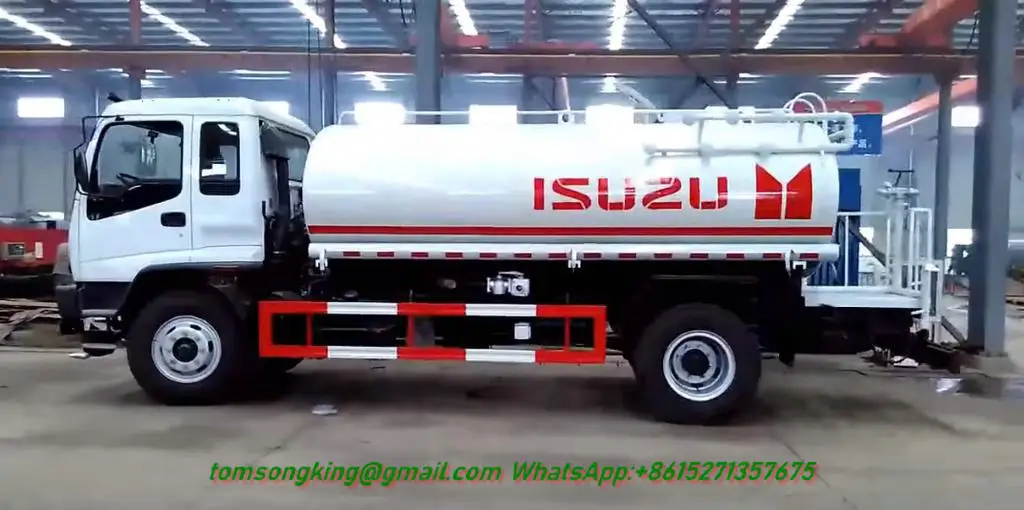

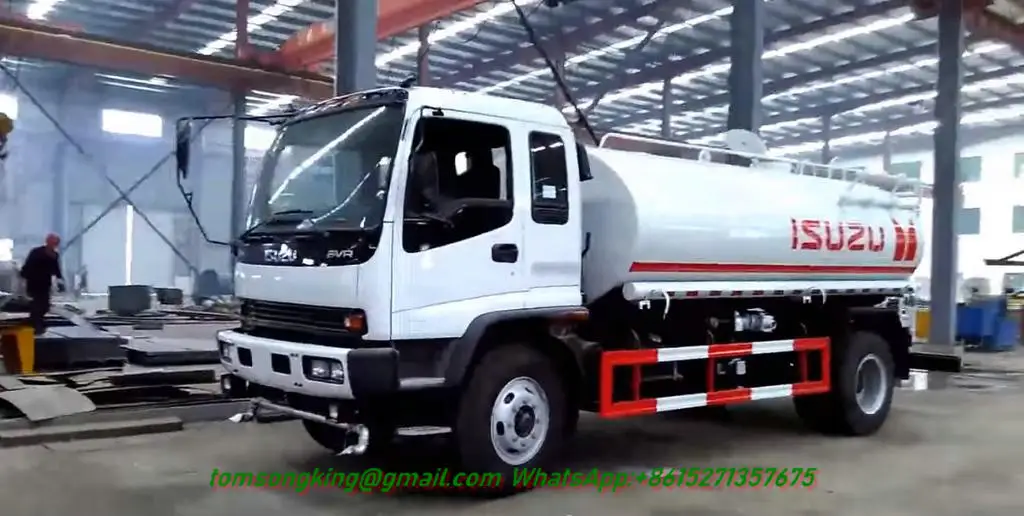

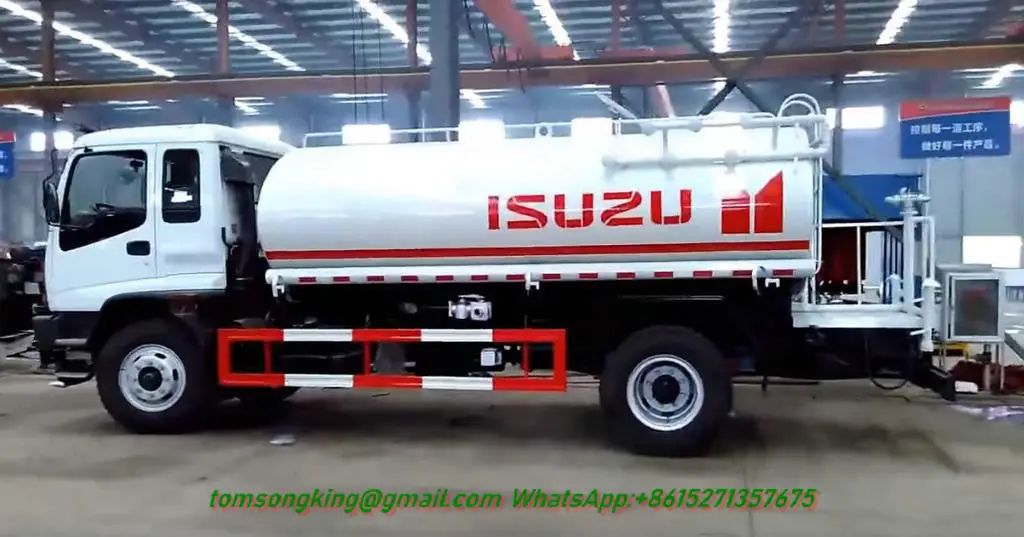

ISUZU FVR 4x2 12000L-16000L Water Tanker Truck
Overall dimensions 9000X2465X2900mm Curb weight 7500kg
Tank dimensions 5800×2400×1400mm Tank volume 16000L
Chassis parameters
Chassis model QL1160ANFRY Chassis brand ISUZU
Overall dimensions 8785x2465x2810 Wheel base 5000mm
Front/rear wheel track 1960/1855mm Front/rear suspension 1335/2450mm
Approach/departure angle 26/11° Maximum speed 95km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration FVR,a row and a half cab(with sleeping berth),allowable 3 passengers, with air conditioner, central locking, electric windows, USB audio, cab can be flipped.
Color White, other color is optional
Engine Model 6HK1-TCNG40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke,Exhaust gas turbo, air-to-air inter-cooling ,diesel engine
Rated power 240hp
Displacement 7790ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 10.00-20 16PR nylon tire
Number 6+1 nos
Frame 258X85(10+4)mm
Front axle 6.3 tons
Rear axle 13.0 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire :1000R20,1100-20,1100R20
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Water tank structure
Tank dimensions 5800×2400×1400mm Tank volume 16000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
---------------------------------------------------------------
ISUZU 4000L-6000L water tank for sale
Overall dimensions 7250X2300X2350mm Curb weight 3510kg
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White, other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Water tank structure parameters
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Tank material Carbon steel /stainless steelTank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank, Insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.
Dust control truck water tanker with Fan pump
4x2, 4x4, 6x4, 6x6, 8x4 Pesticide Truck for your selection, LHD and RHD cabin are both available.
Tanker mobile dust control solution.
Material Steel
Thickness of shell 4 ,5,6mm
Thickness of dish 5,6mm
Inside baffles 3mm
Compartments 1 compartments
Volume 5000L to 12000L+ 5% expansion
Option: Water Pump, Sprinkler ,fine water mist /fog pump cannon
ISUZU FVZ
FVZ EUR 4 | 25T 6*4 | QL1250DPFZ QL1250DRFZ QL1250DTFZ QL1250DAFZY QL1250DNFZY QL1250DPFZY QL1250DQFZY QL1250DRFZY QL1250DSFZY QL1250DTFZY | 6HK1-TCSG40 300HP FVZ chassis with 300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission / air conditioning / 7 tons front axle, rear axle 18 tons and mounted biaxial / optional tire 1000-20,1000R20, 1100-20, 1100R20 / standard direction of power / central locking / electric windows / steam brake / USB Interface audio / cab frame // flip-section: 258 * 85 * 10 + 4mm | 4000+1300 4350+1300 4650+1300 4900+1300 5100+1300 5400+1300 5700+1300 |
ISUZU FTR
FTR EUR 4 | Rate loading 7-8 T 4*2 | QL11409TKFR | 4HK1-TCG40 190HP 4strock FTR with 190 horsepower Isuzu engine 4HK1-TCG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t / optional tire 900-20, 900R20 tires, 1000-20, 1000R20 tire / standard direction of power / central locking / electric windows / steam brake / USB audio / spacious cab flip / frame cross-section: 258 * 85 * 10 + 4mm | 3900 |
| 7-8 T 4*2 | QL11409TMFR |
| 4500 |
| 7-8 T 4*2 | QL11409TAFRY |
| 4700 |
| 7-8 T 4*2 | QL11409TNFR |
| 5000 |
| 7-8 T 4*2 | QL11409TQFR |
| 5550 |
| 7-8 T 4*2 | QL51409TRFR |
| 5800 |
| 8-10T 4*2 | QL11609KFRY |
| 3900 |
| 8-10T 4*2 | QL11609MFRY |
| 4500 |
| 8-10T 4*2 | QL11609AFRY |
| 4700 |
| 8-10T 4*2 | QL11609NFRY |
| 5000 |
| 8-10T 4*2 | QL11609QFRY |
| 5550 |
| 8-10T 4*2 | QL5160XXY9RFRY |
| 5800 |
ISUZU FVR
FVR EUR 4 | G.W 15~16T 4*2 Rate loading 9~10T | QL1150AKFR QL1150AMFR QL1150AQFR QL1160AKFRY QL1160AMFRY QL1160AAFRY QL1160ANFRY QL1160AQFRY QL5160XXYAQFR QL5160XXYARFR | 6HK1-TCNG40 - 240HP 6strock FVR chassis with 240-horsepower Isuzu engine 6HK1-TCNG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /Optional 1000-20 ,1000R20 , 1100-20,1100R20 / standard direction of power / central locking / electric windows / steam brake / USB audio / cab flip / frame cross-section: 258 * 85 * 10 + 4mm | Wheelbase 3900 |
4500 |
4700 |
5000 |
5550 |
5800 |
FVR EUR 4 | 19T G.W 4x2 Rate loading 9~10T | QL5190GXFDMFRY | 6HK1-TCSG40 300HP 300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission, 1100R20 tire, the remaining configuration with the above FVR | 4500 |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
fog cannon option list
100M | 80M | 60M | 50M |
110-180 L/min | 60-118 L/min | 60-85 L/min | 42-52 L/min |
2.0-4.0 MPa | 2.0-3.5 MPa | 2.0-3.5 MPa | 1.5-3.5 MPa |
50-200um | 50-200um | 50-200um | 50-150um |
1450 Pa | 1300 Pa | 1080 Pa | 1080 Pa |
3050㎡/min | 1800㎡/min | 990㎡/min | 990㎡/min |
360° | 359° | ±320° | -0°～280° |
-10°～55° | -10°～55° | -10°～55° | -10°～55° |
120KW | 100KW | 50KW | 30KW |
