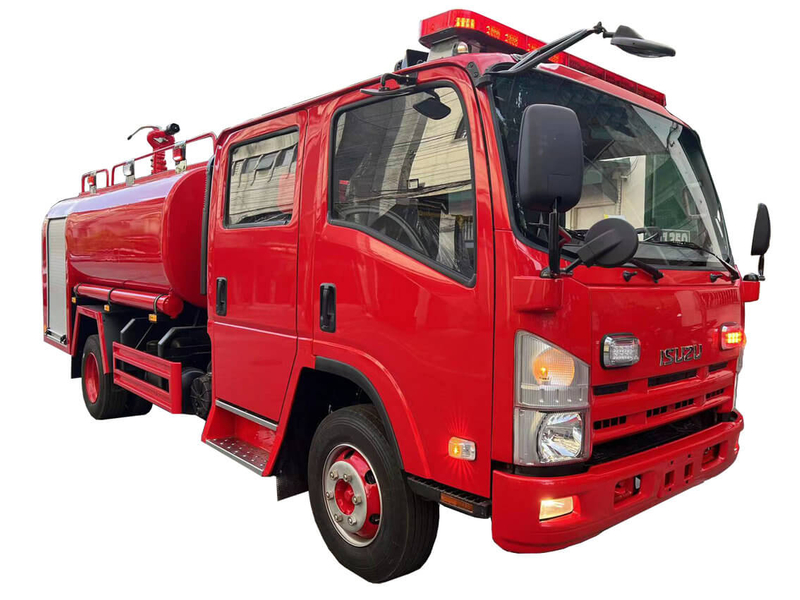

ISUZU 4000L To 6000L Water Tank Fire Fighting Vehicle

ISUZU 4000L To 6000L Water Tank Fire Fighting Vehicle
Optional stainless steel tank drinking water tank
Price: $ 46000
Discount Price: $ 40000
FOB:
Availability:
Quantity:

  • DRZ5070XFQ

  • DRZ

  • 8705309000

  • Shanghai, China

 Chassis Type:ISUZU  QL1100A8KAY
Engine: ISUZU engine, In-line 4 cylinders
Emission Standard: Euro 5/6 Engine
Drive:  4x2 or 4x4 ( All Wheel Drive Offroad)
Transmission:  Manual

Max. Engine Power:190 HP

Double cabin, max to 7 firefighter inside.

Wheelbase: 3815 mm

Water tank: 4000L to 6000L

Water pump: 30L/s

Fire monitor:30L/s


 Product features

Tank material:carbon steel,stainless steel

Tank shape:round square,oval,round

Pump:self-priming pump,centrifugal pump

High efficiency:maximum loading capacity and light weight technology

Standard:synchronize with European and American technology and modular design


Optional :Aluminum alloy profile firefighting Vehicle

With water & foam

Dimensions (L*W*H)  7600 *2500 *3500mm
Chassis ISUZU, Type: QL1180EQFRY
Superstructure Modular ALU 6063T5 Paneling SystemComputer-aided design with superior quality laser-cut and weld-free technology
Chassis Cab 2-door double cab for 3 seaters with safety seat belts.
Crew cab 2-door double cab for 3 seaters with safety seat belts. Independent air conditioner on the roof of crew cabin, 24V.
Water tank 4000 L (+/-5%) (material: PP)
Foam tank 200 L (+/-5%) (material: PP)
Fire pump high- and low-pressure pumpMax. flow rate: 3000LPM @ 10 bar, 250LPM @ 4 bar
Foam system Foam Mixer PH64, 1%, 3%, 6%
Roof monitor Manual, flow: 2000L/min
Hose reel One (1) with 30m x DN25, electric rewind with manual emergency control
Sub-frame Special Metacone multi-point spring-rubber anti-vibration suspension
Roller shutters 7 pieces, all weather and dust proof, aluminium, lockable
Light bar Roof-mounted (RED)
Siren and PA System Cab-control
Rear ladder One (1), all aluminium, retractable
Superstructure components Made by 5-Axis CNC high precision ALU extrusion profiles laser cutting machine .
Painting High quality multi-layer painting, painted before assembling .


ISUZU Euro 6 Chassis list

wheelbase Cab / auxiliary beam width The following is the Isuzu 120 horsepower standard national six light truck chassis The following Isuzu 100p / 600P national VI chassis configuration
2490 Single row / 700 QL1040BUEAY QL1040BUEACY Under the same model of this level, Isuzu 1x level 100p cab or 600P cab, Isuzu 4kh1cn6lb engine, guoliu emission 120 HP 88kw, Isuzu MSB five speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, front axle 2-2.5t, rear axle 4-4.8t, with ABS and standard 700r16 tires(individual 2490 wheelbase Blue brand model 700r15 tires)Note that the oil brake or air brake can be selected according to the different models on the left. The single row cab can be turned over, and the double row can not be turned over. The model painted green corresponds to the 120 HP 2.5-liter Isuzu engine, 4kk1n6lb. The other blue brand ql104 models in the table will also expand the engine in the later stage. The front wheel disc brake is optional for 5000 yuan, and the chassis model with the letter C in the penultimate table is the special bus model for sanitation and postCity models used, other models are non city models
Single row / 700
QL1060BUEACY
Double row / 700 QL1040MVEWY (2.5L displacement)
Double row / 700 QL1040BUEWY
2765 Single row / 700 QL1040BUFAY QL1040BUFACY
Single row / 700
QL1070BUFACY
Double row / 700 QL1040BUFWY
2795 Single row / 700 QL1041BUFAY

3360 Single row / 700 QL1040BUHAY QL1040BUHACY
Single row / 700 QL1070BUHAY QL1070BUHACY
Single row / 700 QL1040MVHAY QL1042MVHAY
Double row / 700 QL1040MVHWY (2.5L displacement)
Double row / 700 QL1040BUHWY QL1071BUHWY
Double row / 700 QL1070BUHWY QL1070BUHWCY
3815 Single row / 700 QL1070BUKAY QL1070BUKACY
Double row / 700 QL1070BUKWY QL1070BUKWCY
wheelbase Cab / auxiliary beam width The following are Isuzu 120-132 HP wide body kv100 / 600 series and medium body M100 / 600 series national VI chassis models The following Isuzu kV Series / M series national VI chassis configurations
2765 Single row / 700 QL1043BUFAY QL1073BUFACY Kv100p / kv600 chassis is equipped with Isuzu 3x wide body cab, M100 / M600 chassis is equipped with Isuzu 2x medium body cab, and other common configurations are: 120 HP G6 Isuzu 4kh1cn6lb engine is equipped with Isuzu 5-speed transmission, or 132 HP G6 4kh1cn6hb engine is equipped with Isuzu 6-speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, front axle 2.5-3Tons, rear axle 4.8-5.5t, with ABS, air brake (or oil brake), cab can be turned over, 700 auxiliary beam model is equipped with 700r16 tire frame height of 176mm, 800 auxiliary beam model is equipped with 750r16 tire frame height of 216mm (blue model can be equipped with 700r16 tire)The model painted green on the left corresponds to 4kk1n6lb, a 120 horsepower 2.5-liter Isuzu engine. The other models starting with blue brand ql104 will also expand the engine in the later stage. The front wheel disc brake is optional for 5000 yuan. The chassis model with the penultimate letter of C is a city model dedicated to sanitation and postal public transportation, and other models are non city models
2795 Single row / 800 QL1043BUFAY

Single row / 800 QL1080BUFAY QL1080BUFACY
3360 Single row / 700 QL1043BUHAY QL1043BUHACY
Single row / 700 QL1073BUHAY QL1073BUHACY
Single row / 700 QL1043MVHAY (2.5L displacement)
3365 Single row / 800 QL1043BUHAY QL1043BUHACY
Single row / 800 QL1080BUHAY QL1080BUHACY
3815 Single row / 700 QL1073BUKAY QL1073BUKACY
Single row / 800 QL1080BUKAY QL1080BUKACY
wheelbase Cab / auxiliary beam width The following Isuzu kv800 class 150-180 HP wide body national six light truck chassis The following Isuzu kv800 new model national VI chassis configuration
3365 Single row / 850 QL1043AKHAY (150 HP blue) Kv800 chassis is equipped with Isuzu 3x wide body cab: 150 HP Isuzu 4jz1-tcg60 engine with Isuzu Myy six speed transmission (180 HP G6 4jz1-tcg61 engine is added in the later expansion), with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, 3.5 tons of front axle and 6 tons of rear axle, with ABS, air break brake and 750r16 tires(700r16 tires can be selected for the blue brand model), the cab can be turned over, and the frame width of 850 auxiliary beam model is 216mm. Note: the penultimate letter with C is the city model.
Single row / 850 QL1080AKHAY QL1080AKHACY
3815 Single row / 850 QL1080AKKAY QL1080AKKACY
4175 Single row / 850 QL1080AKLAY QL1080AKLACY
4475 Single row / 850 QL1080AKMAY
Single row / 850
QL1080AKMACY
wheelbase Cab / auxiliary beam width The following Isuzu 700p class 190-205 HP national VI air brake chassis The following Isuzu 700p level 190-205 HP national VI configuration
3360 Single row / 850 QL1110ANHAY
700p chassis is equipped with Isuzu 3x wide body cab: Standard Isuzu 4hk1-tcg61 engine, 190hp national VI emission, optional 205 HP Isuzu 4hk1-tcg60 engine, Isuzu MLD six speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional steering wheel, 4T front axle, 7T rear axle, ABS, air break brake, reversible cab, 235 / 75r17.5 wheels as standardTire, add 2000 optional 825r20 tire, add 3000 yuan optional front wheel disc brake. The chassis model with the penultimate letter of C is the urban model dedicated to sanitation and postal public transport, and other models are non urban models.,
Single row / 850 QL1111ANHAY (automatic chassis)
3765 11.99 gross tons QL1120AJJAY QL1120AJJACY
3815 Single row / 850 QL1110ANKAY QL1110ANKACY
Single row / 850 QL1110CNKAY (4WD Chassis)
Double row / 850 QL1110ANKWY

4175 Single row / 850 QL1110ANLAY QL1110ANLACY
Double row / 850 QL1110ANLWY
4475 Single row / 850 QL1110ANMAY QL1110ANMACY
Double row / 850 QL1110ANMWY

5200 Single row / 850 QL1110ANPAY QL1110ANPACY
Half row / 850 QL1110ANPHY
wheelbase The following is the Isuzu FTR 205 HP national VI chassis model, with the same model and configuration, and the adjacent wheelbase difference of 2000 yuan The following Isuzu FTR level 205 HP national VI chassis configuration
3900/4500 QL1180JQFRY
The 205 horsepower chassis of Isuzu guoliu corresponds to 4hk1-tc60 engine and is matched with Isuzu MLD six speed transmission. Other common configurations are: the new Isuzu 4x reduced version vc61 cab, cooling and heating air conditioner, steering assistance, central lock, electric doors and windows, multi-functional steering wheel, multi-functional liquid crystal instrument, ABS and air brake. The front axle is 6.3t and the rear axle is 13T. The model of this level is equipped with 295 / 80R22.5 as standard18pr (yellow painted models are urban models) remarks: cyclone seats and front wheel disc brakes can be optional on the chassis. Operating regulations configuration: the speed limit is 89 km / h, which is configured for ordinary ABS status, including front wheel, explosion-proof and tire pressure monitoring. In addition to TPMS with front wheel, explosion-proof and tire pressure monitoring, EBS + ESC + LDWS + FCW status configuration is under development
5550

4500/5000 QL1180JQFRCY

5350/5550

5800 QL5180XXYAJWHY QL5180XXYAJRHY
6300 QL5180XXYAJTHY
7200 QL5181XXYAJWHY
7200
QL5180XXYJTFRY
wheelbase The following are Isuzu 240 HP FVR / 300 HP fvz national VI chassis models The following Isuzu FVR / fvz level 240-300 HP national VI chassis configuration
★4500/5550 QL1180EQFRY QL1180EQFRCY Matching of engine and transmission: Isuzu guoliu single axle 240 HP FVR chassis corresponds to 6hk1-tcg61 engine and matches with fast 8-speed transmission. Isuzu guoliu 300 HP fvz chassis corresponds to 6hk1-tcg60 engine and matches with fast 9-speed transmission. Other common configurations: equipped with new Isuzu 5x vc61 cab, cooling and heating air conditioning, direction assistance, Central lock, electric doors and windows and multi-functionCapable of steering wheel, multi-functional liquid crystal instrument, with ABS and air brake. 4 * 2 models have 6.3t or 9t front axle, 13T rear axle, 6 * 4 or 8 * 4 models have 7T front axle and 10 + 10t rear axle. The model of this level is equipped with 295 / 80R22.5 18pr as standard (the model painted yellow is urban model)Remarks: cyclone seat is optional for FVR and fvz chassis for 1000 yuan and cyclone cab is optional for 2000 yuan. Operating regulations configuration: the speed limit of operating vehicle is 89 km / h: it is in ordinary ABS status, including front wheel disc brake, rear wheel drum brake, tire explosion-proof and tire pressure monitoring TPMS.
Vehicle speed above 90km / h for operating vehicles: EBS + ESC + LDWS + FCW, i.e. front disc and rear drum, tire pressure monitoring TPMS, tire explosion-proof emergency, EBS electronic control braking system and ESC vehicle electronic stability control system are added,
Lane departure alarm LDWS and forward collision alarm FCW. In addition to the configuration of the above fvz rear double axle models, the special hazardous chassis ql1260ffshy also has hazardous chassis kits such as speed limit 90, front exhaust pipe and air suspension axle.
5550 QL5180XXYEQFRY
5800 QL5180XXYGTFRY QL5180XXYERFRCY
6300 QL5180XXYESFRY
7150 QL5180XXYGTFRY Single axle 240 HP

Above 240 HP, below 300 HP
4500 QL5220GXFFMFRY Front 385 / 65r22.5 and rear 315 / 80R22.5
7150 QL5180XXYGTFRY Single axle 300 HP
4350+1370/4650+1370 ★ quotation for large wheelbase QL1250FNFZY
4650+1370/5100+1370 QL1251FTFZY QL1251FTFZY
5700+1370
5700+1370 QL1251FTFZY QL1250FTFZY
5800+1370 QL1252FTFZY
4650+1370 QL1260FFSHY Special chassis for hazardous chemicals
1850+2980+1370 QL2310GFSHY Front bar improves Trafficability
1850+4575+1370 QL1310FVFHY
wheelbase The following are Isuzu vc66 level 350 HP, 380 HP, 460 HP and 520 HP national six chassis models The following is the configuration of Isuzu vc66 level 350 HP, 380 HP, 420 HP, 460 HP and 520 HP national VI chassis
3900/4600/5600 QL5220TZZU4QDRY 380 HP special chassis Matching of engine and transmission: Isuzu guoliu 350 HP corresponds to 6uz1-tcg61 engine, 380 HP corresponds to 6uz1-tcg61 engine, 420 HP corresponds to 6wg1-tcg60 engine, 460 HP corresponds to 6wg1-tcg61 engine, guoliu 520 HP chassis corresponds to 6wg1-tcg62 engine, and the transmission is zf8 of ZF 8 or other common configurations of fast 12Set: equipped with the new Isuzu vc61 cab, heating and cooling air conditioner, steering assist, central lock, electric doors and windows, multi-functional steering wheel, multi-functional liquid crystal instrument, with ABS and air brake. Ordinary models have 7.5t front axle, 13-20t rear axle, overrun chassis, 9t-18t front axle and 13t-26t rear axle. Ordinary models of this level are equipped with 295 / 80R22.5 tires or 12r22.5 tires as standard. This level of overrun special chassisFront wheel 385 / 65r22.5, rear wheel 315 / 80R22.5, optional cyclone seat for 1000 yuan and air suspension cab for 2000 yuan. Configuration of operating regulations: speed limit of operating vehicle is 89 km / h: it is configured in ordinary ABS status, including front wheel disc brake, rear wheel drum brake and tire explosion-proof tire pressure monitoring TPMS. Speed of operating vehicle above 90 km / h: EBS + ESC + LDWS + FCW, i.e. front disc rear drum and tire pressure monitoringTest TPMS, tire explosion-proof emergency, add EBS electronic control braking system, ESC vehicle electronic stability control,
Lane departure alarm LDWS and forward collision alarm FCW. The special hazardous chassis ql1260kdphy is added with hazardous chassis kits such as speed limit 90, front exhaust pipe and air suspension axle on the basis of the above common goods
4600 QL5220TZZHFMHY 460 HP special chassis
3900+1370 QL1260KDPHY 380 maliwei chassis
3985+1370 QL1250U4QDZCY 380 HP sanitation chassis
4600+1370 QL1250U4SDZY 380 malinon City
4600+1370 QL5350TZZWUTDZY 380 HP fire chassis
460 HP fire chassis
1850+3000+1370 QL1310U4TDHCY 380 HP sanitation chassis
1850+2980+1370 QL2310U4TDHY 380 HP mixing chassis
1850+4575+1370 QL1310LCYHY 350 malifei City
1850+4575+1370 QL1320W6VDHY 460 HP air suspension rear axle
4800+1370 QL5350TZZW6TDZY 420 HP special chassis
5200+1370 QL5350TZZW6TDZY 420 HP special chassis
4800+1370 QL5350TZZW6TDZY 460 HP special chassis
4800+1370 QL5350TZZW7TDZY 520 HP special chassis
5200+1370 QL5350TZZW6TDZY 460 HP special chassis
5400+1370 QL5360TZZKJUHY 520 HP special chassis
2100+4325+1370 QL5440TZZW6VDHY 460 HP special chassis
2100+4325+1370 QL5440TZZW7VDHY 520 HP special chassis
wheelbase The following is Isuzu vc66 level 380 HP, 420 HP, 460 HP and 520 HP guoliu traction model number The following is the configuration of Isuzu vc66 class 380 HP, 420 HP, 460 HP and 520 HP national VI tractor
3600 QL4180U4JDR 380 HP 4 * 2 Engine transmission: Isuzu guoliu 380 HP corresponds to 6uz1-tcg61 engine, Isuzu guoliu 420 HP corresponds to 6wg1-tcg60 engine, Isuzu guoliu 460 HP corresponds to 6wg1-tcg61 engine, and Isuzu guoliu 520 HP corresponds to 6wg1-tcg62 engine. The transmission is ZF16, and the automatic gear model corresponds to the manual transmission. Other common configurations: install the new Isuzu 5xLevel vc61 cab, heating and cooling air conditioner, steering assist, central lock, electric doors and windows, multi-functional steering wheel, multi-functional LCD instrument, with ABS and air brake. Ordinary models have 7.5t front axle, 13T rear axle or 10 + 10t. Ordinary models of this level are equipped with 295 / 80R22.5 18pr as standard and 12r22.5 18pr as optional. Operation regulations configuration: the corresponding speed limit of ordinary models is 89km. Regulations include air break of front wheel and rear drumBrake, add EBS electronic control brake system, ESC vehicle electronic stability control system, double early warning (lane departure alarm LDWS, forward collision alarm FCW), 10t Meritor rear axle, air suspension seat and cab, and add tire pressure monitoring, tire explosion-proof, Harrison rear axle air suspension and 10t Meritor disc rear axle for hazardous vehicles
3600 QL4180W5JDR QL4180W6JDR
3900 QL4180W7KDR 460 HP 4 * 2
3385+1370 QL4250U4NDZ QL4250W6NDZ
3385+1370 QL4250WUNDZ 520hp manual gear
3385+1370 QL4250KJNH 520 HP automatic
3385+1370 QL4251U4NDZ 380 HP high-risk chemical
3385+1370 QL4252U4NDZ 380 HP standard top hazard
3385+1370 QL4251W6NDZ 460 HP high-risk
3385+1370 QL4252W6NDZ 460hp standard top hazard
