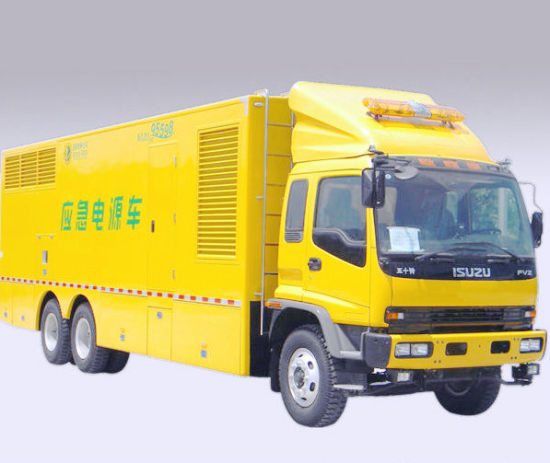

Isuzu Fvz 500kw 600kw 700kw Emergency Power Supply Vehicle
Isuzu Fvz 500kw 600kw 700kw Emergency Power Supply Vehicle
| Quantity: | |
|---|---|
- 10000
- T/T, Western Union
- Nil
Isuzu ISUZU 500KW Emergency Power Supply Vehicle
ISUZU Generator Power source service truck Electric cars moble power supply vehicle 500KW
FVZ EUR 3 | 14-15T 6*4 | QL1250RPFZ , FVZ34Q | 6HK1-TCS | 4.65+1.3 |
| 14-15T 6*4 | QL1250RQFZY | 6HK1-TCS | 4.9+1.3 | |
| 14-15T 6*4 | QL1250RRFZ , CXA34T | 6HK1-TCS | 5.1+1.3 | |
| 14-15T 6*4 | QL1250RSFZY | 6HK1-TCS | 5.4+1.3 | |
| 14-15T 6*4 | QL1250RTFZ , FVZ34V | 6HK1-TCS | 5.7+1.3 |
| FVZ EUR 4 | 14-15T 6*4 | QL1250DPFZ | 6HK1-TCSG40 | 4.65+1.3 |
| 14-15T 6*4 | 6HK1-TCSG40 | 4.9+1.3 | ||
| 14-15T 6*4 | QL1250DRFZ | 6HK1-TCSG40 | 5.1+1.3 | |
| 14-15T 6*4 | 6HK1-TCSG40 | 5.4+1.3 | ||
| 14-15T 6*4 | QL1250DTFZ | 6HK1-TCSG40 | 5.7+1.3 |
ISUZU Truck chassis
| 7-8 T 4*2 | QL1150WKFR FVR34G2 | 6HK1-TCN | 3900 |
| 7-8 T 4*2 | QL1150WMFR , FVR34J2 | 6HK1-TCN | 4500 |
| 7-8 T 4*2 | QL1160WAFRY | 6HK1-TCN | 4700 |
| 7-8 T 4*2 | QL1160WNFRY | 6HK1-TCN | 5000 |
| 7-8 T 4*2 | QL1150WQFR , FVR34P2 | 6HK1-TCN | 5550 |
| 7-8 T 4*2 | QL1160WRFRY | 6HK1-TCN | 5800 |
EURO4
| FVR EUR 4 | 7-8 T 4*2 | QL1150AKFR | 6HK1-TCNG40 | 3900 |
| 7-8 T 4*2 | QL1150AMFR | 6HK1-TCNG40 | 4500 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 4700 | ||
| 8-10T 4*2 | 6HK1-TCNG40 | 5000 | ||
| 7-8 T 4*2 | QL1150AQFR | 6HK1-TCNG40 | 5550 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 5800 |
Standard:
1) Complete imported / Chinese Made Diesel power generator set (With control screen)
2) Equipped with original air-condition in operator cabin.
3) Manual button to control cable stock
4) Equipped with control and support system of manual button such as hydraulic assembly, control system, hydraulic oil tank, and hydraulic oil pipe
5) Standard operationg room (Desk, sofa, AC, safe lumious lock, and speficic decoration parts)
6) Grade II silencing and fume exhausting system(with noise less than 75dB)
7) Specific lacquer of truck with joint venture brand is adopted as truck lacquer
8) Dry powder fire extinguisher
Technical parameter of 160kw to 900kw auto Start Power Electronic Generator with yuchai diesel engine
Genset | ||||
| Prime power | 600KW/750KVA | |||
| Standby power | 700KW/875KVA | |||
| Rated speed | 1500 rpm | |||
| Output frequency | 50 Hz | |||
| Rated voltage | 220V/380V | |||
| Starting model | Electric start | |||
| Fuel consumption of 100% load | 195 g/kw.h | |||
| Steady voltage regulation rate | ≤±1% | |||
| Steady frequency regulation rate | ≤5% | |||
| Engine | ||||
| Engine brand | Yuchai | |||
| Engine model | YC6C1020L-D20 | |||
| Cylinder arrangement | 6 in-line | |||
| Cycle | Four stroke | |||
| Bore×Stroke | 200*210 mm | |||
| Displacement | 39.58 L | |||
| Prime power on rated speed | 680 kw | |||
| Standby power on rated speed | 748 kw | |||
| Speed governor | Electronic speed governor | |||
| Alternator | ||||
| Alternator brand | Henjo | |||
| Exciter type | Brushless, Self-exciting, with AVR | |||
Frequrncy and speed | 50hz/1500rpm | |||
| Phase connecting way | Three phase four wires, "Y" type connecting | |||
| Power factor | 0.8 | |||
| Alternator efficiencies | 95.00% | |||
| Insulation grade | H | |||
| Protection grade | IP23 | |||
