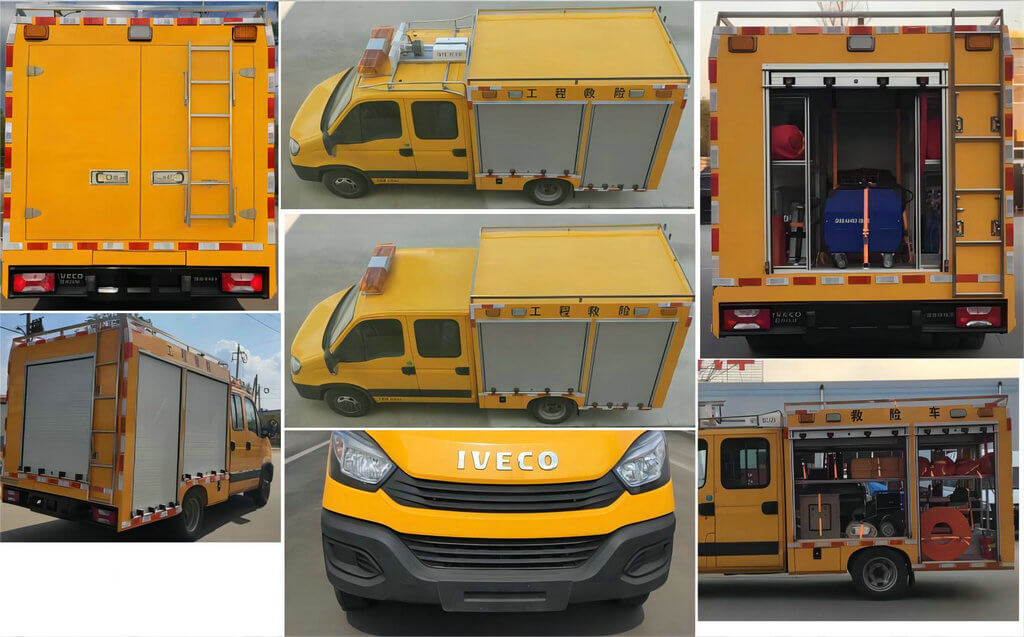

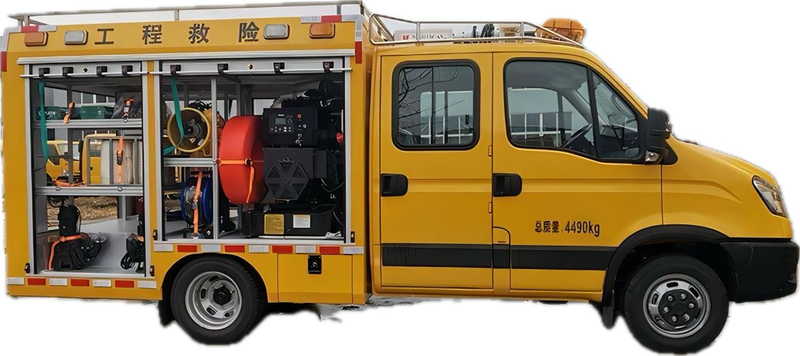

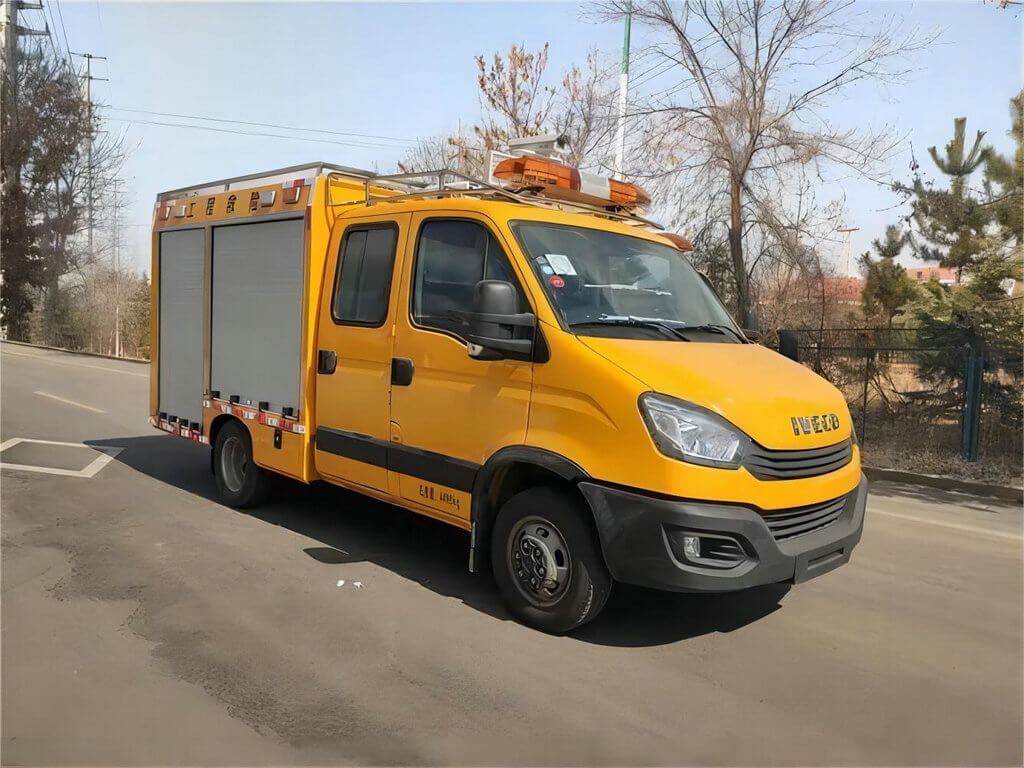

Iveco Maritime Rescue Truck With Water Rescue Equipment
Overall dimensions: | 5990×2015×2600,2700(mm) | Net Weight | 4100(Kg) |
Gross Wright | 4490(Kg) | Front passenger: | 3+3 |
Approach Angle/Departure Angle: | 24/14(°) | Front/rear overhang: | 1002/1688(mm) |
Axle Load: | 1490/3000 | Wheelbase: | 3300(mm) |
Number of Axles: | 2 | Maximum speed: | 130(km/h) |
Fuel consumption: | (L/100Km) | Number of spring pieces: | -/7,-/3,-/1+- |
Number of tires: | 6(PCS) | Tire Specifications: | 195/75R16LT 10PR,195/75R16C 107/105R |
Front wheel track: | 1725(mm) | Rear wheel track: | 1538,1750,1558(mm) |
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
F1AE8481D | Nanjing IVeco Automobile Co., LTD | 2287 | 95/129 |
F1CE8481K | Nanjing IVeco Automobile Co., LTD | 2998 | 125/170 |
Rescue vehicle | 1 | |
Rescue equipment | Model | Quantity |
150N life vest | JJSY150 | 12 |
Water helmet | SY-TK | 12 |
Diving knife | DX-GSDT19 | 12 |
Waterproof headlamp | SY-TK | 12 |
Protective gloves | SY-ST | 12 |
Wading shoes | DX-SYX01 | 12 |
Dry survival suit | SY-F | 12 |
Wet survival suit | SY-FS-LT-ANT | 12 |
walkie-talkie | 81-PLUS | 12 |
drone | 1 | |
Drone | Phantom 4 RTK | 1 |
Communication equipment | 1 | |
Desktop computer | M437 | 2 |
Duty telephone | HCD868 | 1 |
Monitor | H50V5 | 1 |
VHF shipboard equipment (including power supply, antenna) | XiR M6660 VHF | 2 |
Fisheries walkie-talkie | XiR P6600i | 2 |
Life-saving equipment | 1 | |
Summer life jacket | DX-Y005 | 25 |
Winter life jacket | BNY-1 | 25 |
Throwing life buoy | DX5555-I | 10 |
Life rope 100 meters | DX-JSSP10 | 10 |
Vehicle modification part: (1) Warning light alarm: install standard alarm system, the front of the roof is equipped with long yellow alarm lights and alarm control box in the cab; the two sides of the car and the upper rear tail are equipped with 10 flashing lights and 6 flashing modules; (2) The position skeleton of the long row of alarm lights installed inside the roof of the original cab is strengthened; (3) rectangular steel pipe welding forming skeleton, outer seal automobile special cold rolled steel plate, inner seal small pattern aluminum plate, internal and outer sealing insulation material; customized aluminum alloy equipment cabinet; (4) The left and right sides of the box and the rear of the rolling curtain door structure; the car body skirt circumference structure, bearing 200kg, convenient for loading and unloading; (5) Stain-steel guardrail is installed around the top of the box body; (6) High-definition navigation and reversing monitoring all-in-car, cab and rear body LED lights; (7) Equipped with lightning protection system, grounding device, vehicle fire extinguisher and support and other safety systems; (8) Reasonable wiring of the whole vehicle electrical appliances, equipped with a total electrical control box, 220V and 380V mains power socket; (9) With an emergency rescue combination tool kit, with a toolbox, with a fixed device; (10) The color of the car body is yellow, and the external logo can be pasted or painted according to the words "rescue car" according to customer requirements; | ||||
Rescue Equipment | ||||
1 | A 150N lifesaving vest | ★ 1. The life jacket is made of NBR buoyancy foam, which can produce 150N buoyancy. Test of> 90 KG adults can obtain enough upward floating force (can be used as a two-person buoyancy equipment in his rescue work); 2, for the torrent rescue type life jacket, can deal with all water conditions; 3, suitable for users with a chest circumference of 75 to 145 cm.8 adjustable fixed bands; 4, vest design, a # 10 YKK plastic steel opening zipper, and the use of plastic pull head buoyancy plate fixed in the cloth sandwich, the rear neckline has elastic design; ★ 5,39 sewing sleeve knot reinforcement and 500D Cordura tear resistant fabric (electronic testing report issued by a third-party testing agency shall be provided), | 12 | piece |
2 | Water helmet | 1, low center of gravity without cap edge design, fit the head. 2. Using aerodynamics to design 10 pores, the airflow inside the helmet is smooth, and there is high comfort in the large temperature difference environment. 3. Integrated ear protection parts on both sides of the helmet and large vents to protect the ears without affecting hearing. 4, ABS engineering plastic injection molding helmet shell, high impact strength. 5, high density EVA cushion, closed bubble hole structure, no water absorption, high resilience and tension resistance, good water resistance and low speed impact energy absorption capacity. 6, the headband is equipped with EVA pad, Velcro retention, easy to remove, clean and replace.7, fast adjustable cap lining, can be operated in one hand, to meet the needs of personalized size adjustment. 8. A tactical multi-functional guide rail is designed on each side of the helmet, and tactical accessories such as tactical headlights and infrared night vision instrument can be installed. 9. There is a cuttlefish dry camera holder designed at the front of the head of the helmet, and the overhead headlamp can also be selectively installed to help effectively help all aspects of the rescue work 10. The floating performance of the helmet is good. After inspection and testing, the helmet can always float on the water after 4 hours of floating in the water. 11. Impact absorption performance: the maximum impact force of the head mode is 3423N.12, top impact resistance: maximum acceleration: 148.51g acceleration more than 150g action time: 0ms | 12 | sets |
3 | divers knife | 1. The blade is made of titanium alloy, highly corrosion resistant and competent for various types of water operations. 2, with a flat blade, tooth blade, rope cutting hook. 3. The flat head design to prevent the knife tip injury to the user or other puncture injuries, and the flat head can also be used as a one-word screwdriver. 4. The special scabbard can fix the knife firmly, as long as easily pinch the ends of the sheath, the knife will automatically pop out. 5. The wavy handle can provide good friction and will not fall off even in a wet environment. 6. The card of the knife sheath can be firmly fixed on the PFD. 7, the handle has the luminous function, even in the dark can be effectively seen; 8, knife length is 18.7cm, blade length is 7.7c m, hardness is 50 hrc. | 12 | sets |
4 | Waterproof headlamps | 1. Comply with the technical standard of GB30734-2014 2, intrinsically safe explosion-proof grade Ex ib iic T4 GB, meet the requirements of safety work in area 1 and 2. 3, using high-power LED light source, high light efficiency, long life, the average service life of 100,000 hours. 4, beautiful appearance, small volume, light weight, suitable for installation on the helmet, used as a headlamp. 5, using light alloy precision processing, strong collision and impact resistance, high and low temperature resistance, meet the use in harsh environment and climate conditions. 6. The tail has a red orientation indicator light and a visible distance of 100m, which can effectively indicate the mutual orientation of the wearer. 7. The lamp has a power display device, which can display the remaining power and the charging state of the lamp in real time. When the power of the lamp is insufficient (less than 25%), the last power indicator light will flash to remind you, please charge in time. 8. The lamp is equipped with tilt induction alarm function. The single chip controller detects the movement state of the person at the speed of 60 times per second. When the human body beats without pulse for 30 seconds, the red LED at the tail of the lamp flashes. Equipped with a Type-c charging hole, the interface is not limited by the direction, so the charging is convenient and fast.9. Technical parameters: (1) Rated voltage: 3.7V (2) Rated capacity: 1,900 Mah (3) (LED) Power: 3W (4) Average service life: 1,000,000 h (5) Continuous discharge time: 4 h of working light and 8 h of strong light (6) Charging time: 5h (7) Battery life: 1,000 cycles (8) Overall dimension: outer diameter * 2 length 3 * 121 mm (9) Weight: 0.12k(10) illuminance (mean value): strong light> 513 lx weak light> 283 lx (11) Low power working time: 15min strong light, 30min weak light (12) The temperature is 40℃, the humidity is 90-96%, the duration is 9h, after the test, the lamp should be able to switch normally and strong and weak light | 12 | PCS |
5 | protective glove | 1. Structure: The firefighter water rescue gloves are made of the outer layer and the protective and thermal composite layer. The palms and fingers of the firefighter water rescue gloves are used to enhance the wear resistance of the outer layer. 2. Style: The firefighter's water rescue gloves are five-finger separated, the length of the body extends annular, the well is 58mm beyond the wrist bone, and the firefighter's water rescue gloves can limit the entry of debris. ★ 3, mass (g) 180g (one pair) 4. Dexterity: After wearing firefighter water rescue gloves with both hands, personnel can tie ropes with diameters of 9.5mm, 12.5mm and 16mm. Five-finger multi-purpose diving gloves, ergonomic pre-bent design to fit the natural curvature of the hand.5, made of 3MM high elastic neoprene composite fabric material, three-dimensional cutting technology, with good warmth, wear resistance, anti-skid. 6, elastic widened nylon belt, Velcro closed, firmly buckle on the wrist, prevent the sea water from entering the glove interior, opening and closing adjustment is convenient. Stereo entry, design with zipper opening and closing, easier gloves to quickly wear and remove. The left and right gloves are designed with a loss-proof adhesive plastic buckle. 7, adhesive blind seam process, excellent waterproof performance and tensile strength. 8. Silver reflective and yellow printed signs during the day (the wrist part has logo thickness and English glove reflective words) to improve the visibility of daytime or dark and foggy environment. Quick dry, friendly skin. 9, wristband: elastic band + Velcro (hook stick fixed on the back of the palm)) | 12 | pcs |
6 | Wading shoes | 1,5mm neoprene material upper, good warmth, high comfort, walking exercise to support the ankle, reduce foot fatigue. 2,5mm neoprene shoe tongue, prevent water and debris from entering the shoes.3. Back heel with a convex block, which can be firmly combined with frog shoes. 4, the boot sole after 10 0,000 times bending test, the outsole should not break or crack length of 10mm 5, Boot top material: maximum piercing resistance 100N. 6. Provide the electronic documents of the test report of the national authoritative third-party organization at the time of bid opening. | 12 |
|
7 | Dry life suit | one.technical description 1. Fabric: 900D high-strength nylon fabric, 320D integrated three-layer waterproof nylon composite fabric 2. Buffer layer: high density neoprene buffer layer for elbow and knee to effectively prevent impact absorption; 3, zipper: the main entrance and urine mouth zipper for TIZIP or equivalent quality waterproof resin zipper, 4, Velcro: neckline, cuffs, trouser leg tightening out of high quality waterproof leather and Velcro tightening, both sides of the waist can be adjusted Velcro nylon ribbon tightening system | 12 | PCS |
8 | Wet life-saving suit | 1. technical description 1. Mainly used for basic protection of water rescue body, with wear resistance, insulation and other functions; 2,3mm thickness of three-layer waterproof neoprene composite fabric, strong tensile strength and wear resistance, good wrinkle resistance and formability, more close to the back and easy to move; 3. With front wet clothing, front, longitudinal main entrance, double head 10 # resin zipper (sewn at the bottom to avoid zipper and skin extrusion), men can open the cuff and trouser leg are designed with zipper to ensure the convenience of wearing, high strength resistance and easy to open and close. 4, hip, elbow and knee, high quality wear-resistant tear-resistant fabric large area reinforcement, and reach 5mm thickness, efficient relieve impact force, increase wear resistance, have comprehensive protection ability; 5. The fluorescent green cloth on both sides of the arm designs "RESCUE" to increase the visibility on the left and right sides. two. Structure style 1. Firefighters's water rescue wet protective clothing (hereinafter referred to as wet clothing) is an integrated structure of top and bottom, and the legs and cuffs are equipped with zips that can adjust the size of the opening. Apply supplements to the shoulders, armpits, elbows, hips, and knees in wet clothing for enhanced wear resistance. three.material requirements 1. Stretching strength After the tensile strength test of 150N and 10s of the fabric of the wet clothing, the radial and latitudes of the sample did not break. 2. Joint strength The joint of wet service was tested for 100N and 10s, and the sample did not break. ★ 3, abrasion resistance performance The fabric of the wet suit was not worn through after 2,000 cycles of friction. The reinforcing material of wet clothing was not worn through after 6000 cycles of friction. ★ 4, hydrostatic resistance performance No leakage of water droplets occurs at 5min after the hydrostatic pressure is 100 kpa. four. Applicable performance 1. Restricted on wearing life jackets: wet clothes do not limit users to wear life jackets 2, wet clothes wearing time (s) 24.71 3, wearer activity: people in wet clothes can walk, crawl, swim and board the platform. | 12 | pcs |
9 | walkie-talkie | 1. Frequency range: UHF 2. Number of channels: 16 3. Channel inquiry limit 25 KHz (band) 12.5KHz (band) 4, the frequency stability is ± 2.5ppm 5. Operating voltage is 7.4VDC=20% 6. Operating temperature is-20℃ ~ + 60℃ | 2 | SETS |
Drone | ||||
No | name | parameter | quantity | unit |
1 | drone | 1. Small multi-rotor high-precision aerial survey uav, designed for low-altitude photogrammetry applications, with centimeter-level navigation and positioning system and high-performance imaging system, comprehensively improving the efficiency of aerial survey. 2. For the comprehensive optimization of aerial photogrammetry, no image control technology brings mapping-level accuracy results. The 1-inch 20-megapixel CMOS sensor captures HD images. Mechanical shutter supports high-speed flight shooting, eliminate the jelly effect, and effectively avoid the reduction of drawing accuracy. Small multi-rotor low-altitude and high-precision aerial survey UAV, with centimeter-level navigation and positioning system and high-performance imaging system; 3. Integrate the new RTK module to provide real-time centimeter-level positioning data; single flight time of 25 minutes, 1-inch 20-megapixel CMOS sensor captures HD images; The map transmission system is stable and reliable, with an effective distance of 7km; 4. Aircraft wheelbase: 350 mm; 5. Maximum take-off altitude: 6000 m, maximum horizontal flight speed: 50 km / h (positioning mode) 58 km/h (attitude mode); 6, Hover accuracy: vertical: ± 0.1 m; 7. Level: ± 0.1 m (when RTK is enabled and RTK is working normally); 8. Camera image sensor: 1-inch CMOS; 9.20 million pixels (total 20.48 million); 10. Maximum photo resolution: 48643648 (4:3); 54723648 (3:2); 11, support memory card type: write speed of 15 MB/s, transmission speed of Class10 and above or reach the UHS-1 rating of microSD card, the maximum support of 128GB capacity; 12. Display device: 5.5-inch screen, resolution 19201080, And roid system; 13. Intelligent flight battery capacity is 5000 mAh. | 1 | SET |
communications-equipment | ||||
1 | ▲ desktop computer | 1, CPU: I5-10 generation processor; 8G memory; 1T hard disk; motherboard integrated without optical drive; 21.5-inch display | 2 | SET |
2 | On duty phone | 1、Conditions of use: ambient temperature-10~ + 40℃ relative humidity 10℃ ~90℃;2、Operating frequency: 300 ~ 3400 HZ; 3. Ring level: 70DB (A) | 1 | PCS |
3 | ▲ monitor | 1、Appearance: ultra-narrow frame design, piano baking paint texture; 2、Configuration: 4K ultra HD, resolution 38402160, standard infrared remote control, stereo surging sound, DTS decoding, quad-core A53 processor, 1.5GB + 8GB large storage, rich interface design; Function: Support wired / wireless (2.4GHz) connection, MI UI for TV, massive content | 1 | PCS |
4 | And VHF shipborne equipment (Including power supply, antenna) | 1, Channel capacity is 256 ★ 2, frequency 136-174 MHz 3, the weight of 1,300 grams 4. Current consumption (high power) 5. Standby Rx @ Rated Message Tx @ Rated News Maximum of 0.81A Maximum 2A Maximum of 14.5A 6. Dimensions (HWT): 44169134mm 7. Digital sensitivity: 5% BER:0.25/0.19uV (standard) 8. The operating temperature is-30 °C / + 60°C 9. Storage temperature is-40 °C / + 85°C 10, the heat shock per MIL-STD 11. Humidity: per MIL-STD 12、ESD IEC61000-4-2 Level 3 13, submerged MIL-STD * -IP57 | 2 | PCS |
5 | Fisheries intercom | 1. General specification: UHF ★ 2, Frequency (MHz) 403-527 3, equipped with large capacity 2900 mAH lithium battery appearance size (height, width and thickness) 1225642 mm weight 364 grams 4. In the case of carrier static noise and high power transmission and starting the battery power saving mode, the average simulation life of the battery at 5 / 5 / 90 working cycle is 20 hours 5, digital status 26.5 hours 6. Power supply is 7.5V (rated) 7. Operating temperature is 30℃ ~ + 60℃ 8, the channel capacity of 256, a channel 9. The operating temperature is-30°C / + 60°C 10. Storage temperature is-40°C / + 85°C 11、ESD IEC 61000-4-2Level 3 12, Dust and immersion IEC 60529-IP67 | 2 | PCS |
survival equipment | ||||
order number | product name | parameter | quantity | unit |
1 | Summer-style life jackets | 1. Product name: life jacket 3. Buoyancy: 7.5 KG 4, color: blue, yellow, orange, red, fluorescent green 5, size: adult size 6. Weight: net weight of ± 0.5kg 7. Weight-bearing: 40-120kg for adults 8. The life jacket is waterproof Oxford fabric, filled with high buoyancy sponge, good waterproof and large buoyancy. 9. There are two reflective strips in the front chest of the life jacket, and 360° three-dimensional reflective package edge is added on both sides of the shoulder, which enhances the visibility at night and promotes the rescue progress. The life jacket is equipped with a professional rescue whistle, the whistle is clear and loud, the long distance to listen to the clear and loud, so that the first time to get rescue. 11. The life jacket is fixed with bold adjustable button design. There are three buttons from top to bottom, abandoning the tedious zipper, and wearing a plug is fixed. 12. The life jacket adopts adjustable crotch belt design, which can effectively prevent clothes from leaving the human body when falling into the water, and is safer, and equipped with crotch belt storage bag. 13, suitable for people: rescue workers, swimming enthusiasts 14, suitable for use scope: a total of all kinds of crew members at work | 25 | pcs |
2 | Winter-style life jackets | 1, the buoyancy of 7.5kgf, the water can bear an adult weight floating on the water for more than 100 hours of buoyancy will not reduce. 2, good warmth, multi-layer super pu material wind resistance, suitable for sea cold, strong wind working environment. 3, easy to wear, do not affect the homework, bright color, shoulder with reflective belt. 4. Main technical parameters of thermal work life jacket: fabric: nylon Oxford cloth; core material: new multi-layer super pu material; high density 410D waterproof coating fabric EVA pearl buoyancy thermal cotton | 25 | pcs |
3 | Throw-type life buoy | 1. Product name: plastic life buoy 3. Buoyancy: 2.5 laps, 140N 4, Color: orange-red 5, size: adult size 6. Weight: 2.5kg net weight ± 2.5kg, | 10 | pcs |
emergency salvage rescue truck
