Isuzu Aerial Platform 40m Manlift Truck
Isuzu Aerial Platform 40m Manlift Truck
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
ISUZU Trucks Telescopic Boom with 40m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Specifications of ISUZU Trucks with 40m height of the platfrom Aerial Working Trucks for Street Lights maintenance :
| Products Technical Specification of Products Technical Specification of Aerial Working Trucks ISUZU FTR street lights maintenance trucks. | |||
| Type | 40m arieal working truck | ||
| Brand | ISUZU 4*2 | ||
| Cab | With A/C, on bed | ||
| Vehicle Description | |||
| Overall dimensions(mm) | 10100*2500*3900 | ||
| Curb weight(vehicle) (kg) | 14300 | ||
| Max speed (Km/h) | 110 | ||
| Engine | |||
| Mode | 4HK1-TC50 | ||
| Type | Diesel, 4-cylinder in line with water cooling, turbo-charging | ||
| Max. power/rotated speed | 151(KW) | ||
| Max. torque | 650(N.m) | ||
| Displacement(ML) | 5193 | ||
| Company of engine | ISUZU Motor | ||
| Emission level | Euro 5 | ||
| Chassis Description | |||
| Wheel base | 4700 | ||
| Front axle | Elliot I-beam type 6.3T | ||
| Rear axle | Driving axle, 13T | ||
| Number of leaf spring of suspension | 15/17 | ||
| Front overhang / rear overhang | 1335/2890 | ||
| Front tread / rear tread | 1960/1855 | ||
| Approach angle /Departure angle | 15/17 | ||
| Gear box | 6-speed with over drive | ||
| Brake system | Air braking | ||
| Operation control system | Power Steering | ||
| Electric system | 24V | ||
| Tyres | 10.00R20 | ||
| Aerial wrking parameter | |||
| Max. working height | 40m | ||
| Max. working radius | 7.5m | ||
| Loading weight of working hook | 200kg | ||
| Swing angle | 360degree | ||
| Swing speed | 0-2r/min | ||
| Supporting legs | 4sets hydraulic supporting legs | ||

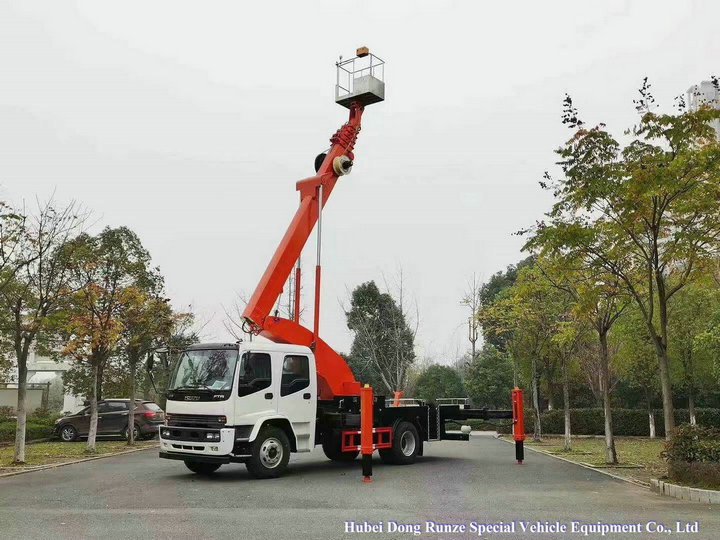

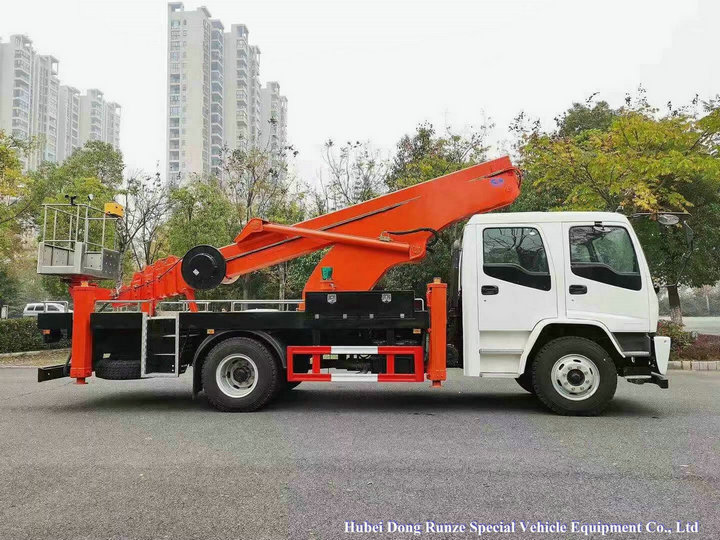

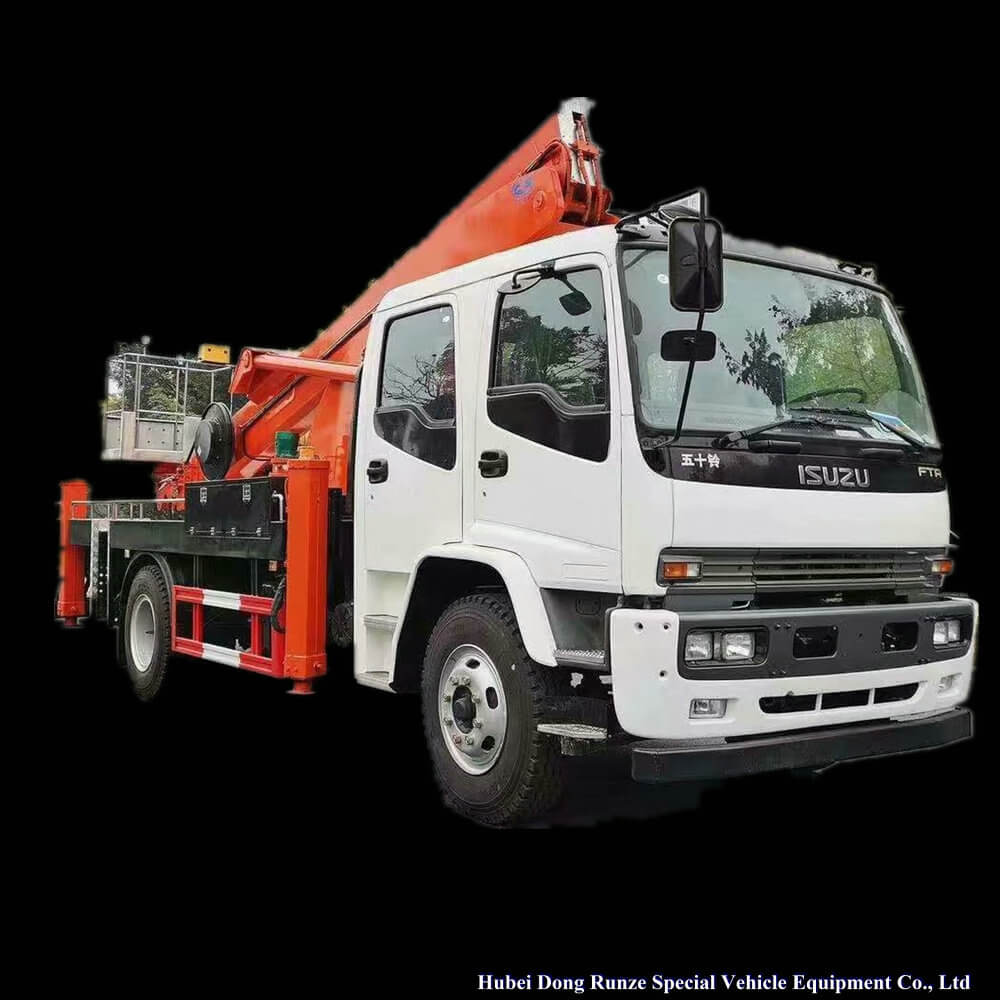

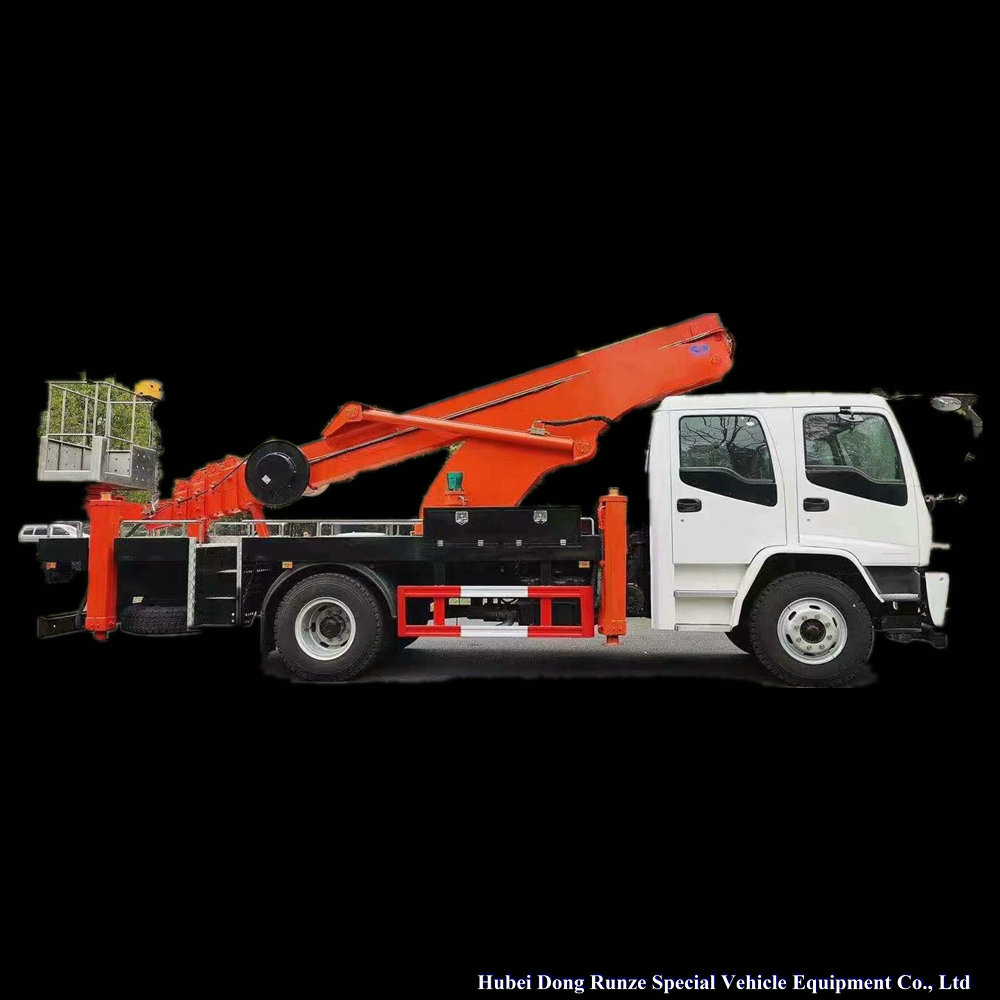

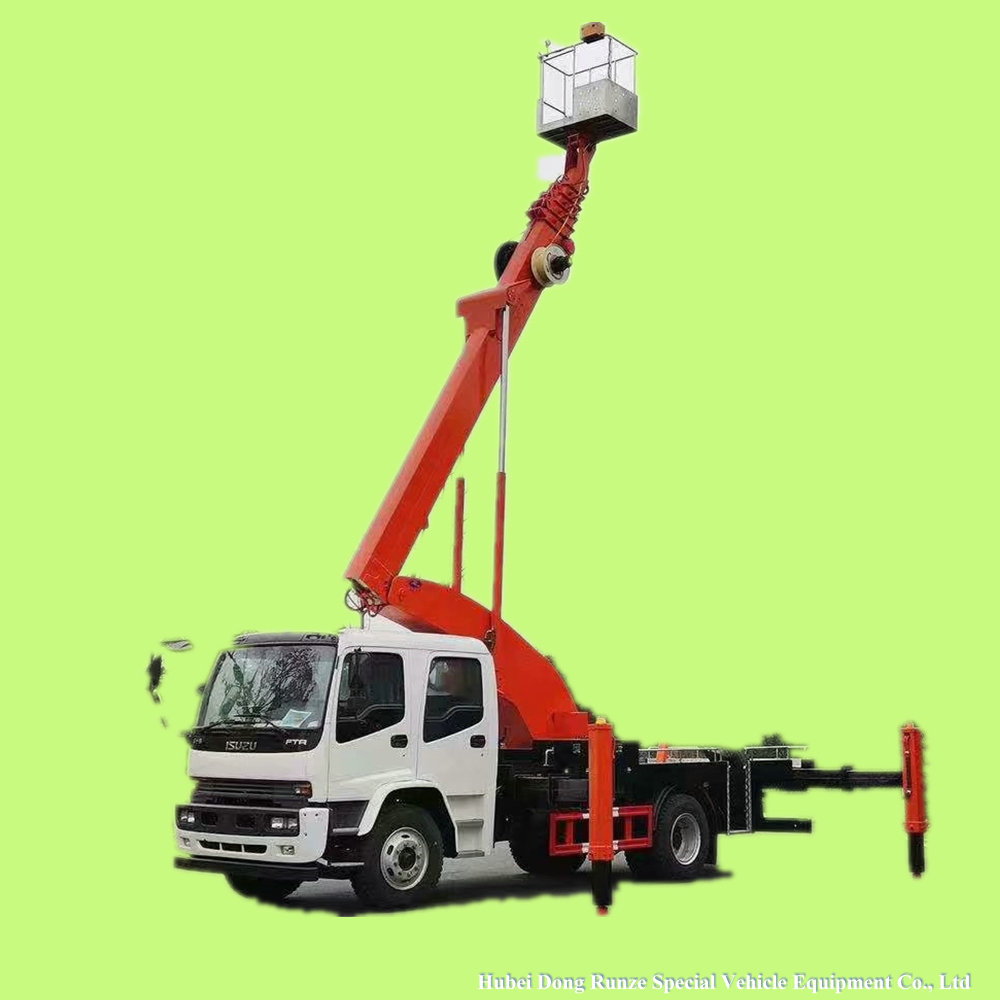

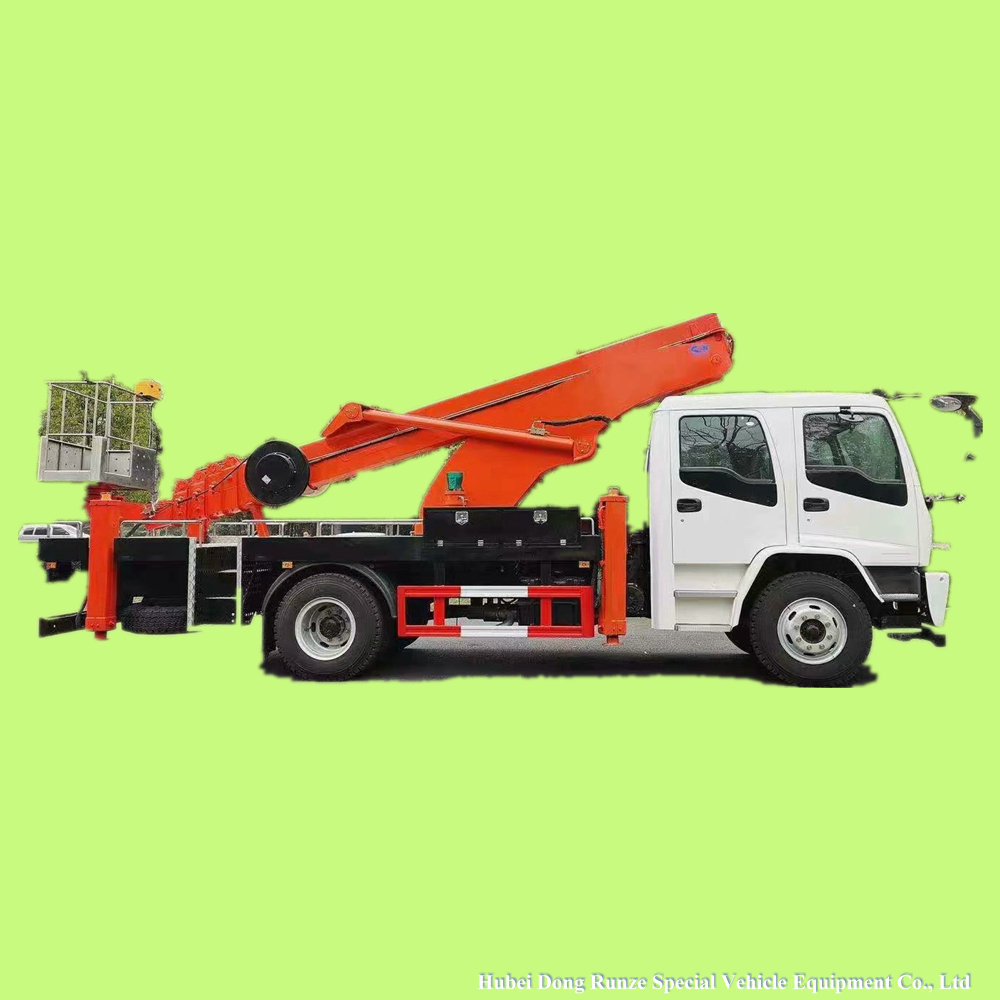

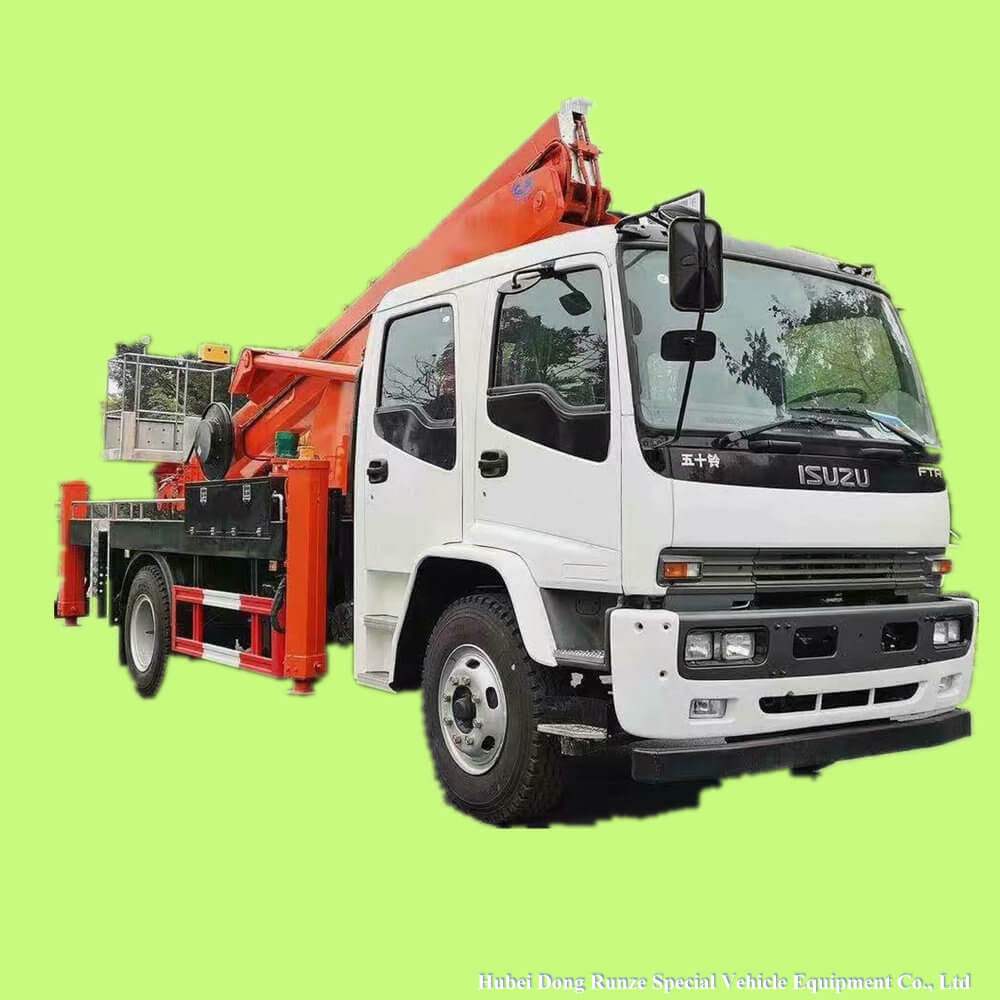

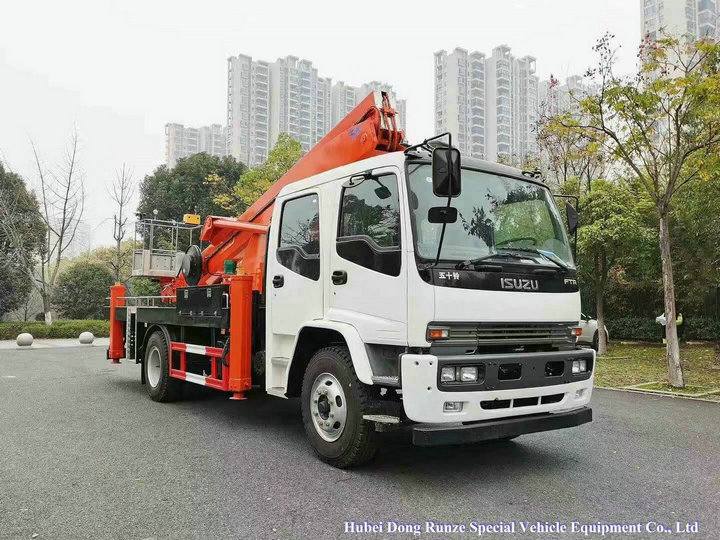

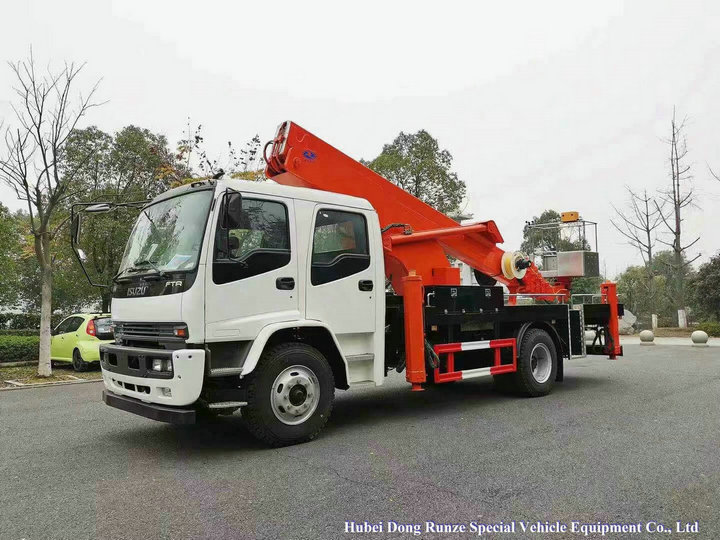

Pictures of ISUZU Aerial Platform Trucks for Street Lights Maintenance:
The pictures are for your reference only.
