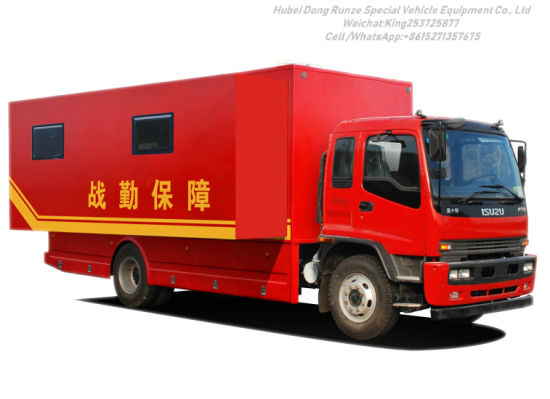

Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing

Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing
Quantity:
  • Shanghai, China
  • 3000
  • T/T

ISUZU Camp Truck for 20- 24 Men Outdoor Camping Living Room Camper Truck Customizing
FTR Camp truck Vehicle ISUZU For 24 People Outdoor Mobile Camping
Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing
Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing
Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing

Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing

Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing

Ftr Camp Truck Vehicle Isuzu for 24 People Outdoor Mobile Camping Customizing

Camper Truck Customizing




2

1 Box


Iron horse


OEM


DONG RUN ZE

1
2 Odor decomposer


Midea

KJ210G-C42


Midea Grou

1
3


Decoration


Iron horse


OEM


DONG RUN ZE


1



4

1 Folding Bed (With Mattress)


Iron horse


OEM


DONG RUN ZE

24
2 Bedding


Iron horse


OEM


DONG RUN ZE

24
3 Bedside Table


Iron horse


OEM


DONG RUN ZE


6



5

1 Locker


Iron horse


OEM


DONG RUN ZE

1
2 Coat Hook


Iron horse


OEM


DONG RUN ZE

24
3


mirror


Iron horse


OEM


DONG RUN ZE


1



4 Toilet seated toilet


Ted


CZBQ4--Z


Beijing Ted Lang Technology Co., Ltd.


1

5 Sliding door


Iron horse


OEM


DONG RUN ZE

1
6 Sliding door slide


Iron horse


OEM


DONG RUN ZE


1

7 Water tank


Iron horse


OEM


DONG RUN ZE


1

8 Sewage tank Iron horse OEM,0.2 Ton DONG RUN ZE 1
9 Piping system


Iron horse


OEM


DONG RUN ZE


1

10 Shower cubicle


Iron horse


OEM


DONG RUN ZE


1






6

1 generator panda P12000X German panda 1
2 Inverter integrated machine Ancient top


SPR3000

Suzhou Guding Energy Technology Co., Ltd.


1

3 UPS backup battery Dawn


12V38AH

Tang Fu City Paifike Power Equipment Co., Ltd.


10

4 Service battery Male 12V100AH Shenzhen Xiongyu Power Technology Co., Ltd. 1
5 Cable tray


Iron horse


OEM


DONG RUN ZE


1

6 Distribution System


Iron horse


OEM


DONG RUN ZE


1

7 1 Car air conditioner


GEE

KFR-72GW/

AaD3


Zhuhai Gree Electric Co., Ltd.

1



2 Fuel Independent Plumbing Heating Equipment Jingwei


YJH-08-1A

Beijing Jingwei Auto Equipment Co., Ltd.


1

3 Auxiliary Tank Iron horse OEM,0.2 Ton DONG RUN ZE 1
4 Ventilation Sunroof Xinchao


DF700B

Jiangsu Xinchao Release Parts Co., Ltd.


2

5 Co Alarm Hayman


710cvc

Shenzhen Haiman Technology Co., Ltd.


1

6 Tv Set Skyworth 60V8E Skyworth Group 1
7 Satellite Tv Mobile Receiving Antenna Xunyiweitong /CC25 Chengdu Xunyi Weitong Technology Co., Ltd.


1

8 Interior Lighting System interstellar LTE515, Star Holdings Group Co., Ltd.


8

9 Emergency Lighting Baiyu

ZY-ZF-ZDE3

WA

Wuhan Baihao Fire Equipment Co., Ltd. 1
10 Drinking Fountain Meiling


MY-C31

Changhong Meiling Co., Ltd.


1

11 Beidou Satellite Navigation Vehicle Terminal Star


JZ-BDC-101

Chongqing Jiuzhou Xingyi Navigation Equipment Co., Ltd.


1

12 Tiantong Satellite Phone China Electric Power Sc610 China Electronics Technology Group Corporation No. 50 1
13 Driving Recorder Philips


ADR610s

Four institutes


1

14 Socket


Iron horse


OEM


DONG RUN ZE


1

15 Skirt Cabin


Iron horse


OEM


DONG RUN ZE

6



16 Double door after the car


Iron horse


OEM


DONG RUN ZE


1

17 Rear ladder


Iron horse


OEM


DONG RUN ZE

1
18 Fire extinguisher


Iron horse


OEM


DONG RUN ZE


2



8

1 Long row of police lights interstellar

TBD155191

G

Star Holdings Group Co., Ltd.


1

2 Alarm interstellar 200W Star Holdings Group Co., Ltd. 1
3 Strobe light interstellar


LTE515

Star Holdings Group Co., Ltd.


4





9

1 Digital radio Hainengda


MD780

Hainengda Communication Co., Ltd.


2

2 Digital walkie-talkie Hainengda TD780 Hainengda Communication Co., Ltd. 4
3 Hand-held station Hainengda


MCA08

Hainengda Communication Co., Ltd.


1

4 Roof equipment installation


Iron horse


OEM


DONG RUN ZE


1

5 Appearance paint and logo


Iron horse


OEM


DONG RUN ZE

1

Maximum speed: ≥100km/h

Fuel: diesel

#Box body damping method: airbag damping

Transmission and hydraulic retarder: (using world famous brands), integrated design, full synchronizer, braking efficiency ≥500KW

Displacement: 12 liters or more

Number of passengers on board: ≥2 people

System standard configuration: ABS, bumper, clutch, steering gear, brake system, tires, cold start system, etc. are the original vehicle configuration.

A shroud is installed on the top of the cab. The shroud is shaped like a roof, and a long row of warning lights is arranged above it. Two sets of warning lights are arranged on the left and right sides of the box.

#Provide the technical specification of the chassis with the official seal of the manufacturer (color screenshot, color scan, color copy invalid).

(2) The box body is equipped with an extension box at the rear of the cab.


2 1. Length ≥ 9000mm, width ≤ 2550mm, height ≤ 3400mm

2. Expansion box: length ≥ 7000; side pull depth ≥ 1000; high ≥ 1950m

3. ★ camping ability (person): ≥24 people

Box structure: steel skeleton, externally applied aluminum skin, heat insulation and noise reduction, six glass windows, one double door, one single door, aluminum alloy ladder, hidden drawing ladder, drawing platform, guardrail, quantity and shop Luggage box, electric rain curtain, electric extended backup manual operation; four-point electric folding hydraulic support, single point support force ≥16 tons, DC12V, automatic horizontal adjustment balance; no less than 8 lighting windows on the left and right sides of the car; The side is a skirt compartment for installing generators, hydraulic pumping stations, accessory batteries, cable trays, auxiliary fuel tanks, etc.; the top of the car is equipped with a satellite antenna, a ventilation fan sunroof, etc.; the front of the cabinet is higher than the top of the cab according to the vehicle. Air conditioning and stainless steel ladders, rear doors and stainless steel ladders are provided at the rear of the car, and a pull-out body is provided for access to the cabin.

All metal parts of the vehicle should be treated with anti-rust treatment. The car body strengthens the skeleton and the embedded plate for phosphating treatment. The exposed paint parts are treated with electrophoretic primer. The car body surface is made of automotive special paint. OEM exterior pattern is required according to requirements. Rust paint.

According to the requirements of the OEM exterior pattern, the chassis anti-rust paint.

Car body insulation layer: B1 grade rubber and plastic insulation material.

Skirt door: aluminum alloy structure

Choose the right space to install the garment cabinet and equipment cabinet.

Install appropriate emergency exit indicators and signs in accordance with relevant standards.

Odor decomposer (1 set): Working noise: ≤24dB; Efficacy: can effectively remove indoor smoke, mold and other odors

(3) Decoration (to meet fire safety standards)


3 four weeks, top: aluminum composite panel

Lighting and Ambient Lights: A certain number of lighting devices are placed on the top and sides of the cabinet.

Floor: wooden floor

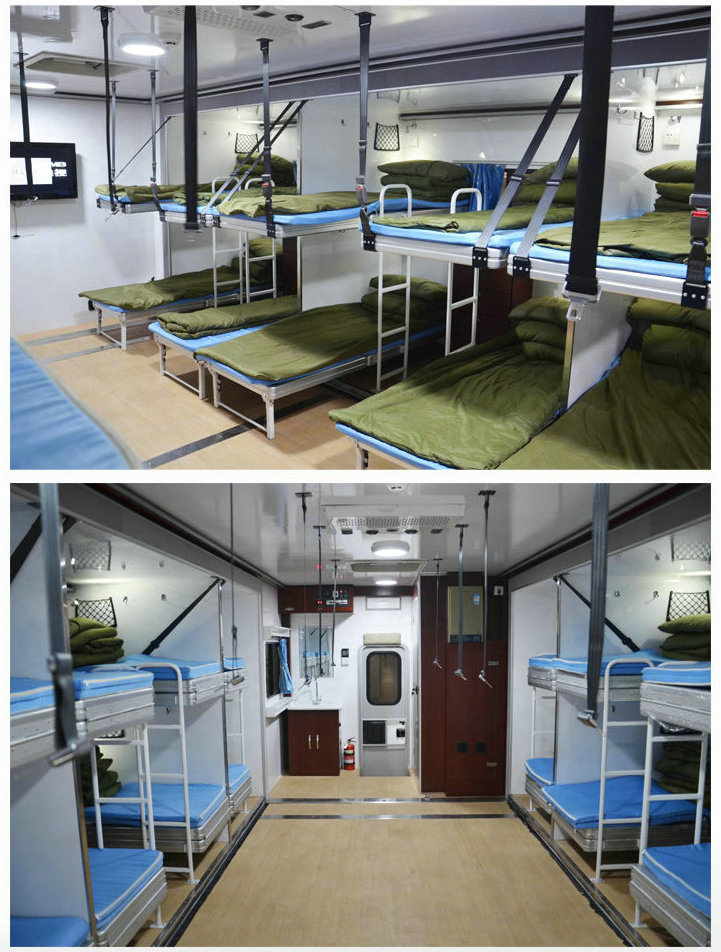

(4) Bed (meeting safety, fire, environmental protection and sanitary standards)

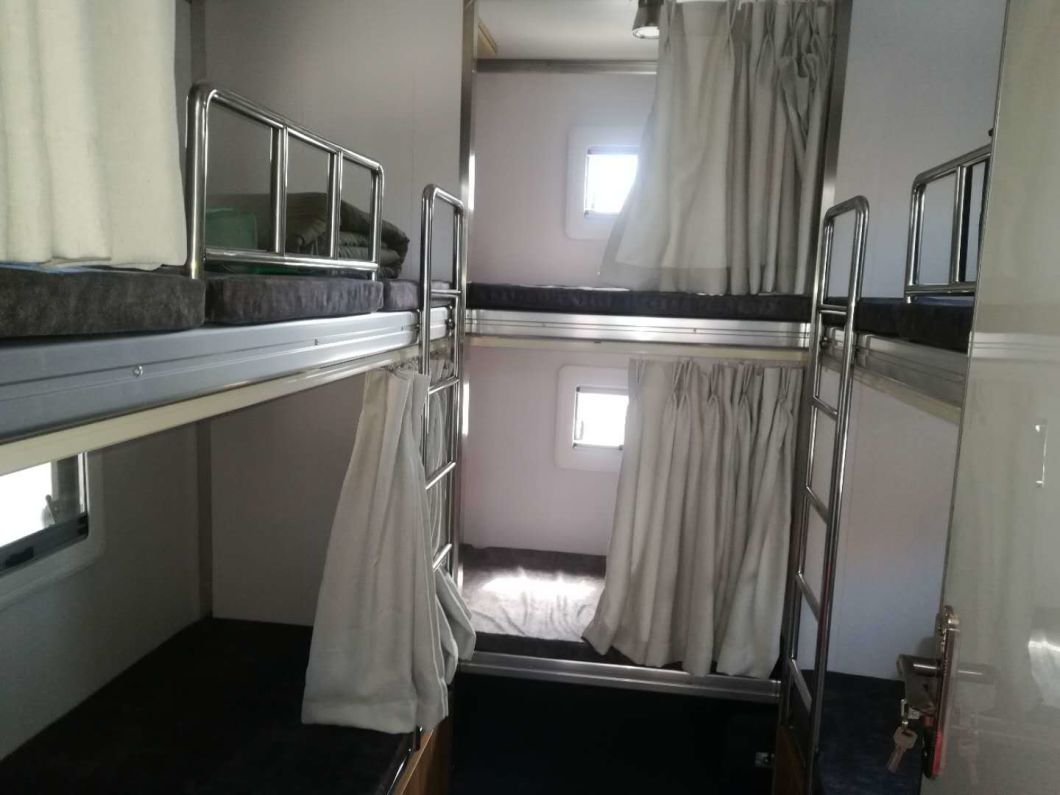

4 Folding bed: The bunk bed is foldable, made of aluminum alloy, the bed frame is integrated with the bed board, and the lower side is equipped with lockers. Each of the four beds is separated by a partition and the front has a curtain.

Mattress: Folding mat,

Quilt: Each bed is equipped with military medical quilts, cotton jackets, pillows, white quilt covers, sheets and pillows. The size of the rafters is the same as the bed.

(5) Bathroom

5 Set according to the high-speed rail bathroom standard, equipped with stainless steel odor-free flush toilet, intelligent toilet cover and ventilation system, no water, no sewage, ensure easy cleaning, no odor for 24 hours.

With one-time intelligent thermostatic seat

Automatic packaging for storing feces, automatic replacement of plastic bags, automatic replacement of disposable covers

Inductive automatic control

Fully enclosed manure recovery

Replace the packaging bag and storage box ≥ 30 times in a row

It adopts all-metal movement and digital control circuit. The outer casing is made of FRP, the outer surface is painted with car, and the upper cover is made of ABS plastic with chrome hinge. It is beautiful, high-grade and durable.

Set the water tank and sink. Packed with disposable bags and disposable cushions and high quality toilet paper for more than 1000 times.

(6) Power supply system

6 ★ Generator: water-cooled ultra-quiet diesel generator, rated output power ≥10KW, output rated voltage (V): 230V HP1, output rated frequency (Hz): 50, VCS voltage regulation technology, output voltage AC220V±3V, noise : full load (dB) 7m / 3m / 1m ≤ 55 / 65 / 69,

UPS backup battery (10 pieces): DC 12V/38AH

Charging inverter machine: rated power 3KW; input: AC220V, DC12V; output: AC220V; charging: 12V/24V adaptive intelligent charging, maximum charging current 30A;

Service battery: DC12V lithium battery pack ≥100AH

Cable tray: manual cable reel, 45 m YC3*10mm2 rubber cable

Distribution system (1 set): The switchboard has voltage and current display with leakage protection switch, dual power switch, etc., external power supply waterproof plug and socket; switch controls air conditioner, equipment power, maintenance, lighting, etc.; switchboard panel is CNC machine tool processing, surface spray treatment.

(7) Equipment

7 Car air conditioner: wall-mounted air conditioner, cold and warm inverter air conditioner 2P

Fuel independent heating and heating equipment: Specifications: rated heat capacity (kW): ≥ 7.0, voltage (V): 24, power consumption (W): ≤ 60, fuel consumption (kg / h): ≤ 1, hot air displacement ( M3/h): ≥ 460, single machine mass (kg): ≤ 208,

Ventilation sunroof: ventilation system / escape sunroof with ventilation fan to meet ventilation requirements in the cabin

CO alarm: CO alarm installed in the car, accuracy 1ppm, alarm when the carbon monoxide content exceeds 24ppm

Satellite TV: The display size is not less than 60 inches, and it can quickly find stars to watch TV.

In-vehicle lighting system: LED lighting, integrated with the roof; one LED lighting for each bed position.

Emergency lighting: It can meet the requirements of lighting for personnel in emergency power outage, and the lighting time is not less than 1 hour.

Drinking fountain: car-specific ice hot water dispenser, water bucket.

Beidou satellite navigation vehicle terminal (1 unit) has RDSS positioning function, positioning accuracy of 20 meters (1σ, marked school station area); with RDSS communication function, single communication capability up to 40 Chinese characters (determined by user card level); RNSS/GPS dual-mode positioning function; with Chinese characters, code and Chinese character code mixed transmission and other three text transmission methods; navigation map: Baidu, Gaode map navigation. Reversing the rear view image.

Tiantong satellite phone (1 set) has Tiantong satellite voice function; has two-line telephone interface, can be connected to ordinary telephone landline; satellite module and antenna integrated design; voice: 1.2kbps/2.4kbps/4kbps; power supply: DC9-36V power supply , can be connected to 220V/110V power adapter; protection grade: IP66; working temperature: -20 °C-55 °C; antenna size: diameter ≤ 130mm × height 120mm.

Driving recorder (1 set): 1080P full HD, full coverage of three lanes, fatigue driving reminder; screen size: ≥ 2.0 inches; shooting angle: 120°-149°; with 32G card, recordable and saved for >6 hours video at 1080P

Socket: Integrated socket, which can meet the charging of personnel communication equipment and lighting equipment, rated power is not less than 3KW; each bed position is set to 220v two-hole socket.

Skirt cabin: reserved cabin door at the lower part of the body for installation of generators and on-board equipment

Side wall side pull bin: including side pull bin, drive machine, transmission mechanism and drag chain assembly (hydraulic extended backup manual expansion)

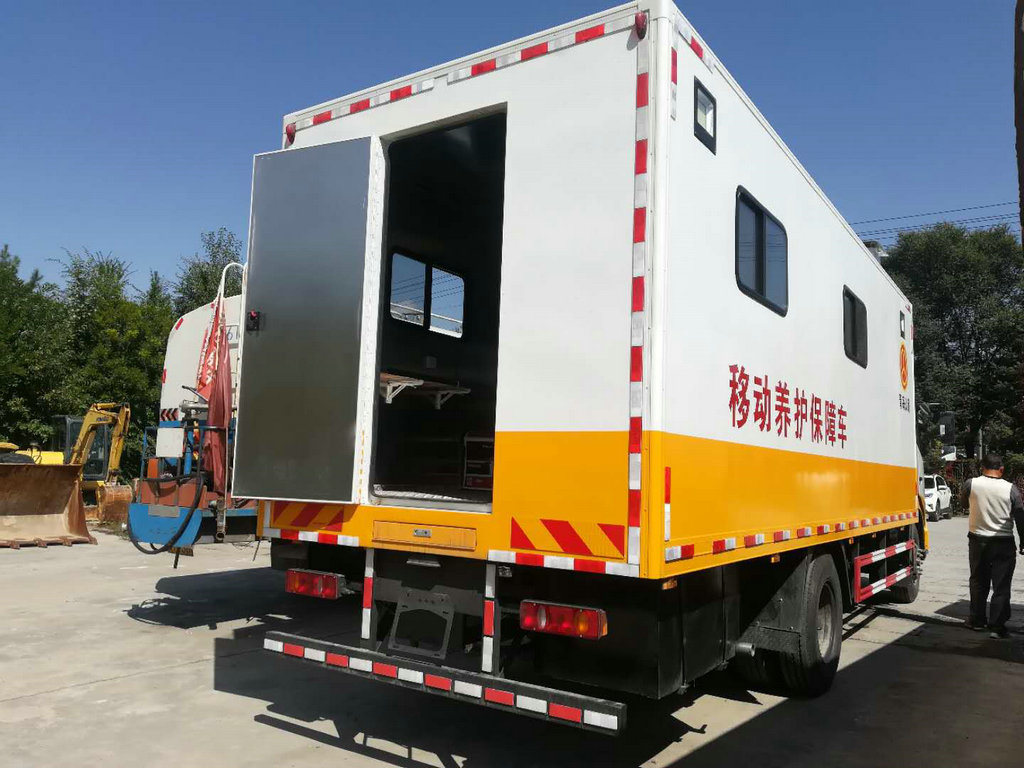

Double door after the car: a double door after the car, aluminum profile

There is a single door on each side of the front of the car: aluminum profile

After the ladder: reinforced aluminum alloy material, bearing capacity ≥ 150Kg;

Fire Extinguisher: Two 2kg portable carbon dioxide fire extinguishers are available.

(8) Warning system

1. Long row of police lights: The color of the lights meets the requirements of the safety supervision system.

2, multi-function alarm and megaphone power ≥100W, handle type

3. Strobe light/four corners on both sides of the box, and one at the end of the box, the color of the lamp meets the requirements of the safety supervision system.

(9) Communication system

9 digital radio station 2 units (one for each front and rear warehouse)

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

3. In the direct mode, two time slots are talking at the same time; prefabricated text information

4. Output power: high power: 25-45W (VHF), 25-40W (UHF); low power: 1-25w

5. The type approval certificate for radio transmission equipment issued by the Ministry of Industry and Information Technology and the Radio Administration of the People's Republic of China is equipped with a vehicle intercom

Digital walkie-talkie (4 sets):

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

Output power: ≥4W at high power and ≥1w at low power

Channel capacity: 256

Radio transmitter equipment type approval certificate issued by the Ministry of Industry and Information Technology of the People's Republic of China and the Radio Authority (1 unit): can charge ≥ 4 digital walkie-talkies at the same time

10 Roof equipment installation (1 set): embedded steel plate, etc., installed satellite TV antenna, suction cup antenna, etc.

Chassis DFL1160BX1V
# Engine model Engine displacement Engine power Engine manufacturer
1 ISD210 50 6700 cc 6.7 L 409 cuin 155 kW 211 hp Dongfeng Cummins Engine Co., Ltd.
2 ISD190 50 6700 cc 6.7 L 409 cuin 144 kW 196 hp Dongfeng Cummins Engine Co., Ltd.
3 ISD180 50 4500 cc 4.5 L 275 cuin 132 kW 179 hp Dongfeng Cummins Engine Co., Ltd.
4 EQH180-52 4752 cc 4.8 L 290 cuin 132 kW 179 hp Dongfeng Commercial Vehicle Co., Ltd.
5 EQH180-53 4752 cc 4.8 L 290 cuin 132 kW 179 hp Dongfeng Commercial Vehicle Co., Ltd.
6 ISB180 50 5900 cc 5.9 L 360 cuin 132 kW 179 hp Dongfeng Cummins Engine Co., Ltd.
7 ISD270 50 6700 cc 6.7 L 409 cuin 198 kW 269 hp Dongfeng Cummins Engine Co., Ltd.
8 ISB210 50 5900 cc 5.9 L 360 cuin 155 kW 211 hp Dongfeng Cummins Engine Co., Ltd.
Performance
Fuel diesel fuel
Environmental standard GB3847-2005, GB17691-2005 National V / Euro 5
Maximum speed 90 km/h 56 mph
ABS have
Weights and Ground pressure
Curb weight 15605 kg 15.6 t 34,403 lbs
Gross vehicle weight rating 15800 kg 15.8 t 34,800 lbs
Axle load distribution 5800 kg / 10000 kg
5.8 t / 10 t
12,800 lbs / 22,000 lbs
Dimensions
Overall length 9500 mm / 8980 mm / 8680 mm 31′3″ / 29′6″ / 28′6″
Overall width 2490 mm 8′3″
Overall height 3985 mm / 3955 mm / 3740 mm 13′1″ / 13′0″ / 12′4″
Undercarriage and Suspension
Number of axles 2
Wheelbase 3800 mm,
4200 mm,
4500 mm,
4700 mm,
5000 mm
12′6″,
13′10″,
14′10″,
15′6″,
16′5″
Front track 1880 mm,
1900 mm,
1920 mm
6′3″,
6′3″,
6′4″
Rear track 1800 mm,
1860 mm,
1820 mm
5′11″,
6′2″,
6′0″
Front/rear overhang 1430 mm / 3070 mm,
1430 mm / 2850 mm,
1430 mm / 2750 mm
4′9″ / 10′1″,
4′9″ / 9′5″,
4′9″ / 9′1″
Angle of approach 20°
Angle of departure 10°
Leaf springs 7 / 9+6, 8 / 10+8
Tyres and Wheels
Number of tyres 6
Tyres dimension 9.00-20, 9.00R20, 10.00-20, 10.00R20, 10R22.5, 275/80R22.5, 275/70R22.5
Miscellaneous
Seating capacity 3
Steering control steering wheel

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
