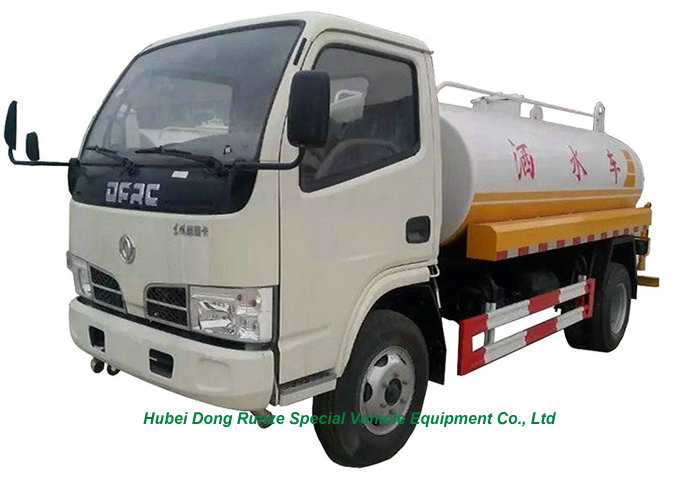

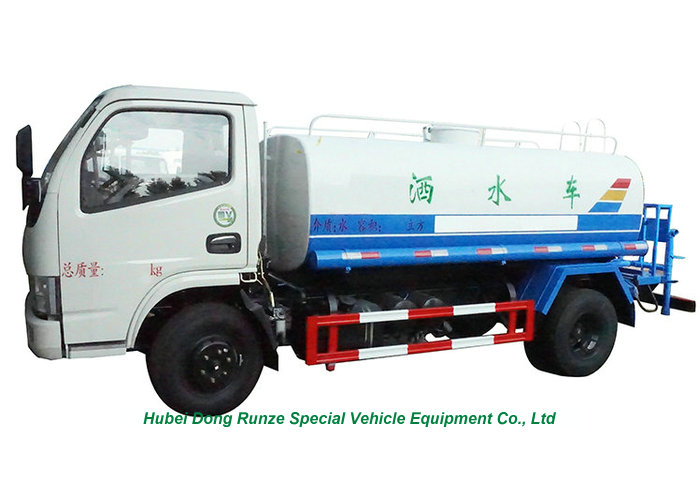

Offroad 4x4 Water Bowser 5000Liters
LHD / RHD Optional
2000 L-5000L( 500 Gallons - 1300 Gallons)
Optional stainless steel tank
| FOB: | |
|---|---|
| Quantity: | |
|
| |
- DRZ5
- DRZ
- 8705909990
Offroad 4x4 Water Bowser 5000Liters
LHD / RHD Optional
2000 L-5000L( 500 Gallons - 1300 Gallons)
Optional stainless steel tank
1.Stainless Steel/Aluminum Alloy Water Tank, Price Add $1000 /cbm ( $5000-$20000)
2.Insulation Layer For Water Tank, Price Add $2000-$3000
3.Stainless Steel Water Pump, Price Add $1500- $2000
4.Fire Pump, Fire Cannon CB10/20 Price Add $2800 ; CB10/30 Price Add $3100
5.Pesticide Cannon, Pump Price Add $100-$8000
6.Cabin Remote Control Front Cannon Price Add $2000
7.Honda Motor Pump Price Add $700
8.RHD Price add $3000 ( ISUZU only LHD)
9.Optional mounted with Crane, Man Lift Basket, Rear Spraying Device, Barrel Pesticide Spraying Device, Gasoline Pesticide Machine, Diesel Pesticide Machine, Led Arrow Lights
Chassis model | EQ1060 | ||
Horse Power | ps | 90 | |
Overall dimensions | mm | 7800×2200× 3200 | |
Fact loading | kg | ||
GVW | Approx5494 | ||
Mass in working order | Approx3200 | ||
Wheel base | mm | 3300 | |
F/R track base | 1490/1425 | ||
Approach/departure angle | . | 19/15 | |
Exhaust/hp | ml/kw | 2695/66 | |
Max speed | km/h | 90 | |
Tire specification | 7.50-16 | ||
Traction system | 4x2 or 4x4 | transmission | 5-speed with over drive |
Number of axles | 2 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | Single cab 2 ; Double cab 2+3 |
Product specification
| Vehicle main technical information: | ||
| Product Name | Dongfeng water truck | |
| Water tank size(mm) | 3400*1600*1100(length*long axis*minor axis) | |
| Overall size(L*W*H) | 5990×1960×2380mm | |
| Gross weight | 7300kgs | |
| Rated capacity | 4020,3955kgs | |
| Curb weight | 3150kgs | |
| Approaching/Departure Angle | 16/13(°) | |
| Front/Rear suspension | 1032/1658mm | |
| Max.speed | 95km/h | |
| Chassis Parameters: | ||
| Chassis Brand | Dongfeng | |
| Chassis model | DFA | |
| Drive type | 4X2 /4x4 ;LHD/RHD | |
| Fuel Type | Diesel | |
| Tire Specification | 7.00R16,7.00-16 | |
| Tire No. | 6 | |
| Wheelbase | 3300mm or 3800mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 8/9+5,6/8+4 | |
| Front trend | 1506,1404mm | |
| Rear trend | 1466,1458mm | |
| Passengers in cab | 2 or 3 | |
| Axle loading | 2920/4380 | |
| Engine Parameters: | ||
| Manufacturer | Kunming Yunnei Power Co.,Ltd. | |
| Model | YN33CRD2 | |
| Horse Power | 102HP | |
| Displacement/Power | 3298ml/75kw | |
| Emission standard | Euro 4 | |
