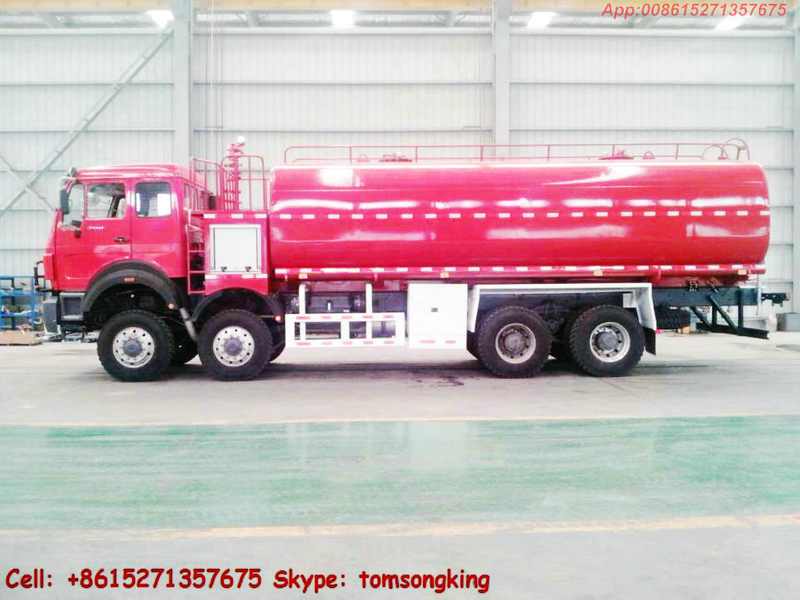

Beiben off road 8x8 water fire truck
water 20000L ~28000L
optional tank capacity as clients speical need.
Online
Tom
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.
Beiben off road 8x8 water fire truck
optional tank capacity as clients speical need.
8x4 / 8x8
Overall dimensions 11960X2495X3100mm Curb weight 11750kg
Tank dimensions 8700×2400×1600mm Tank volume 30000L
8x4 Chassis parameters
Chassis model ND1310D46J7Z01 Chassis brand North-Benz
Overall dimensions 11700x2500x3550mm Wheel base 1950+4650+1350mm
Front/rear wheel track 1940/1940/1860/1860mm Front/rear suspension 1480/2270 mm
Approach/departure angle 16/19° Maximum speed 110km/h
Chassis Manufacturer BEIBEN TRUCK
Cab Configuration NG80 a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model WP10.310E32
Emission Euro 3
Type 6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine
Rated power 310hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1250N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co.,Ltd
Tire Size 11.00R20 steel wire tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 400L aluminum alloy
Front axle 5.5 tons
Rear axle 457 rear axle,13.0 tons
Drive form 8X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Gearbox 9JS135B ,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Water tank structure
Tank dimensions 8700×2400×1600mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
| container capability(kg) | 20000 | Water：20000 |
| foam： |
| Fire Pump Model | CB10/60 |
| Fire pump flow (L/s) | 60L/s /1.0MPa |
| Fire monitor | style | PS60 water cannons |
| flow(L/s) | 60/1.0 |
| shooting distance(m) | ≥60m
|
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Main technical data for operation
| | Spare parts name | Size | Quantity | mass/set | Total mass | PRICE/set | TOTAL PRICE |
| 1 | Channel switch | | 10 | | | 1.5 USD | 15 USD |
| 2 | Gasket | | 1 | | | 17 USD | 17 USD |
| 3 | Fire pump belt | | 6 | | | 1.5 USD | 9 USD |
| 4 | Lighting | | 2 | | | 12 USD | 24 USD |
| 5 | Electromagnetic valve | | 8 | | | 4.5 USD | 36 USD |
| 6 | Single-file switch | | 10 | | | 3.8 USD | 38 RMB |
| 7 | Tracheal connector | | 30 | | | 1.5 USD | 45 USD |
| 8 | Siren | | 2 | | | 14 USD | 28 USD |
| 9 | 3 filter | | 12 | | | 3 USD | 36 USD |
| TOTAL | | | | | | 248 USD |
Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking
