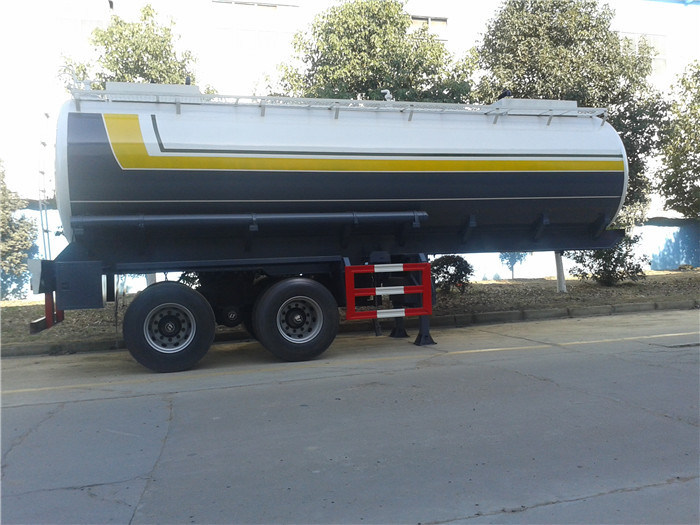

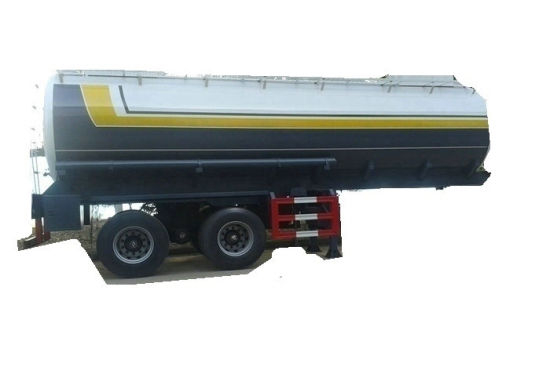

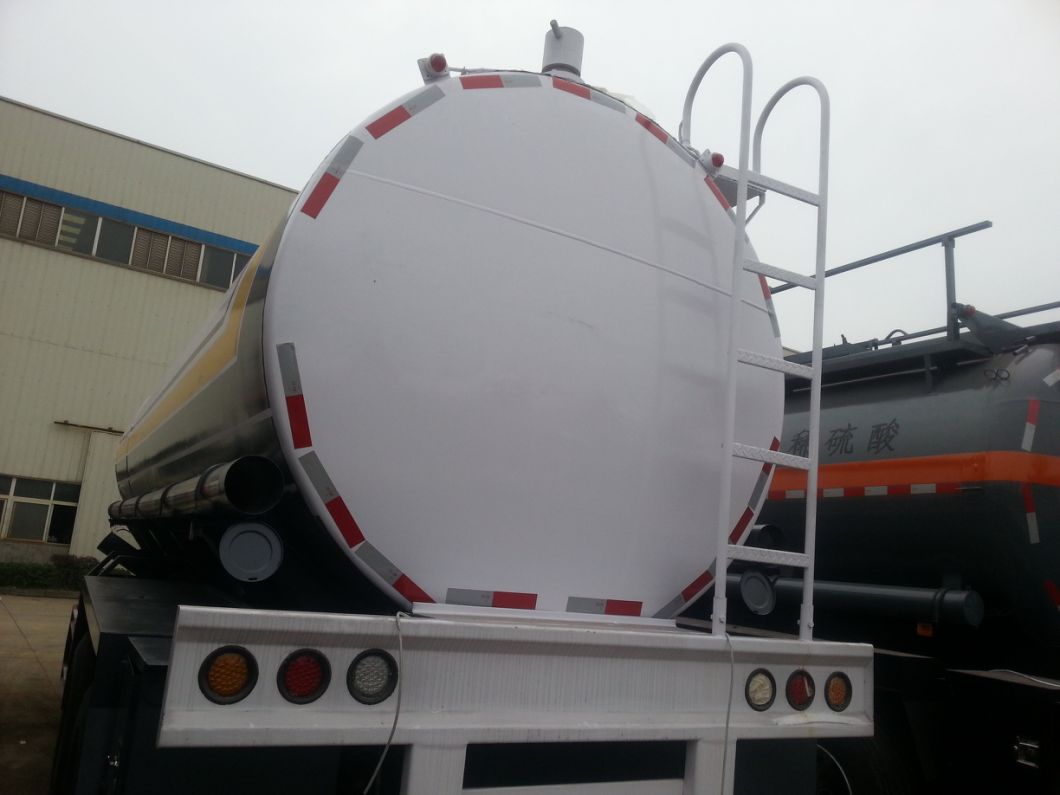

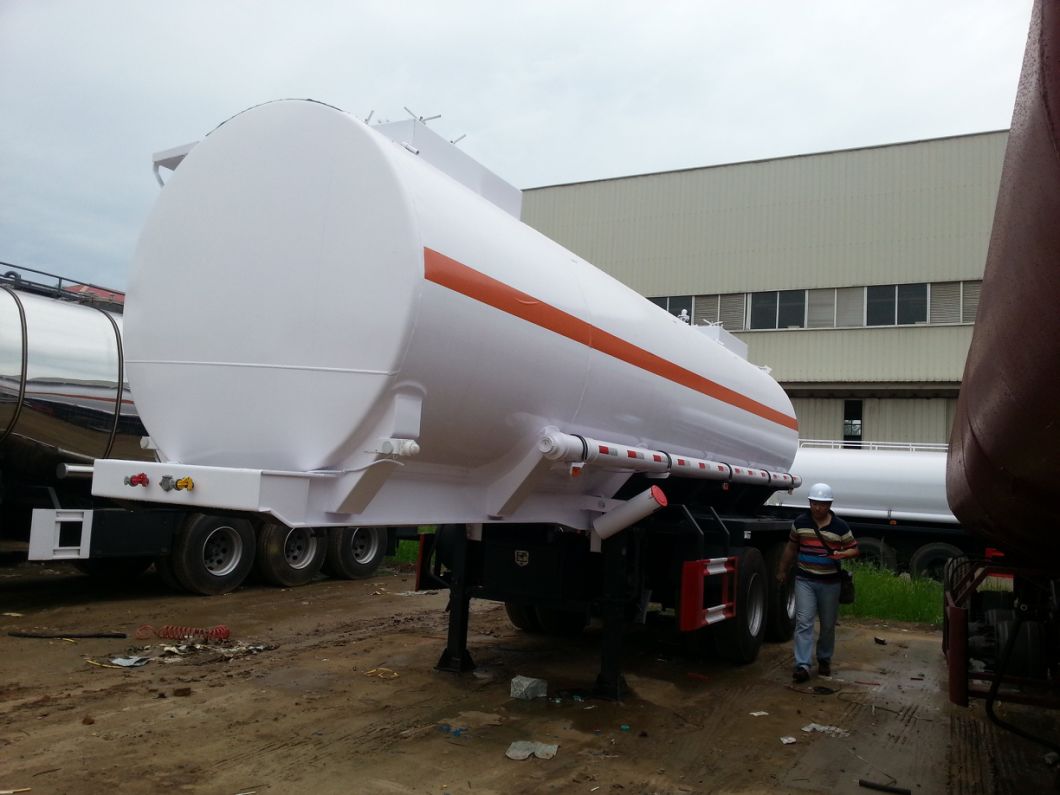

Hydrofluoric Acid Tanker with Dual Bogie Axle (single point suspension) Steel Lined LDPE 22 -27cbm Tank
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
Hydrochloride Acid Tank Trailer 30T Solusion Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,
Acid Tanker Trailer For Road Transport (Hydrogen Fluoride) Hydrofluoric Acid HF 48%
Ask for better price
Cell +8615271357675
The pictures are for your reference only.
| Specification of Acid Tanker | |||
| SL NO | Description | Speceifications | |
| 1 | Model # | DRZ9327GHY | |
| 2 | Type | DUAL AXLE ACID TANKER SEMI TRAILER | |
| 3 | Construction | ||
| 4 | Shell Material & thickness | 5mm carbon steel | |
| 5 | Dish Material & theckness | 6mm Carbon steel | |

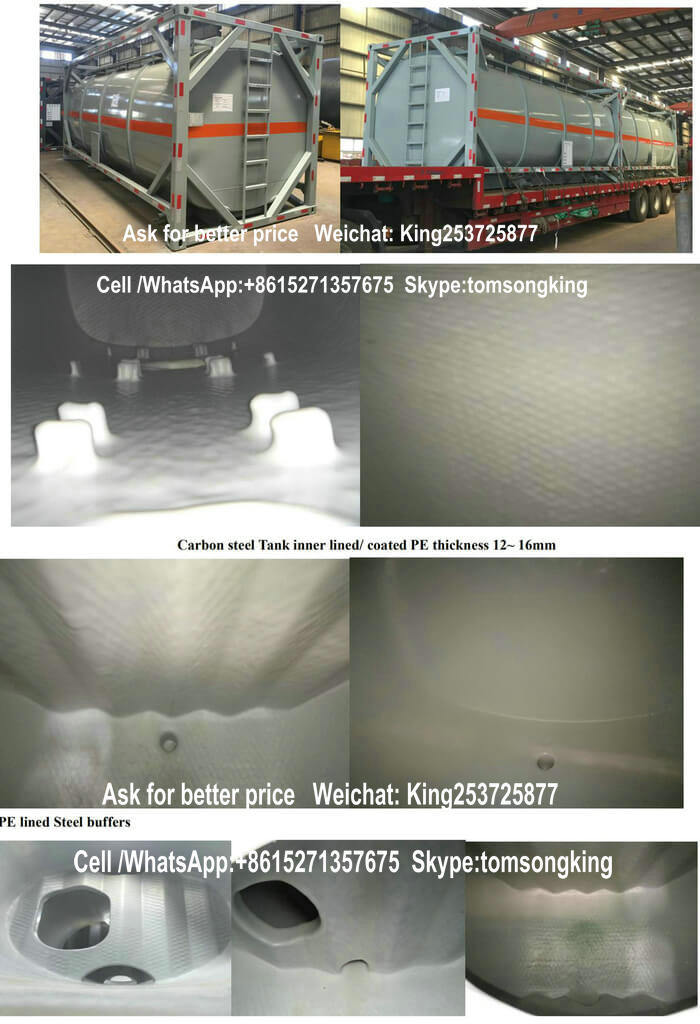

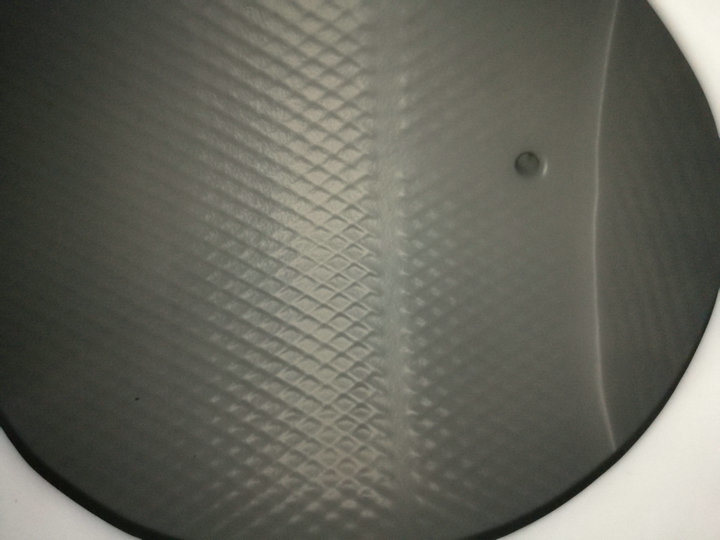

| 6 | PE Lining | PE 16mm | |
| 7 | Parttion thickness (Wave breaker) | 6mm carbon steel & 16 MM PE | |
| 8 | Chassis Material & thickness | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm | |
| 9 | No of partitions inside the tank | 3 | |
| 10 | Size & no. of Top manholes | 3 | |
| 11 | Discharge line size | Bottom DN100 discharge *3 | |
| 12 | Catwalk dimensions | 400mm wide reach the manholes, not covering the complete length of the tank | |
| 13 | Electrical specefications | 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. | |
| 14 | Painting specifications | epoxy primer ,final painting (RAL standard 9010, pure white) , Logo will be according customer's requirement. | |
| 15 | Running Gear | - | |
| 16 | Landing Gear | JOST Two-speed ,manual operation, heavy duty landing gear | |
| 17 | Axles | 2 Axles | |
| 18 | Axle Brackets | L1, Dual Axle, 16 Ton DIC Hub, Loading capacity 32000 Kg | |
| 19 | King Pin | JOST kingpin (90#) | |
| 20 | Suspension | Mechanical L1 Bogie type | |
| 21 | Equiliser Pin | L1 | |
| 22 | Landing Legs | JOST Two-speed ,manual operation, heavy duty landing gear | |
| 23 | Tyres | 12.00R-22.5 tyres (tubeless) | |
| 24 | Rims | 9 .0 | |
| 25 | Brakes | Pneumatic Braking System | |
| 26 | Brake Chamber | 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector | |
| 27 | Relay Valve | PE Relay Valve | |
| 28 | Tare weight | 9000kg | |
| 29 | Payload | 33000kg | |
| 30 | Total weight | 42000kg | |
| 31 | Overall length | 11000mm | |
| 32 | Overall width | 2500mm | |
| 33 | Overall height | 3850mm | |
| 34 | Wheel track | 1850/1850 | |
| 35 | Wheel base | 5710+1550mm | |
| 36 | Fact Loading capacity | 27 m3 ,divided into three compartments 3 x 9 m3 | |
| 37 | Rated Laoding capacity | 27000L | |
| 38 | Main frame | Heavy duty and extra durability designed | |
| 39 | Spare wheel Carrier | One piece. | |
| 40 | Loading Capacity | 27,000 litres capacity | |
| 41 | Tank fittings | Manhole covers top filler and spillbox, Bottom DN100 discharge | |
| 42 | Wheel span | 1850/1850 | |
| 43 | Axle spacing | 5710+1310mm | |
| 44 | Capacity in effect | 27000L; | |
| 45 | Main Beams | 16mm,width 140mm | |
| 46 | Approach/departure angle | 17(0) | |
| 47 | Other accessories | One trailer tool box , One 200L water tank. | |
| 48 | Air Connctions | 1" valve for unloading materials with Compressed air | |

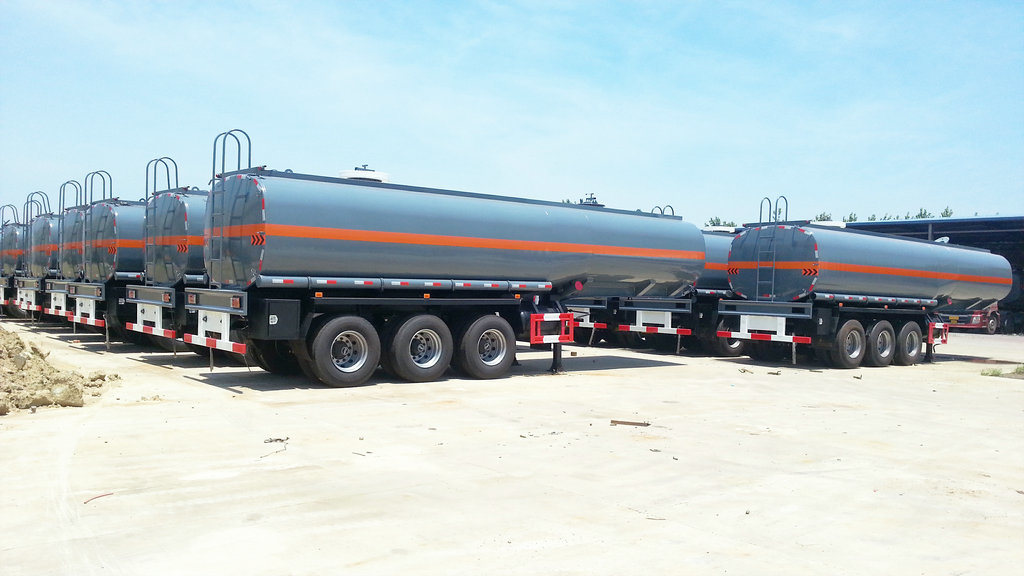

Hydrochloric acid tank semitrailer 3axles 29000Liters,32000liters,33800liters
Hydrochloric acid tank semitrailer
Tank volume: 22.4 -33 cbm: ,NH3·H2O
Transport : Sulfuric Acid 60% Hydrochloride,Hydrochloric Acid, Dilute Sulphuric Acid ,Acetic Acid, Acrylic Acid Hydrochloride, Hydrogen Chlorate, Sodium Hydroxide,Acrylic
Acetic Acid, Glacial Acetic Acid, Hydrogen Peroxide
Propionic Acid, Ammonia
Fuwa 13tone axles,
Hydrochloric acid tank transport semi-trailer
DRZ9351GFW Main technical parameters Tank volume: 22.4 cbm/22400liters
verall dimensions: | 8600×2490×3800(mm) | Rated load: | 27000(Kg) |
Total mass: | 35000(Kg) | Semi-trailer saddle: | 17000 |
Kerb mass: | 8000(Kg) | Anti-lock braking system: | Yes |
Approach/departure angle: | -/18 (°) | Front/rear suspension: | -/1450(mm) |
Axle load: | -/18000 (b-axis) | Wheelbase: | 4700+1310(mm) |
Axis: | 2 | Rear track: | 1850/1850 |
Number of tires: | 8 | Number of spring leaf: | -/8/8,-/10/10,-/-/- |
Tire size: | 12R22.5 12PR,11.00R20 12PR | ||
Other | |||
Tank volume: 22.4 cbm, medium: hydrochloric acid, dilute sulphuric acid (density is 1260 kilograms/cubic meter), acetic acid, acrylic acid (medium density of 1140 kilograms/cubic meter) dangerous goods class number 8, tank size (including the dished head): tank length 8000mm, diameter:2000mm optional air suspension models. ABS brake systems | |||
Customization, Cost Control Built How You Want it, at a Price You Can
Afford. for sale call:+86-152 -7135-7675
Cell :+8615271357675
