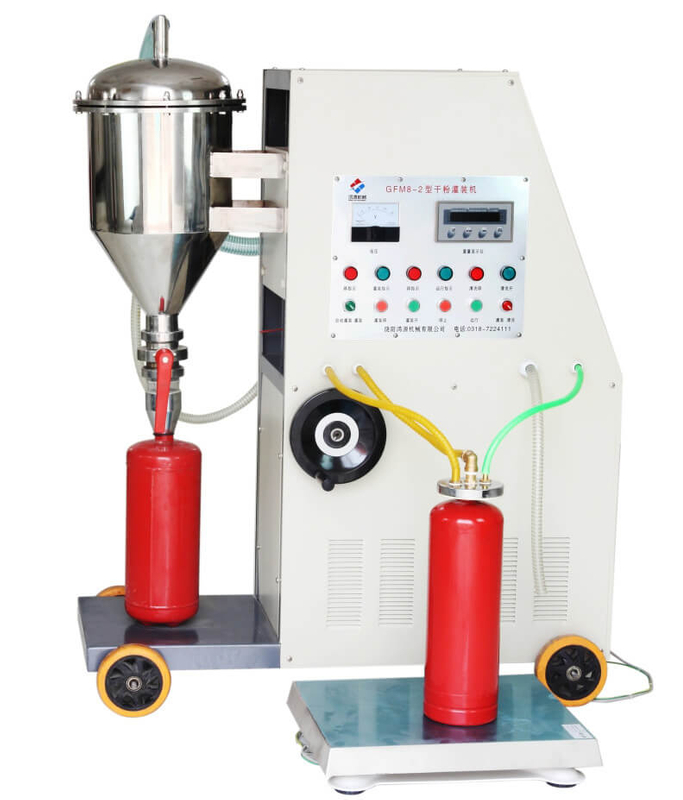

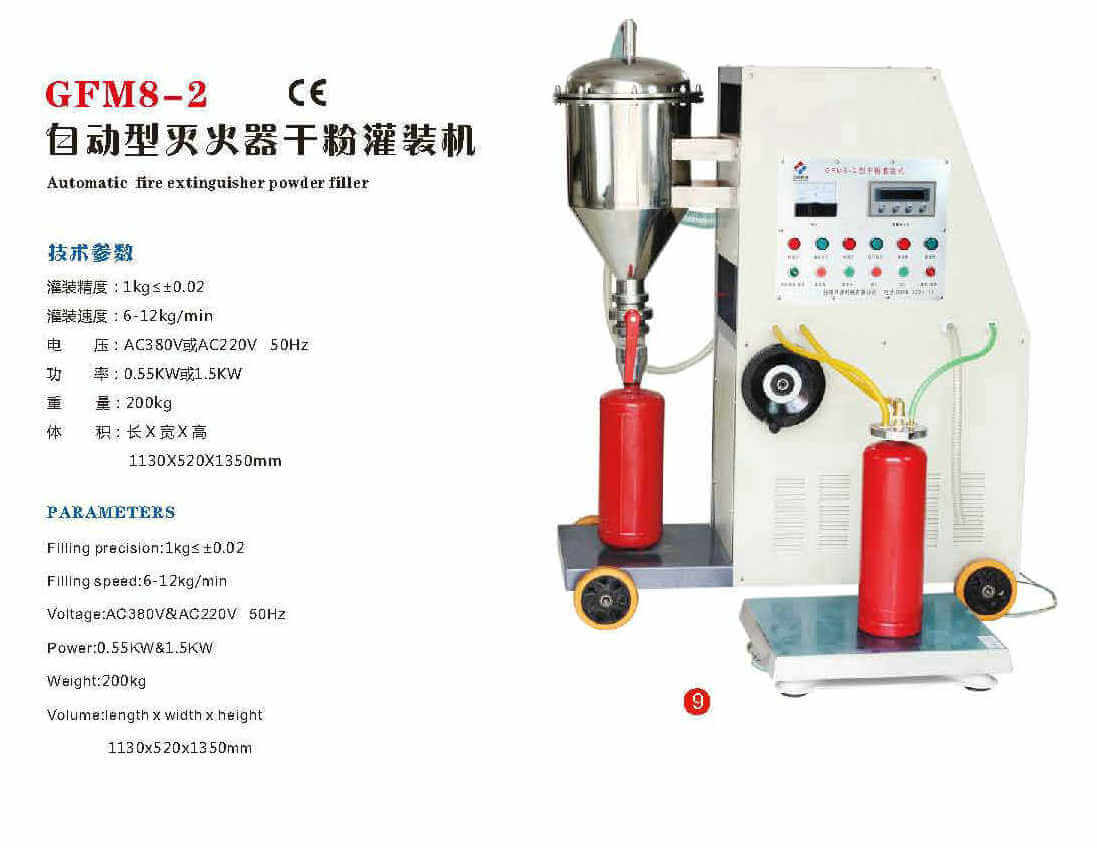

GFM8-2 Automatic Fire Extinguisher Dry Powder Filler ,Fire Extinguisher Filling Machine

GFM8-2

Automatic type

fire

extinguisher

powder filler

Advance features:

Filling Continuously and automatically.

Good to environment by using powder tank.

High accuracy filling by using electronic weighing scale

Long using period by adopting filters.

Technical parameters:

Power: 0.55KW/1.5KW

Voltage: 380V/220V Filling precision:1Kg≤0.02 Filling Speed:6—12kg/min Weight:200Kg

Overall size:1130X520X1350mm

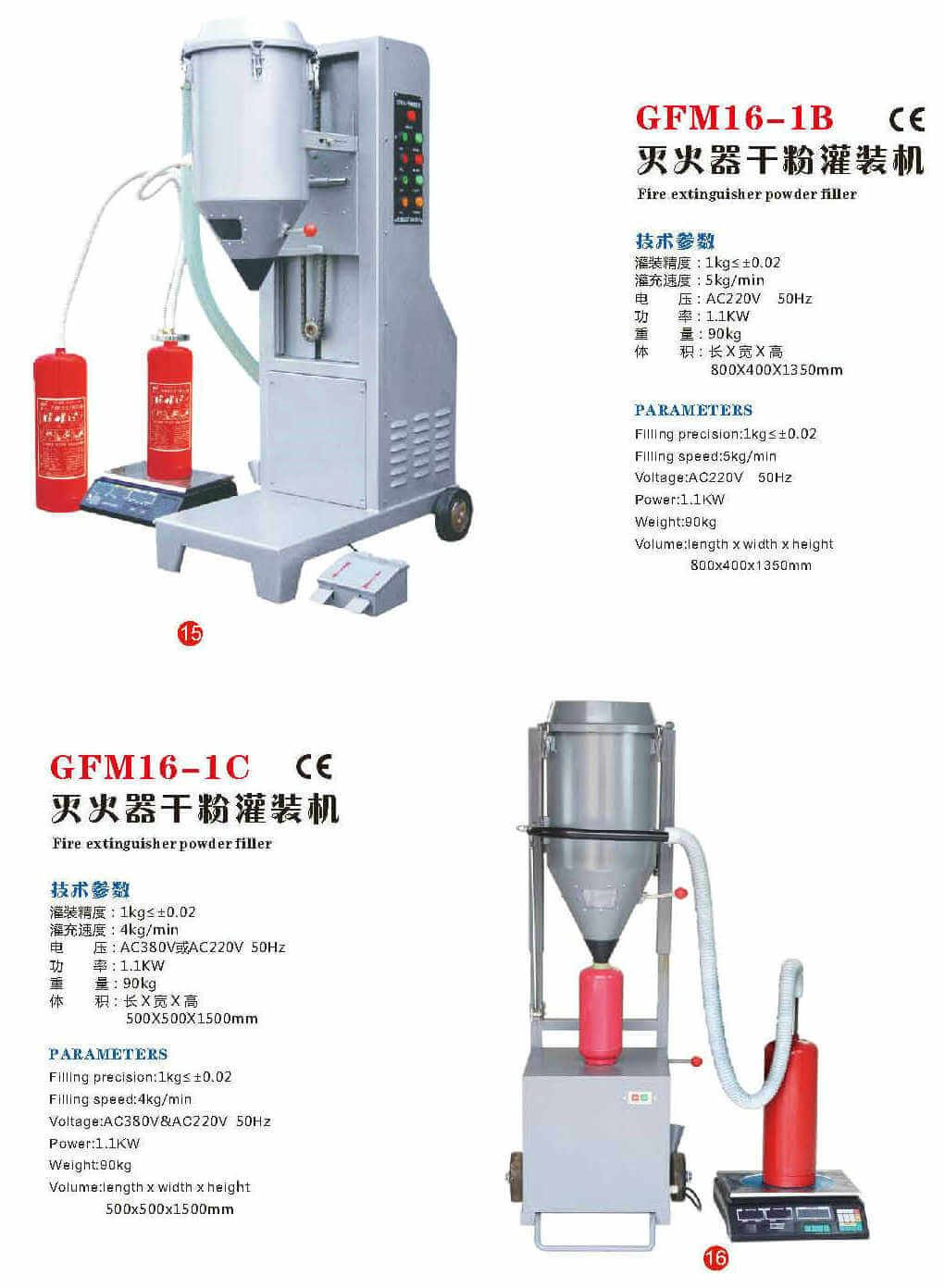

GFM16-1B

Fire extinguisher powder filler

Advance features:

Easy operation and maintenance.

Small weight and movable.

Height adjusting by manual wheel.

Technical parameters: Power: 1.1KW Voltage: 220V

Filling precision:1Kg≤0.02 Filling Speed:5kg/min Weight:90Kg

Overall size:800X400X1350mm

Fire extinguisher powder filler (stainless

steel type)

Advance features:

Easy operation and maintenance.

Small weight and movable.

Height adjusting by manual wheel.

Technical parameters: Power: 1.1KW Voltage: 220V

Filling precision:1Kg≤0.02 Filling Speed:5kg/min Weight:90Kg

Overall size:800X400X1350mm

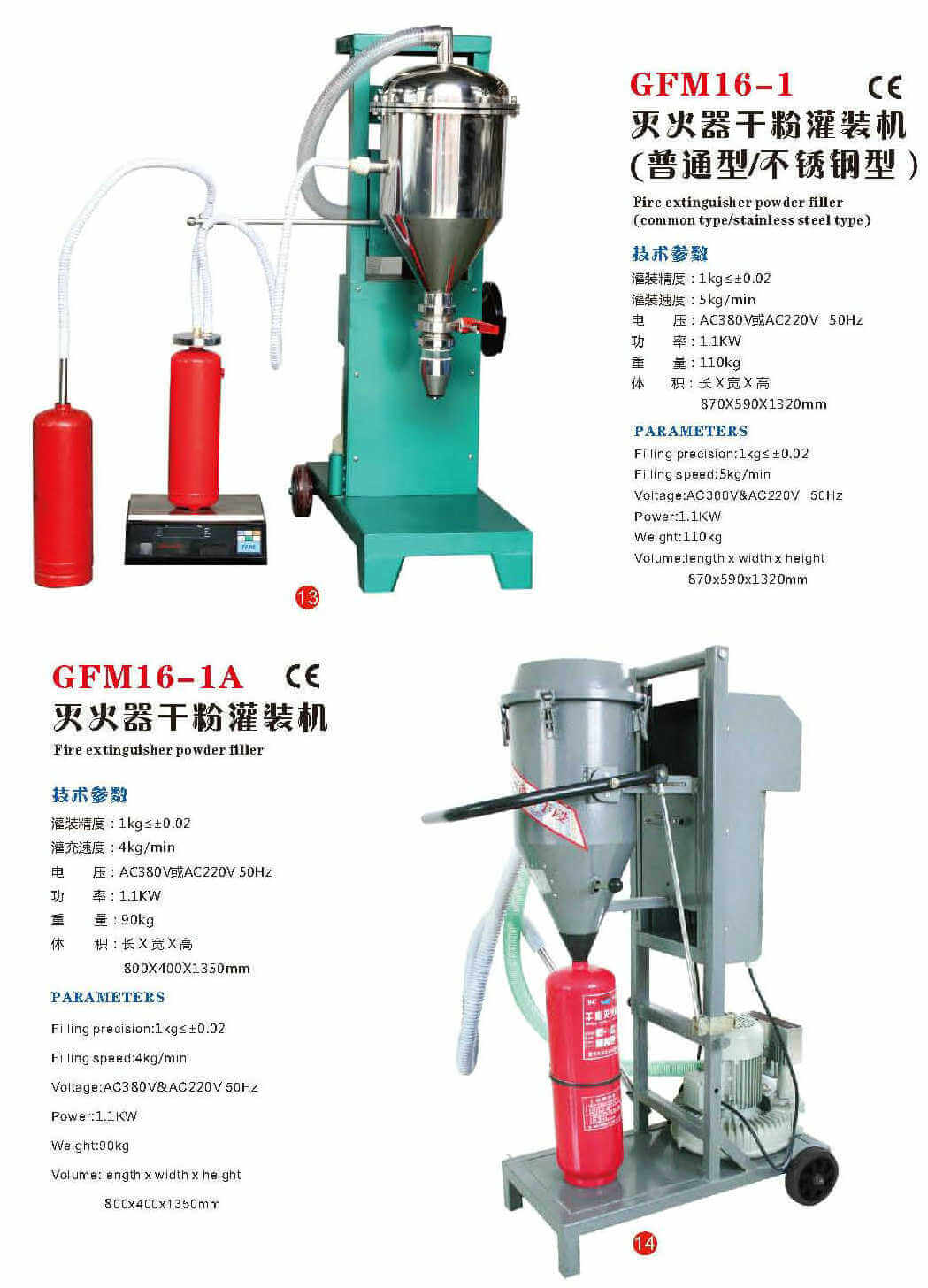

GFM16-1

Fire extinguisher powder filler

(common type)

Advance features:

Easy operation and maintenance.

Small weight and movable.

Height adjusting by manual wheel.

Technical parameters: Power: 1.1KW Voltage: 220V

Filling precision:1Kg≤0.02 Filling Speed:5kg/min Weight:90Kg

Overall size:800X400X1350mm

EXW$

GFM16-1A

Fire extinguisher powder filler

Advance features:

Easy operation and maintenance.

Small weight and movable.

Height adjusting by manual wheel.

Technical parameters: Power: 1.1KW Voltage: 380V/220V

Filling precision:1Kg≤0.02 Filling Speed:4kg/min Weight:90Kg

Overall size:800X400X1350mm

 GTM-D

Co2 filling machine

Specifications:

Filling time and error table list

Voltage: 220V 50Hz Filling pressure:3 to 10 Mpa

Environment temperature: 5℃-45℃

Frozen arrange: more or less 10 ℃ -15 ℃

compared with the environment temperature.

GTM-C

Pumping Co2 filling machine

Filling time and error table list

This machine need not be heated or cooled and CO2 can be directly filled into the fire extinguisher form the large steel cylinder. CO2 is free from influence of environmental temperature in filling;

The original pressure in the CO2 steel can is 3～ 5Mpa and the filling pressure is 6～10Mpa.

The filling speed: 1～6Kg/min. Voltage: 380V&220V;

Power: 2.7KW.

Measurement: 2600×800×900mm

GTM-B

Carbon

dioxide

filler

Filling time and error table list

Technical Parameters:

Working Temperature and Pressure Parameters

of the Thermostat of the Filler

A. Thermal uniform temperature is controlled in

the range of 38 ℃ –45 ℃ with a pressure of 9-10Mpa, heater power of 6KW and voltage of 380V.

B. Cold uniform temperature is controlled in the range of –5 ℃ —5 ℃ with a pressure of ≤7Mpa and power source voltage of 220V.

MDG1.7

Fire extinguisher nitrogen filler

Technical parameters:

Filling pressure:1.7Mpa Voltage:220V Power:100W Weight:30kg

Overall size:585X500X1000mm

Nitrogen for extinguisher filling machine with safe protective device

Technical parameters:

Filling pressure:1.7Mpa Voltage:220V Power:100W Weight:30kg

Overall size:585X500X1000mm

MDG-XB

Nitrogen filling and timing machine

MDG-XB model fire extinguisher N2 filling and gauge check machine is invited by our company for N2 filling and pressure gauge check.

Technical parameters: Pressure:1.7Mpa Power:100W Voltage:220V Weight:30kg

Overall size:585X500X1000mm

MDH-11

Drying machine

Technical parameters: Voltage:220V Power:2KW Weight:75kg

Overall size:1000X462X1100mm

4 Bowsers EXW$

8 Bowsers EXW$

XBY

Fire extinguisher check device

Technical parameters: Pressure:1.7Mpa Voltage:220V Power:100W Weight:30kg

Overall size:585X500X1000mm

MQS

Fire

extinguisher

airtight test

box

Specifications:

Overall size: 1080X850X900mm Weigt:95Kg

Voltage:380V or 220V Temperature: 0℃ to 1000℃

Power:4 to 8KW

100*80*120cm 0.96m³ 100kg

EXW$

Testing-Pressu re test stand

This machine is used to test the cylinder pressure and it is consisted of hydraulic pressure test pump and test stand. The hydraulic test pump can be different types according to requirement. The machine showed in the pictures has three connectors. We can also supply machine of different connectors according to requirement. The connector divided to quick link connector and quick testing connector.

Technical parameters:

Max. test pressure:40Mpa Test capacity:20pcs/hour Voltage:380V Power:1.1KW Weight:220kg

Overall size: 655X480X1055mm 950X650X1200mm

EXW$

Test pressure and cleaning

machine

Technical parameters: Adjustable pressure:1—6Mpa Water flow:10L/min

Test capacity:50pcs/hure Voltage:220V Power:1.3KW Weight:185kg

Overall size:1635X650X1340mm

EXW$

Water type extinguisher filling

machine

Technical parameters: Filling precision:1kg≤±0.015 Filling speed:6kg/min Voltage:220V

Power:90W

Volume of liquid tand:50L Weight:45kg

Overall size:600X580X950mm

EXW$

Fire extinguisher clamper

(pneumatic)

This clamper is controlled by air cylinder for fire extinguisher cylinder clamping.

Specifications:

Overall size:670X200X250mm Clamping diameter:80 to 180mm Air cylinder distance: 150mm

Air source pressure:0.6Mpa to 0.8Mpa

φ80—180 mm: 79*32*35 0.08m³ 25kg

EXW$

Fire

extinguisher

clamper

(manual)

This machine is operated by hand for the fire

extinguisher clamping.

φ80—φ180 mm： 94*41*38 0.15 45kg

EXW$
