XG822EL
XGMA
84295212

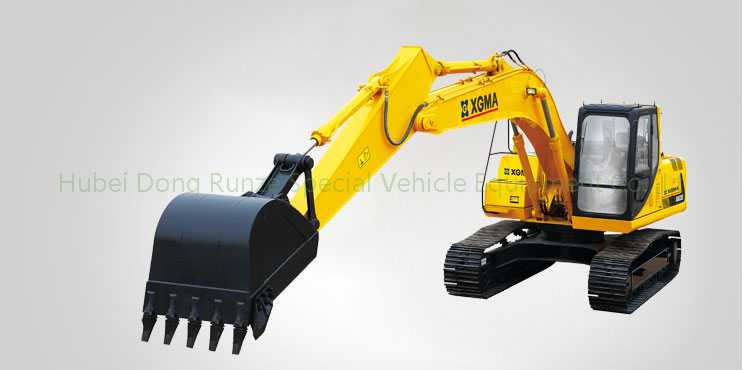

XG822EL Medium Excavator price
Standard bucket capacity | 0.91 m3 |
Operating weight | 21.5T |
Engine model | Isuzu CC-6BG1TRP |
Rated power/rated rpm (net) | 125 km/2100 rpm |
Swing speed | 12.5 min-1 |
Travel speed (H/L) | 5.0/3.5 km/h |
Ground specific pressure | 43kpa |
Gradeability | 35° |
Digging force (stick/bucket) | 99/137kN |
Exterior Dimensions
A | Full length during transportation | 9500mm |
B | Full width during transportation | 2990mm |
C | Full height during transportation | 2920mm |
D | Height of the operator cab | 2920mm |
E | Full length of the track in contact with the ground | 4460mm |
F | Track gauge | 2390mm |
G | Wheelbase | 3660mm |
H | Track shoe width | 600mm |
I | Minimum swing radius of the front part | 3540mm |
J | Swing radius of the rear part | 2830mm |
H | Link Length | 5700mm |
I | Arm Length | 2400mm |
Operating Range
A’ | Maximum digging height | 9600mm |
B’ | Maximum unloading height | 6780mm |
C’ | Maximum digging depth | 6670mm |
D’ | Maximum vertical digging depth | 6050mm |
E’ | Minimum swing radius | 3540mm |
Higher fuel efficiency
Powered by the high-quality Isuzu turbocharged & intercooled engine, which is a fuel-efficient low-emission engine.
The perfect combination between the energy efficient hydraulic system and the fuel efficient Isuzu engine helps to further increase fuel efficiency.
The mature & reliable negative flow feedback system matches perfectly with XGMA’s ESS, to make precise coordination possible under multiple operating modes, and to make the machine more energy efficient.
More efficient
The multi-port valve has been improved for a number of times, to increase the bucket’s converged flow and its operating efficiency during excavation.
A new power controller is used to add the dynamic matching & adjusting feature under the S mode. As a result, the engine’s speed under the S mode is increased by 100rpm, and the operating efficiency is increased by 8%.
More reliable
The swing motor’s strength is improved, to increase the lifespan of the assembly by up to 2.7 times;
The new toolbox with a square-shaped structure is added with a new handrail fixed through a three-point structure, stable and reliable;
The injection-molded operating box has a high strength, elegant and beautiful.
High-quality electric elements are used throughout the machine, including the top grade instruments with a color screen, to improve their performance, and to extend their service life.
More powerful
Main stressed parts including the boom, the stick and the bucket are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment, and to increase their service life by more than 30%.
e durable & solid chassis, the strengthened idler, the “four wheels & one track” from leading brands, and the extended & widened lower part of the machine all help to make the entire machine more powerful and more stable during excavation.
Materials with high tenacity and high hardness are used, so that the bucket teeth are more wear-proof and have a longer service life.
More stable
The battery relay, the throttle motor and other parts are products of leading international brands, to provide a more stable & reliable performance, and to dramatically reduce the failure rate.
The throttle potentiometer is added with the gear fixing function, to eliminate the erratic movement in the clearance, and to increase stability and reliability.
The quality of the spring within the pressure switch is improved, to avoid the drift of the opening point, and to make the operation more accurate and reliable.
More comfortable
The operator cab’s interior and the operation box are built with the injection molded parts, firm, reliable and elegant.
The automatic A/C system for both cooling and heating, the ergonomically designed spacious & comfortable operator cab, and the silicone oil shock absorber make the operation comfortable and enjoyable.
A low-noise main pump is used, to make the sound softer and the environment more comfortable.
XG822EL Medium Excavator price
Standard bucket capacity | 0.91 m3 |
Operating weight | 21.5T |
Engine model | Isuzu CC-6BG1TRP |
Rated power/rated rpm (net) | 125 km/2100 rpm |
Swing speed | 12.5 min-1 |
Travel speed (H/L) | 5.0/3.5 km/h |
Ground specific pressure | 43kpa |
Gradeability | 35° |
Digging force (stick/bucket) | 99/137kN |
Exterior Dimensions
A | Full length during transportation | 9500mm |
B | Full width during transportation | 2990mm |
C | Full height during transportation | 2920mm |
D | Height of the operator cab | 2920mm |
E | Full length of the track in contact with the ground | 4460mm |
F | Track gauge | 2390mm |
G | Wheelbase | 3660mm |
H | Track shoe width | 600mm |
I | Minimum swing radius of the front part | 3540mm |
J | Swing radius of the rear part | 2830mm |
H | Link Length | 5700mm |
I | Arm Length | 2400mm |
Operating Range
A’ | Maximum digging height | 9600mm |
B’ | Maximum unloading height | 6780mm |
C’ | Maximum digging depth | 6670mm |
D’ | Maximum vertical digging depth | 6050mm |
E’ | Minimum swing radius | 3540mm |
Higher fuel efficiency
Powered by the high-quality Isuzu turbocharged & intercooled engine, which is a fuel-efficient low-emission engine.
The perfect combination between the energy efficient hydraulic system and the fuel efficient Isuzu engine helps to further increase fuel efficiency.
The mature & reliable negative flow feedback system matches perfectly with XGMA’s ESS, to make precise coordination possible under multiple operating modes, and to make the machine more energy efficient.
More efficient
The multi-port valve has been improved for a number of times, to increase the bucket’s converged flow and its operating efficiency during excavation.
A new power controller is used to add the dynamic matching & adjusting feature under the S mode. As a result, the engine’s speed under the S mode is increased by 100rpm, and the operating efficiency is increased by 8%.
More reliable
The swing motor’s strength is improved, to increase the lifespan of the assembly by up to 2.7 times;
The new toolbox with a square-shaped structure is added with a new handrail fixed through a three-point structure, stable and reliable;
The injection-molded operating box has a high strength, elegant and beautiful.
High-quality electric elements are used throughout the machine, including the top grade instruments with a color screen, to improve their performance, and to extend their service life.
More powerful
Main stressed parts including the boom, the stick and the bucket are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment, and to increase their service life by more than 30%.
e durable & solid chassis, the strengthened idler, the “four wheels & one track” from leading brands, and the extended & widened lower part of the machine all help to make the entire machine more powerful and more stable during excavation.
Materials with high tenacity and high hardness are used, so that the bucket teeth are more wear-proof and have a longer service life.
More stable
The battery relay, the throttle motor and other parts are products of leading international brands, to provide a more stable & reliable performance, and to dramatically reduce the failure rate.
The throttle potentiometer is added with the gear fixing function, to eliminate the erratic movement in the clearance, and to increase stability and reliability.
The quality of the spring within the pressure switch is improved, to avoid the drift of the opening point, and to make the operation more accurate and reliable.
More comfortable
The operator cab’s interior and the operation box are built with the injection molded parts, firm, reliable and elegant.
The automatic A/C system for both cooling and heating, the ergonomically designed spacious & comfortable operator cab, and the silicone oil shock absorber make the operation comfortable and enjoyable.
A low-noise main pump is used, to make the sound softer and the environment more comfortable.
optional list
model | ZG3065-9/ZG3065-9B |
Specifications | |
Operating weight | 5800kg |
Standard bucket capacity | 0.22m³ |
Arm length | 1600mm |
Boom length | 3000mm |
Engine | |
Model | Yanmar 4TNV98-SYU |
Type | cylinders-vertical type-water cooling-4 strokes |
Power | 43.4kW |
Max.torque | 254N.m |
No.of cylinders | 4 |
Displacement | 3.319L |
Hydraulic system | |
Main pump | Rexroth/ Doosan |
Type | Variable displacement axial piston pumps |
Max.displacement | 156L/min / 170L/min |
Working pressure | 24.5Mpa / 22Mpa |
Hydraulic motor | Jesung |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 11r/min / 10r/min |
Max. travel speed H/L | 0~2.3/0~4.3km/h |
Gradeability | 30° |
Max. digging force of bucket | 40kN |
Max.digging force of arm | 25kN |
Ground pressure | 33kPa |
Tank capacity | |
Fuel tank capcity | 120L |
Hydraulic tank capacity | 90L |
model | ZG3085-9 |
Specifications | |
Operating weight | 8100kg |
Standard bucket capacity | 0.37m³ |
Arm length | 1730mm |
Boom length | 3904mm |
Engine | |
Model | Yanmar 4TNV98T-SFN |
Type | Vertical type-4 strokes-water cooling-direct injection-turbo charge |
Power | 53.1kW a |
Max.torque | 286.9~312.7N.m |
No.of cylinders | 4 |
Displacement | 3.319L |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 90ml |
Working pressure | 27.5Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 12 |
Max. travel speed H/L | 4.5~2.5km/h |
Gradeability | 30° |
Max. digging force of bucket | 53kN |
Max.digging force of arm | 44kN |
Ground pressure | 37kPa |
Tank capacity | |
Fuel tank capcity | 138L |
Hydraulic tank capacity | 95L |
model | ZG3150-9C |
Specifications | |
Operating weight | 14000kg |
Standard bucket capacity | 0.6m³ |
Arm length | 2500mm |
Boom length | 4600mm |
Engine | |
Model | CUMMINS B3.9-C |
Type | Turbo-charged with inter-cooled |
Power | 86kW |
Max.torque | 486N.m |
No.of cylinders | 4 |
Displacement | 3.9L |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x58cc/rev |
Max. Flow Rate | 2x120L/min |
Working pressure | 30Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 13.7r/min |
Max. travel speed H/L | 3.1km/h |
Gradeability | 30° |
Max. digging force of bucket | 77kN |
Max.digging force of arm | 61.8kN |
Ground pressure | 39kPa |
Tank capacity | |
Fuel tank capcity | 250L |
Hydraulic tank capacity | 200L |
model | ZG3210-9/ZG3210-9C |
Specifications | |
Operating weight | 21000kg |
Standard bucket capacity | 0.91m³ |
Arm length | 2910mm |
Boom length | 5680mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C150 |
Type | Turbo-charged with inter-cooled |
Power | 112kW/1950rpm |
Max.torque | 614N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x108cc/rev C(C TYPE) 2x111cc/rev |
Max. Flow Rate | 2x211L/min C(C TYPE) 2x218L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 12.4rpm C(C TYPE) 12.0rpm |
Max. travel speed H/L | 5.4/3.0km/h |
Gradeability | 35° |
Max. digging force of bucket | 137kN |
Max.digging force of arm | 102kN |
Ground pressure | 47kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3225LC-9/ZG3225LC-9C |
Specifications | |
Operating weight | 22000kg |
Standard bucket capacity | 1.0m³ |
Arm length | 2910mm |
Boom length | 5680mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C150 |
Type | Turbo-charged with inter-cooled |
Power | 112kW/1950rpm |
Max.torque | 614N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x108cc/rev C(C TYPE) 2x112cc/rev |
Max. Flow Rate | 2x211L/min C(C TYPE) 2x218L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 10.6rpm C(C TYPE) 12.0rpm |
Max. travel speed H/L | 5.4/3.0km/h |
Gradeability | 35° |
Max. digging force of bucket | 137kN |
Max.digging force of arm | 102kN |
Ground pressure | 45kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3235-9/ZG3235-9C |
Specifications | |
Operating weight | 23000kg |
Standard bucket capacity | 1.1m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C178 |
Type | Turbo-charged with inter-cooled |
Power | 133kW/2000rpm |
Max.torque | 708N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x112cc/rev C(C TYPE) 2x115cc/rev |
Max. Flow Rate | 2x218L/min C(C TYPE) 2x224L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 11.3rpm C(C TYPE) 10.5rpm |
Max. travel speed H/L | 5.6/3.1km/h |
Gradeability | 35° |
Max. digging force of bucket | 162kN |
Max.digging force of arm | 123kN |
Ground pressure | 50kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3255LC-9/ZG3255LC-9C |
Specifications | |
Operating weight | 25000kg |
Standard bucket capacity | 1.2m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C178 |
Type | Turbo-charged with inter-cooled |
Power | 135kW/2000rpm |
Max.torque | 708N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x112cc/rev C(C TYPE) 2x115cc/rev |
Working pressure | 31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 11.3rpm C(C TYPE) 10.5rpm |
Max. travel speed H/L | 5.6/3.1km/h |
Gradeability | 35° |
Max. digging force of bucket | 162kN |
Max.digging force of arm | 123kN |
Ground pressure | 45kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3465LC-9C |
Specifications | |
Operating weight | 47300kg |
Standard bucket capacity | 2.25m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS QSM11-C375 |
Type | Turbo-charged with inter-cooled |
Power | 375(280)kW/2000rpm |
Max.torque | 1898N.m at 1400rpm |
No.of cylinders | 6 |
Displacement | 10800cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 200cc/rev×2 |
Working pressure | 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 8.6rpm |
Max. travel speed H/L | 5.4/3.2km/h |
Gradeability | 35° |
Max. digging force of bucket | 290kN |
Max.digging force of arm | 228kN |
Ground pressure | 0.8kgf/cm² |
Tank capacity | |
Fuel tank capcity | 680L |
Hydraulic tank capacity | 380L |
optional list
model | ZG3065-9/ZG3065-9B |
Specifications | |
Operating weight | 5800kg |
Standard bucket capacity | 0.22m³ |
Arm length | 1600mm |
Boom length | 3000mm |
Engine | |
Model | Yanmar 4TNV98-SYU |
Type | cylinders-vertical type-water cooling-4 strokes |
Power | 43.4kW |
Max.torque | 254N.m |
No.of cylinders | 4 |
Displacement | 3.319L |
Hydraulic system | |
Main pump | Rexroth/ Doosan |
Type | Variable displacement axial piston pumps |
Max.displacement | 156L/min / 170L/min |
Working pressure | 24.5Mpa / 22Mpa |
Hydraulic motor | Jesung |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 11r/min / 10r/min |
Max. travel speed H/L | 0~2.3/0~4.3km/h |
Gradeability | 30° |
Max. digging force of bucket | 40kN |
Max.digging force of arm | 25kN |
Ground pressure | 33kPa |
Tank capacity | |
Fuel tank capcity | 120L |
Hydraulic tank capacity | 90L |
model | ZG3085-9 |
Specifications | |
Operating weight | 8100kg |
Standard bucket capacity | 0.37m³ |
Arm length | 1730mm |
Boom length | 3904mm |
Engine | |
Model | Yanmar 4TNV98T-SFN |
Type | Vertical type-4 strokes-water cooling-direct injection-turbo charge |
Power | 53.1kW a |
Max.torque | 286.9~312.7N.m |
No.of cylinders | 4 |
Displacement | 3.319L |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 90ml |
Working pressure | 27.5Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 12 |
Max. travel speed H/L | 4.5~2.5km/h |
Gradeability | 30° |
Max. digging force of bucket | 53kN |
Max.digging force of arm | 44kN |
Ground pressure | 37kPa |
Tank capacity | |
Fuel tank capcity | 138L |
Hydraulic tank capacity | 95L |
model | ZG3150-9C |
Specifications | |
Operating weight | 14000kg |
Standard bucket capacity | 0.6m³ |
Arm length | 2500mm |
Boom length | 4600mm |
Engine | |
Model | CUMMINS B3.9-C |
Type | Turbo-charged with inter-cooled |
Power | 86kW |
Max.torque | 486N.m |
No.of cylinders | 4 |
Displacement | 3.9L |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x58cc/rev |
Max. Flow Rate | 2x120L/min |
Working pressure | 30Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 13.7r/min |
Max. travel speed H/L | 3.1km/h |
Gradeability | 30° |
Max. digging force of bucket | 77kN |
Max.digging force of arm | 61.8kN |
Ground pressure | 39kPa |
Tank capacity | |
Fuel tank capcity | 250L |
Hydraulic tank capacity | 200L |
model | ZG3210-9/ZG3210-9C |
Specifications | |
Operating weight | 21000kg |
Standard bucket capacity | 0.91m³ |
Arm length | 2910mm |
Boom length | 5680mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C150 |
Type | Turbo-charged with inter-cooled |
Power | 112kW/1950rpm |
Max.torque | 614N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x108cc/rev C(C TYPE) 2x111cc/rev |
Max. Flow Rate | 2x211L/min C(C TYPE) 2x218L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 12.4rpm C(C TYPE) 12.0rpm |
Max. travel speed H/L | 5.4/3.0km/h |
Gradeability | 35° |
Max. digging force of bucket | 137kN |
Max.digging force of arm | 102kN |
Ground pressure | 47kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3225LC-9/ZG3225LC-9C |
Specifications | |
Operating weight | 22000kg |
Standard bucket capacity | 1.0m³ |
Arm length | 2910mm |
Boom length | 5680mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C150 |
Type | Turbo-charged with inter-cooled |
Power | 112kW/1950rpm |
Max.torque | 614N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x108cc/rev C(C TYPE) 2x112cc/rev |
Max. Flow Rate | 2x211L/min C(C TYPE) 2x218L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variale displacement axial piton motors |
Performance | |
Swing speed | 10.6rpm C(C TYPE) 12.0rpm |
Max. travel speed H/L | 5.4/3.0km/h |
Gradeability | 35° |
Max. digging force of bucket | 137kN |
Max.digging force of arm | 102kN |
Ground pressure | 45kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3235-9/ZG3235-9C |
Specifications | |
Operating weight | 23000kg |
Standard bucket capacity | 1.1m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C178 |
Type | Turbo-charged with inter-cooled |
Power | 133kW/2000rpm |
Max.torque | 708N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x112cc/rev C(C TYPE) 2x115cc/rev |
Max. Flow Rate | 2x218L/min C(C TYPE) 2x224L/min |
Working pressure | 31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 11.3rpm C(C TYPE) 10.5rpm |
Max. travel speed H/L | 5.6/3.1km/h |
Gradeability | 35° |
Max. digging force of bucket | 162kN |
Max.digging force of arm | 123kN |
Ground pressure | 50kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3255LC-9/ZG3255LC-9C |
Specifications | |
Operating weight | 25000kg |
Standard bucket capacity | 1.2m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS 6BTAA5.9-C178 |
Type | Turbo-charged with inter-cooled |
Power | 135kW/2000rpm |
Max.torque | 708N.m at 1500rpm |
No.of cylinders | 6 |
Displacement | 5883cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 2x112cc/rev C(C TYPE) 2x115cc/rev |
Working pressure | 31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 11.3rpm C(C TYPE) 10.5rpm |
Max. travel speed H/L | 5.6/3.1km/h |
Gradeability | 35° |
Max. digging force of bucket | 162kN |
Max.digging force of arm | 123kN |
Ground pressure | 45kPa |
Tank capacity | |
Fuel tank capcity | 400L |
Hydraulic tank capacity | 210L |
model | ZG3465LC-9C |
Specifications | |
Operating weight | 47300kg |
Standard bucket capacity | 2.25m³ |
Arm length | 3050mm |
Boom length | 5850mm |
Engine | |
Model | CUMMINS QSM11-C375 |
Type | Turbo-charged with inter-cooled |
Power | 375(280)kW/2000rpm |
Max.torque | 1898N.m at 1400rpm |
No.of cylinders | 6 |
Displacement | 10800cc |
Hydraulic system | |
Main pump | |
Type | Variable displacement axial piston pumps |
Max.displacement | 200cc/rev×2 |
Working pressure | 32.3/34.3Mpa |
Hydraulic motor | |
Swing | Fixed displacement axial piston motor |
Trave | Variable displacement axial piton motors |
Performance | |
Swing speed | 8.6rpm |
Max. travel speed H/L | 5.4/3.2km/h |
Gradeability | 35° |
Max. digging force of bucket | 290kN |
Max.digging force of arm | 228kN |
Ground pressure | 0.8kgf/cm² |
Tank capacity | |
Fuel tank capcity | 680L |
Hydraulic tank capacity | 380L |
Packaging & Shipping
Packaging & Shipping
5 Units Keystone Vessel T21 TEAL UN Portable Tank C480 Cylinder To SAUDI ARABIA KS1880-T21 Portable Tanks Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg KSVU2400114 KSVU2400120 KSVU2400135 KSVU2400140 KSVU2400156
7 Units T14 Hydrofluoric Acid ISO Tank Container For Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROFLUORIC ACID UN1790 HF ACID, CARON STEEL AND LINED WITH 16 MM LLDPE TANKS CAPACITY 21 KL COUNTRY OF ORIGIN : CHINA MARKING TANK NO.: DTAU2407014 DTAU2407020 DTAU2407035 DTAU2407040 DTAU2407056 DTAU2407061 DTAU2407077
2 UNITS 20FT Sodium Cyanide ISO Tank Container for West Africa Global Mine Operations 20FT Tank Container for Sodium Cyanide carbon steel and lined with 16mm LLDPE Specialized Tank Container, Sodium Cyanide Tank T6, Capacity 20000litre Hydrochloric acid with the concentration of 1789 (38%) 2X20TK DTAU2024611 DTAU2024627
PE Lined 20FT ISOTank Container For HCL Acid KOH 18KL To Vietnam (EMPTY AND NEW TANKS) TANK CAPACITY: 18M3 DTAU2407082
20Ft Stainless Steel Tank Container For Water Road Transport TO PORT OF SPAIN, TT 20FT Tank Container For store water capacity 25KL DTAU2407098
10PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA 10UNITS T21 PORTABLE TANK (EMPTY AND NEW TANKS WITH ADDITIONAL SPARE VALVES AND GASKETS) HS CODE:8609009000 KSVU2400011 KSVU2400027 KSVU2400032 KSVU2400048 KSVU2400053 KSVU2400069 KSVU2400074 KSVU2400080 KSVU2400095 KSVU2400109 10 UNITS 10700.000 KGS 33.9000 CBM
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
