SANY STC250 Truck Crane

SANY STC250 Truck Crane SANY mobile crane
Price: $ 120000
Discount Price: $ 100000

  • STC250

  • SANY

  • 87051092

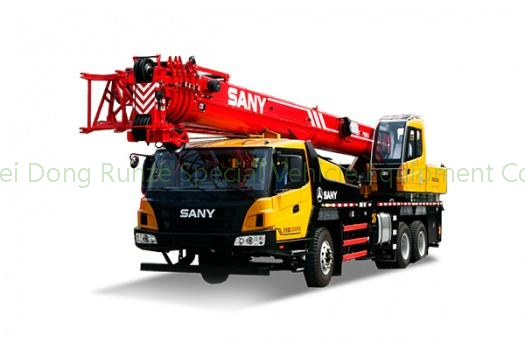

  SANY STC250 Truck Crane

SANY STC250 Truck Crane of Truck Mounted Crane of Telescopic Boom Truck Mounted Crane to TEMA GH WhatsApp:8615271357675SANY STC250 Truck Crane of Truck Mounted Crane of Telescopic Boom Truck Mounted Crane to TEMA GH WhatsApp:8615271357675

STC250 truck crane boasts excellent traveling performance. the double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance.

Powerful Lifting Capacity

STC250 25 ton crane has four-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.

Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.

Efficient & Unique Hydraulic System

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

The Load Moment Limiter

Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.

More Safe Devices

Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.

Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.

Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.


SANY STC250 Truck Crane of Truck Mounted Crane of Telescopic Boom Truck Mounted Crane to TEMA GH WhatsApp:8615271357675

Weichat:King253725877  WhatsApp:8615271357675  Skype:tomsongking

SANY mobile crane has four major types: truck crane, rough terrian crane, all terrian crane, general chassis crane. It is equipped with multiple intelligent functions

Max. lifting capacity20 t20t25t25t
Overall length12490mm12490mm12750mm12700mm
Overall width2500mm2500mm2500mm2500mm
Overall height3530mm3800mm3550mm3550mm
Axle distance-1,24225mm4225mm4325mm4325mm
Axle distance-2,31350mm1350mm1350mm1350mm
Overall weight29400kg26400kg30000kg33000kg
Front axle load6850kg6850kg6500kg7000kg
Rear axle load19550kg19550kg23500kg26000kg
Rated power213kw/2100r/min213kw/2100rpm213kW/2100rpm213kw/2100rpm
Rated torque1050N·m/1200~1400r/min1050N·m/1200~1400rpm1050N·m/1200~1400rpm1050N·m/1200~1400rpm
Emission standardEuro ⅢEuro ⅢEuro ⅢEuro Ⅲ
Max. traveling speed80km/h80 km/h80 km/h80 km/h
Min.turning radius10m10 m10 m11m
Min. ground clearance220mm220mm220mm220mm
Approach angle18 °18 °17 °17 °
Departure angle11 °11 °12 °12 °
Max. gradeability35%35%38%38%
Fuel consumption per 100km≤ 35L≤ 35L≤ 37L≤ 40L
Main Performance
Min.lifting radius3m3m3m3m
Tail swing radius of superstructure3m3m3.37m3.37m
Boom section4445
Boom shapeHexagonalHexagonalU-shapedU-shaped
Max. lifting moment-Base boom860kN·m860kN·m962kN·m980kN·m
Max. lifting moment-Full-extend boom470kN·m470kN·m544kN·m470kN·m
Max. lifting moment-Full-extend boom+jib246kN·m313kN·m341kN·m378kN·m
Length-Base boom10.6m10.6m10.65m10.5m
Length-Full-extend boom33.5m33m33.5m39.5m
Length-Full-extend boom+jib41.5m41.5m41.5m47.5m
Outrigger span(Longitudinal/Transversal)5.1m × 6m5.1m × 6m5.3m × 6.2m5.3m × 6.2m
Working Speed
Max. single rope lifting speed of main winch(no load)≧110m/min110m/min≧120m/min≧120m/min
Max. single rope lifting speed of auxiliary winch(no load)≧110m/min110m/min≧120m/min≧120m/min
Full extend/retract time of boom60 / 40s60 / 40s70 / 50s105 / 120s
Full raise/lower time of boom60 / 50s60 / 50s70 / 55s45 / 70s
Swing speed0~2 r/min0~2 r/min0~2 r/min0~2 r/min
HVAC in up cabCooling and HeatingCoolingCooling and HeatingCooling and Heating
HVAC in low cabCooling and HeatingCooling and HeatingCooling and HeatingCooling and Heating
