Beiben 1627 NORTH BENZ VACUUM SEWAGE SUCKING TANKER
| Quantity: | |
|---|---|

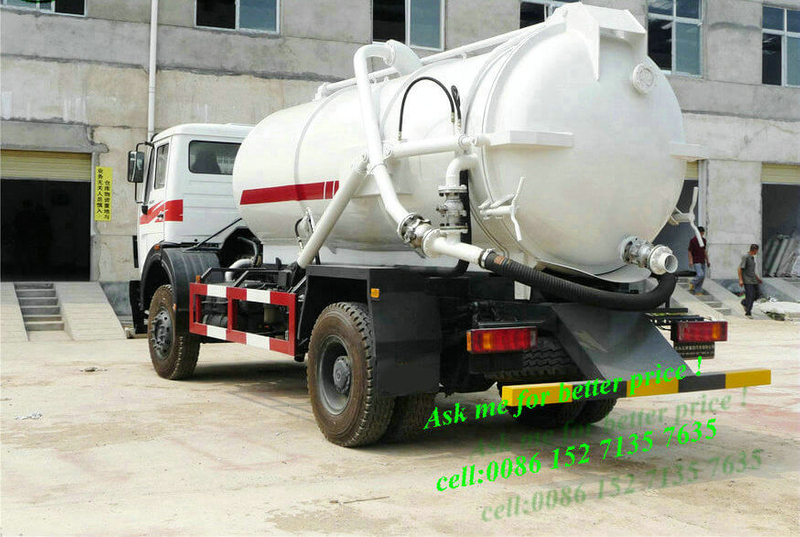

Beiben Vacuum tanker truck 1627 NORTH BENZ VACUUM SEWAGE SUCKING TANKER
Vacuum tanker septik truck sewage tanker ,CAPACITY 8000 UPTO 12000 Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 Vaccum tanker vacuum sewage suction truck
optional inner lined PE for chemical wast acid
Beiben 1627 Vacuum Sewage Suction tanker Truck
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
& TIC TRUCKS INDUSTRY CO.,LIMITED
| Product name | 1627 NORTH BENZ VACUUM SEWAGE SUCKING TANKER | |
| Vehicle model | TIC5160GXW beiben Vacuum Sewage Suction Truck | |
| Dimension(Length*width*height) (mm) | 8150×2500×3050 | |
| Chassis | ND1627 | |
| Track(front/rear) (mm) | 1995/1800 | |
| Approaching angle//Departure angle() | 23/15 | |
| Suspension(front/rear) (mm) | 1410/2200 | |
| Min distance to the ground(mm) | 399 | |
| Wheel distance(front/rear) (mm) | 4500 | |
| GVW (KG) | 19000 | |
| Kerb weight (kg) | 7500 | |
| Rated loadkg | 10000 | |
| Configuration | 4*2 | |
| Tank Volume (m³) | 10 | |
| Design volume | 10000 L 10 | |
| Main body material | Q235A/6MM | |
| Vacuum pumps model | 50QZDG-45/400 | |
| Maximum AOB ° | ≥45° | |
| Effective suctionm | ≥ 5 | |
| Vacuum systemMPa | ≥11 | |
| Lifting times | ≤45 | |
| Cover opening Angle° | ≥75° | |
| Cover open time (s)s | ≤25 | |
| Suction pipe diameter (mm)(mm) | 100 | |
| Tanks full sucked time (min) | ≤12 | |
with vacuum pump for non-potable water, sewage suction and transport

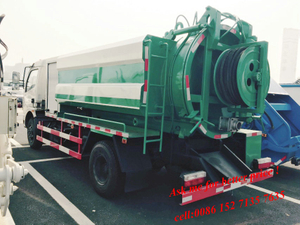

jetting water pump
Steel Vacuum Trailers Stainless Steel Vacuum Tanks
Aluminum Vacuum Trailer Manufacturing
TIC TRUCKS , www.truckinchina.com
