DRZ5250GFB
DRZ
8705909990

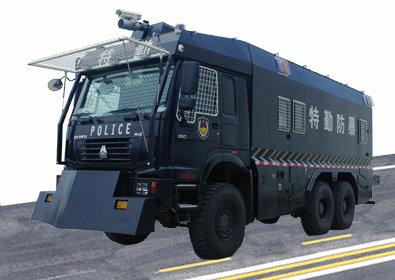

Anti Riot Water Cannon Vehicle Customizing
12000 liters riot control water cannon vehicle
5250GFB LxWxH:10105x2500x3700mm
1. Chassis:Double-row cab, seating capacity is 2+3, escape skylight on the vehicle roof,four doors, 11 units tires(1 spare tire)
2. water tank:6000 / 10000 /12000 liters;Foam tank,Dye tank and Pepper water tank:each tank 100 liters;
3. Cannon:Two electric straight stream anti-riot water cannons, max. reach is 70m, deterrent reach is 40m; It can dispel long-distance rioters.
4. PLC Display Screen System: The electric screen is installed on the control panel,The control system is mounted in the electric control box in the accessory cabin.
5. Filling port:Two DN65 filling ports are on both side of the vehicle;
6. Spraying system:it can prevent the rioters approaching.
7. Self-extinguishing system: Both the roof and bottom are equipped with the self-extinguishing system to protect the vehicle from fire.
8. Vice engine: We adopt Dongfeng Cummins engine to supply power for water pump.
9. Hydraulic shovel: C type shovel, double hydraulic cylinders drive, can remove loose barricades.
10. Military gas mask: 5 sets.
11. Centralized control system:All equipments are controlled and operated in the cab.
12. Video Rearview system:Back guide screen is loaded.
13. Alarm light and siren:Cylindrical red and blue strobe flash warning lights are installed on the front and rear top of the vehicle with 300W siren.
14. Broadcast publicity system:It is composed of one CD player and control system. Power amplifier, speaker and microphone are shared with warning system.
15. Image monitoring system:Video camera is mounted on the emplacements of water cannons. Reversible LCD is mounted inside the cab to facilitate operation and on-site supervision. Hard-disk recorder stores images.
16. Lighting protection:Strengthened stainless steel protective net is for the lights.
17. Cabin glass protection:The hydraulic tilting protective net is installed on the windscreen, controlled in the cab;Side Windows are fitted able-dismantled nets.
18. Barricading system: Spreading width is about 9m, height≥2.5m; It is automatical and hydraulic control.
19. Additional Headlight: Install the headlight on the face of the vehicle, for night driving.
If you're in need of the high quality 10,000l anti riot barricade system water cannon vehicle, welcome to contact our factory for the truck. We are one of the professional and experienced China manufacturers and suppliers of various fire trucks. We will offer you good after-sale service and fast delivery.
Hot Tags: China Anti riot vehicle, China Anti riot vehicle manufacturers ,China Anti riot vehicle suppliers ,China Anti riot vehicle factory ,China Barricade system vehicle, China Barricade system vehicle manufacturers, China Barricade system vehicle suppliers, China Barricade system vehicle factory, Anti riot vehicle Barricade system vehicle, 10000L water cannon vehicle ,China 10000L water cannon vehicle, China 10000L water cannon vehicle manufacturers ,China 10000L water cannon vehicle suppliers, China 10000L water cannon vehicle factory
Anti Riot Water Cannon Vehicle Customizing
12000 liters riot control water cannon vehicle
5250GFB LxWxH:10105x2500x3700mm
1. Chassis:Double-row cab, seating capacity is 2+3, escape skylight on the vehicle roof,four doors, 11 units tires(1 spare tire)
2. water tank:6000 / 10000 /12000 liters;Foam tank,Dye tank and Pepper water tank:each tank 100 liters;
3. Cannon:Two electric straight stream anti-riot water cannons, max. reach is 70m, deterrent reach is 40m; It can dispel long-distance rioters.
4. PLC Display Screen System: The electric screen is installed on the control panel,The control system is mounted in the electric control box in the accessory cabin.
5. Filling port:Two DN65 filling ports are on both side of the vehicle;
6. Spraying system:it can prevent the rioters approaching.
7. Self-extinguishing system: Both the roof and bottom are equipped with the self-extinguishing system to protect the vehicle from fire.
8. Vice engine: We adopt Dongfeng Cummins engine to supply power for water pump.
9. Hydraulic shovel: C type shovel, double hydraulic cylinders drive, can remove loose barricades.
10. Military gas mask: 5 sets.
11. Centralized control system:All equipments are controlled and operated in the cab.
12. Video Rearview system:Back guide screen is loaded.
13. Alarm light and siren:Cylindrical red and blue strobe flash warning lights are installed on the front and rear top of the vehicle with 300W siren.
14. Broadcast publicity system:It is composed of one CD player and control system. Power amplifier, speaker and microphone are shared with warning system.
15. Image monitoring system:Video camera is mounted on the emplacements of water cannons. Reversible LCD is mounted inside the cab to facilitate operation and on-site supervision. Hard-disk recorder stores images.
16. Lighting protection:Strengthened stainless steel protective net is for the lights.
17. Cabin glass protection:The hydraulic tilting protective net is installed on the windscreen, controlled in the cab;Side Windows are fitted able-dismantled nets.
18. Barricading system: Spreading width is about 9m, height≥2.5m; It is automatical and hydraulic control.
19. Additional Headlight: Install the headlight on the face of the vehicle, for night driving.
If you're in need of the high quality 10,000l anti riot barricade system water cannon vehicle, welcome to contact our factory for the truck. We are one of the professional and experienced China manufacturers and suppliers of various fire trucks. We will offer you good after-sale service and fast delivery.
Hot Tags: China Anti riot vehicle, China Anti riot vehicle manufacturers ,China Anti riot vehicle suppliers ,China Anti riot vehicle factory ,China Barricade system vehicle, China Barricade system vehicle manufacturers, China Barricade system vehicle suppliers, China Barricade system vehicle factory, Anti riot vehicle Barricade system vehicle, 10000L water cannon vehicle ,China 10000L water cannon vehicle, China 10000L water cannon vehicle manufacturers ,China 10000L water cannon vehicle suppliers, China 10000L water cannon vehicle factory
10,000L riot control water cannon vehicle Main technical parameter:
Item | Performance parameter | Item | Performance parameter | ||
Model | 10,000L riot control water cannon vehicle | Warning lights | 1(set) | ||
length*width*height | 9275×2500×3550(without shovel, mm) | Pepper water spray | 10 nozzles | ||
Chassis | SINOTRUK or Benz | Up and down spray of body | nozzles 6+6 | ||
Drive type | 6×4 rear axle drive | Pump | CB16/50 | ||
Max. speed | ≥ 90 km/h) | Water tank | 10000L | ||
Crew | 2+3 | Pepper water tank | 110L | ||
Engine | Type | Inline water-cooling, inter cooling, TDCI | Dye tank | 110L | |
Model | WD615.95E | Foam tank | 110L | ||
Power | 247kW | Roof cannon | Quantity | 2 | |
Displacement | 9726ml | Max. shooting distance | 70(m) | ||
Emission | China IV | Deterrent shooting distance | 45 (m) | ||
Shovel | 1(set) | Horizontal | 0°~135° | ||
Camera monitoring | 1(set) | Pitching | -10°/45° | ||
Public address system | 1(set) | Type | DC spray |
6000L Anti Riot Water Cannon Vehicle technical parameter:
Item | Performance parameter | Item | Performance parameter | ||||
Model | Riot control water cannon vehicle | Pepper water spray | 10 nozzles | ||||
Length*width*height | 8300×2500×3550(without shovel, mm) | Up and down spray of body | 6+6 nozzles | ||||
Chassis | SINOTRUK | Pump | CB16/50 | ||||
Max. speed | 90( km/h) | Water tank | 6000~8000L | ||||
Crew | 2+3 | Pepper water tank | 110L | ||||
Engine | Type | Inline water-cooling, inter cooling, TDCI | Dye tank | 110L | |||
Model | WD615.97C | Foam tank | 110L | ||||
Power | 221kW | Roof cannon | Max. reach | 70(m) | |||
Displacement | 9726ml | Deterrent reach | 45(m) | ||||
Emission | China IV | Horizontal | ±135° | ||||
Camera monitoring Publish address system Warning lights | 1 (set) | Pitching | -30°/45° | ||||
1 (set) | Type | DC spray | |||||
1 (set) | Bumper cannon | Shooting distance | ≥45(m) | ||||
Shovel | 1(set) | Dispersion area | 10m length cover 100m2 | ||||
Horizontal | ±85° | ||||||
Pitching | -10°~45° | ||||||
Type | DC/fog spray |
Installation of 6tons or 10tons high-volume water tank , Extending the water shooting time
DRZE reserves the right to modify its main performance parameters and photos due to technology advancement.
If you're in need of the high quality 10,000L anti riot water cannon vehicle, welcome to contact our factory for the truck. We are one of the professional and experienced China manufacturers and suppliers of various fire trucks. We will offer you good after-sale service and fast delivery.
10,000L riot control water cannon vehicle Main technical parameter:
Item | Performance parameter | Item | Performance parameter | ||
Model | 10,000L riot control water cannon vehicle | Warning lights | 1(set) | ||
length*width*height | 9275×2500×3550(without shovel, mm) | Pepper water spray | 10 nozzles | ||
Chassis | SINOTRUK or Benz | Up and down spray of body | nozzles 6+6 | ||
Drive type | 6×4 rear axle drive | Pump | CB16/50 | ||
Max. speed | ≥ 90 km/h) | Water tank | 10000L | ||
Crew | 2+3 | Pepper water tank | 110L | ||
Engine | Type | Inline water-cooling, inter cooling, TDCI | Dye tank | 110L | |
Model | WD615.95E | Foam tank | 110L | ||
Power | 247kW | Roof cannon | Quantity | 2 | |
Displacement | 9726ml | Max. shooting distance | 70(m) | ||
Emission | China IV | Deterrent shooting distance | 45 (m) | ||
Shovel | 1(set) | Horizontal | 0°~135° | ||
Camera monitoring | 1(set) | Pitching | -10°/45° | ||
Public address system | 1(set) | Type | DC spray |
6000L Anti Riot Water Cannon Vehicle technical parameter:
Item | Performance parameter | Item | Performance parameter | ||||
Model | Riot control water cannon vehicle | Pepper water spray | 10 nozzles | ||||
Length*width*height | 8300×2500×3550(without shovel, mm) | Up and down spray of body | 6+6 nozzles | ||||
Chassis | SINOTRUK | Pump | CB16/50 | ||||
Max. speed | 90( km/h) | Water tank | 6000~8000L | ||||
Crew | 2+3 | Pepper water tank | 110L | ||||
Engine | Type | Inline water-cooling, inter cooling, TDCI | Dye tank | 110L | |||
Model | WD615.97C | Foam tank | 110L | ||||
Power | 221kW | Roof cannon | Max. reach | 70(m) | |||
Displacement | 9726ml | Deterrent reach | 45(m) | ||||
Emission | China IV | Horizontal | ±135° | ||||
Camera monitoring Publish address system Warning lights | 1 (set) | Pitching | -30°/45° | ||||
1 (set) | Type | DC spray | |||||
1 (set) | Bumper cannon | Shooting distance | ≥45(m) | ||||
Shovel | 1(set) | Dispersion area | 10m length cover 100m2 | ||||
Horizontal | ±85° | ||||||
Pitching | -10°~45° | ||||||
Type | DC/fog spray |
Installation of 6tons or 10tons high-volume water tank , Extending the water shooting time
DRZE reserves the right to modify its main performance parameters and photos due to technology advancement.
If you're in need of the high quality 10,000L anti riot water cannon vehicle, welcome to contact our factory for the truck. We are one of the professional and experienced China manufacturers and suppliers of various fire trucks. We will offer you good after-sale service and fast delivery.
