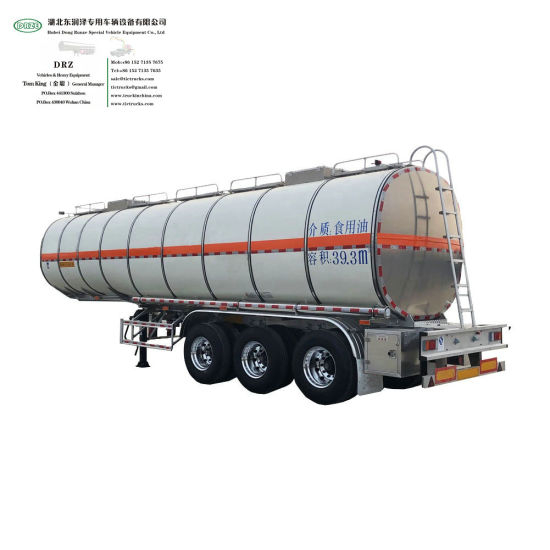

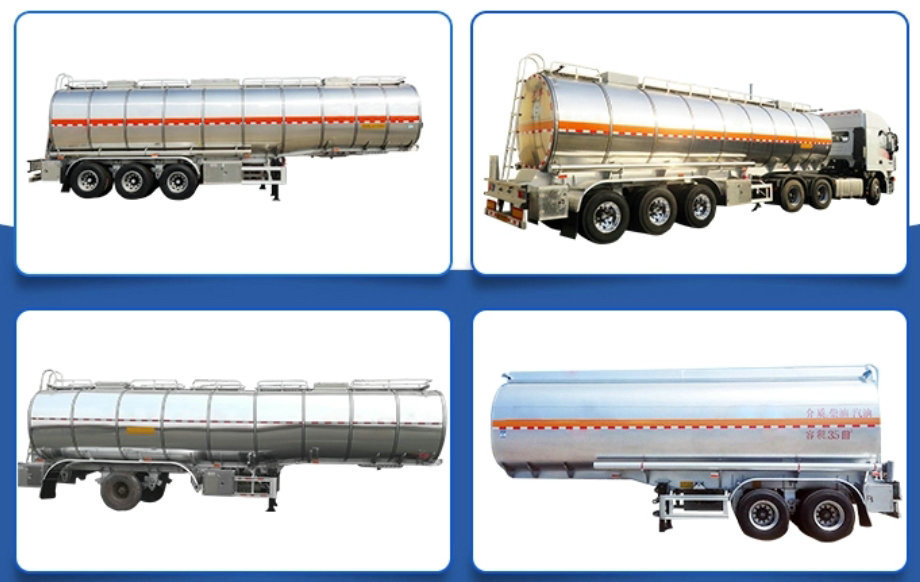

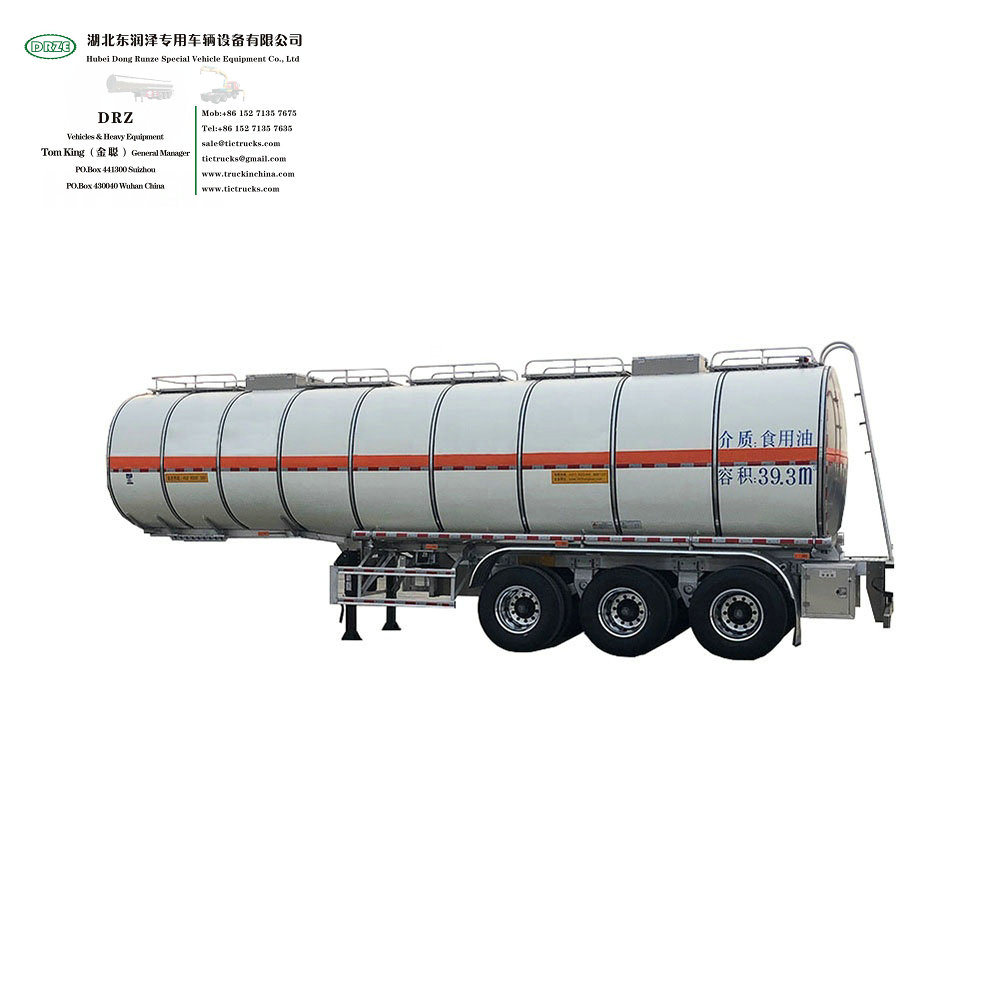

Aluminum Tanker Trailer 36000L~42000L 3 Axle Transport Food Cooking Oil Edible Oil
Vegetable Oil 40CBM 45CBM Alloy Tanker Semirailer
Aluminum Tank Trailer Aluminum Fuel Tanker Semi-trailer 3 axles, 36000L to 42000L
Tanker
Material Aluminium
Thickness of shell 7mm
Thickness of dish 7mm
Inside baffles 5mm
Compartments 5 to 7 compartments
Volume 36000L to 42000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*3 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
12+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting.
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
| Weight Rating(kgs) | Curb Weight | about 7,000kg |
| Payload | about 39,100kg | |
| Total Weight | about 46,100kg | |
| Dimension(mm) | Trailer | 11800mm*2500mm*3900mm( Exact size depends on the final design) |
| Wheel base | 1310mm | |
| Height of fifith wheel | 1250mm | |
| Front overhang | 1300mm | |
| Rear overhang | 1400mm | |
| Tanker Body Assembly | ||
| Shape | Square Round | |
| Total Volume(m³) | 46m³+2% | |
| Material | Tank shell | AL5183/6mm |
| Dish end | AL5183/7mm | |
| Baffle | AL5183/5mm | |
| Spoil box | Standard | |
| Manhole | 20inch manhole | |
| Manhole Cover | 3 units of 500mm aluminium manhole cover | |
| Bottom Valve | 4" pneumatic aluminium valve | |
| Piping System | 3 sets of 4" aluminimum pipes under tank body | |
| Discharging Valve | 4" aluminium ball valve | |
| Main Beam | Material:Q345 carbon steel | |
| Height 500mm, | Height 500mm, | |
| Upper Thickness 14~18mm, | Upper Thickness 14~18mm, | |
| Middle Thickness 8~12mm, | Middle Thickness 8~12mm, | |
| Down Thickness 16~20mm | Down Thickness 16~20mm | |
| Landing Gear | 28T one side Operation | |
| King Pin | One unit of 50# JOST standard bolt type king pin | |
| Running Gear | ||
| Suspension | Mechanical suspension or Air suspension | |
| Axle | 2 or 3 axles, BPW/FUWA brand(Optional) | |
| Leaf Spring | 90(W)mm×16(Thickness)mm×8(Layer) | |
| Brake System | WABCO Valve with big chamber | |
| Lights | Turning Light, Side Marker Light, Tail Light | |
| Voltage | 24V | |
| Receptacle | 7 ways (7 wire harness) | |
| Painting | Original aluminium | |
| ABS | Optional | |
| Accessories | One standard tool box, One anti-static tape,2 spare tire carrier, 2 units fire extinguisher | |
| Shipping Terms | By Bulk Cargo Carrier, RORO | |
