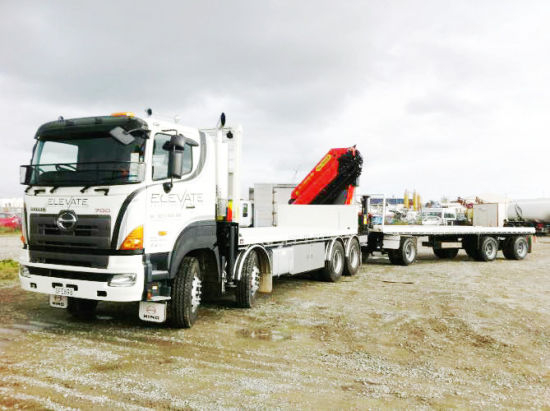

HOT sale 700 Hino 8X4 Flatbed Truck with loading crane and full flatbed trailer for Sale
Customization, Cost and Control Built How You Want it, optional with crane
at a Price You Can Afford. for sale call:+86-152 -7135-7635
XCMG brand cranes,2.5t~20t straight cranes and Kunckle Cranes
8x4 construction excavators truck,dongfeng heavy duty truck transportation,flatbed truck bodies
Vehicle name | Hino 700 crane truck supplier for new hino truck with crane 8*4 14tons sale | ||||||||||
Cabin | one cab | Emission standard | Euro III | ||||||||
Steering wheel location | LHD | Vehicle body colour | white | ||||||||
Crane brand | XCMG | Max lifting capacity(T) | 14ton | ||||||||
Vehicle parameter | Overall demension(mm) | 10430*2495*3500 | Cargo demensions(mm) | 7600*2300*1100 | |||||||
GVW(kg) | 31000 | Curb weight(kg) | 15100 | ||||||||
Drive type | 8*4 | Max speed | 75 | ||||||||
Chassis parameter | Chassis brand | Guangqi hino Co.,ltd | Chassis model | YC3310FY2PW | |||||||
Wheelbase(mm) | 1850+3850+1410 | Number of axles | 4 | ||||||||
F/R suspension | 1410/1910 | F/R tyre width | 2060/2060,1855/1855 | ||||||||
Steel spring number | 11/11/13 | Tyre type | 11.00R20 | ||||||||
Engine parameter | Engine manufacture | Shanghai Hino Co.,ltd | model | P11C-UJ P11C-UR | |||||||
Hose power | 380,360hp | Displacement | 10520,10520 | ||||||||
Crane parameter | Crane model | SQ14ZK4Q(XCMG) | max lifting capacity(kg) | 14000 | |||||||
max lifting movement(T.M) | 35 | The largest hydraulic arm length(m) | 11.4 | ||||||||
Outrigger span(mm) | 5390 | Max Pressure of Hydraulic System(mpa) | 31.5 | ||||||||
Oil tank capacity(L) | 160 | Rotation angle | 360 | ||||||||
Crane Weight(kg) | 4468 | Installation space(mm) | 1240 | ||||||||
Delievery time | 25-30days | ||||||||||
Warranty | one year | ||||||||||
Payment term | TT | ||||||||||
Packing port | Shanghai or Tianjin |
HINO 8X4 Euro IV 350-380HP Flatbed Cargo Truck
HINO 8x4 CARGO TRUCKDriving Type8x4Overall Length (mm)11800Overall Width (mm)2495Overall HeightStandard (mm)3110High (mm)3600WheelBase (mm)1850+4300+1410Wheel TrackFront (mm)2060/2060Rear (mm)1855/1855Min Grounnd Clearance (mm)240EngineModelP11C-URP11C-UJDisplacement10.52LMax Power (HP)380350Max Torque (Nm)16001460Transmission ModelZF9S182012JSD160TATires12.00R20
Truck Molde | Model | 5310 | ||
Chassis Molde | YC1310FY2PY | |||
Drive | 8×4 | |||
Maximum gross weight (kg) | (××)(mm) | 11920×2550×3800 | ||
Curb weight(kg) | (kg) | 14400 | ||
Loading(kg) | (kg) | 16470 | ||
Dimensions (L x W x H) (mm) | (kg) | 31000 | ||
Wheelbase (mm) | (mm) | 1850+4300+1410 | ||
Fron/rear track (mm) | / (mm) | 2060/2060/1855/1855 | ||
Fron/rear overhang (mm) | / (mm) | 1410/2950 | ||
Minimum ground clearance (mm) | (mm) | ≥240 | ||
Minimum turning diameter (m) | (m) | ≤23 | ||
Full load maximum speed (km/h) | (km/h) | 100 | ||
VAN | (××)(mm) | 9600×2400×2400 | ||
Engine model | P11C-UJ | P11C-UR | ||
Rated power (PS) KW/r/min | (PS)kW/r/min | (350)259/2100 | (380)280/2100 | |
Maximum torque Nm/r/min | Nm/ r/min | 1454/1100 | 1594/1100 | |
Displacement L | L | 10.52 | ||
Clutch Transmission | 12JSD160TA | ZF9S1820TD | ||
Tires | 11.00R20 295/80R22.5 | |||
Emission standards | GB 17691-2005(III) | |||
Cab | Four-point full-floating, electronically controlled hydraulic cab tilting system, |
