20FT Stainless Steel Yellow Phosphorus Tank Container with Heating Insulated System

Share to:

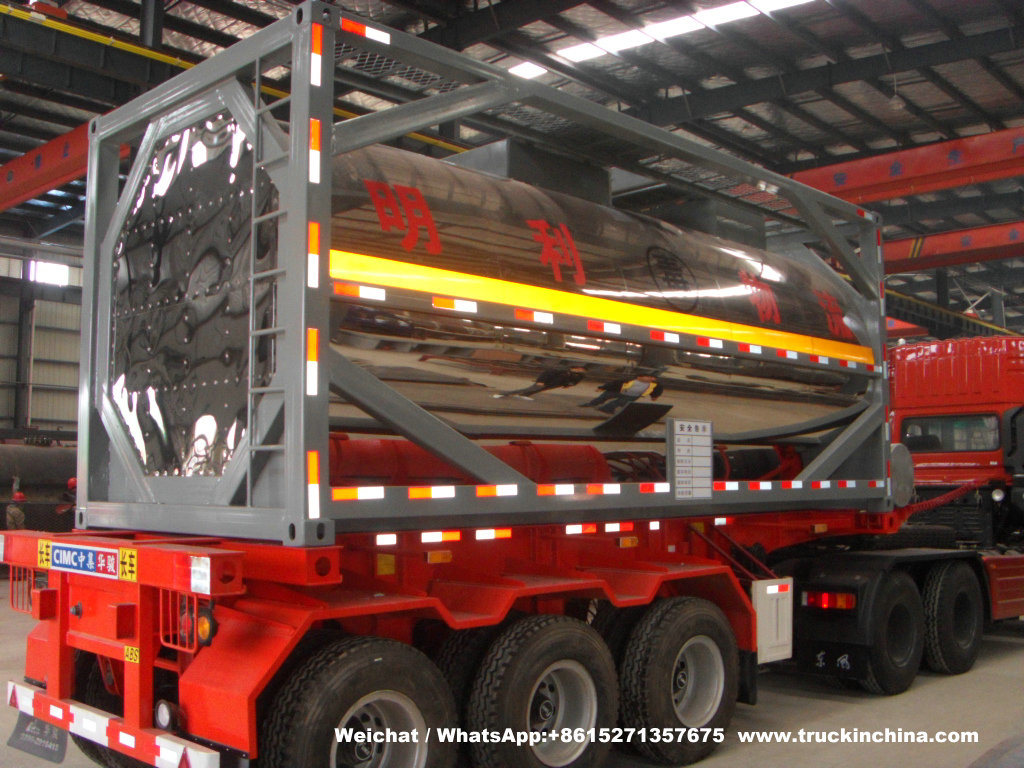

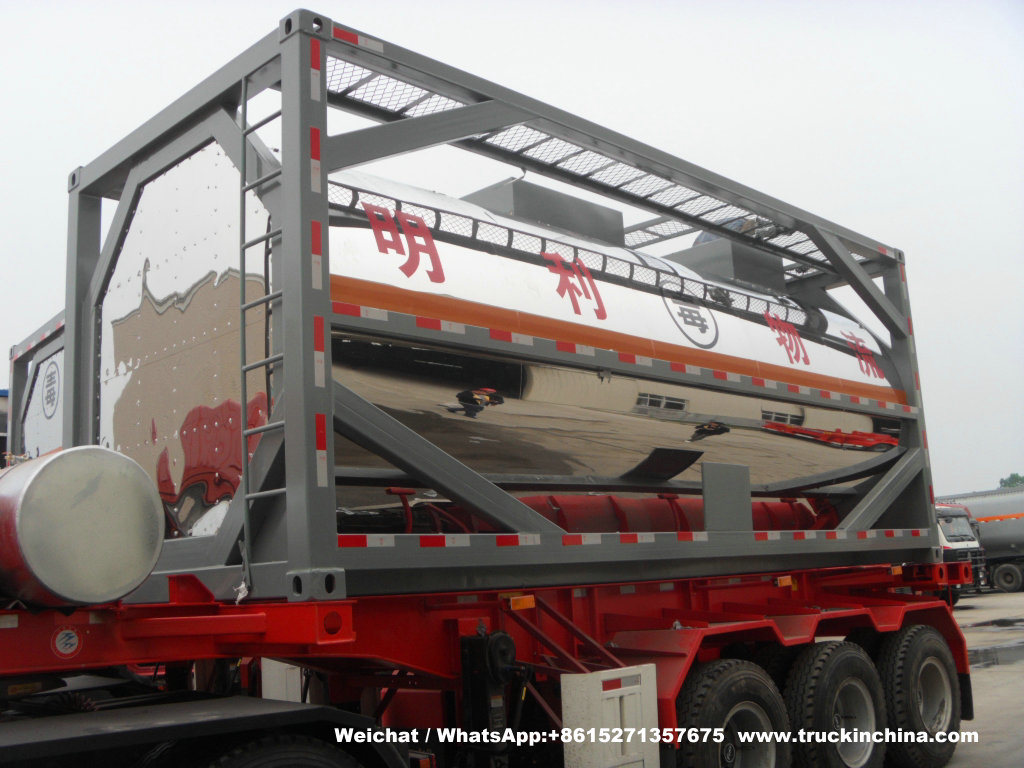

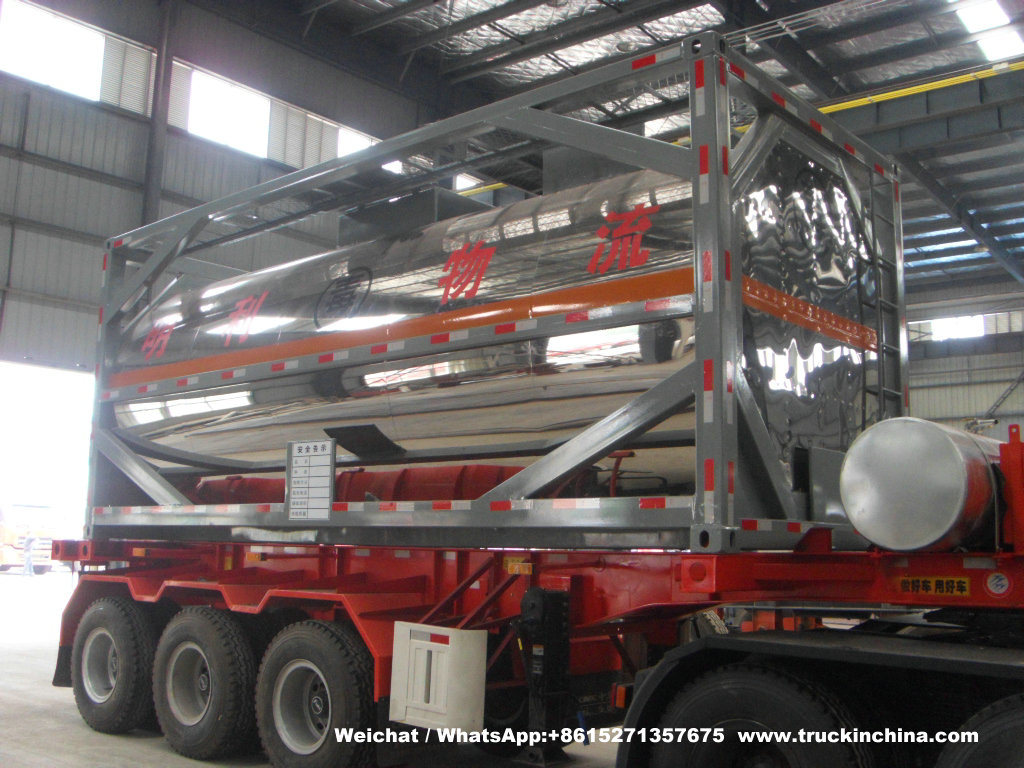

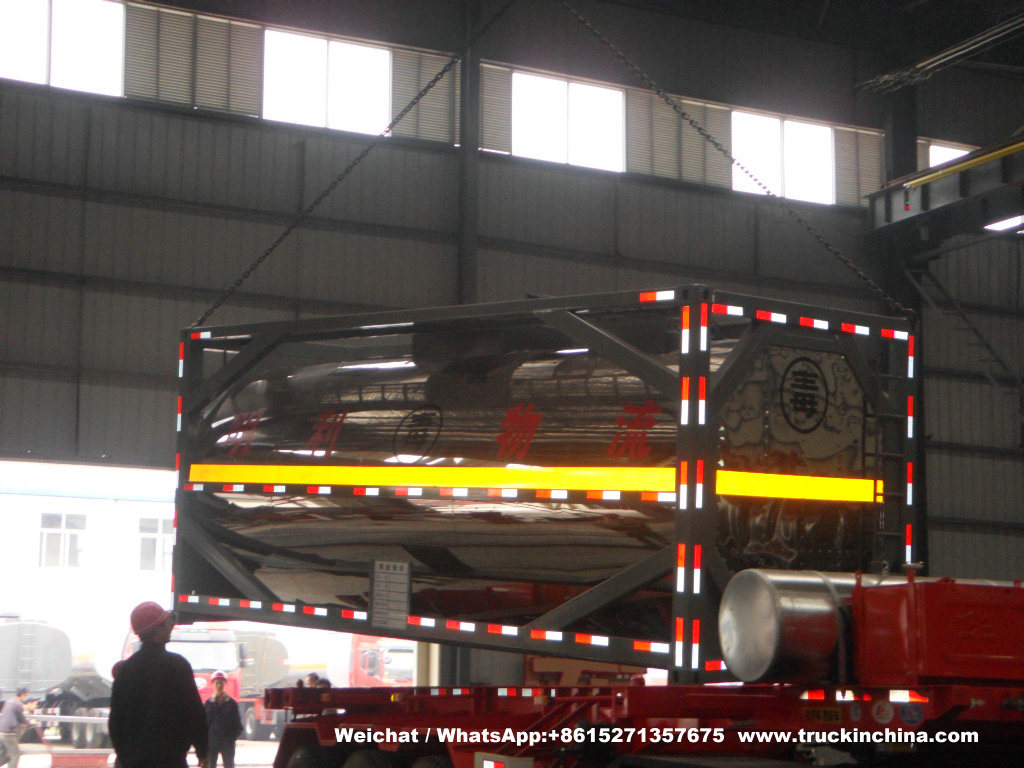

20FT Stainless Steel Yellow Phosphorus Tank Container with Heating Insulated System

Availability:

Quantity:



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
3000
Payment Terms:
T/T

Product Description

Yellow Phosphorus tank Container 20ft stainless steel with Heating Insulated System

stainless steel Tank Container with Heating Insulated System for transport Yellow Phosphorus

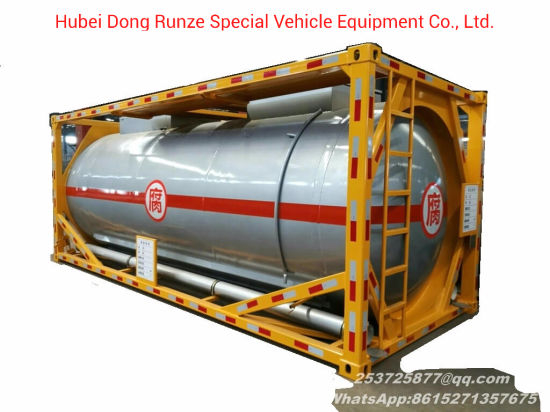

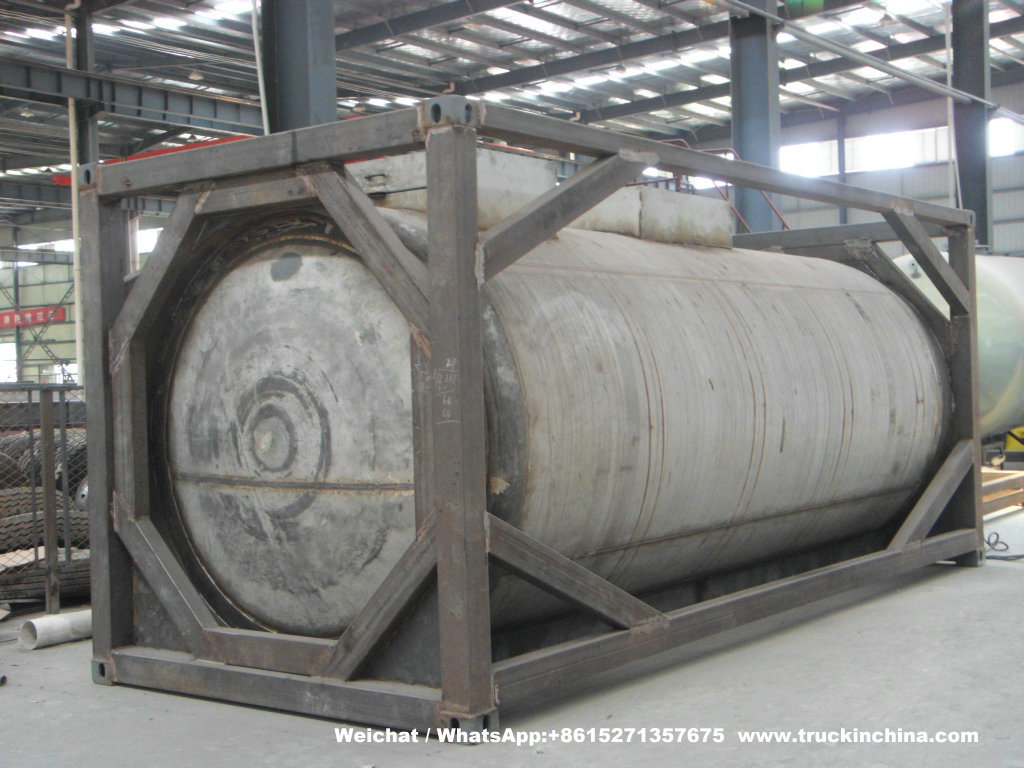

20FT Stainless Steel Yellow Phosphorus Tank Container with Heating Insulated System

1.6 Material Of Construction

Framework :Hollow section Q345-D--GB/T1591

Plates Q345-D--GB/T1591

Rolled section Q345-D--GB/T1591

Shell & Heads Q345R

1.7NDE (Non Destructive Examination)

TYPE	EXTENT	STAGE
Visual	100% All welds	Before & After Hydrostatic test.
RT	100% All long. & circ. butt welds	Before Hydrostatic test
PT	100% All nozzle-to-tank attachment welds	Before Hydrostatic test
PT	100% All pad & attachment welds attach to tank which thickness more than 6mm.	Before Hydrostatic test

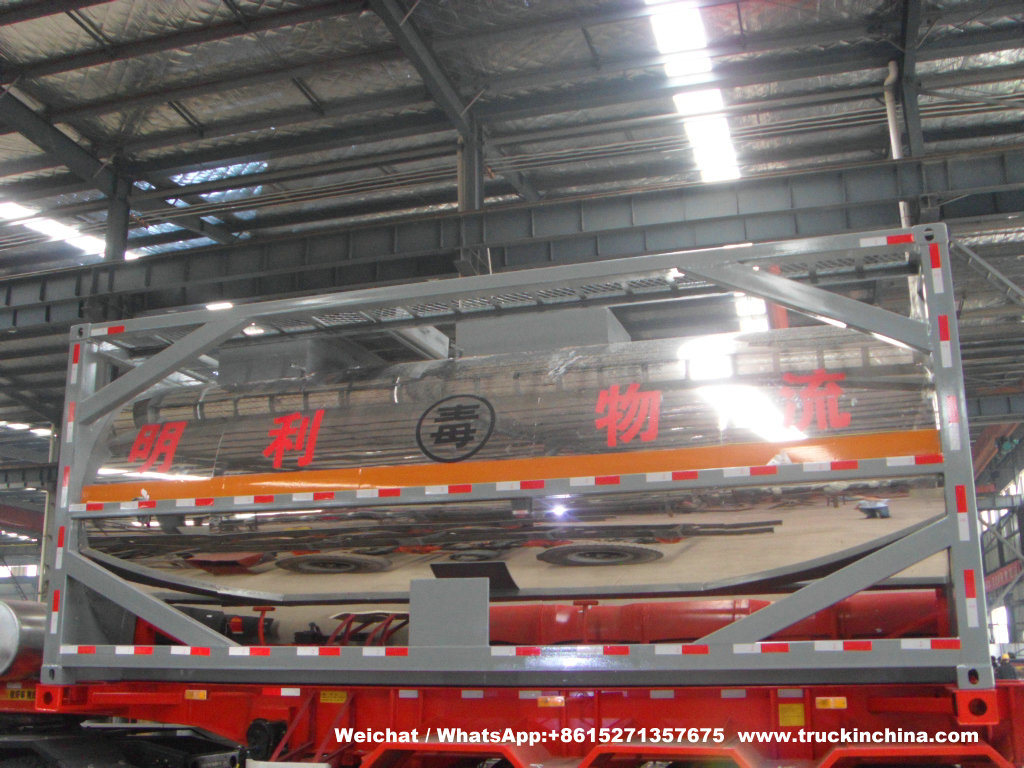

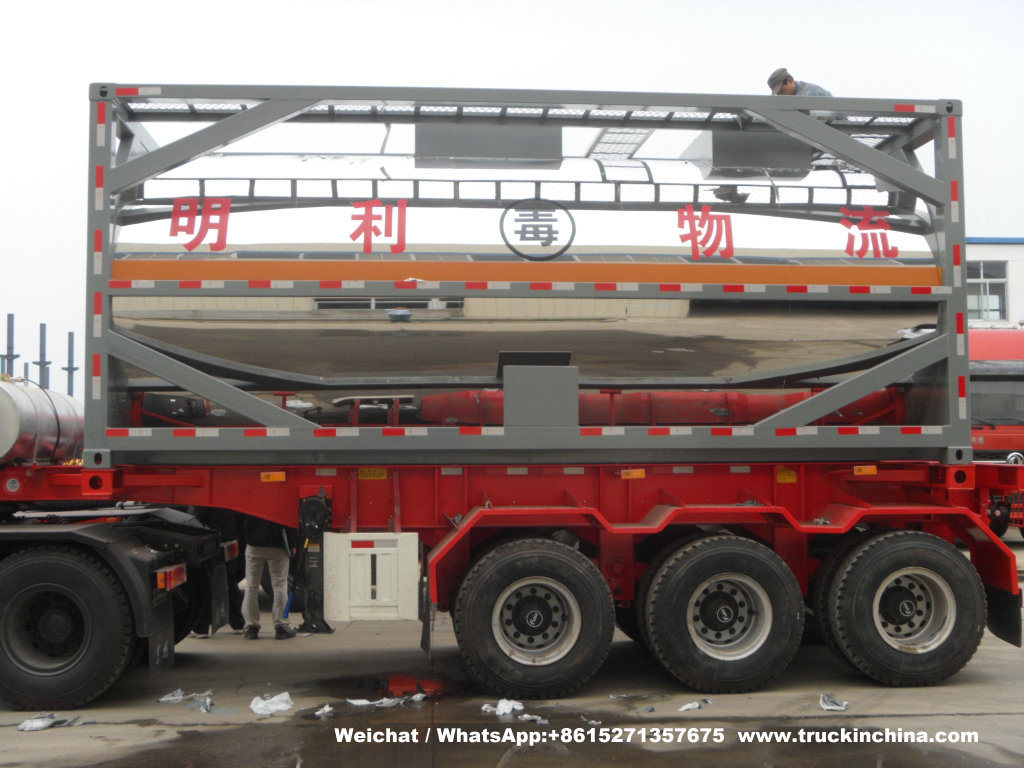

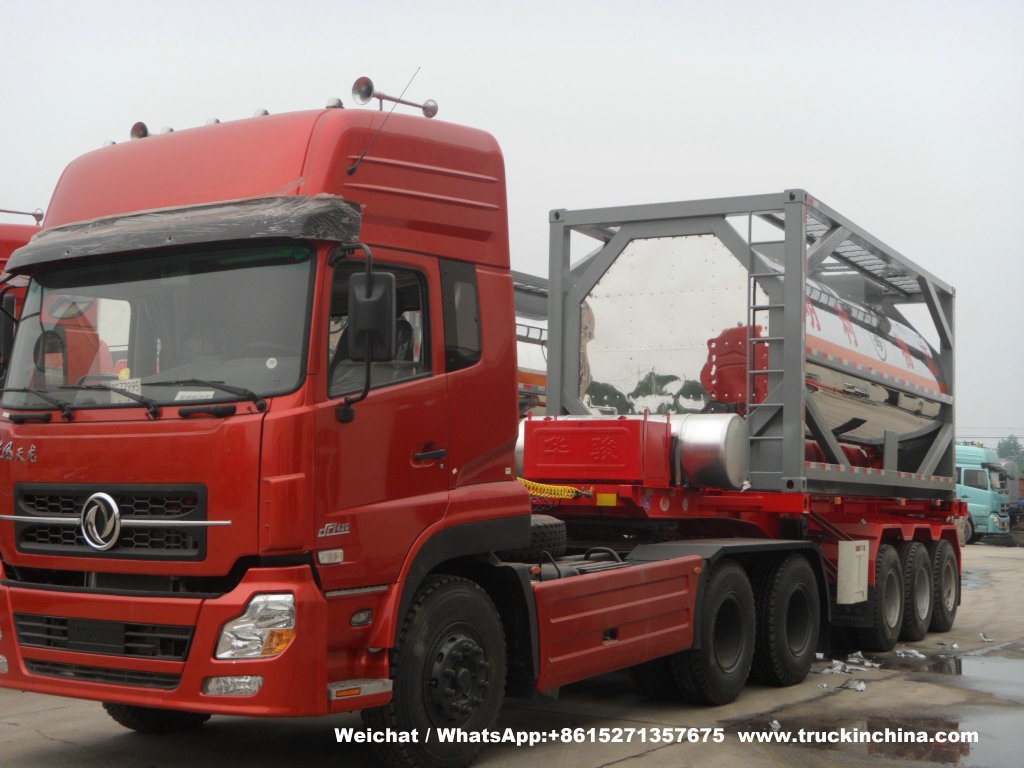

20FT Stainless Steel Yellow Phosphorus Tank Container with Heating Insulated System

stainless steel Tank Container with Heating Insulated System for transport Yellow Phosphorus

Technical Specifications for refer only.we reserves the right for appropriate amendments

The pictures are for your reference only.

ISO Tank Container 20 FT For Hazardous Liquids

Road transport tank container

T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;

Size : 20 feet
Length : +6.058- 6.06 m
Width : +2.438- 2.44 m
Height : 2.438/2.591- 2.60 m

ISOTANK List

The Main Technical Parameters of Tanks (ASME Standard)
Item	Loading Medium	Model	Capacity (m3)	Design Pressure (Mpa)	Design Temperature (c)	Tank Material	Nominal Tank Thickness (mm)	Insulation	Tare weight (Kg)	Max. Gross Weight (Kg)	Dimension (LX WX H)(mm)	Loading Method
1	R134a	T50	24	1.38	-40 /+55	SA-612N	11	Sunshade	6400	34000	6058 X 2438 X2591	Down load unload
2	R22		22	2.1	-40/+50		18		8800
3	R143a		22	2.42			20		9500
4	R125		22	2.75			21		9500
5	R32		20	3.44			25		10900
6	AHF	T19	21	1.0	-40/+55	SA516M NGr.485	12	No	6900			Up load unload
7	Trichlorosilan	T14	21	0.5	-40/+50	Q345R (16MnR)	12	No	6780	34000	6058 X 2438 X2591
8	Liquid Chlorine	T50	20	1.7	-40/+50		16		8300
9	Liquid Chlorine	T50	21.72	1.62	-40/+50		16		8900
10	Liquid Ammonia	T50	21.6	2.2	-40/+50	06Cr19Ni10	22	Packing Insulation	11970
11	SO2	T20	21	1.03	40 /+60	16MnDR	12	No	6900
12	Cryogenic Liquid	T75	19.8,20	0.75-2.35	-196/+50	Inner Tank: 06Cr19Ni10 Outside Tank:Q345R		Vacuum With Mutli-wrapped	8600/12880			Down load unload
The Main Technical Parameters of Tanks (China Standard)
Item	Loading Medium	Model	Capacity (m3)	Design Pressure (Mpa)	Design Temperature (c)	Tank Material	Nominal Tank Thickness (mm)	Insulation	Tare weight (Kg)	Max. Gross Weight (Kg)	Dimension (LX WX H)(mm)	Loading Method
1	R134a	T50	24	1.38	-40 /55	Q345 (16MnR)	12	Sunshade	6500	34000	6058 X 2438 X2591	Down load unload
2	R22		20	2.1	-40/+50		16		7850
3	R22		24	2.1			18		9100
4	R125		22	2.75			22		9900
5	R32		22	3.44			28		12000
6	R32		23.7	3.44	-40 /55		28		12700
