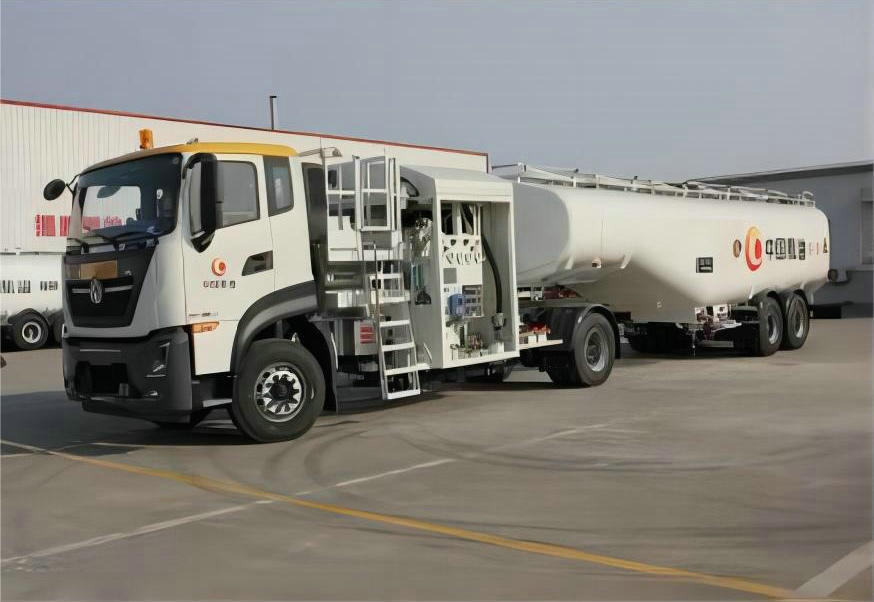

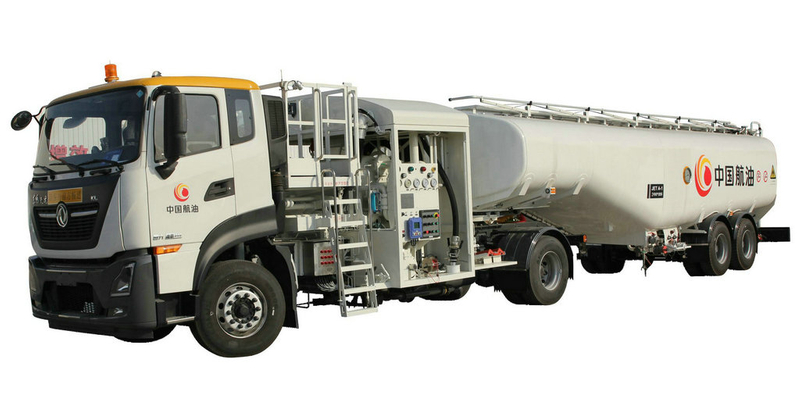

Aircraft Refueler Tanker 45KL with Platform Double Fueling 2400L/Min

Share to:

Aircraft Refueler Tanker 45KL with Platform Double Fueling 2400L/Min

Aircraft Refueler Tanker 45KL with Platform Double Fueling 2400L/Min
Jet and Avgas Fuel Tank capacity 45000 (L)
Reel hose fueling maximum flow 1200(L/min)
Flow meter accuracy (%) ±0.2
Reel single pipe pumping rate ≥300(L/min)
Price for refer only. Final Price Offer Discount.

Price: $ 428800

Discount Price: $ 423300

Availability:

Quantity:

Model:
5540GJY , DFH5200TD
Brand:
DFAC
Code:
8705906000
Port:
Shanghai, China
Payment Terms:
T/T
Transport Package:
Roro

Product Description

KL Aviation Aircraft Refueler Tanker Trailer 45KL Pressure Fueling1200L/Min

Item		Performance index
		Dongfeng	BENZ	BENZ
Chassis	Manufacturer	Dongfeng Commercial Vehicle Co., LTD	Daimler AG
	Model	DFH5200TD	AROCS 1833	Actros 2041E5
Engine	Manufacturer	Dongfeng Commercial Vehicle Co., LTD	Daimler AG
	Model	DDI75E340-60	OM470-LA	OM501LA.V/3
Gearbox	Manufacturer	FAST	Daimler AG
	Model	9JS135TA	G230-12	G330-12
Rated tank capacity (L)		45000	45000	45000
Reel hose fueling maximum flow (L/min)		1200	1200	1200
Maximum flow rate (L/min) Double hose refueling		2400	2400	2400
Flow meter accuracy (%)		±0.2	±0.2	±0.2
Reel single pipe pumping rate (L/min)		300	300	300
Aviation kerosene filtration accuracy		EI 1581	EI1581	API 1581
Overall dimensions (L × W × H) (mm)		16730×3000×3285	16420X3000X3250	16000×3000×3300
Maximum speed (km/h)		30	30	30
Braking distance (m)		≤12.5	≤12.5	≤12.5
Net weight (kg)		17130	17250	17700
Other properties		/	/	/
Lifting range of refueling platform (mm)		1930-4250	1930-4250	1900-4100

Four types of filter separators are available for refueling trucks:

Manufacturer: Parker Hannifin Corporation Velcon Filtration Divison, model: HV2456MHAN2;
Manufacturer: Facet (Oklahoma) LLC, Model No. HCS-543-229;
Manufacturer: FAUDI Aviation GmbH, Model: FW24-H-T-25-770-10;
Manufacturer: FAUDI Aviation GmbH, Model: FW10-H-T-4-1422
