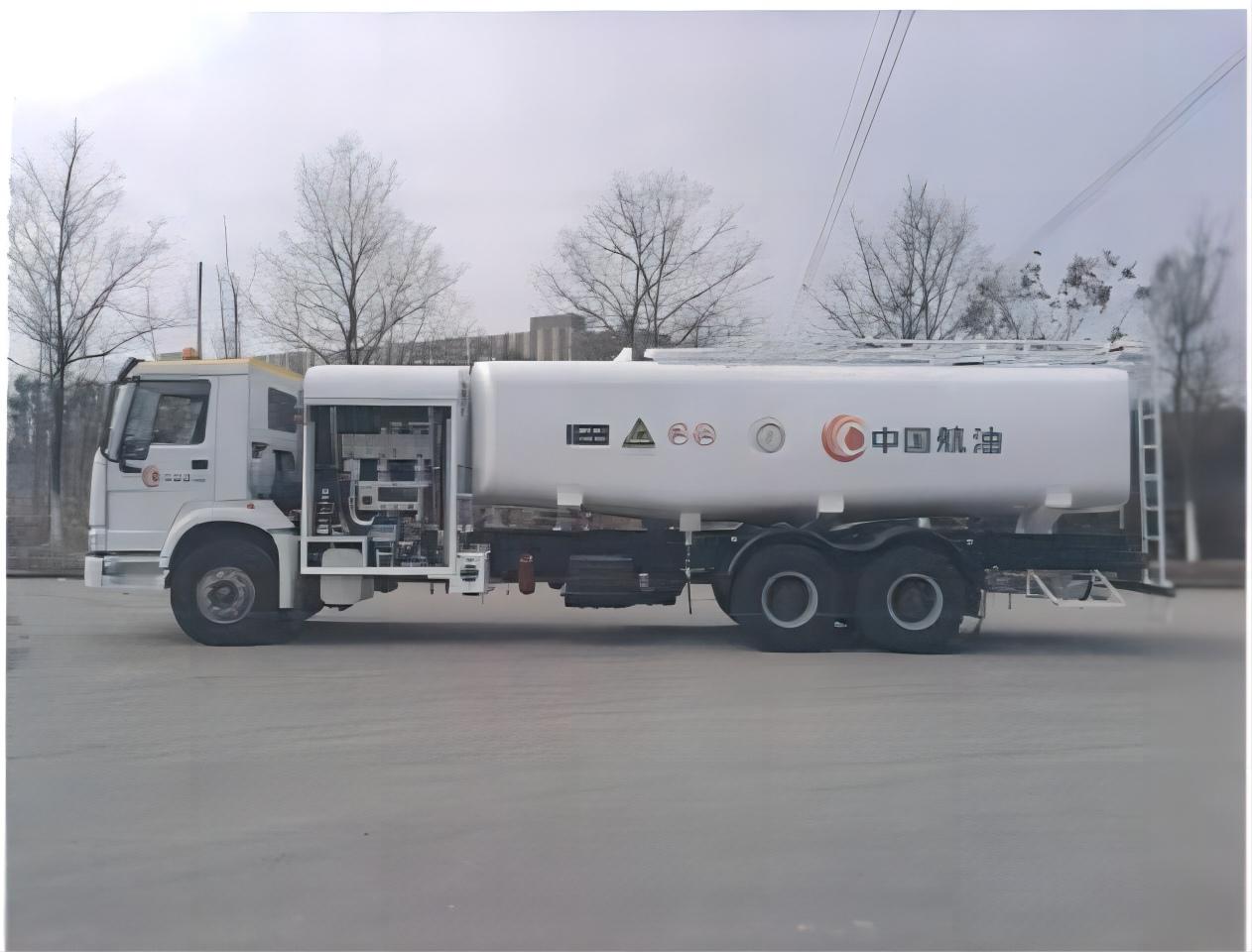

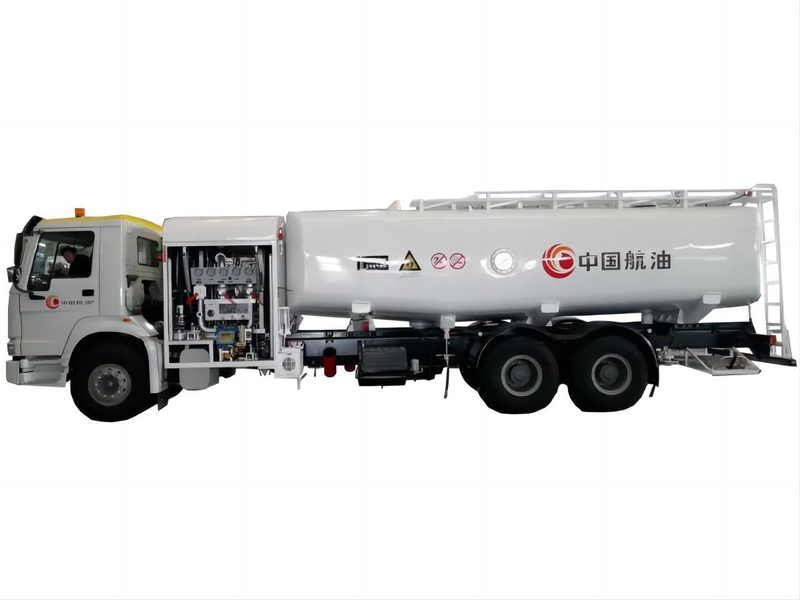

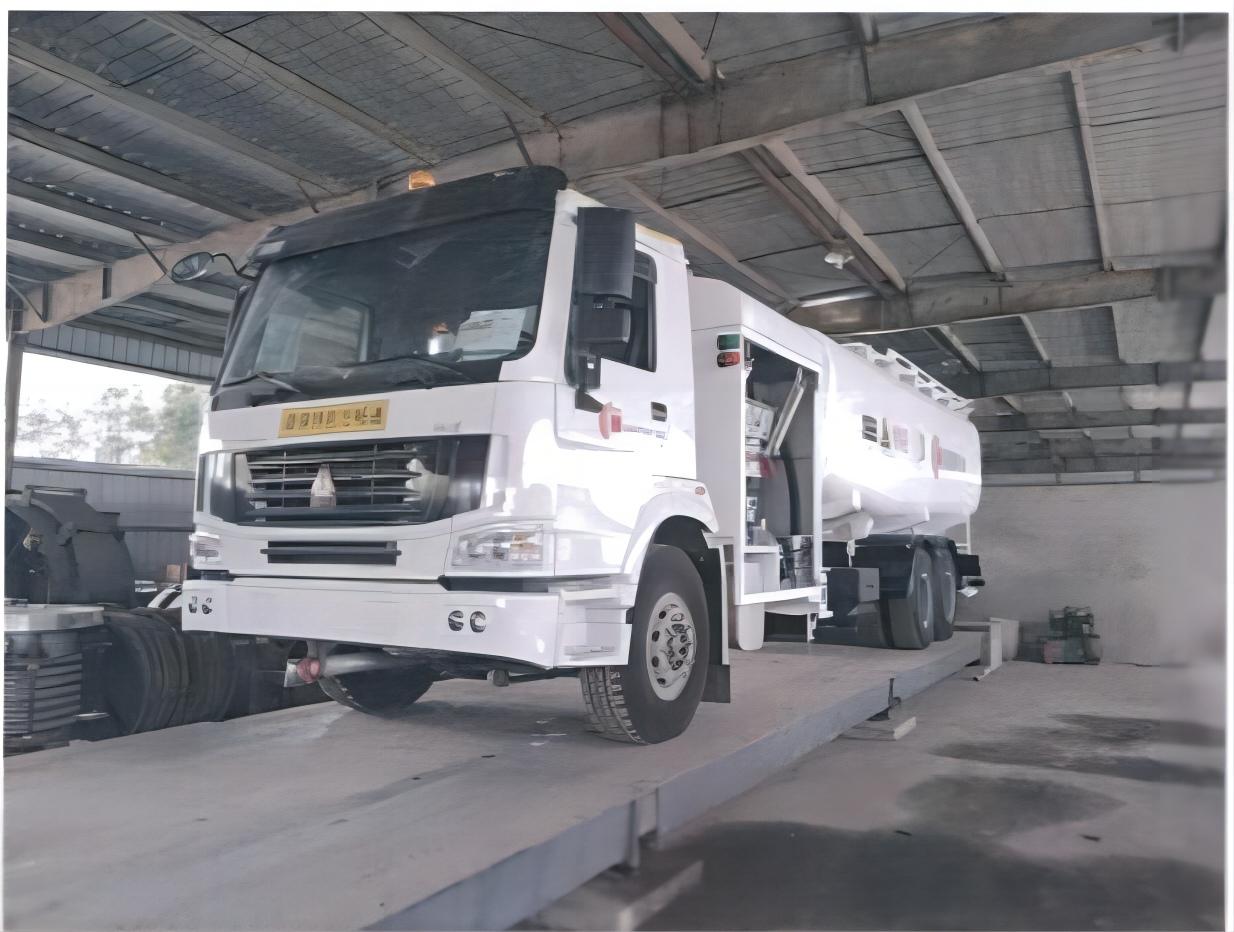

HOWO Aircraft Refuelers Tanker Truck 25KL
5341GJJ Aircraft Refueller
1.Main standard
lQ/3201 CG 1038 Aircraft Refueller
lMH/T 6101 Aircraft Refueller
2.Operating Temperature
Low temperature type: -40 ℃~ +46 ℃
3.Main functions
lPressure refueling: pressure refuel all kinds of aircrafts or other containers from oil tank by its pressure refueling nozzle of reel hose after filtering and measuring.
lGravity refueling --gravity refuel all kinds of aircrafts or other containers from oil tank by its gravity refueling gun of reel hose after filtering and measuring..
lVacuum pumping oil: pumping oil from all kinds of aircrafts to its own oil tank by pressure refueling nozzle after filtering and measuring.
lMixing oil: mix oil in the oil tank.
lMobile pump station.
lElectronic control deadman (it can activate the time control system), beyond deadman.
lTank high and low level control and secondary high level alarm.
4.Entire vehicle technical specification
CGJ5341GJJ | |||
Payload: (kg) | 19625 | ||
Min. turning diameter: (m) | 20 | ||
Tank Volume | geometric volume | 27050 L | |
rated volume | 25000 L | ||
Refueling flow rate (L/min) | Gravity refueling | 300 (single hose) | |
Pressure refueling | 1200 (single hose) | ||
Max. Bottom Loading Flow Rate (L/min) | 1500 (single hose) | ||
Max. De-fueling Flow Rate (L/min) | 300 (single hose) | ||
Accuracy of Flow mete | ±0.1％ | ||
Tank Material | Aluminum Alloy 5083,6mm | ||
Closing pressure of refueling nozzle | 345±50KPa | ||
Pressure reel hose | DN63*25m | ||
Gravity reel hose | DN38*15m | ||
Filter Separator Standard | Comply with EI 1581 5th | ||
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ5347V4647E1 | |
Engine
| Manufacturer | SINOTRUCK |
Model | WP10.34-50 | |
Gearbox | Manufacturer | FAST |
Model | 9JS150T-B | |
Rated tank capacity (L) | 25000 | |
Reel hose fueling maximum flow (L/min) | 1200 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | 300 | |
Aviation kerosene filtration accuracy | API/IP 1581 | |
Overall dimensions (L × W × H) (mm) | 11460×2500×3300 | |
Maximum speed (km/h) | 50 | |
Braking distance (m) | ≤12.5 | |
Net weight (kg) | 14600 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
NO | Assembly name | Model | NO. |
1 | Chassis | ZZ5347V4647E1 | ZZ5347 |
2 | Engine | WP10.34-50 | EURO 5 |
3 | Transmission | 9JS150T-B | 1-170804399 |
4 | Oil pump | 03H1-GR | 1628723 |
5 | Flowmeter | BM200 | 2-1978 |
6 | Filter separator | HV2233MHAN | 18193-1 |
7 | Hydraulic pump | CB-E20-BFHR | A0011 |
8 | Hydraulic motor | OMP100 | W63519630/W6 3519636 |
9 | JET Fuel Oil tank | 25000L | 27000L |
10 | Steering shaft | HR | |
11 | Driving shaft | ST16 | |
12 | Tyre | 12.00R20 | |
13 | Separator element | SO-424V |
|
14 | Coalescing filter element | I-633C5TB |
