5122GJYF6C
-
FAW
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

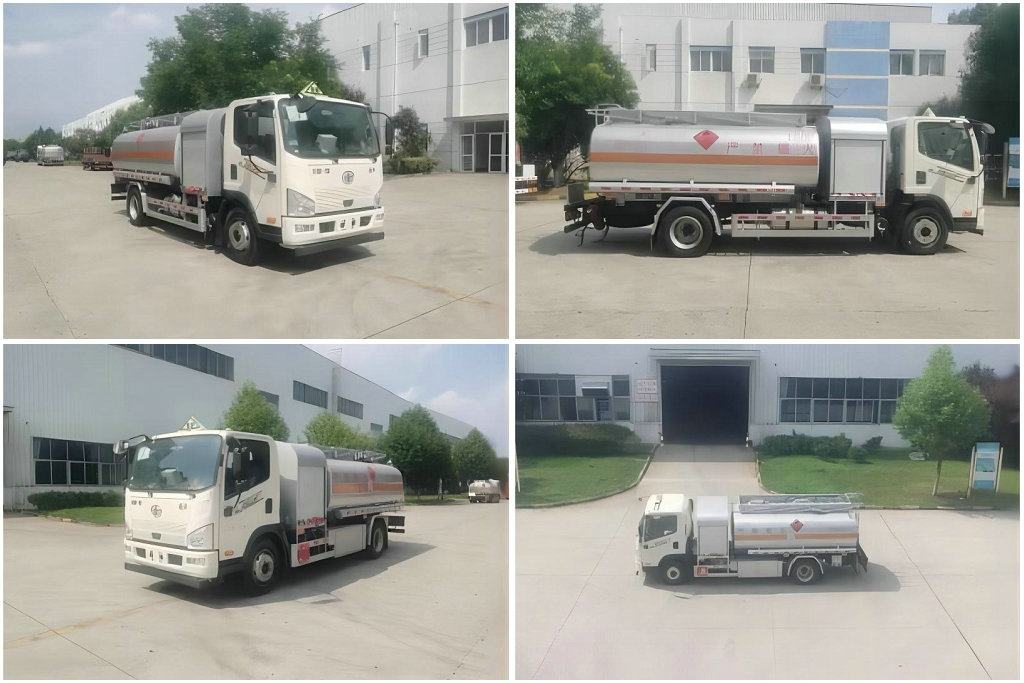

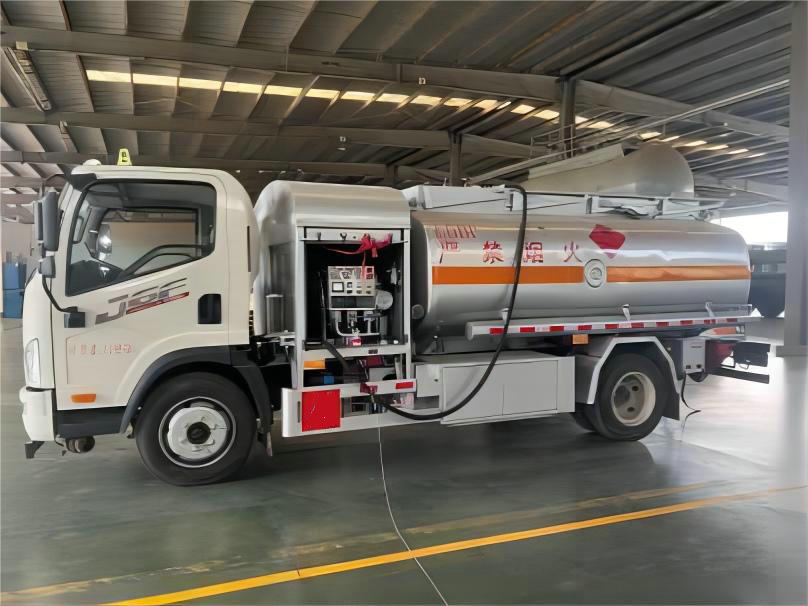

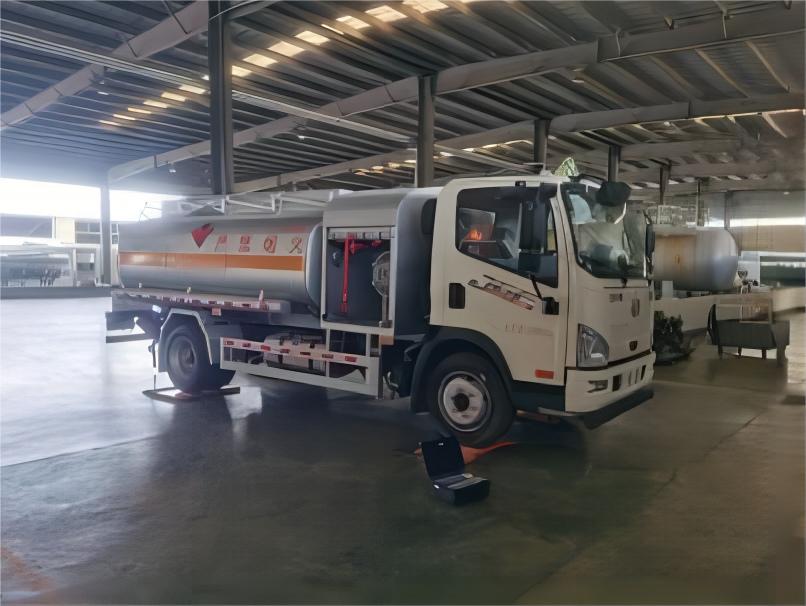

FAW 8KL Aviation Jet Fuel Refueller
Item | Performance index | |
Chassis | Manufacturer | FAW |
Model | CA1120P40K59L4BE6A84 | |
Engine | Manufacturer | WEICHAI |
Model | WP3NQ160E61 | |
Gearbox | Manufacturer | WLY |
Model | WLY6TS55B-288-83 | |
Rated tank capacity (L) | 8000 | |
Reel hose fueling maximum flow (L/min) | 140 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | —— | |
Aviation kerosene filtration accuracy | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 6945×2210 ×2570 | |
Maximum speed (km/h) | 50 | |
Braking distance (m) | ≤10 | |
Net weight (kg) | 5100 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
No | Assembly | Model |
1 | Chassis | CA1120P40K59 L4BE6A84 |
2 | Engine | WP3NQ160E61 |
3 | Transmission | WLY6TS55B-288-83 |
4 | Oil Pump | BX-65QZR-30/40N |
5 | Flowmeter | LC-QAL25/A6 |
6 | Filter Separator | SLHV- 1414M |
7 | Jet Oil Tank | 8000L |
8 | Steering Shaft | 9M3 |
9 | Driving Shaft | 325H |
10 | Tyre | 245/70R19.5 |
Overall dimensions: | 6990×2210×2570(mm) | Fuel Type: | Diesel oil | |||
GW | 11995(Kg) | |||||
NW | 5300(Kg) | Rated load mass: | 6500(Kg) | |||
Approach Angle/Departure Angle: | 20/13 (°) | Front/rear overhang: | 1155/1935(mm) | |||
Axle Load: | 4360/7635 | Wheelbase: | 3900(mm) | |||
Number of shafts: | 2 | Maximum speed: | 80(km/h) | |||
Number of tires: | 6(PCS) | Tire Specifications: | 245/70R19.5 16PR | |||
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3+3,3/7+9,3/10+4,7/10+4,7/10+3,3/4+4 | |||
Front wheel base: | 1738,1761,1726,1751(mm) | Rear wheel base: | 1678,1740(mm) | |||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |||
WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118 | |||
Speed limiting device (km/h):80; A driving recorder with satellite positioning function is installed; Engine net power 114kW; WP3NQ160E61 , 3900mm wheelbase, 245/70R19.516PR tires Total capacity of the tank 8.53 cubic meters, Effective volume 8.125 cubic meters, overall dimensions of the tank body (mm)2200×1250×3500/3800 Special function and device: centrifugal pump :BX-65QZR-30/40N, manufacturer: Hangzhou Weilong Pump Co., LTD. Flowmeter LC-QAL25/A6, Manufacturer: Hefei Jingda Instrument Co., LTD. | ||||||
