FCB-3
-
FCB-3
-
8709199000 ,8704109000
-
China
-
300
-
T/T
-
1

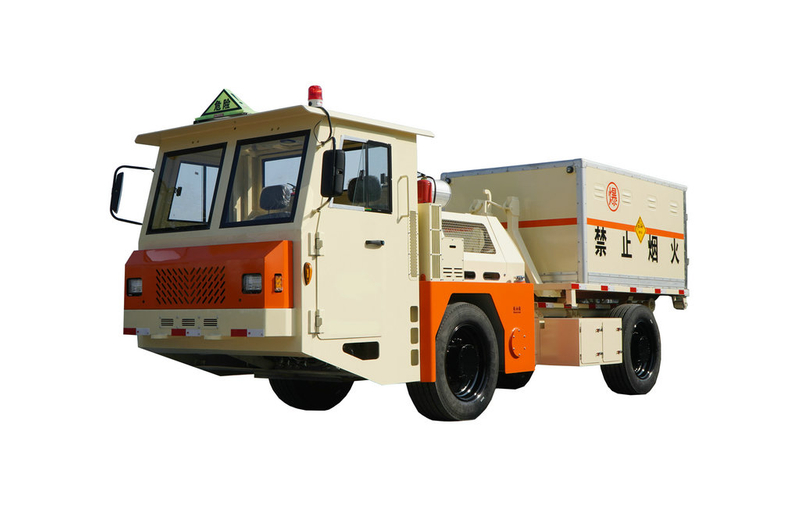

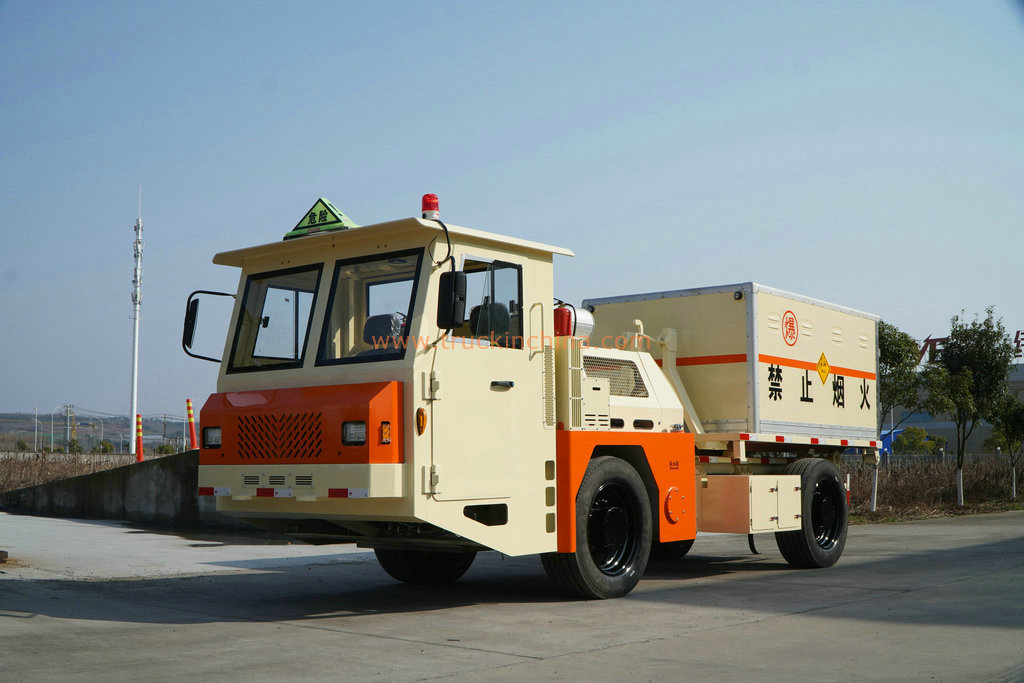

Diesel Engine Explosives Blasting Equipment Carrier for Underground Mines
, both sides and the tail are designed to open the door, the interior of the carriage is covered with insulating rubber, equipped with smoke alarm, door opening warning device, electrostatic tow zone;
Overall dimensions (L × W × H) : length ≤7150mm, width ≤1850mm, height ≤2150mm;
Ground clearance: ≥350mm;
Turning radius: outer diameter ≤6500mm;
Inner diameter ≤3980 mm
Steering system: maximum steering Angle ≥±40°, full hydraulic steering wheel, articulated hydraulic steering frame.
Main technical parameter items | Underground Explosives Transport truck | |||
overall | Dimension | (7100×1850×2150)±50mm | ||
wheel base | 3480mm | |||
Wheel track | 1520mm | |||
Maximum operation height | 5310mm | |||
Minimum ground clearance | ≥320mm | |||
Vehicle Net Weight Loading Weight | 8T 3.6T | |||
running speed | first gear | 7km/h | ||
second gear | 17km/h | |||
third gear | 8 km/h (reversing) | |||
alarm bell | horn | |||
control system | Electric control proportional handle control | |||
steering system | Articulated hydraulic steering | |||
Fire Proof Divice | Powder fire extinguisher | |||
Pilothouse Cab | Write that the driving room has passed the FOPS international test certification | |||
Rubber-wheel chassis | ||||
turning radius | inner | 3830mm | ||
outside | 6000mm | |||
climbing capacity | ≤18° | |||
Brake type | Spring brake, hydraulic release of fully sealed multidisc wet oil break brake | |||
| ||||
Engine | model | Cummins, QSB4.5-C130 | ||
power rating (kw) | 97 | |||
Speed Speed (r/min) | 2200 | |||
exhaust Emission | EURO 3 | |||
Underground Explosives Charging Equipment
Underground Explosives Charging Equipment
BCJR-1000 / BCJ-1000 Underground ANFO Emulsion Explosive Charging Vehicle
