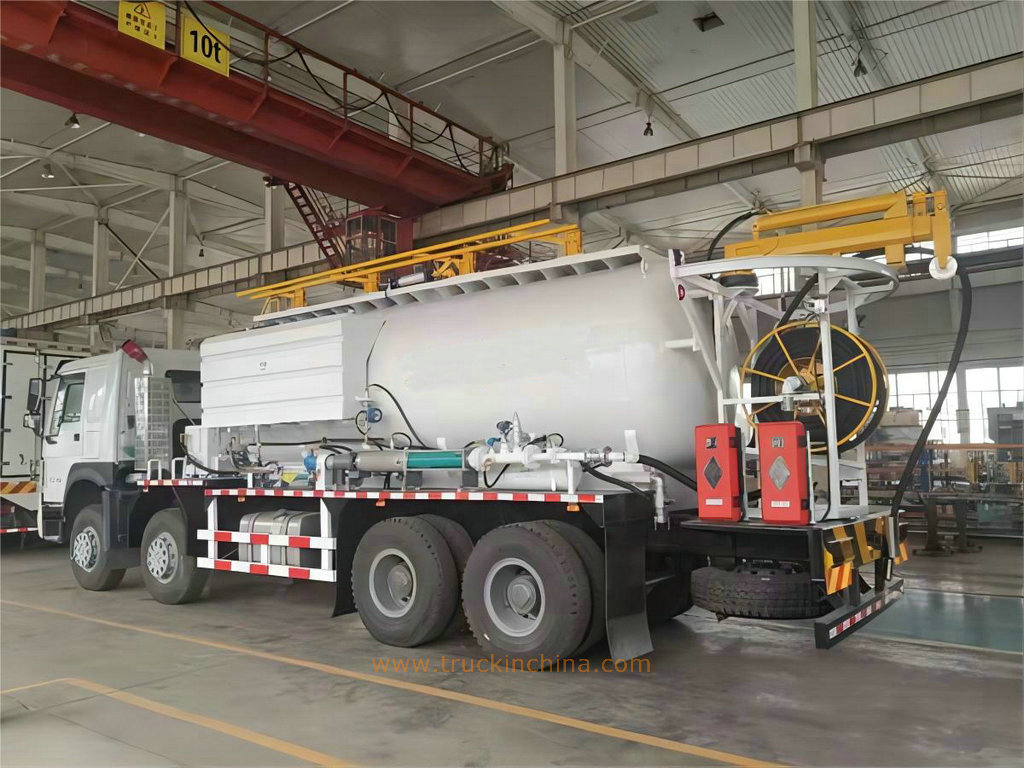

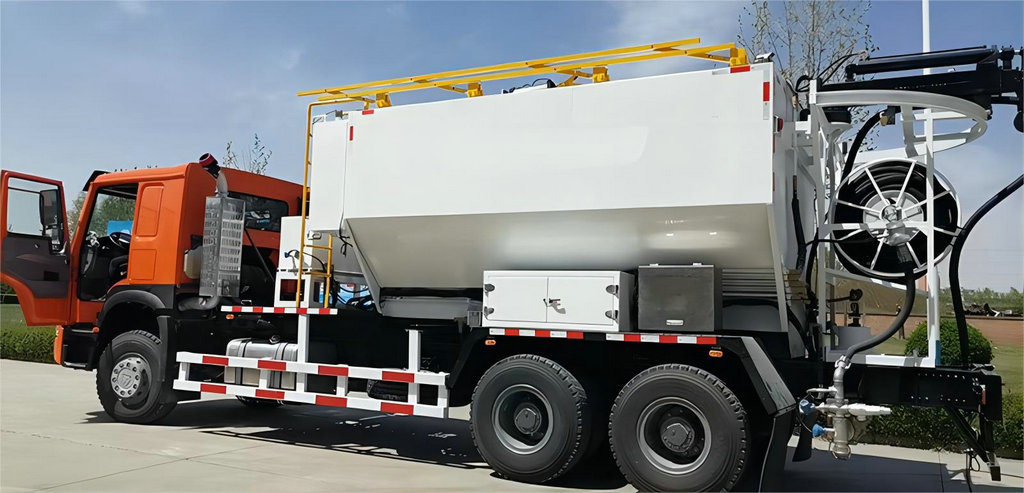

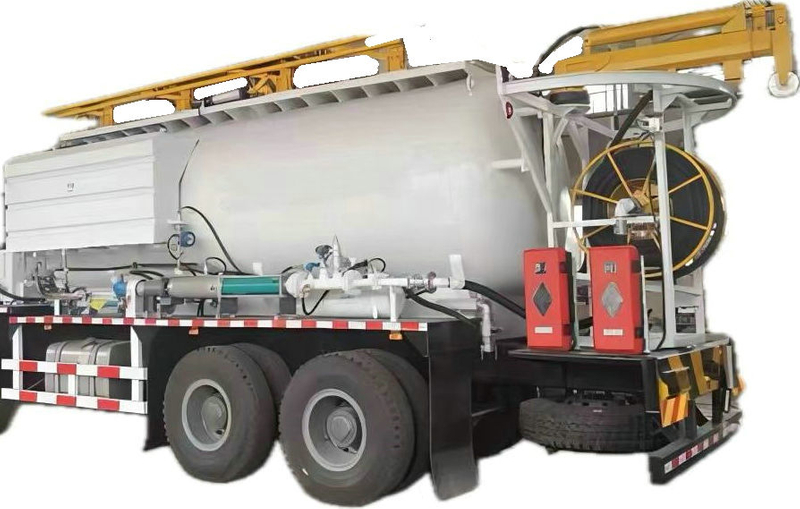

Customize BCRH-15 Emulsion Mixing & Charging Explosive Trucks (New Type 280kg／min)
Emulsion explosive mixing truck
Charge efficiency 250-280kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-15
-
SHACMAN / HOWO / BEIBEN /
-
8705909990
-
China
-
300
-
T/T
-
1
Customize BCRH-15 Emulsion Mixing & Charging Explosive Trucks (New Type 280kg／min)
Bulk Emulsion Explosive ANFO Truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
on-site mixing emulsion explosives truck The emulsion matrix made on the ground loaded into thee mulsion matrix box , and the sensitization and loading are carried out on site by truck.
BCRH-15 on site field mix emulsion explosive truck (new model) equipped with two kinds of drug delivery hose, one is large diameter drug delivery, suitable for large and medium-sized open-pit mines; One is small diameter drug delivery, drug delivery pipe length of 100 meters, suitable for highway, tunnel and other blasting projects. This kind of Special Vehicle service radius is large, can be applied to a point of station construction, multi-point distribution. Advanced computer operating system, with over temperature, over pressure, cut-off alarm shutdown security system, safe and reliable work.
parameter | Number value |
Carrying capacity | 15000kg |
Delivery efficiency | 280kg/min (delivery tube 2 ") |
Overall dimension | Length × width × height 10700×2500×3760 |
Chassis | SHACMAN / HOWO / BEIBEN / 6x4 / 6x6 / x4 |
Maximum engine power | 248kw~360kw |
Gross mass | 32000kg |
Force extraction mode | Neutral take force, move the car does not need to take force |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
WP10.270 | Weichai Power Co., Ltd. | 9726 | 199 | |
Transport medium: emulsion Optional cab | ||||
BCRH-15 on-site mixed emulsion explosives truck is to install the latex matrix prepared b the ground station in the latex matrix box on the vehicle, and at the same time load the
sensitizer and catalyst on the vehicle. This vehicle has two sets of process equipment Two sets of sensitization systems, one is sensitization catalysis before the pump; the other is sensitization catalysis at the end. At the same time, it adopts a double water pump system with low pressure and long conveying distance. It is suitable for blasting projects such as highways and tunnels. This kind of car has a large service radius and can be used to build stations at one point and deliver to multiple points. Advanced computer operating system,with over-temperature, over-pressure, material-breaking alarm and shutdown safety guarantee system, safe and reliable work.
PERFORMANCE PARAMETER
The maximum loading capacity of the matrix box 12m3, and the latex matrix 16000kg
The volume of sensitizer box 0.12 m3 and sensitizer 120kg
The volume of catalyst tank 0.12 m3 and the catalyst 120kg
The volume of water ring and cleaning water tank is 1m3, and the water is 1000kg
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Bulk Explosive Utilize a 3-auger system to mix ANFO and emulsion.
(Heavy ANFO or ANFO blended with <50% emulsion by weight)
The load of emulsion explosive is 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation)
The load of oil-spread explosive is 15000kg, charging efficiency is 300-450kg/min (spiral transportation)
Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation)
Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation)
The effective volume of 1000kg fuel tank is 1.14 m3
Trace element box A 150kg effective volume 0.15 m3
Trace element box B 150kg effective volume 1.15 m3
The effective volume of cleaning water tank 600kg 0.6 m3
Measurement error ≤ 2%
