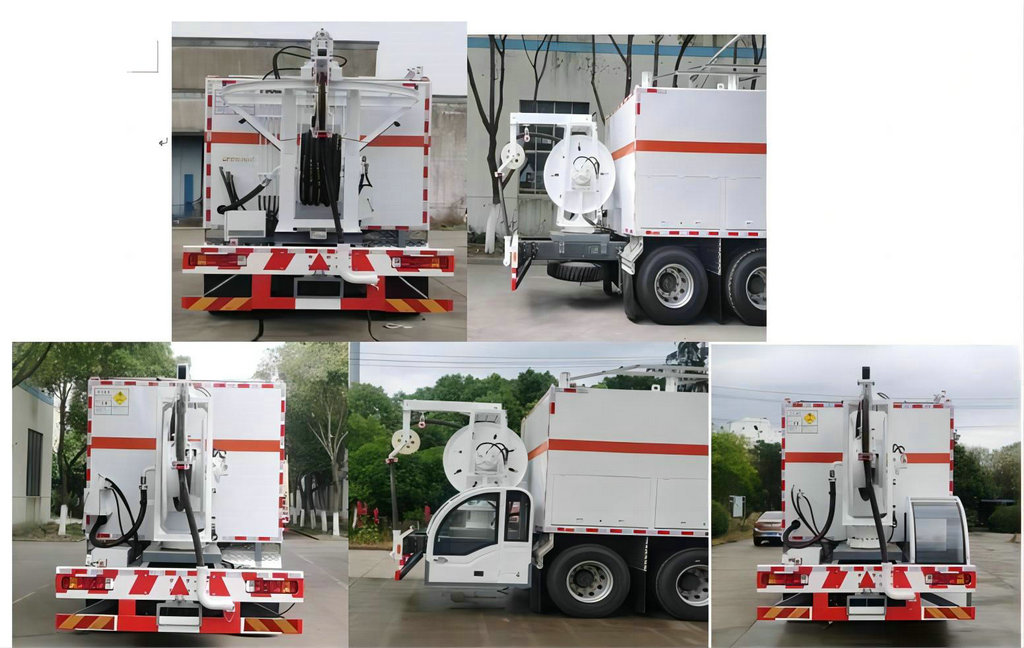

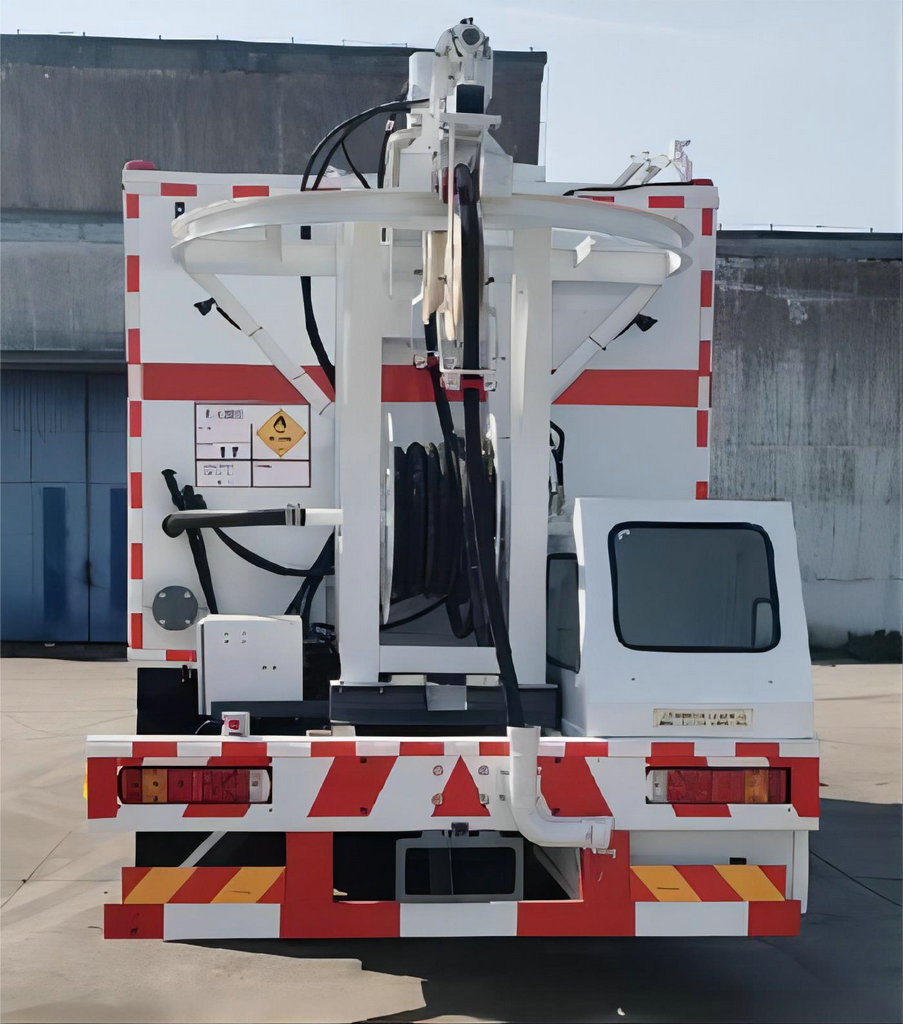

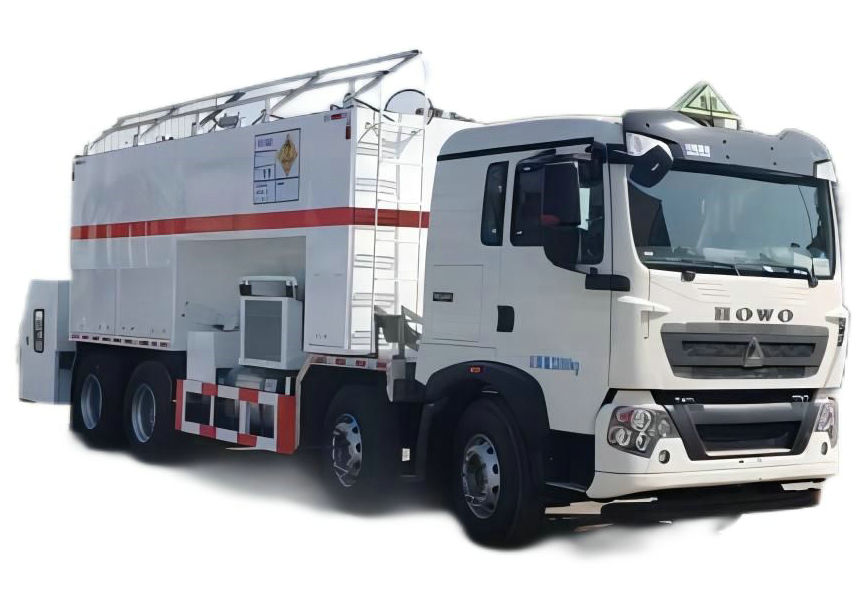

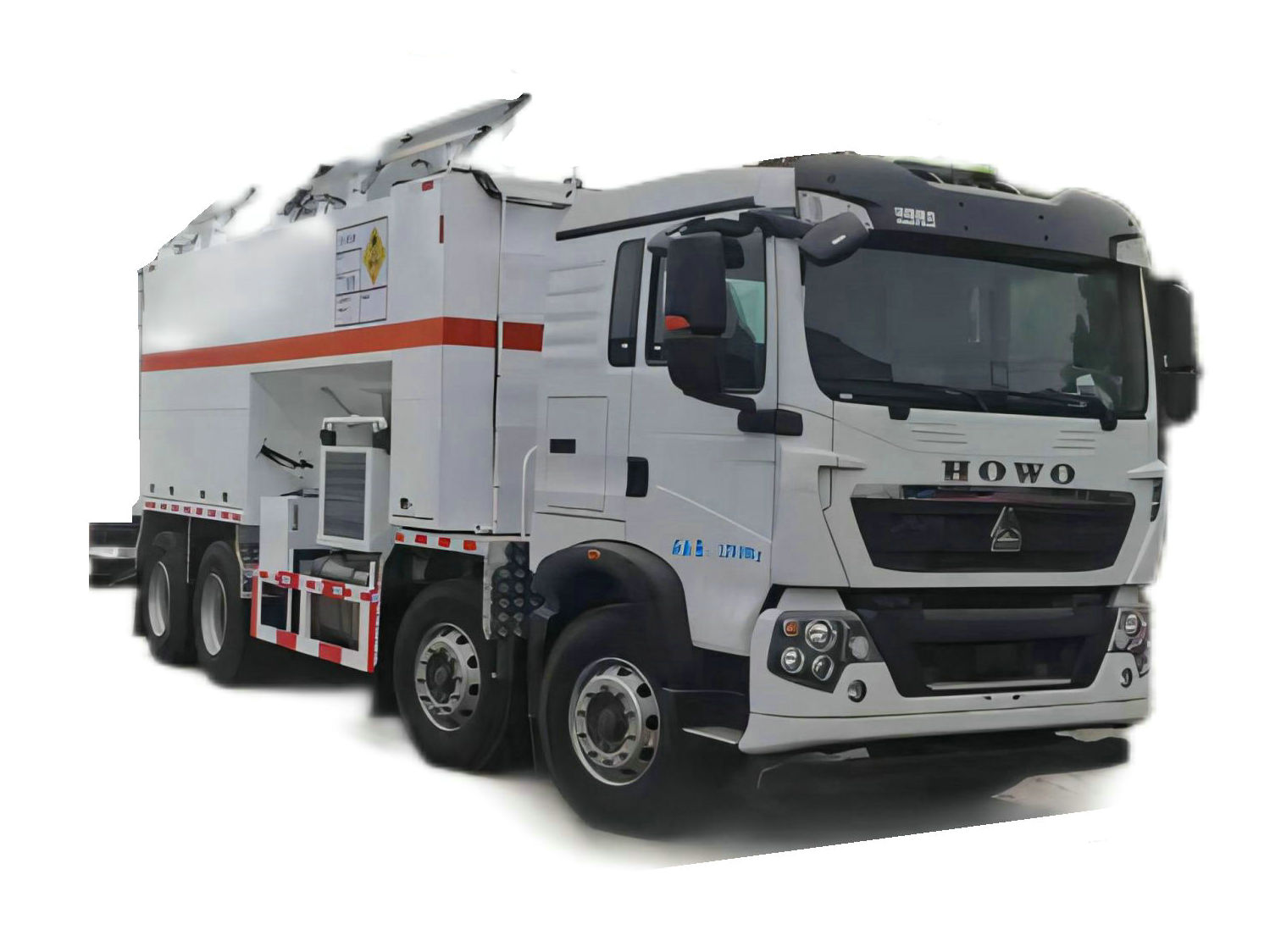

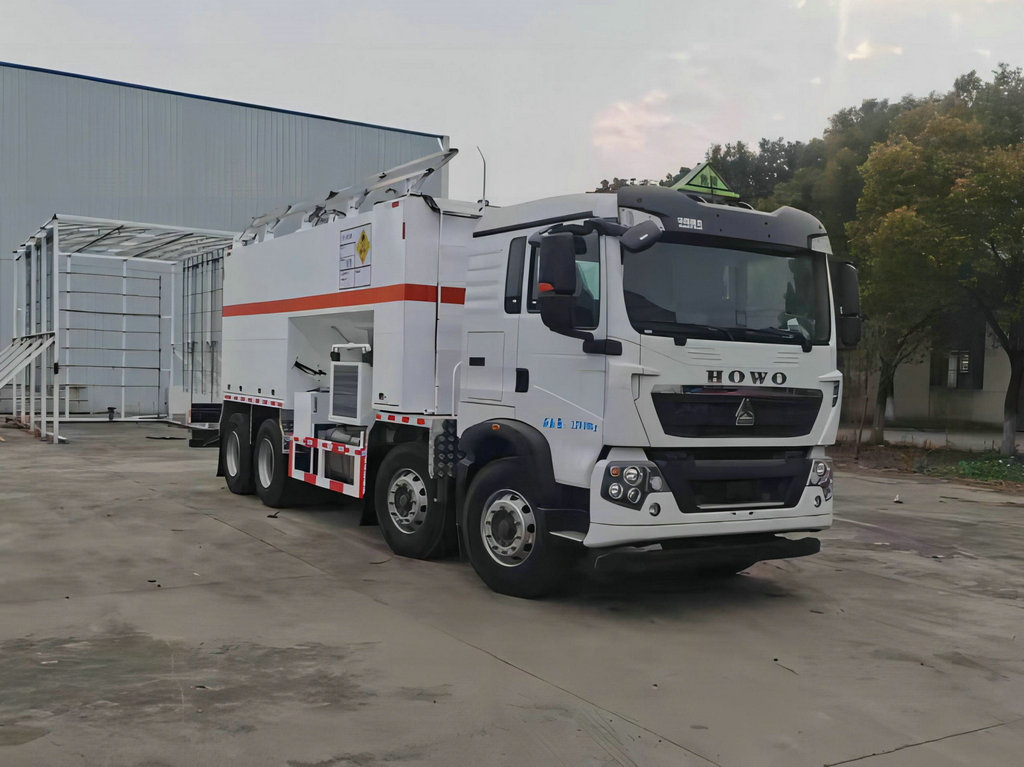

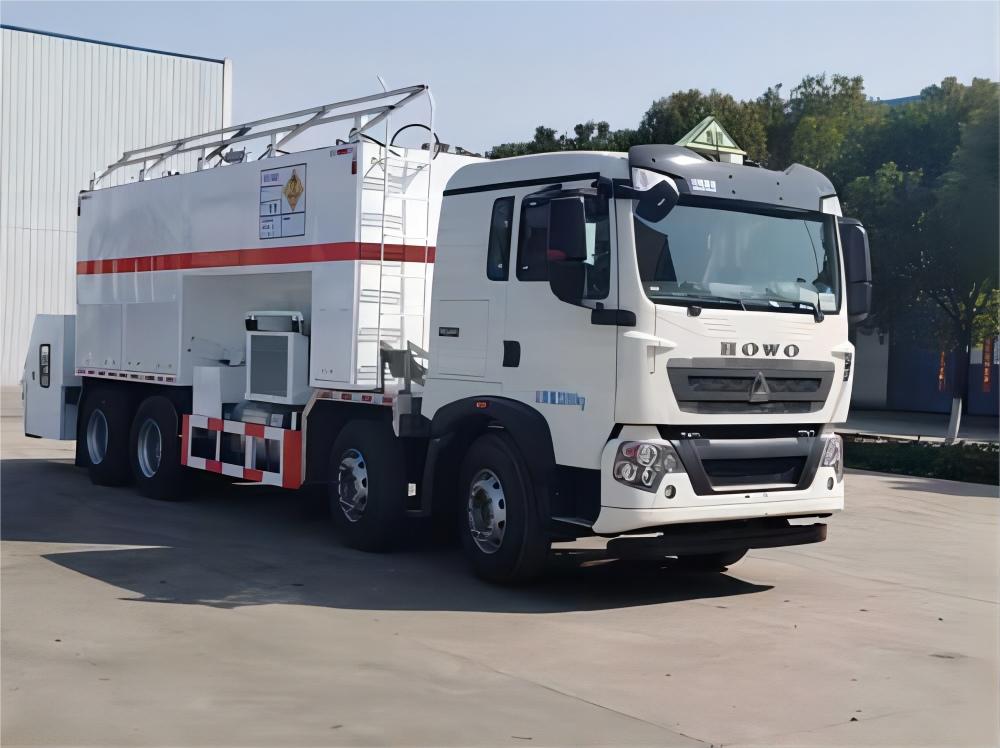

Customize Mix Explosive ANFO Emulsion Pump Truck for Wet Borehole Blasting
BCRH-14 Emulsion explosive mixing truck
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-14, 5320THR
-
HOWO
-
8705909990
-
China
-
300
-
T/T
-
1
Customize Mix Explosive ANFO Emulsion Pump Truck for Wet Borehole Blasting
Emulsion ANFO Explosive Transport Trucks
on-site mixing emulsion explosives truck Main technical parameters
HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 11070×2500×3785(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | Mixing Emulsion Explosive Trucks | |
NW | 60 (18760172 Kg) | Rated load mass: | 13110,13045,14610,14545(Kg) |
Approach Angle/Departure Angle: | 19/10 (°) | Front/rear overhang: | 1430/2665(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5 18PR |
Fuel consumption: | 38.0,37.4(L/100Km) | Number of spring pieces: | 3/3/-/- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07.34-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870; 7360 | 251; 257 | |
The main special device of the vehicle is PTO, Emulsion matrix box, fuel system, screw pumping system, hydraulic system, computer digital control system, etc., which is mainly suitable for filling explosives in water holes in open-pit mines. The system operation is carried out by conveying pump, rear telescopic cantilever and feed pipe, and the reasonable proportion of explosives can be accurately filled in the drill holes Quality, ammonium nitrate emulsion matrix category item 5.1; Dangerous goods vehicle type AT. The product is installed in line with the national standard tail sign plate | ||||
