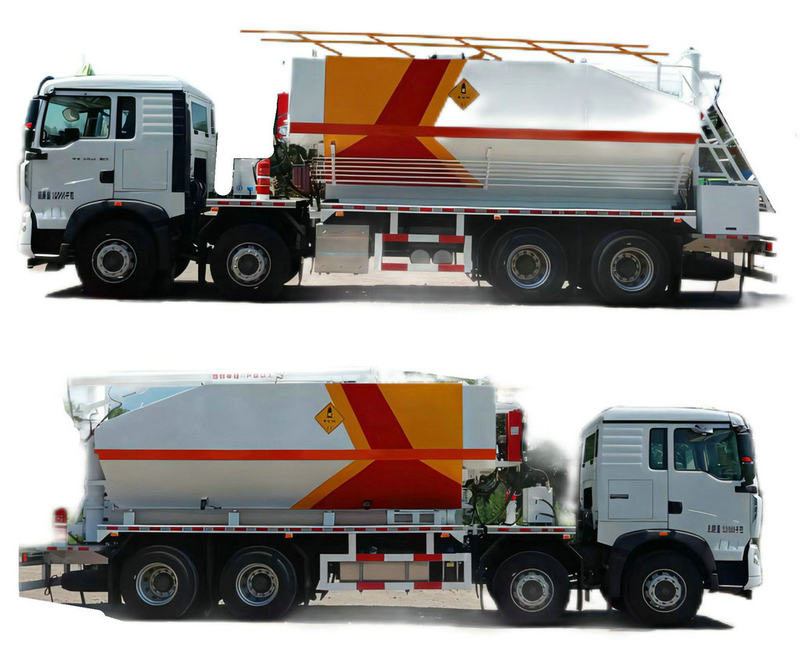

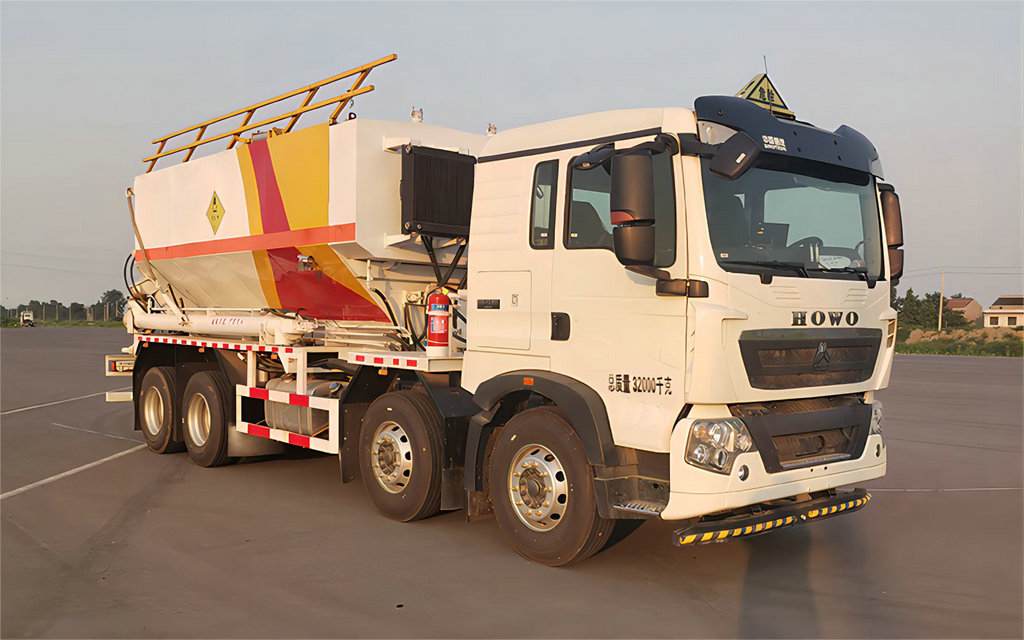

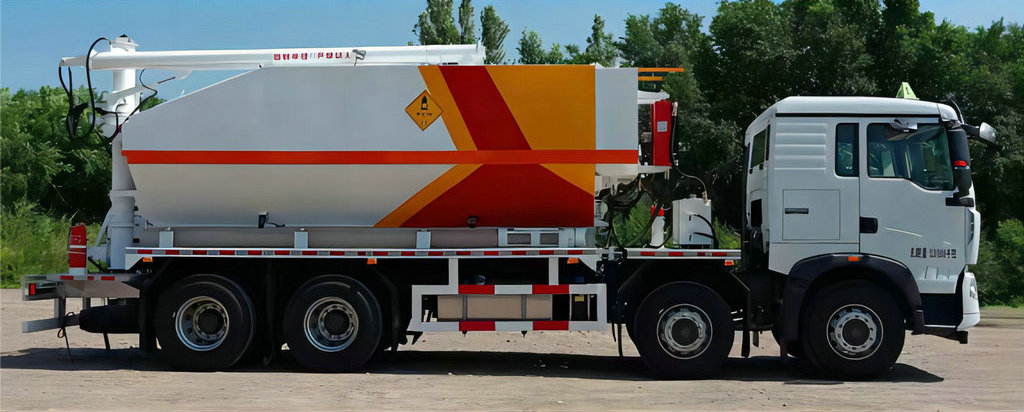

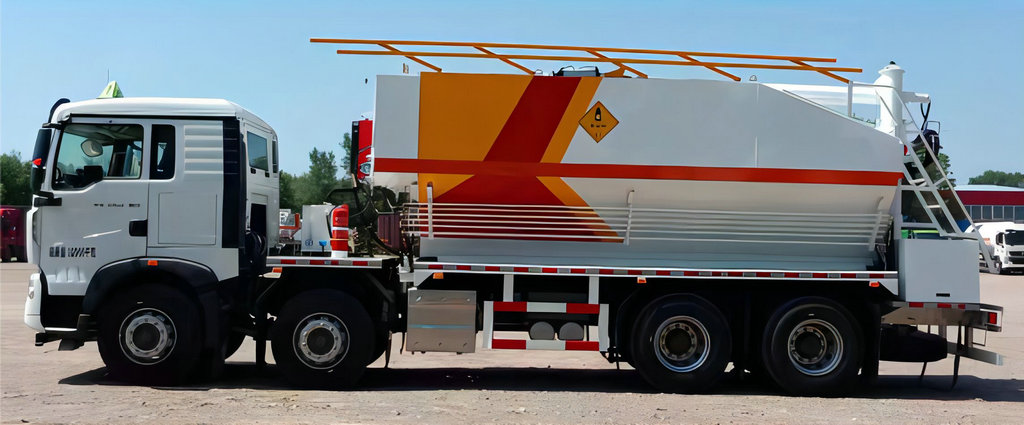

Customising Sinotruck HOWO ANFO Mixing And Charging Explosive Truck 17 Ton
Sinotruck HOWO BCLH-17 Anfo Mixer
BCLH-17 intelligent one side on-site mixed ammonium oil explosive truck is mainly used for on-site mixing of porous ammonium oil explo-sive. It is mainly used for dry hole filling of mixed explosives in open-pit mines. It adopts main, inclined and side spiral charging system, with high charging efficiency. The charging efficiency can reach 450kg \min through full computer operation control. It has the function of material breaking and shutdown, and is safe and reliable.
special device of the vehicle PTO , dry material box, fuel system, screw conveying system, hydraulic system, computer digital control system and other parts, which is mainly suitable for dry hole filling explosives in open pit mines. It is operated by quantitative screw, vertical screw and top screw three-stage screw conveying system, which can accurately fill reasonable proportion of explosives in the hole.
The transportation medium is Porous granular ammonium nitrate, Category No. 5.1,
Type of vehicles for the transport of dangerous goods (AT-type vehicles).
Site mixed explosives vehicle
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10300,10400×2500,2525,2460×3820,3800,3940(mm) | Fuel Type: | Diesel oil |
G.W. | 32000(Kg) |
| |
NET | 14480(Kg) | Rated load | 17390,17325(Kg) |
Approach Angle/Departure Angle: | 19/14,19/15(°) | Front/rear overhang: | 1430/1995,1430/1895, 1430/1195,1430/1095(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400,1800+4275+1400, 1800+4575+1400,1950+3800+1400, 1950+4600+1400,1800+3200+1400(mm) |
Number of Axle: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5 18PR,12R22.5 18PR,12.00R20 18PR,11.00R20 18PR |
Fuel consumption: | 38.13, 38.13, 38.0, 38.3, 38.1, 38.13, 37.44, 37.44, 36.39, 37.12, 37.12, 38.2, 38.2, 38.2, 38.0, 38.2 (L / 100 km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-, 3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35 B - 60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350 E61. MC11.46-61; MC11H.46-61; WP10.5 H430E62; WP12.430 E62; WP12.490 E62; WP12.460 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338 |
BCLH-15 Side Discharging auger
BCLH-15G Top discharge ANFO auger

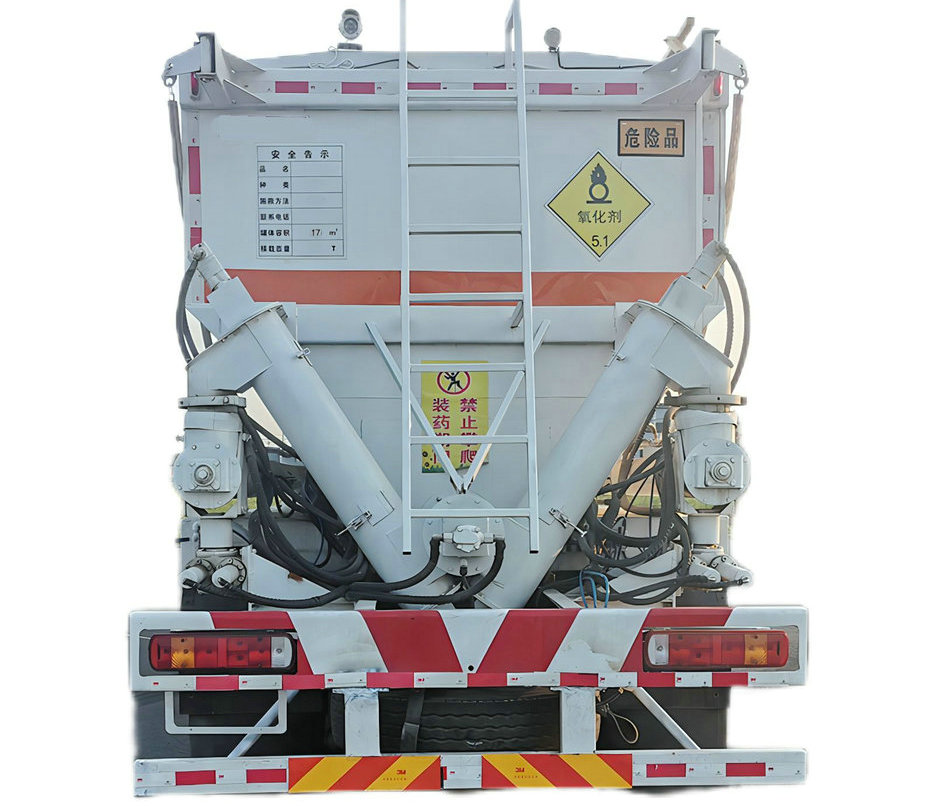

BCLH-15S, BCLH-17 Two sides Double discharge ANFO augers
ANFO mix units
Bulk Explosives Loading Trucks
BCLH-17 Field mixed loading granular ammonium frying truck
On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.
●Hydraulic pumps : PVG-100-F1UV-RGFY-P-1NN/FNN Auguire USA
● Hydraulic motors : Box Screw 1068 Straight Screw 1065 Top Screw 1063 Eaton USA
● Diesel oil pump : DM25 and DM4 Eaton USA
● Hydraulic valve : BCLH-15 Japan Oil Research Institute China
● Pressure sensor and flow sensor: Main part of the electrical system (contactor, PLC, LCD screen, ...)
Pressure Sensor BCLH-15 Shanghai Hydraulic Sensor Factory China
Flow sensor TFA/R1/M5/d/k2/L-20 Shanxi Honghe China
PLC: Mitsubishi Japan
Contactor DM8 Mitsubishi Japan
LCD screen 12 inch Mitsubishi Japan
