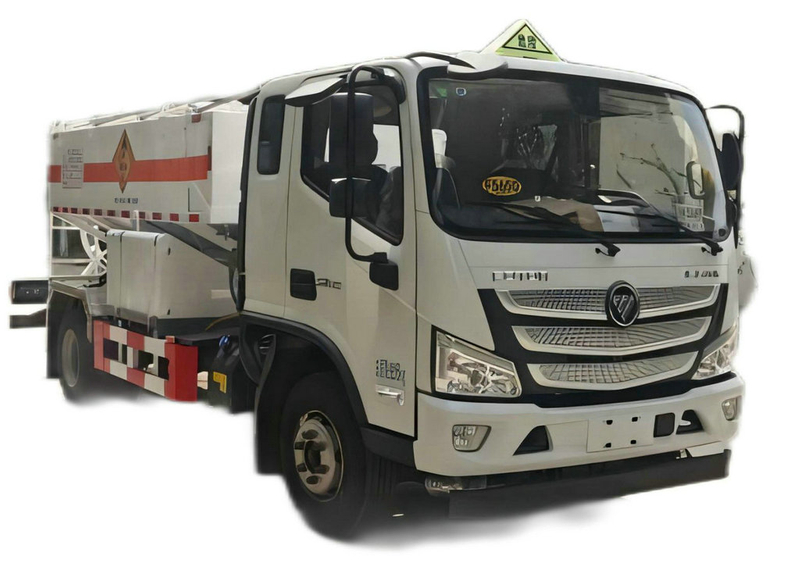

Customize FOTON 4T Bulk ANFO Blend Emulsion Explosive Trucks
HEAVY ANFO Explosive Mixer Delivery Trucks
BCZH-4 intelligent on-site mixed loading heavy ammonium fried explosive truck integrates transportation, mixing and loading of raw materials. It can mix pure emulsion explosive, 0-100100-0 heavy ammonium fried explosive, 0-100100-0 heavy emulsion explosive and ammonium oil explosive on site. It is suitable for water bearing blast hole and dry hole charging in open pit mine.
This truck is a multi-functional truck with good silo matching performance It can mix 15t of heavy emulsion explosive, 15t of ammonium oil explosive and 15t of heavy ammonium fried explosive on site. With advanced computer operating system, itcan accurately load two different formulations of explosives inthe same blast hole. It has a safety guarantee system of over temperature, over pressure, material breaking alarm and shutdown, which is safe and reliable.
FOTON mixing and charging truck Euro 6 Chassis :BJ1108VFJEA-FK
Overall dimensions: | 6950×2180,2160×2410(mm) | Fuel Type: | Diesel oil |
Total mass: | 9995(Kg) | Load mass utilization factor: | |
Quality of service: | 5610(Kg) | Rated load mass: | 4190(Kg) |
Approach Angle/Departure Angle: | 15/13(°) | Front/rear overhang: | 1130/2020(mm) |
Axle Load: | 3600/6395 | Wheelbase: | 3360,3800(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 9.5R17.5 16PR,8.25R16LT 16PR,8.25R20 14PR |
Fuel consumption: | 15.4(L/100Km) | Number of spring pieces: | 9/8+6,3/4+3,3/8+6 |
Front wheel base: | 1710,1715,1730(mm) | Rear wheel base: | 1615,1630(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
F3.8NS6B156;D30TCIF1
| Beijing Foton Cummins Engine Co., LTD.; Kunming Yunnei Power Co.,Ltd. | 3800;2977 | 115;125 |

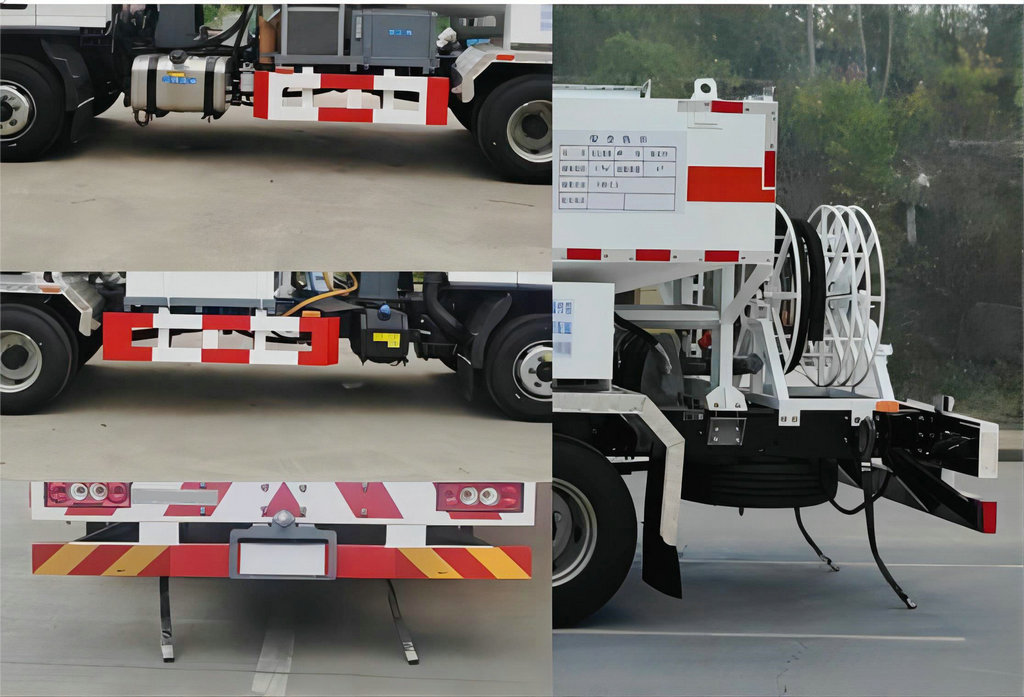

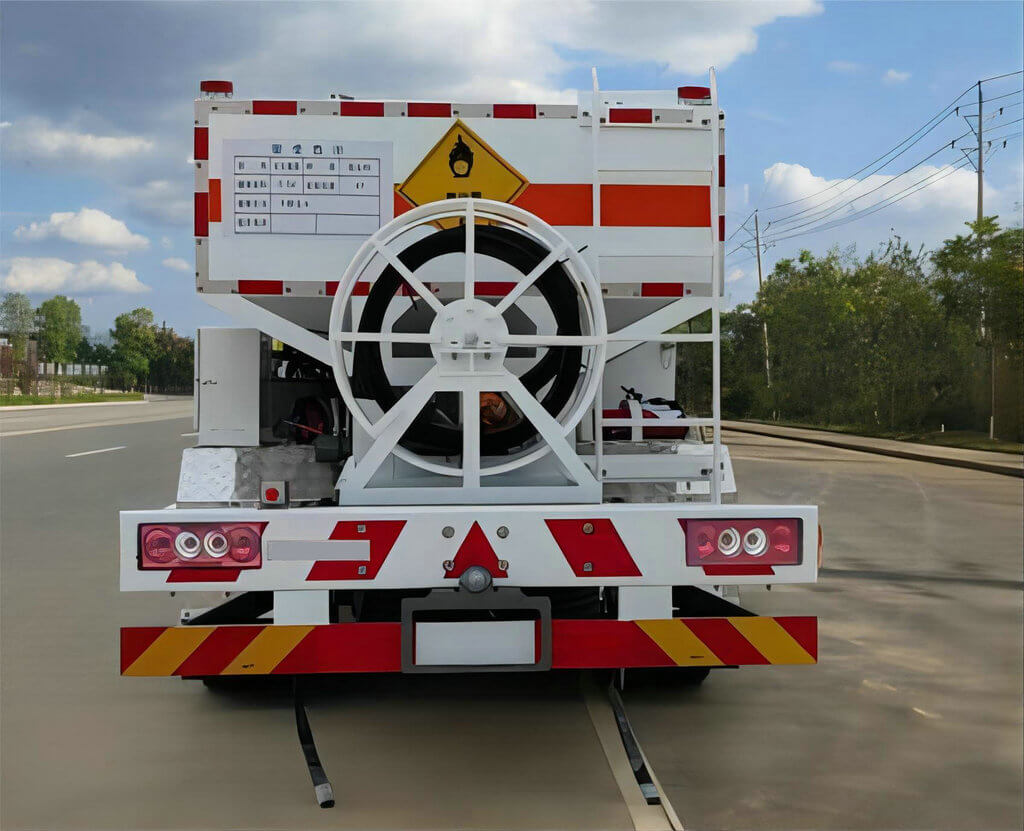

The main special device of the vehicle is composed PTO, Emulsion matrix box, fuel system, screw pumping system, hydraulic system, computer digital control system, etc., which is mainly suitable for filling explosives in water holes in open-pit mines. The system operation is carried out by conveying pump, rear telescopic cantilever and feed pipe, and the reasonable proportion of explosives can be accurately filled in the drill holes Quality, ammonium nitrate latex matrix category item No. 5.1, the vehicle transport dangerous goods vehicle type is AT type. The vehicle is a transport vehicle for dangerous goods, equipped with dangerous goods signs and dangerous goods sign lights, equipped with disc brakes, and all steering wheels are equipped with emergency protection devices for burst tires. Radial tire. Electrostatic drag strip. front exhaust system.
It is mainly used in metallurgy, coal, chemical industry, building materials and other large and medium-sized to anhydrous
in open-pit mine stope blasting hole loading ANFO explosives. working in the ground station before loaded diesel and
porous prills ammonium nitrate.charging car drove to the working site,start the power lifter, aim the transporting screw hole
on the counter input hole charge, press the start button, granulated nitrate via the bottom of the spiral to the spiral Angle, by oblique spiral again mentioned side spiral mixer, then the diesel pump in proportion to the diesel pump into side spiral mixer for mixing, mixing explosive again by the side of the spiral to the hole. When the hole quantity to the expected amount of explosive, control orders down, shift to the next hole start charging. Lose efficacy, the first of 200 kg/min - 450 kg/min;
measurement error of 2% or less, the 4 t, 6 t, 8 t, 15 t, 25 t six other specifications are available
ITEM | BCLH-25 | BCLH-15 | BCLH-12 | BCLH-8 | BCLH-6 | BCLH-4 | |
Loading ANFO | 25 | 15 | 12 | 8 | 6 | 4 | |
Charge efficiency (kg/min) | 450 | 450 | 450 | 450 | 450 | 450 | |
Tolerance | 2% | 2% | 2% | 2% | 2% | 2% | |
Engine | 280HP diesel engine | 280HP diesel engine | 260HP diesel engine | 260HP diesel engine | 260HP diesel engine | 135HP diesel engine | |
Car Weight | 13100 | 12700 | 12200 | 11500 | 7500 | 6800 | |
Car Size (mm) | 10510*2488*3550 | 9762*2488*3550 | 9105*3209*2470 | 9105*3209*2470 | 6800*2400*2860 | 6828*2400*2670 |
The load of emulsion explosive is 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation)
The load of oil-spread explosive is 15000kg, charging efficiency is 300-450kg/min (spiral transportation)
Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation)
Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation)
The effective volume of 1000kg fuel tank is 1.14 m3
Trace element box A 150kg effective volume 0.15 m3
Trace element box B 150kg effective volume 1.15 m3
The effective volume of cleaning water tank 600kg 0.6 m3
Measurement error ≤ 2%
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Heavy ANFO units manufacture
Our heavy ANFO units are designed to fit your cab chassis and can be fully fitted up and commissioned shortly after delivery. As with our ANFO mix module units, the heavy ANFO unit consists of an ammonium nitrate storage tank and a process fuel oil tank. The product is discharged using a side-mounted auger, with convenient electronic controls placed in the cabin of the unit. A single person can operate a heavy ANFO unit; specialised controllers provide ingredient percentages and individual ingredient rates, which allow batch and total amounts to be recorded, with a second operator monitoring the loading.
Heavy ANFO is a blend of ANFO and Emulsion, which is made to increase the bulk density of normal ANFO, with the ability to be loaded into partial wet holes. By using these blends you increase the density of ANFO, thereby increasing the energy in the borehole. It provides water resistance to ANFO and is priced somewhere between the cost of ANFO and pumpable emulsion, ultimately reducing your mining costs.
There are many benefits to the manufacture of heavy ANFO and using the blend including:
Water resistance for ANFO in wet formations
Save on drilling costs
Increased production per hole
Specialised bulk trucks are used for the loading of heavy ANFO. These trucks allow for the mixing of components prior to loading and provide for the loading of either ANFO or heavy ANFO.
