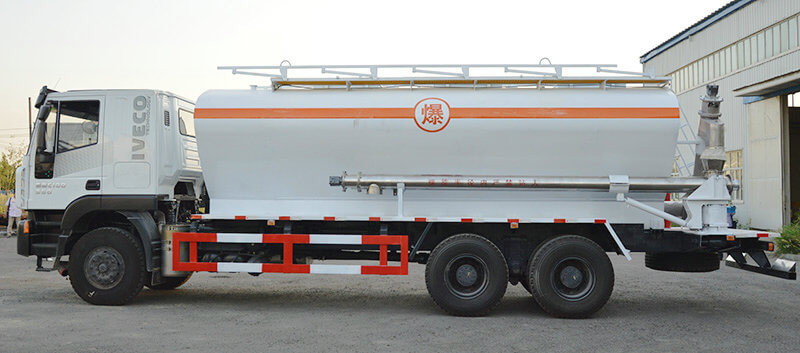

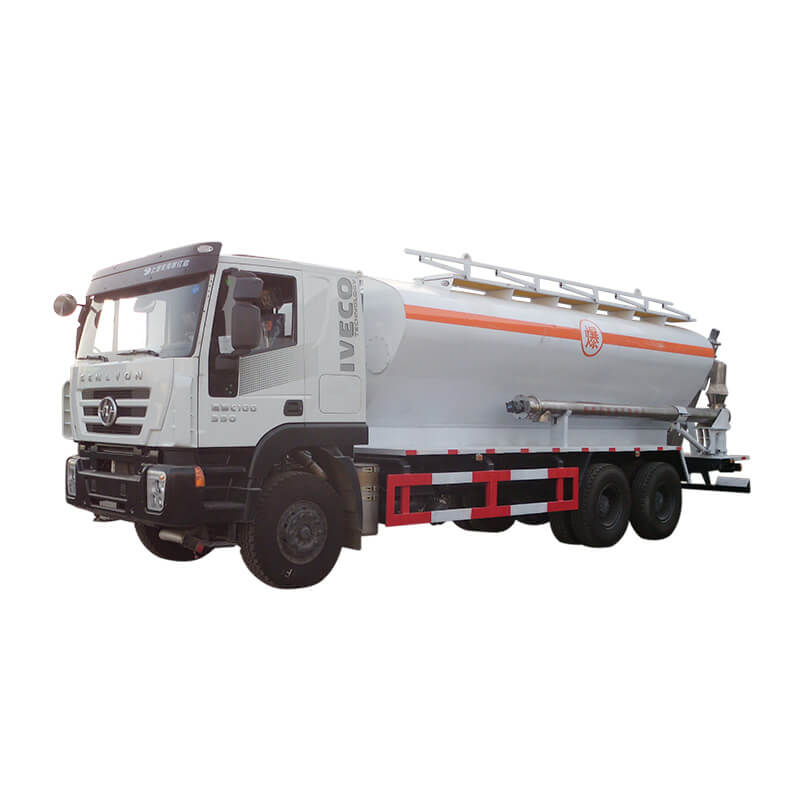

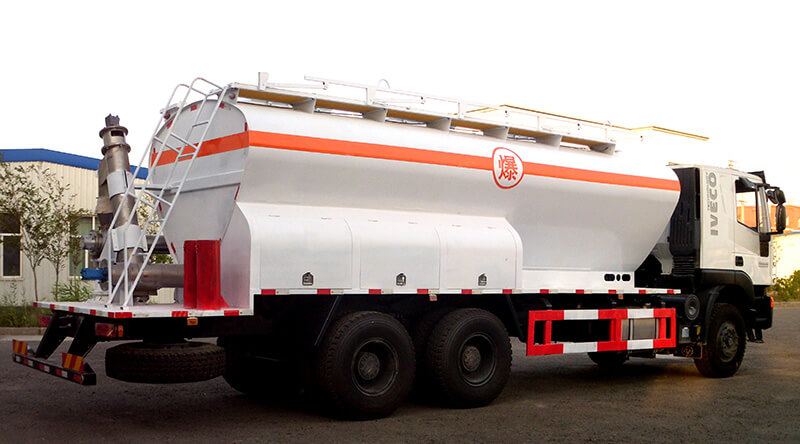

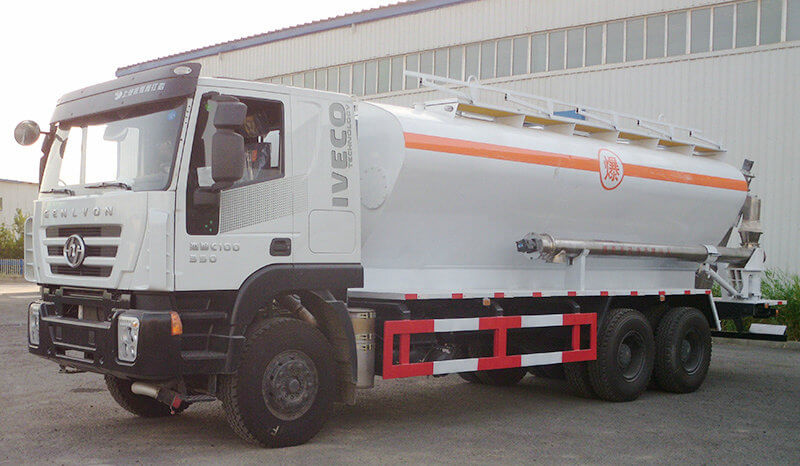

IVECO ANFO Mix Units Truck 15Ton Ammonium Nitrate Fuel Oil Explosives Tanker Vehicle

ANFO Mix Units Truck Ammonium Nitrate Fuel Oil Explosives Tanker
Ammonium Nitrate Fuel Oil Explosives Mix Vehicle Explosives Equipment
IVECO Field Mixed Ammonium Oil Explosive Vehicle Capacity 15Ton

Quantity:
  • 15T
  • DRZ
  • 8708



IVECO ANFO Mix Units Truck Ammonium Nitrate Fuel Oil Explosives Tanker

Ammonium Nitrate Fuel Oil Explosives Mix Explosives Vehicle Equipment

Field Mixed Ammonium Oil Explosive JWL-BCLH-15 Vehicle

field ammonium oil explosive truck adopts progressive charging screw with broken teeth and droplet bin, with a loading capacity of 15T, a loading efficiency of 200-450kg /min and a maximum loading capacity of 1000kg/min. With the adoption of proportional regulation and closed-loop control technology and the configuration of handheld remote control terminals, the company has achieved reliable performance, high degree of automation and high degree of informatization, and its technical performance and essential safety have reached the leading level in China.

Main technical parameters are as follows: IVECO

ProjectTechnical Parameters
Dimensions (Length x Width x Height)11800 * 2550 * 3713 (Mm)
Vehicle ChassisRed Rock IVECO
Top Speed80 Km/h
Total Load15000 Kg
Porous Granular Ammonium Nitrate Load Capacity14200 Kg
Diesel Fuel Oil(Mixed Loading) Load Capacity800 Kg
Charging Efficiency200 ~ 450kg/Min (Max To 1000kg/Min)
Measurement Error2% (50kg-150kg For Single Hole)
Rotation Arm Rotation Angle /Range180 ° (+ 90 °)
 Spiral Length Of The Rotating Arm5 m.
 Power Mode Of Mixed EquipmentHydraulic Transmission
