Sinotruck HOWO DRZ5255XHZ ANFO Explosive Mixing And Charging Trucks 6X6
BCLH-15 Explosives Mixing & Charging Truck
AWD On - Site Mixed Heavy Ammonium Explosive Truck
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCLH-15
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Sinotruck HOWO BCLH-15 HEAVY ANFO TRUCK 6X6
Sinotruck HOWO DRZ5255XHZ ANFO Explosive Mixing And Charging Trucks 6X6
Site mixed explosives vehicle
ANFO / Explosive Delivery Trucks
ANFO mix units
Bulk Explosives Loading Trucks
↵
BCLH-15G Field mixed loading granular ammonium frying truck
On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.
Heavy ANFO Units

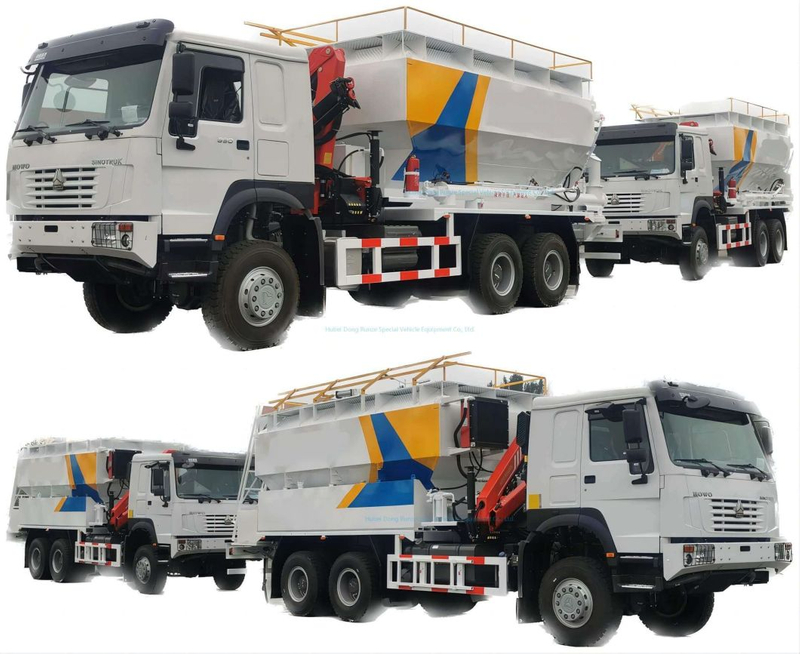

Howo 6X6 On site mixed anfo explosives truck with crane
Model | DRZ5255XHZ /6X6 EURO 5 HOWO 6X6 Offroad Chassis ZZ2257N4657E1 | |
| (**)(mm) Overall dimension | 9850×2550×3950 | |
| (mm) Wheelbase | 4300+1400; 3900+1400 ( according final design) | |
| (km/h) Max speed | 76 | |
| (kg) Total weight | 30000 | |
| (kg) Curb weight | 13500 | |
Engine | D10.380-50 / 60 , D10.380-50 Water cooled, four stroke, in-line six cylinder, turbo-charged inter-cooled | |
| (HP/rpm) Rated power | 380/2000 | |
| (Nm/rpm) Max torque | 1560/1200-1500 | |
| (L) Displacement | 9.726/diesel | |
Emission standard | EURO 5 | |
| (L) Fuel tank capacity | 400 | |
Clutch | 430,Dry-type monolithic, hydraulic control, compressed air power | |
Gear box | HW19710 Mechanical 12 speeds gear | |
Front axle | STR axles pneumatic braking, drive steering axle | |
Rear axle | ST16 axles,pneumatic braking, double reduction drive axle, differential lock | |
Steering system | ZF8118,,ZF8118,Circulating ball type, hydraulic booster | |
Front suspension | detached leaf spring, cylindrical shock absorber, the horizontal stabilizer | |
Rear suspension | detached leaf spring balance, balance suspension | |
Tire size | 12.00R20 | |
Brake system | Travel braking system | Brake automatically adjust, dual cycle air brake |
Parking braking | Energy storage spring action, the rear wheels | |
Cabin | HOWO 76 HOWO 76 All steel structure, double steel shell, and can flip forward | |
Nonexplosive-Until-Pumped Bulk Explosives ANFO units
BCZH-15 is mainly composed of automotive chassis, power system, hydraulic system, emulsion delivery system, fuel oil system, PPAN delivering system, gasser system, and blender, air cleaning system, MONO pump, electric control system and extinguisher.
Automotive chassis
Automotive chassis HOWO
Main technical parameter (vehicle modification):
| Rated capacity | 30t |
| Gross weight | 51.525t |
| Front axial load | 17.175t |
| Back axial load | 34.35t |
| Minimum ground clearance | 475mm |
| Minimum turning radius | 8.7m |
| Engine maximum power | 256Kw |
| Loading minimum running speed | 50Km/h |
BCLH-15 The field mixed loading of granular ammonium has explosives.
| Main technical performance parameters | ||||
project Model | BCLH-15 | BCLH-12 | BCLH-8 | BCLH-4 |
| Loading capacity (ton) | 15 | 12 | 8 | 4 |
| Charge efficiency (kg/min) | 450 | 400 | ||
| Measurement error | 2% | 2% | 2% | 2% |
| Outline size: length * width * height (mm) | 10010×2500×3680 | 9105×2480×3470 | 7216×2450×3280 | 6728×2400×2670 |
BCZH-15 on-site mixed HEAVY ANFO TRUCK
ANFO MIX MODULES AND UNITS
Heavy ANFO Units
Nonexplosive-Until-Pumped Bulk Explosives ANFO units
BCZH-15 is mainly composed of automotive chassis, power system, hydraulic system, emulsion delivery system, fuel oil system, PPAN delivering system, gasser system, and blender, air cleaning system, MONO pump, electric control system and extinguisher.
Automotive chassis
Automotive chassis HOWO
Main technical parameter (vehicle modification)
