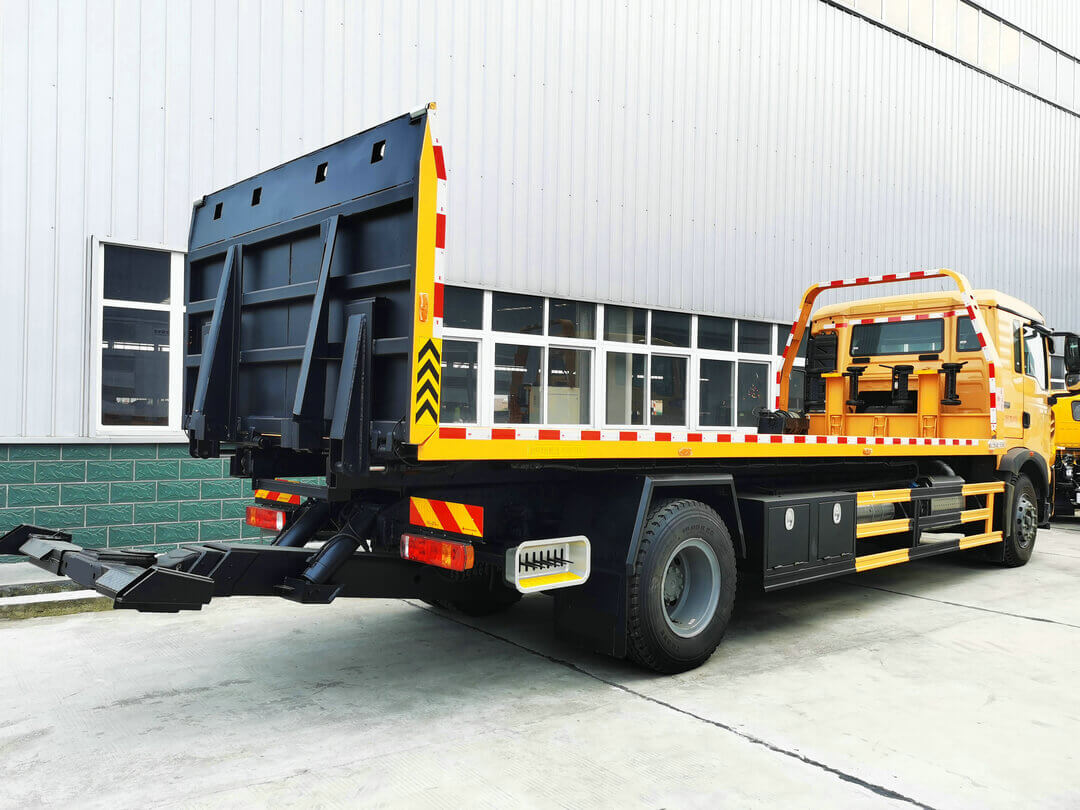

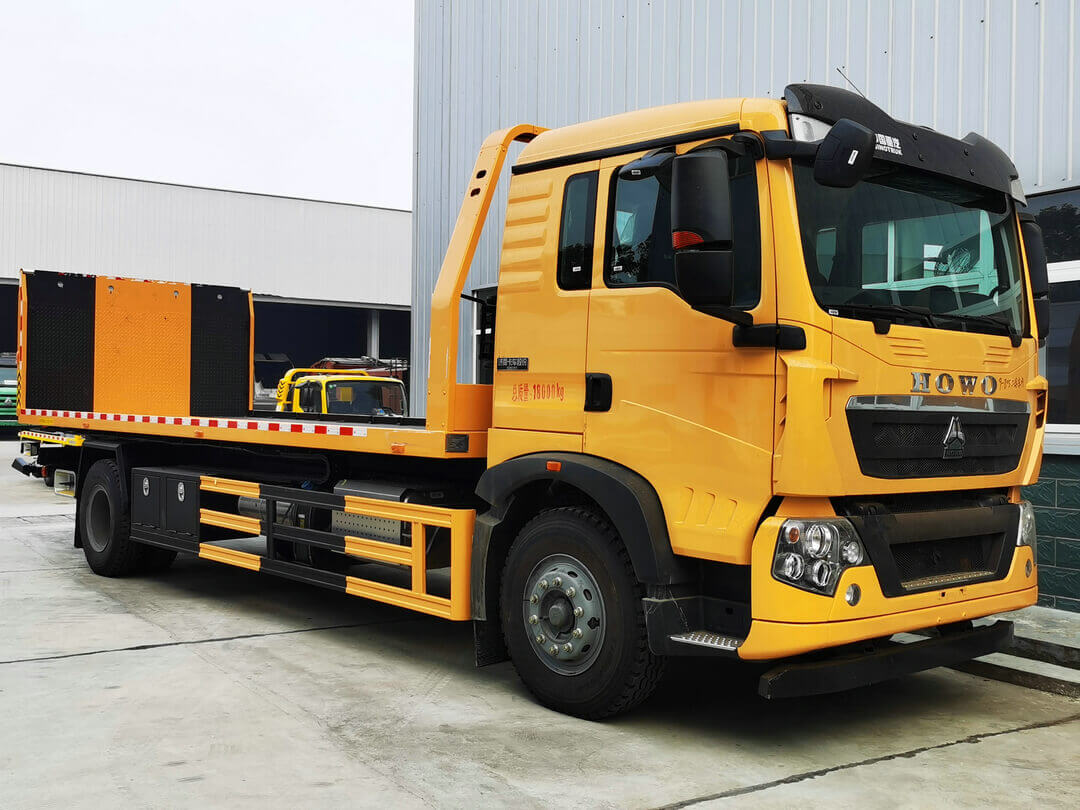

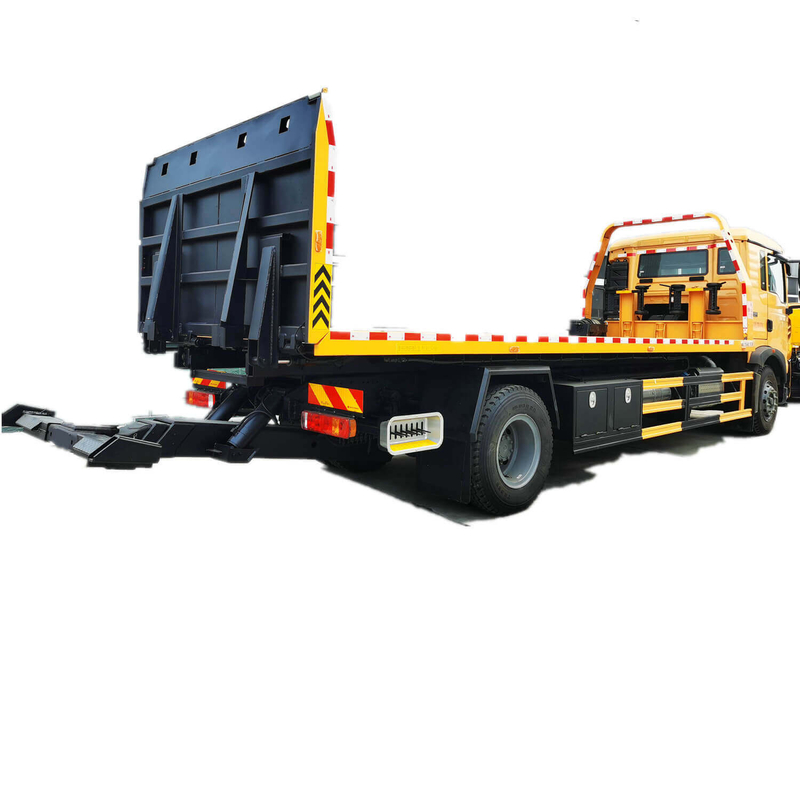

HOWO Tilt Tray Flatbed Recovery Truck (Flat Slide Bed) 8Ton Hydraulic Winch Towing Breakdown Truck 15000kg
Rolling Back Dongfeng Wrecker 10 Ton Knuckle Crane Truck Revovery Flat Slide Bed
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3308 | 75 | 4495 | / | / | 4230+88 0 4170+1000 | 2280 | 7 | 2700 | 2000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3360 | 72 | 4495 | / | / | 4230+880 4170+1000 | 2280 | 7 | 2700 | 2000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 115/ 95/ 105 | 8275 | 3000 | 1500 | 5560 5440+1035 | 2380 | 8 2 | 2700 ALL | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 115 | 8280 | 3000 | 1500 | 5560 5440+1035 5560 | 2380 | 8 2 4 | 2700 ALL ALL | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4150 | 96 | 8280 | 3000 | 1500 | 5560 | 2380 | 8 | 2700 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3815 | 112 | 8210 | 3000 | 1500 | 5560 5440+1035 5560 | 2380 | 8 2 4 | 2700 Full Full | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 103 | 8280 | 3000 | 1500 | 5560 | 2380 | 8 | 2700 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4500 | 121 | 8490 | 3000 3500 | 1500 2000 | 6000 6350 | 2380 | 8 | 2700 3290 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4475 | 141 15 | 10000 | 3500 | 2000 | 6350 6400 | 2480 2380 | 8 2 | 3290 ALL | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5200 | 141 | 10000 | 3500 | 2000 | 7600 | 2480 | 8 | 3600 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 115 | 10000 | 3500 | 2000 | 6350 | 2480 | 8 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 5000 | 132 | 12490 | 3500 | 2000 | 6350 7160 | 2480 | 10 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 125 | 9990 | 3500 | 2000 | 6350 6400 | 2380 | 8 | 3290 ALL | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 125 | 13495 | 3500 | 2000 | 6350 6400 | 2480 238 | 10 2 | 3290 ALLA | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 132 | 12490 | 3500 | 2000 | 6350 | 2380 | 10 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5200 | 132 | 13490 | 3500 | 2000 | 7600 8000 | 2480 | 10 | 3600 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5825+1350 | 249 | 25000 | 16000 | 6000 | 7550 | 2500 | / | / | 15000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
Wheel Base | Engine Power | Max Towing | Under Lifting System | Flat Bed | Winch | Notice | ||||||
(mm) | (kM) | (kg) | Max Hoisting(kg) | Max Hoisting All Extended(kg) | Length(mm) | Width(mm) | Min Tilt Angle(°) | Flat Be d In/Out(mm) | Max Carrying Of Flat Bed(kg) | Qty. | Rated Of Pulling For Each One(kN) | P.S |
3360 | 85 | 4495 | / | / | 4230+880 | 2280 | 7 | / | 1850 | 1 | 40 | / |
Wheel Base | Engine Power | Max Towing | Under Lifting System | Flat Bed | Winch | Notice | ||||||
(mm) | (kM) | (kg) | Max Hoisting(kg) | Max Hoisting All Extended(kg) | Length(mm) | Width(mm) | Min Tilt Angle(°) | Flat Be d In/Out(mm) | Max Carrying Of Flat Bed(kg) | Qty. | Rated Of Pulling For Each One(kN) | P.S |
3360 | 85/3200 | 4495 | / | / | 4230+880 | 2280 | 7 | / | 1850 | 1 | 40 | / |
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
Truck Mounted Crane; Flatbed Truck; Timber Transport Truck; Dry Cement Powder Truck; Wrecker Truck; Wing Open Van Truck; Semi Trailer. Container Trailer; Fuel Tanker Trailer; ... shacman truck. Previous Slide Next Slide. Truck Mounted Crane. Shacman Truck. Truck Mounted Crane.
Rescue Heavy Duty HOWO 360 Degree Rotator Recovery Towing 50t-60ton Wrecker Trucks
Foton 50t-60t Tow Wrekcer Heavy Duty Rotator Recovery Truck 8X4 Etx3134 Auman 12 Wheelers
Heavy Duty 20-30ton Sinotruck HOWO 6X6 Offroad Recovery Vehicle Towing Wrecker Truck
The multi-functional emergency rescue vehicle is equipped with water tank and high-pressure water gun, which can not only deal with the initial emergency fire, but also be used for urban greening spraying, road clearing and so on
Multifunctional Emergency Fire Rescue Forklift Towing Vehicle( Accident Broken Car Remove Recovery)
( LHD /RHD Euro 2-6)
The vehicle adopts the design of vehicle mounted excavator, which can be legally on the road, flexible and fast response. The equipment shelter on the vehicle is equipped with necessary power generation, lighting, cutting, welding and other related equipment and operation tools for emergency repair of pipe network project, with the functions of excavation, drainage, lighting, plasma cutting, welding and so on. With large excavation depth and wide operation range, it is widely used for emergency repair of water supply, gas supply, electric power, heat pipe network and other pipe network projects
The vehicle has short wheelbase, flexible and has many rescue functions, such as towing, forklift, righting and overturning, winch operation and so on. It is widely used in expressway emergency rescue, public security and traffic police law enforcement, and comprehensive law enforcement of urban illegal parking
The vehicle has the function of forklift, is equipped with equipment shelter, provides three source power such as power supply, air source and hydraulic source, loads emergency repair equipment and operation tools, is flexible, safe and reliable, and can complete a variety of operations such as on-site power supply, lighting, crushing, cutting, electric welding, demolition and rescue. It is widely used in emergency management such as accident rescue, rescue and disaster relief, engineering rescue and so on. Equipped with emergency drainage pump and other equipment, it is widely used in emergency drainage, construction lighting, municipal engineering repair and other municipal rescue work.
The multi-functional special vehicle for epidemic prevention and decontamination can implement scientific proportion for drug spraying according to needs, spray high-pressure water mist to kill the urban environment, and fully cooperate with epidemic prevention
The vehicle has the function of forklift, which can quickly remove the motor vehicles illegally occupying the fire passage and open the fire passage. At the same time, the equipment shelter is equipped with water tank and foam box, which can use high pressure fine mist spray gun to realize the function of water mist and foam extinguishing. Disposing and extinguishing the initial fire of class A and B has the characteristics of fast and high efficiency, and can bear the comprehensive function of miniature fire station. The on-board three source power output of the vehicle provides sufficient power support for rescue equipment and equipment.
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts. slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.
Second type :Wheel lift wrecker towing truck
(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire. wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.
Third type :Integration towing truck (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle. heavy trucks are also manufactured using integrated lifts.
Forth type --Flat plates wrecker truck (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.
Fifth type ---Lifting platform wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.
