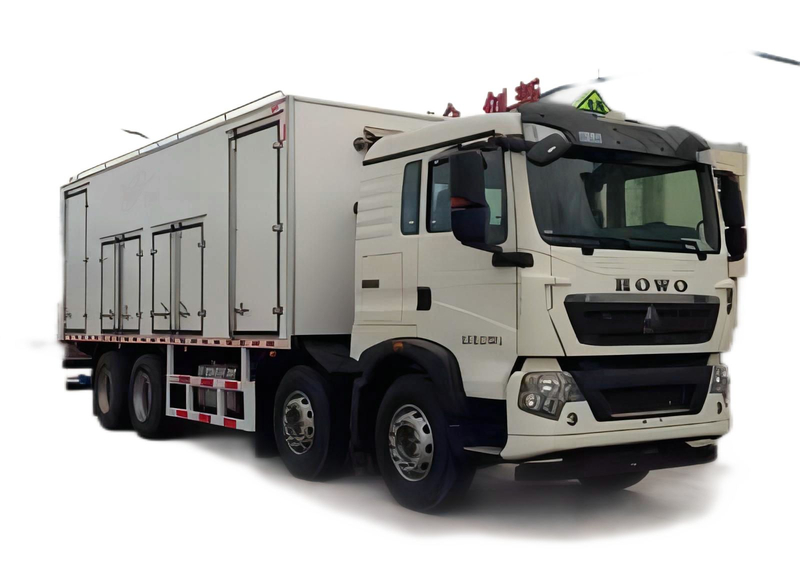

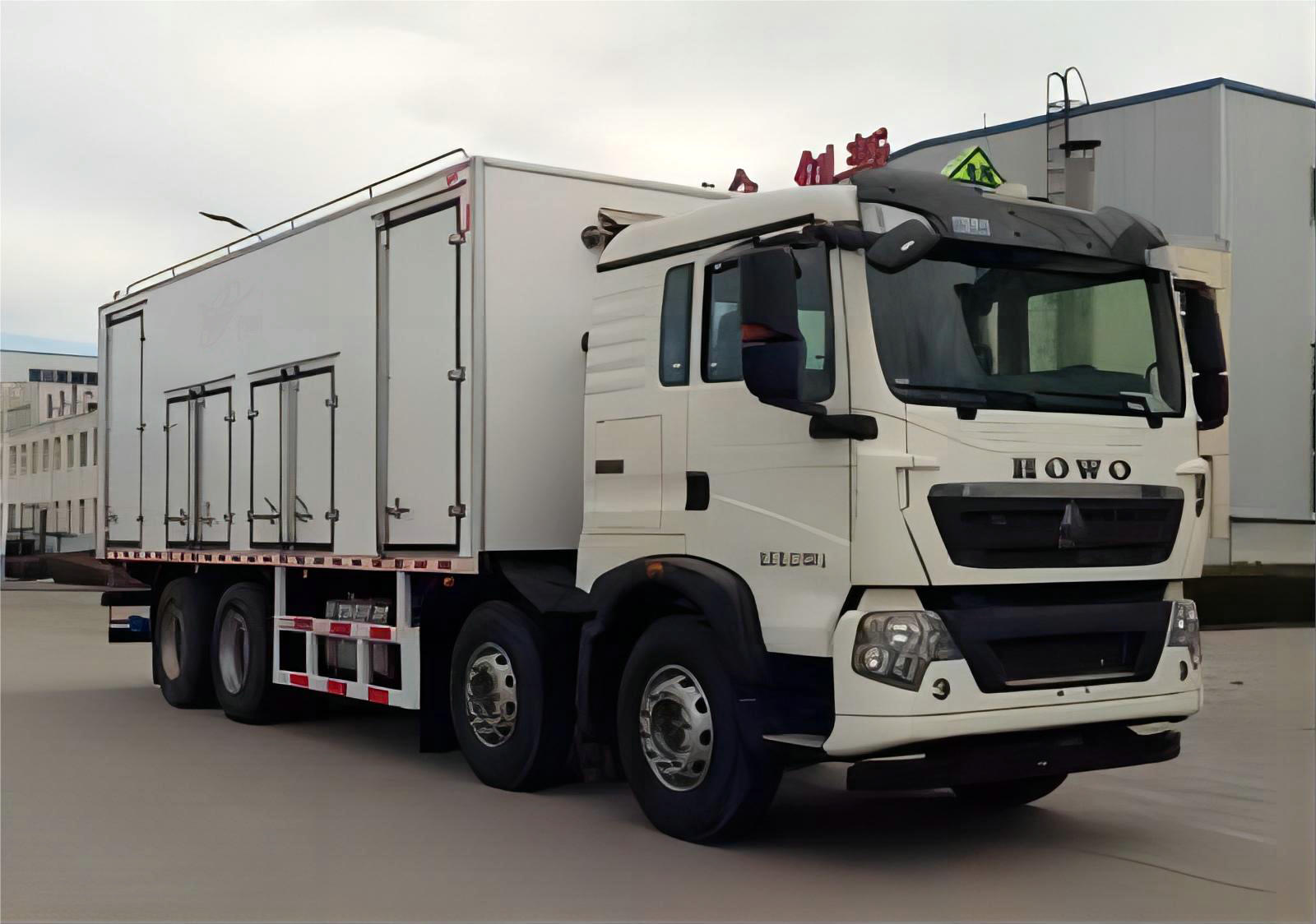

Customize 15T Mixed Emulsion Explosive Truck on Site Charge 280kg/min
Emulsion ANFO Explosive Transport Trucks
BCRH-15 on-site mixed emulsion explosives truck is to install the latex matrix prepared b the ground station in the latex matrix box on the vehicle, and at the same time load the
sensitizer and catalyst on the vehicle. This vehicle has two sets of process equipment Two sets of sensitization systems, one is sensitization catalysis before the pump; the other is sensitization catalysis at the end. At the same time, it adopts a double water pump system with low pressure and long conveying distance. It is suitable for blasting projects such as highways and tunnels. This kind of car has a large service radius and can be used to build stations at one point and deliver to multiple points. Advanced computer operating system,with over-temperature, over-pressure, material-breaking alarm and shutdown safety guarantee system, safe and reliable work.
PERFORMANCE PARAMETER
The maximum loading capacity of the latex matrix box 12m3, and the latex matrix 16000kg
The volume of sensitizer box 0.12 m3 and sensitizer 120kg
The volume of catalyst tank 0.12 m3 and the catalyst 120kg
The volume of water ring and cleaning water tank is 1m3, and the water is 1000kg
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Overall dimensions length/width/height (10860 × 2500 × 3930mm)
Gross Weight 32000Kg
Net weight 16000Kg
on-site mixed emulsion explosives truck Main technical parameters
HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10700×2500×3760(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 16870(Kg) | Rated load mass: | 15000(Kg) |
Approach Angle/Departure Angle: | 19/13 (°) | Front/rear overhang: | 1430/2295(mm) |
Axle Load: | 6500/7000/18500(two sets of axes) | Wheelbase: | 1800+3775+1400,1800+4275+1400,1800+4575+1400, 1950+3800+1400,1950+4600+1400,1800+3200+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5 18PR, 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR |
Fuel consumption: | 38,38.5(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-, 3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035,2060/2060(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35 B - 60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350 E61. MC11.46-61; MC11H.46-61; WP10.5 H430E62; WP12.430 E62; WP12.490 E62; WP12.460 E62; MC07H.31-61; M | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257 |

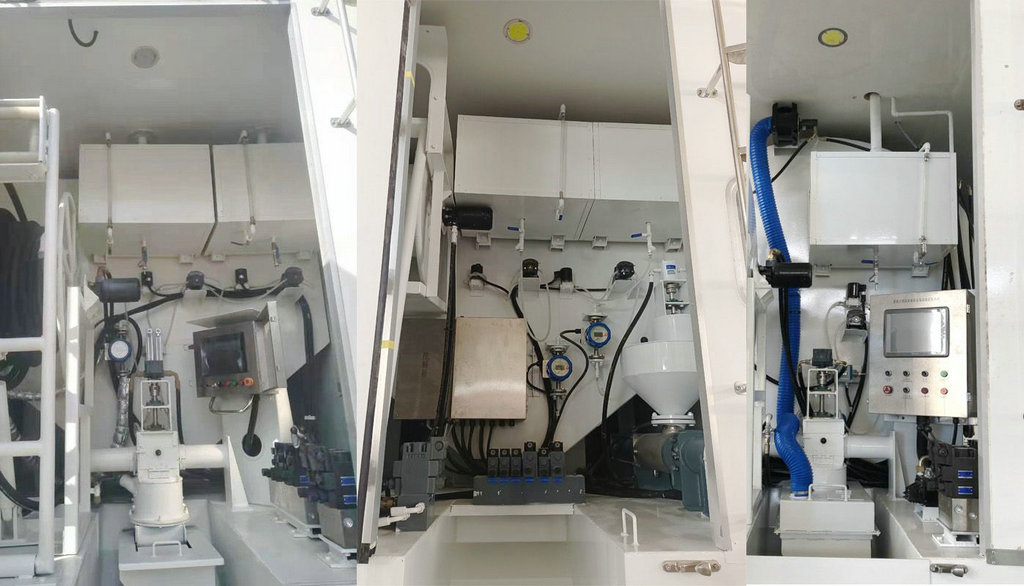

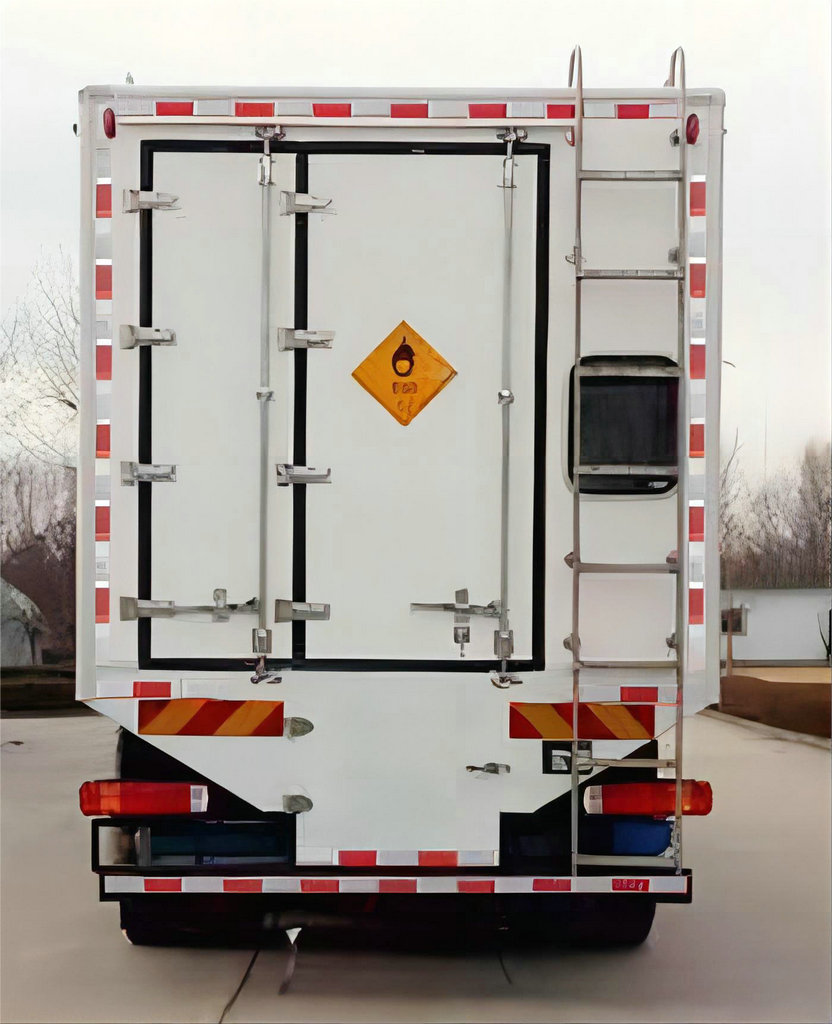

The vehicle medium is ammonium nitrate latex matrix and ammonium nitrate, ammonium nitrate latex matrix category number 5.1, ammonium nitrate category number 5.1; Dangerous goods signs and dangerous goods sign lights are installed; The special device is composed PTO system, box, screw pumping system and electrical control system. Controlled by the electrical system, the semi-finished products and various raw materials are mixed in a certain proportion and loaded into the drill hole, and the mixture reacts with each other to form emulsion explosive. Customizing the location of the screw pump and the fire extinguisher. |
