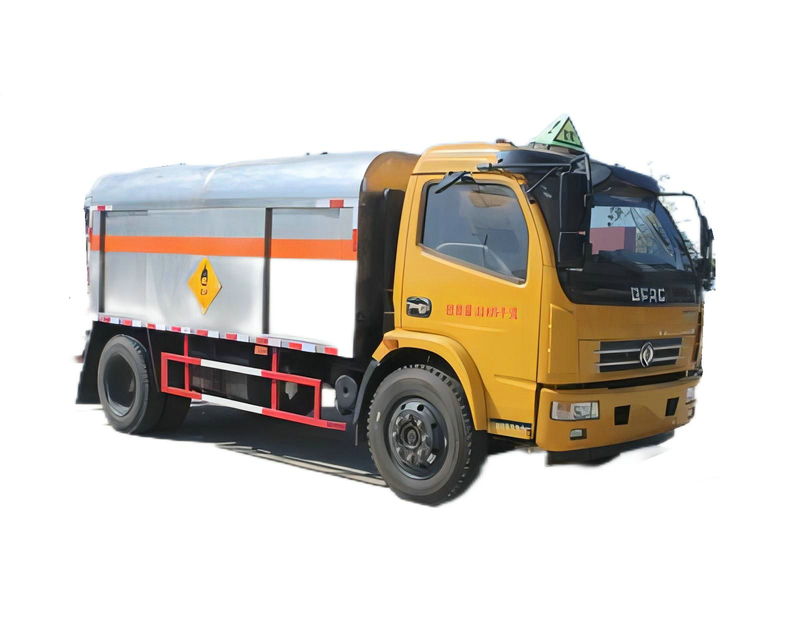

Customize DFAC Mining Blast Emulsion Explosive Mixing Charging Truck
BCJ-2000,Preparation of pure emulsion explosive by underground mixing 10kg/min~60kg/min
Charge 3000kg
Charge efficiency 10-60kg\ mim
Measurement error ≤ 2%
Overall dimensions length/width/height (6120 × 2115 × 2700mm)
Diameter of hose (inner diameter × outer diameter) φ 22 × 334 mm or medium 25 × 40 mm
The diameter of loading hole is 40-100mm
Loading depth 40m
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCJ-2000, BCJ-2000, 5110THR
-
DFAC
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

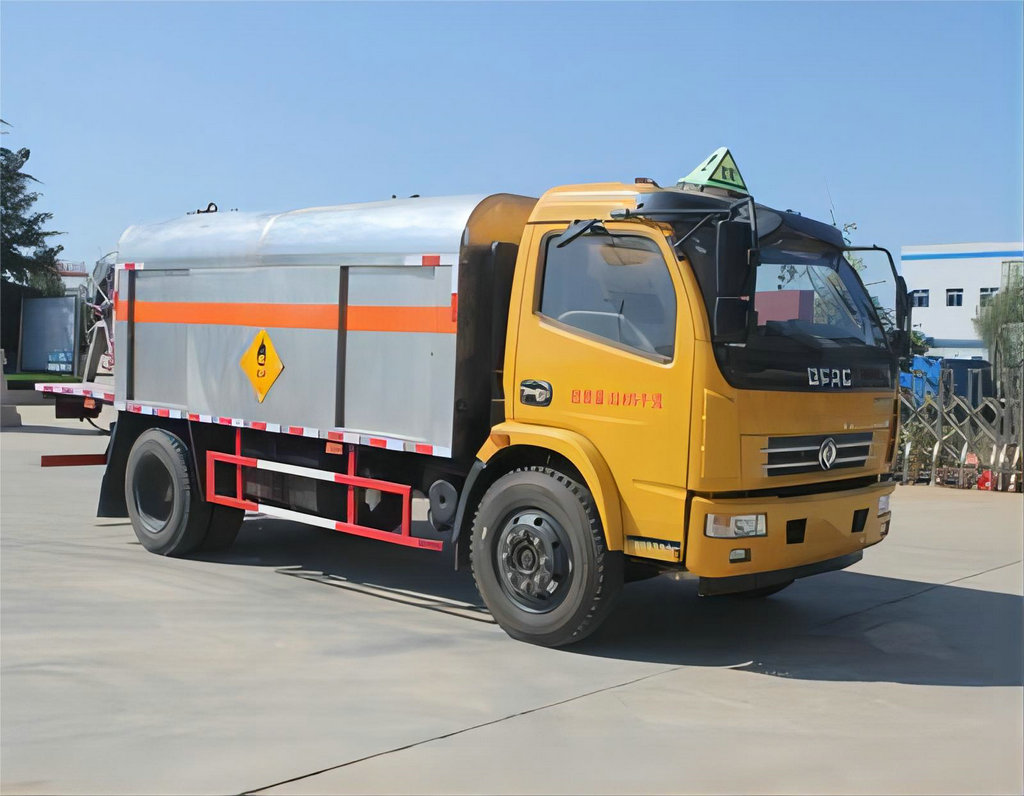

Customize DFAC Mining Blast Emulsion Explosive Mixing Charging Truck
BCJ-2000 underground on-site mixed loading light emulsion explosive truck (hereinafter referred to as underground truck is a small underground on-site mixed loading emulsion explosive truck refitted on the basis of special light truck chassis. It is a high-tech product of mechanical and electrical integration integrating raw material transportation, explosive mixing and blasthole loading. It can be described as a mobile micro efficient explosive processing plant.
Charge 4000kg
Charge efficiency 10-60kg\ mim
Measurement error ≤ 2%
Overall dimensions length/width/height (70300 × 2200 × 2735mm)
Diameter of hose (inner diameter × outer diameter) φ 22 × 334 mm or medium 25 × 40 mm
The diameter of loading hole is 40-100mm
Loading depth 40m
The direction of filling holes is omni-directional
Inlet and outlet hose speed 0-0.5 m/s (adjustable)
mixing and charging truck DFAC Euro 5 Chassis EQ1110SJ8BDCWXP
Main technical parameters
Overall dimensions: | 7030×2200×2735(mm) | Fuel Type: | Diesel oil |
Total mass: | 11495(Kg) | ||
Quality of service: | 7010(Kg) | Rated load mass: | 4290(Kg) |
Approach Angle/Departure Angle: | 20/12 (°) | Front/rear overhang: | 1130/2100(mm) |
Axle Load: | 4360/7135 | Wheelbase: | 3800(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 8.25R20 14PR,245/70R 19.5 |
Fuel consumption: | 23.6(L/100Km) | Number of spring pieces: | 8/10+7 |
Front wheel base: | 1903,1770,1747,1805(mm) | Rear wheel base: | 1640,1806,1715(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
CY4SK251 | Dongfeng Zhaochai power Co., LTD | 3856 | 115 |

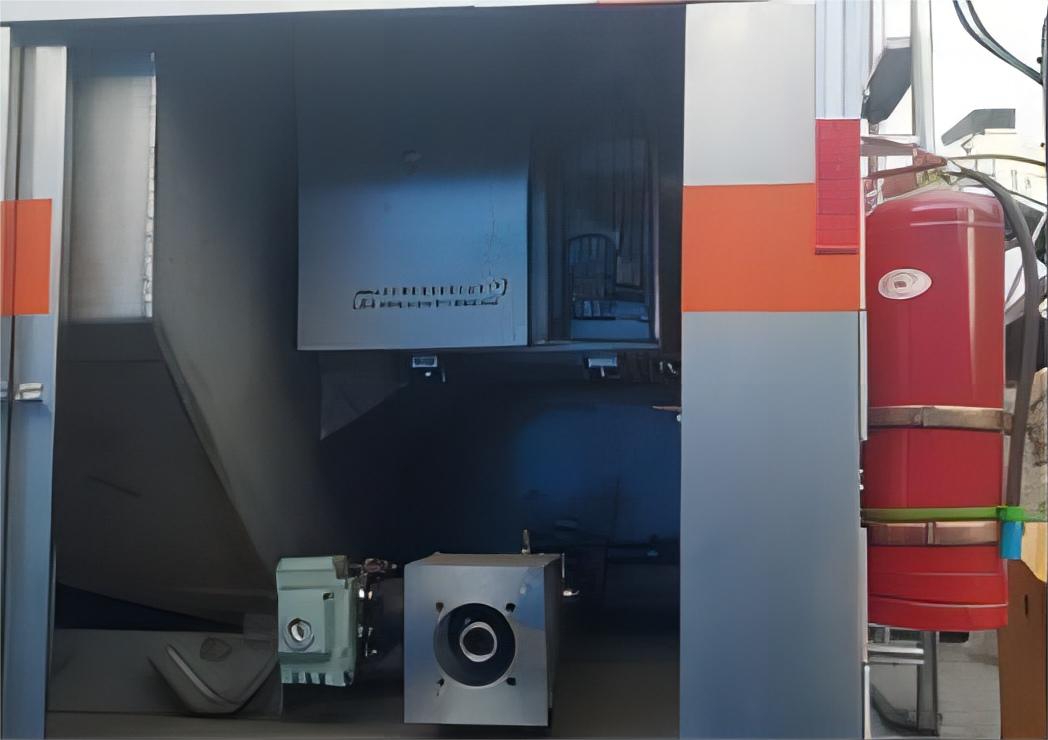

The vehicle transport medium is ammonium nitrate emulsion , water, sensitizer, respectively, mixed on site preparation; Working principle: The ammonium nitrate emulsion enters the screw pump, the pressure of the screw pump will press the emulsion into the conveying hose, and the sensitizer is added to the conveying hose through the mixer. The sensitizer plays the role of water ring lubrication in the conveying, the emulsion and the sensitizer are mixed by the static mixer at the end of the conveying hose and then input the borehole, and then become explosive after 10 to 15 minutes of foaming. The vehicle is mainly composed of automobile chassis, power output system, ammonium nitrate emulsion silo and pumping system, hydraulic transmission system, electrical operating system, fuel tank and pumping metering system, and has the function of field mixing emulsion explosive special vehicle. | |||
