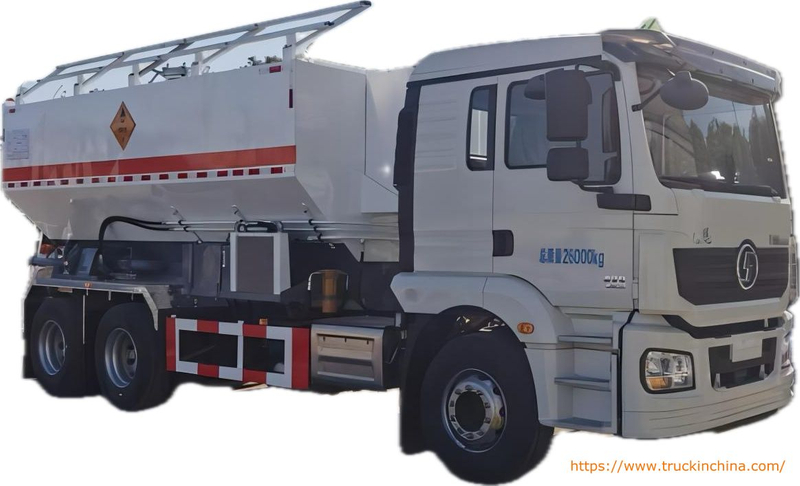

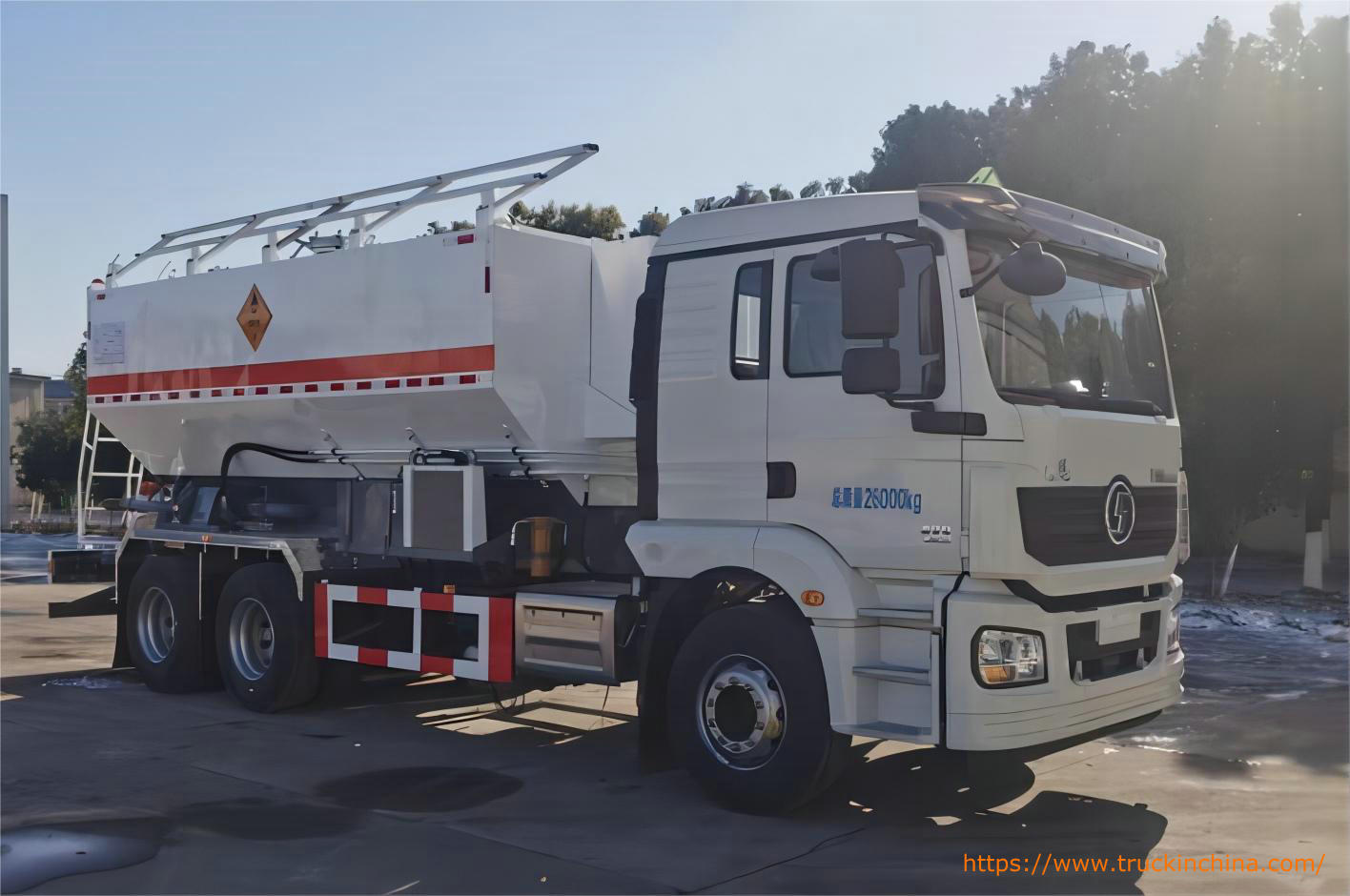

Customize SHACMAN Bulk Emulsion Explosive ANFO Truck for Wet Borehole Blasting
BCRH-13 Emulsion explosive mixing truck
Charge efficiency 250-280kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-13, 5260THRB
-
SHACMAN
-
8705909990
-
China
-
300
-
T/T
-
1
Customize SHACMAN Bulk Loading Emulsion Explosive ANFO Truck for Wet Borehole Blasting
Bulk Emulsion Explosive ANFO Truck
on-site mixing emulsion explosives truck
SHACMAN Euro 6 Chassis : SX1269MB4WQ1
Main technical parameters
Overall dimensions: | 9506×2550×3550(mm) | Fuel Type: | Diesel oil |
GW | 26000(Kg) | ||
NW | 12630(Kg) | Rated load | 13240(Kg) |
Approach Angle/Departure Angle: | 16/13 (°) | Front/rear overhang: | 1525/2006(mm) |
Axle Load: | 7000/19000(Two-axis group) | Wheelbase: | 4375+1400,4575+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 79(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 12R22.5 18PR,295/80R22.5 18PR,295/80R22.5 16PR,11.00R20 18PR |
Fuel consumption: | 36.79(L/100Km) | Number of spring pieces: | 2/-/-,3/-/-,10/-/- |
Front wheel base: | 2036,2070(mm) | Rear wheel base: | 1860/1860(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
WP7.270 E61 | Weichai Power Co., Ltd. | 7470 | 199 | |
The main special device of the vehicle is PTO,Emulsion Pumper matrix box, fuel system, screw pumping system, hydraulic system, computer digital control system, etc., which is mainly suitable for filling explosives in wet boreholes in open-pit mines. The system operation is carried out by conveying pump, rear telescopic cantilever and feed pipe, and the reasonable proportion of explosives can be accurately filled in the boreholes Quality, ammonium nitrate emulsion matrix category item 5.1; Dangerous goods vehicle type AT type | ||||
