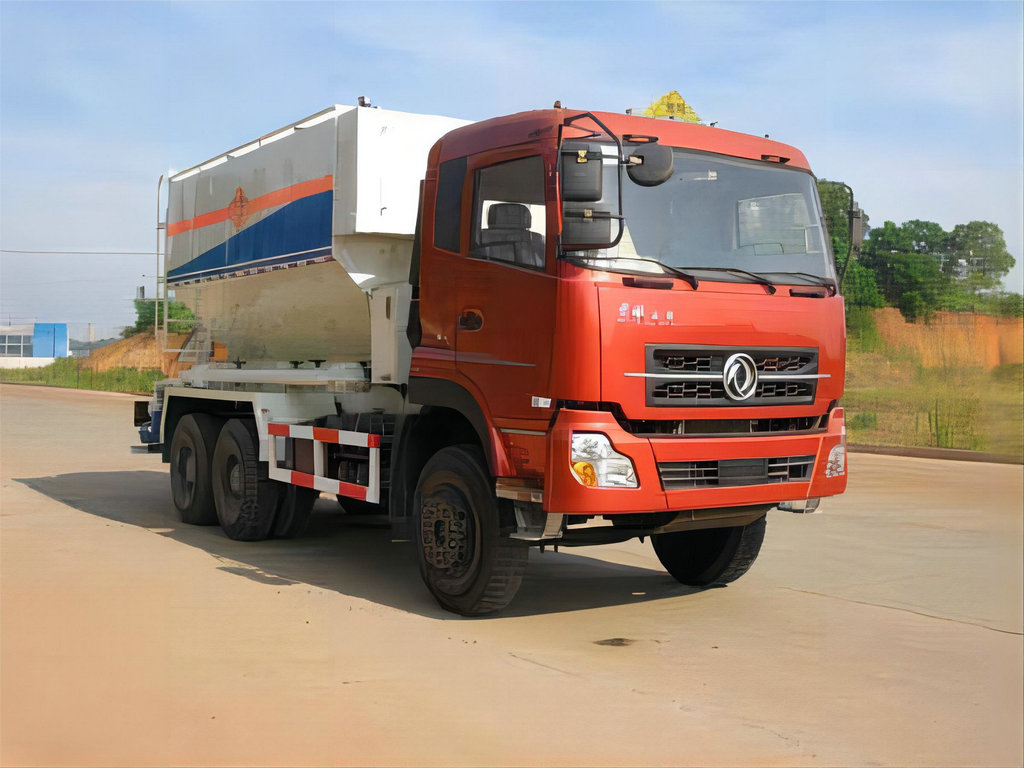

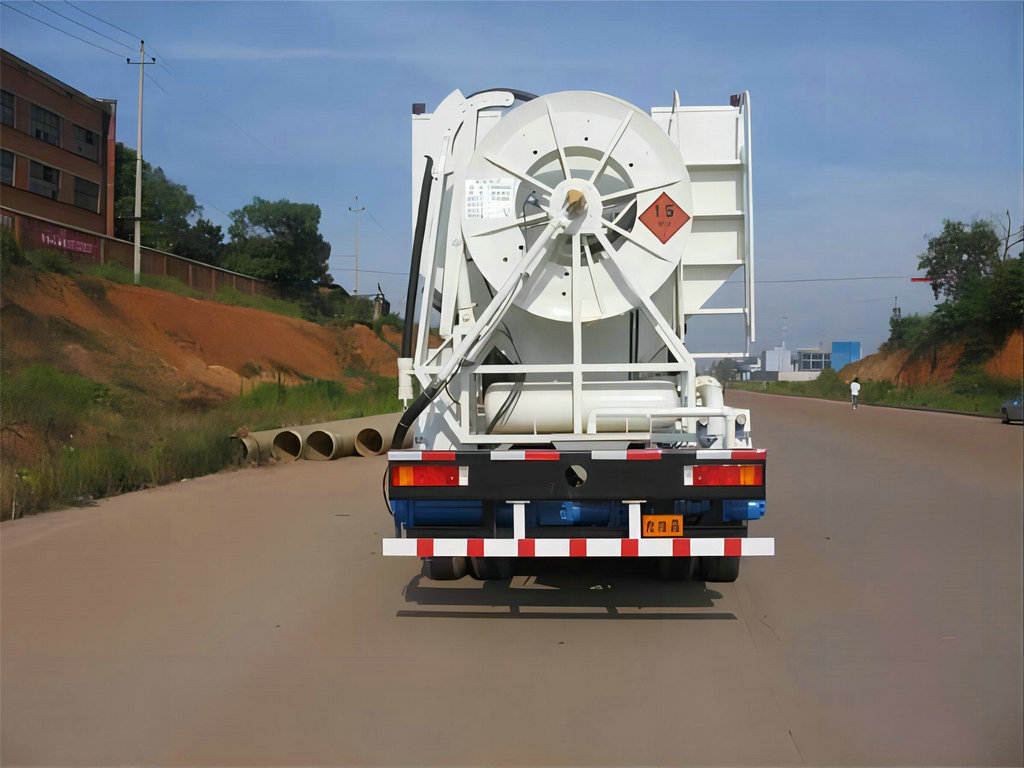

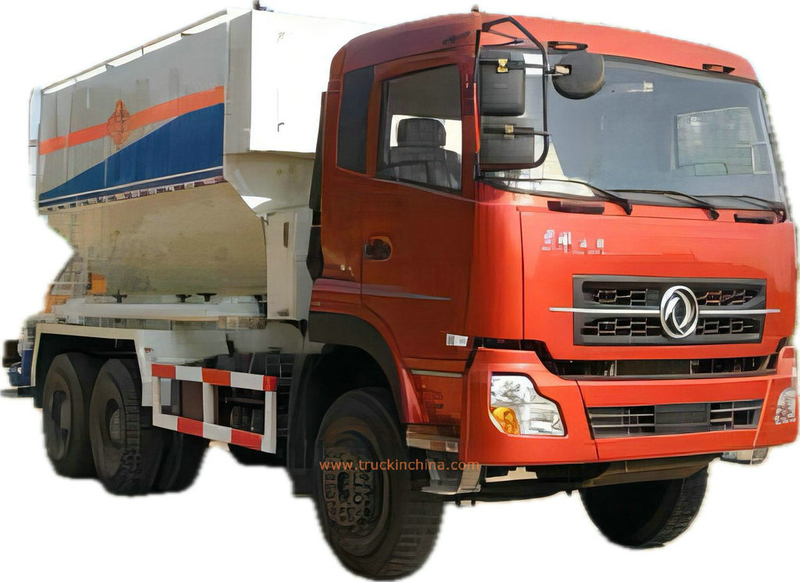

Customize Dongfeng Offroad Emulsion Explosive Mixing Loading Truck
BCRH-9 Bulk Heavy ANFO Explosive Delivery Truck
Max loading 9000kg
Charge efficiency 250-280kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-9 ,5250THR
-
Dongfeng
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Customize Dongfeng Offroad Emulsion Explosive Mixing Loading Truck
Dongfeng Chassis DFL3251A1 6x4 or Dongfeng Chassis 6x6 offroad
Emulsion ANFO Explosive Transport Trucks
Rated Loading | 9480 | Gross Weight | 24780 |
Net weight | 15105 | Number of axes | 3 |
wheelbase | 3800+1350,3900+1350, 4000+1350,3800+1450 | Axle load | 6910/17870(double axle) |
Number of spring pieces | 9/10,9/13,10/13,10/12 | Number of tires | 10 |
Tyre specification | 11.00-20,11.00R20,12.00-20,12.00R20 | Approach departure Angle | 30/10 |
The front hangs and the back hangs | 1500/2800 | Front 、rear track | 2027,2040 ；1820/1820,1850/1850 |
Vehicle length | 9450 | Carload width | 2500 |
Carload height | 3980 | Car length | |
Cargo bay width | Height of cargo bay | ||
Maximum speed | 80 | The number of passengers allowed in the cab | 3 |
Engine type | Engine manufacturer | Engine trademark | displacement | power |
dCi340-30 | Dongfeng Motor Co., LTD Dongfeng Cummins Engine Co., LTD
| 11120 | 250 |
BCRH-9 on-site mixed emulsion explosives truck is to install the latex matrix prepared b the ground station in the latex matrix box on the vehicle, and at the same time load the
sensitizer and catalyst on the vehicle. This vehicle has two sets of process equipment Two sets of sensitization systems, one is sensitization catalysis before the pump; the other is sensitization catalysis at the end. At the same time, it adopts a double water pump system with low pressure and long conveying distance. It is suitable for blasting projects such as highways and tunnels. This kind of car has a large service radius and can be used to build stations at one point and deliver to multiple points. Advanced computer operating system,with over-temperature, over-pressure, material-breaking alarm and shutdown safety guarantee system, safe and reliable work.
PERFORMANCE PARAMETER
The maximum loading capacity of the matrix box 12m3, and the latex matrix 16000kg
The volume of sensitizer box 0.12 m3 and sensitizer 120kg
The volume of catalyst tank 0.12 m3 and the catalyst 120kg
The volume of water ring and cleaning water tank is 1m3, and the water is 1000kg
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Overall dimensions length/width/height (10860 × 2500 × 3930mm)
Gross Weight 32000Kg
Net weight 16000Kg
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Emulsified explosive truck with on-site mixing loading of BCHR line can mix pure emulsion explosives and series emulsion explosive with 30% of dry mix at most on-site. The preparation of aqueous phase, oil phase and sensitizer is operated on ground station, while latex matrix emulsion can be completed on the ground, or in truck. Dry material mixture and sensitization is conducted in truck.
ANFO mixing loading truck list of main equipment
• Before charging, at ground station, relevant materials should be added into corresponding container in the truck.
• When loading truck comes to job site, start PTO, stretch charging tube into bottom of the hole, input explosive load on counter and press start button. Then, each preparation and mixing unit begins to work. Slowly raise charging tube. Explosive is charged below water, and water is discharged from hole. After charging, move to the next hole, repeat the above procedure, and charge the next hole.
• Charging effectiveness 200-250kg/min.
• Currently, there are 5 specifications, 8T, 9T, 12T, 15T, 20T.
• Measurement error ≤ ± 2%
BCRH-15 on-site mixed emulsion explosive vehicle is contained in each bin: water phase, oil phase, sensitizer and latex matrix in the car, that is, emulsification, sensitization and filling are carried out on the vehicle. It is a combination of transportation, mixing and filling, and is suitable for the operation of water-containing blastholes in open pit mines. The advanced computer operating system, the flow of the aqueous phase and the speed of the emulsifier adopt automatic tracking and closed-loop control, stable performance, accurate ratio, safe and reliable. It has a safety guarantee system for over-temperature, over-pressure, and material-break alarm shutdown.Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
