Customize Heavy ANFO Explosive Loading Trucks
BCZH-15 ,Bulk Explosive Utilize a 3-auger system to mix ANFO and emulsion.
(Heavy ANFO or ANFO blended with<50% emulsion by weight)
Heavy ANFO explosive charge 300-400kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCZH-15, 5320THZ6Z
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

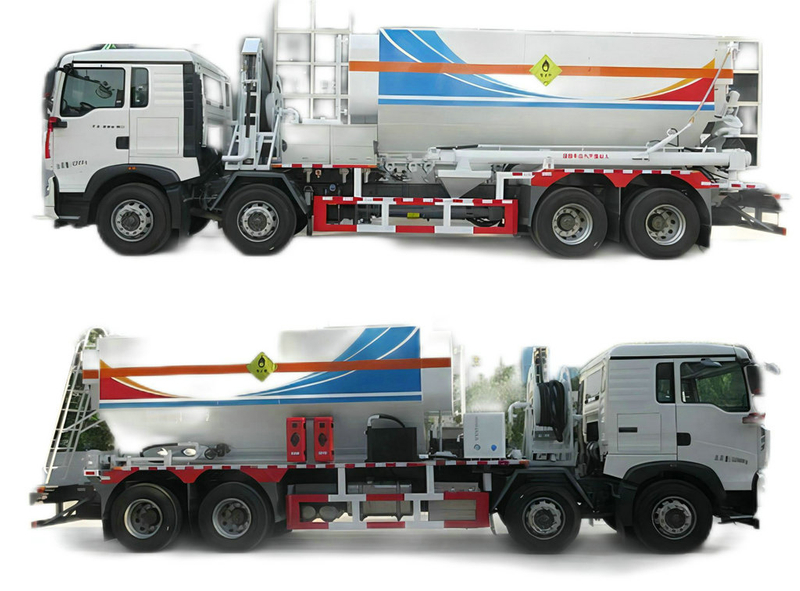

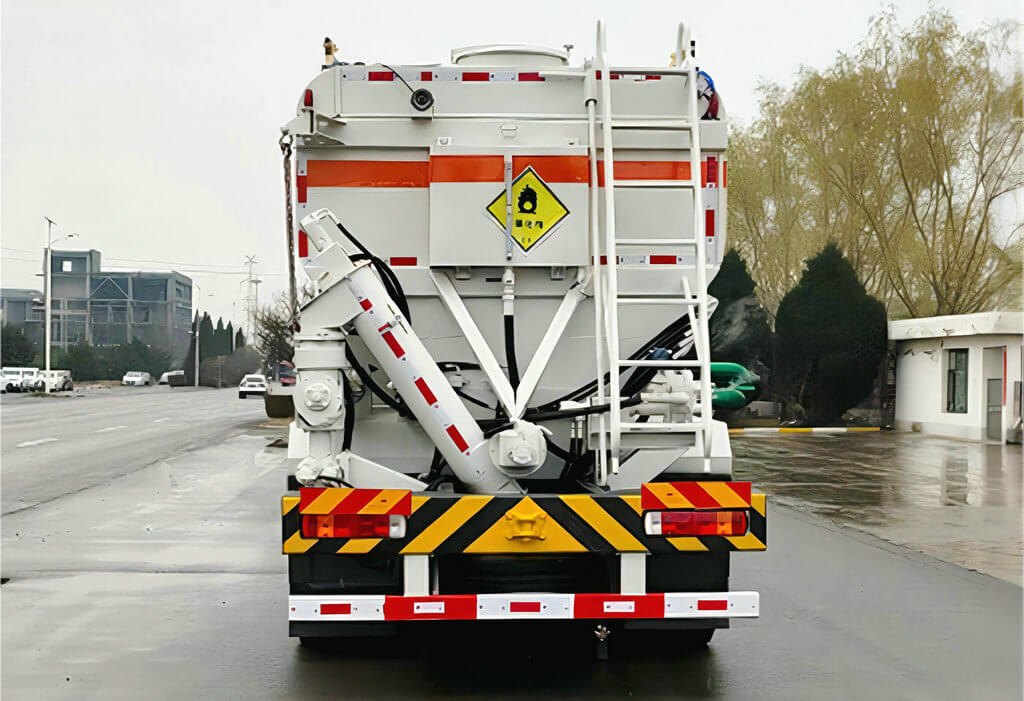

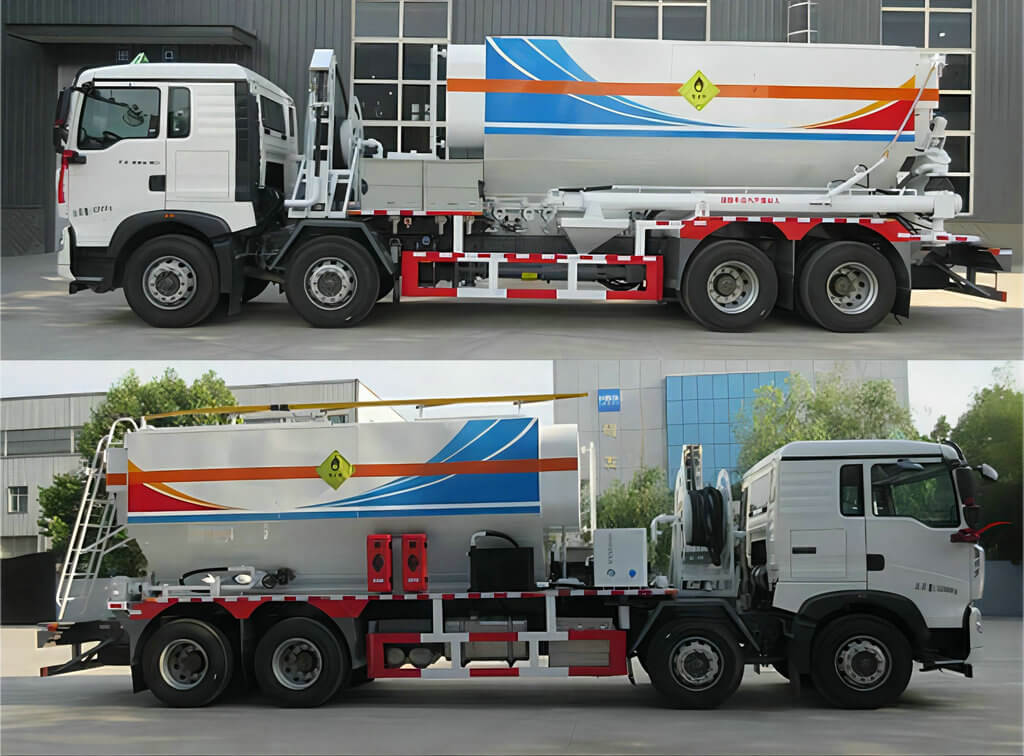

Customize On Site Heavy ANFO Explosive Loading Trucks
HEAVY ANFO Explosive Pump Trucks
BCZH-13 intelligent on-site mixed loading heavy ammonium fried explosive truck integrates transportation, mixing and loading of raw materials. It can mix pure emulsion explosive, 0-100100-0 heavy ammonium fried explosive, 0-100100-0 heavy emulsion explosive and ammonium oil explosive on site. It is suitable for water bearing blast hole and dry hole charging in open pit mine.
This truck is a multi-functional truck with good silo matching performance It can mix 15t of heavy emulsion explosive, 15t of ammonium oil explosive and 15t of heavy ammonium fried explosive on site. With advanced computer operating system, itcan accurately load two different formulations of explosives inthe same blast hole. It has a safety guarantee system of over temperature, over pressure, material breaking alarm and shutdown, which is safe and reliable.
mixing and charging Auger truck HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 11150,10610×2510×3640(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 16520,16000(Kg) | Rated load mass: | 15350,15285,15870,15805(Kg) |
Approach Angle/Departure Angle: | 19/11.5 (°) | Front/rear overhang: | 1430/1945,1430/2205(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+4575+1400, 1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5 |
Fuel consumption: | 37.1, 37.44 (L / 100 km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/- |
Front wheel base: | 2035/2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07.34-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD. | 6870; 7360 | 251; 257 | |

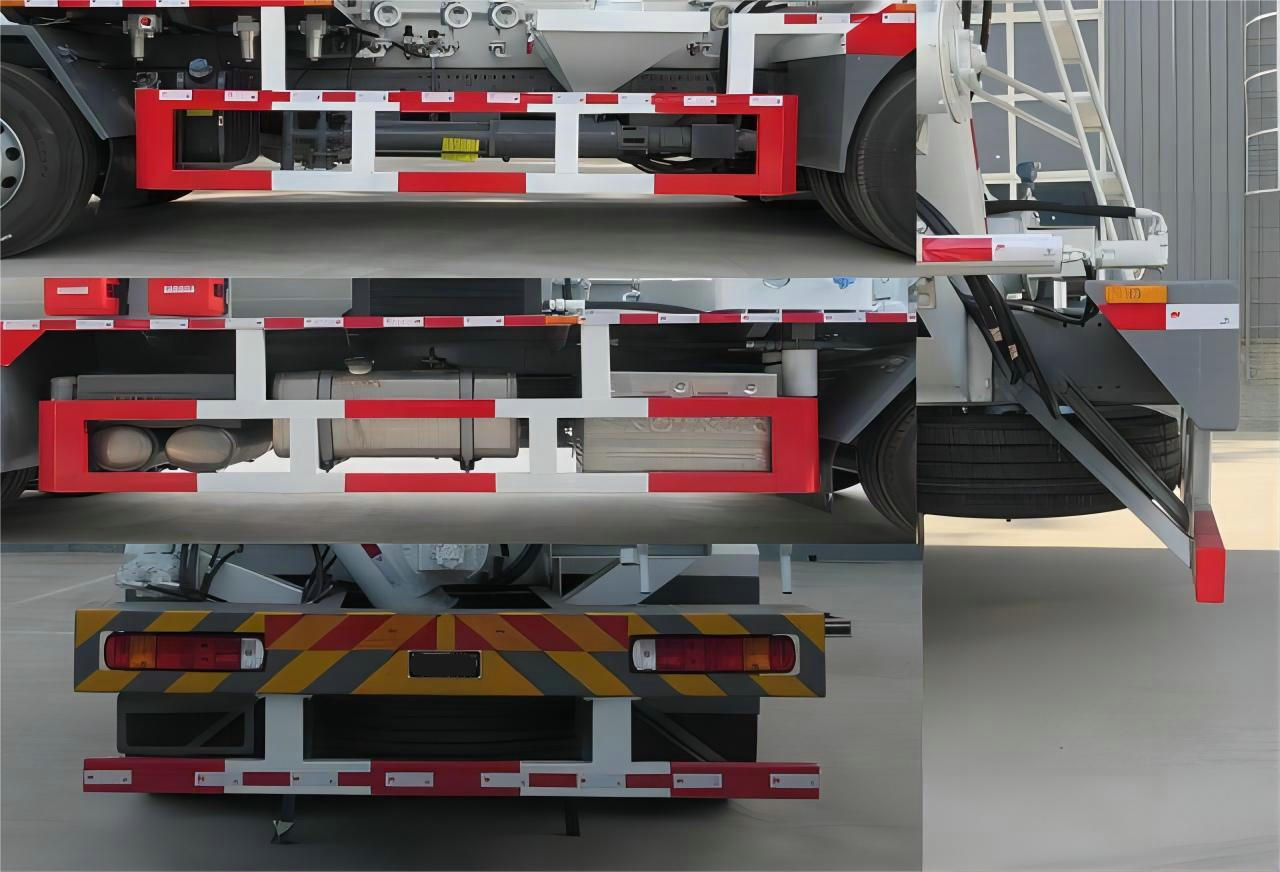

The vehicle is a dangerous goods transport vehicle The special device of the vehicle PTO, dry material box, fuel system, screw conveying system, hydraulic system, computer digital control system and other parts, which is mainly suitable for dry hole filling explosives in open pit mines. It is operated by three-stage screw conveying system such as side screw and can accurately fill different proportions of explosives in the drill hole. | ||||
Bulk Explosive Utilize a 3-auger system to mix ANFO and emulsion.
(Heavy ANFO or ANFO blended with <50% emulsion by weight)
The load of emulsion explosive is 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation)
The load of oil-spread explosive is 15000kg, charging efficiency is 300-450kg/min (spiral transportation)
Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation)
Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation)
The effective volume of 1000kg fuel tank is 1.14 m3
Trace element box A 150kg effective volume 0.15 m3
Trace element box B 150kg effective volume 1.15 m3
The effective volume of cleaning water tank 600kg 0.6 m3
Measurement error ≤ 2%
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
