BCJR-500
-
BCJR-500
-
8422309010
-
China
-
300
-
T/T
-
1

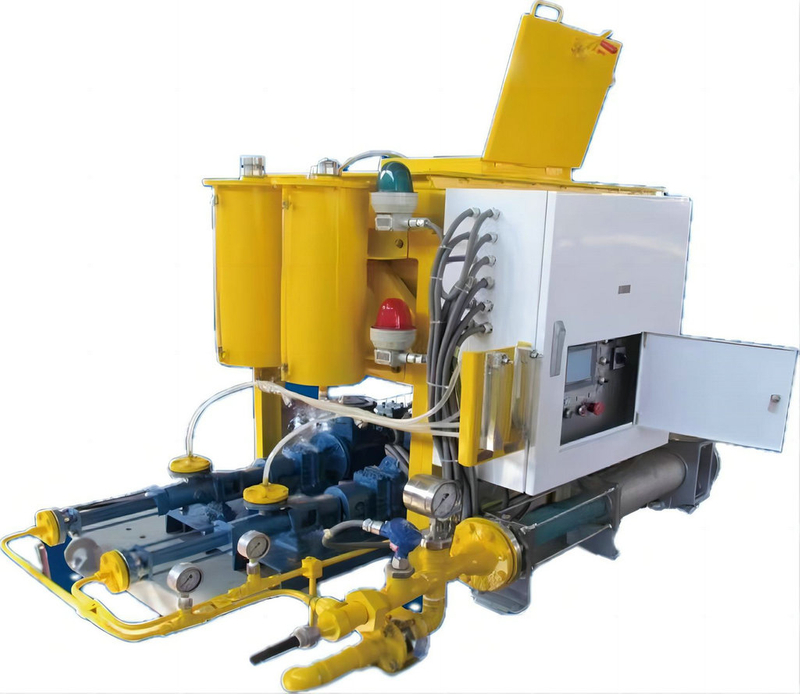

BCJR-500 emulsion explosive charging machine can meet the requirements of upward hole and horizontal hole charging.
At the same time, using bulk emulsion explosive, it can achieve the full coupling charging of hole charging, and the charging density can reach 1.1. Without changing the hole network parameters, the driving depth of bulk explosive is 400mm-500mm more than that of Packaged finished explosive (calculated by the hole depth of 3.5m-3.7m with aperture of 40-50) According to the observation of blasting effect, the top plate is flat and the blasting pile is even, which can save 10%-30% of the drilling and blasting cost compared with the Packaged and finished explosive.
Main technical performance parameters
The effective volume of emulsion matrix box : 0.5 m3, charge 500Kg
The effective volume of trace elements : 0.0063 m3, charge 6.3 kg
Charge efficiency : 6 ~ 10kg/min
Measurement error :≤ 2%
External dimensions: 2000 × 2000 × 2500mm(Length × Width × Height)
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
