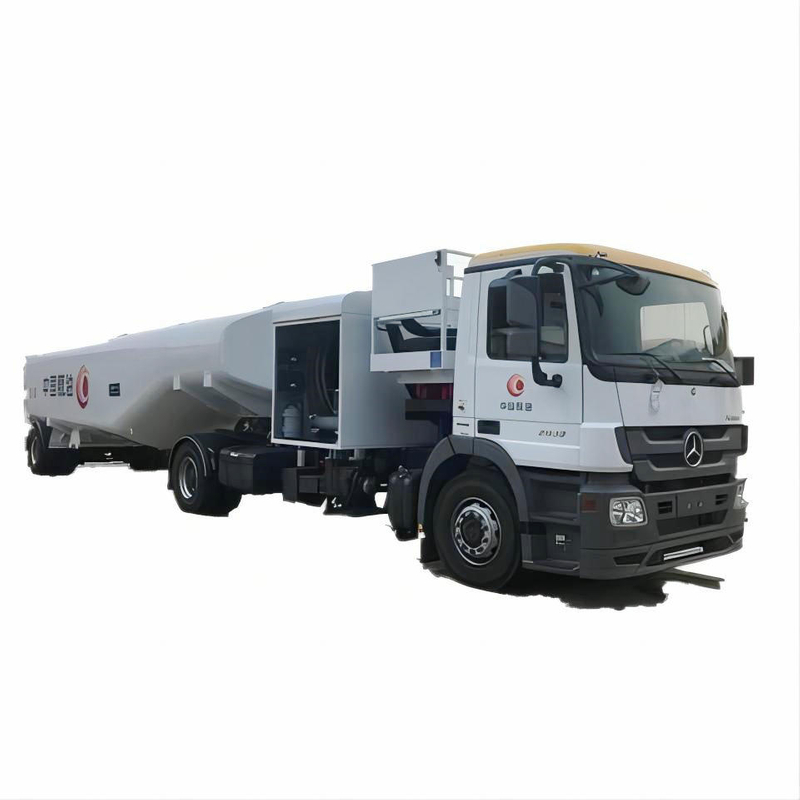

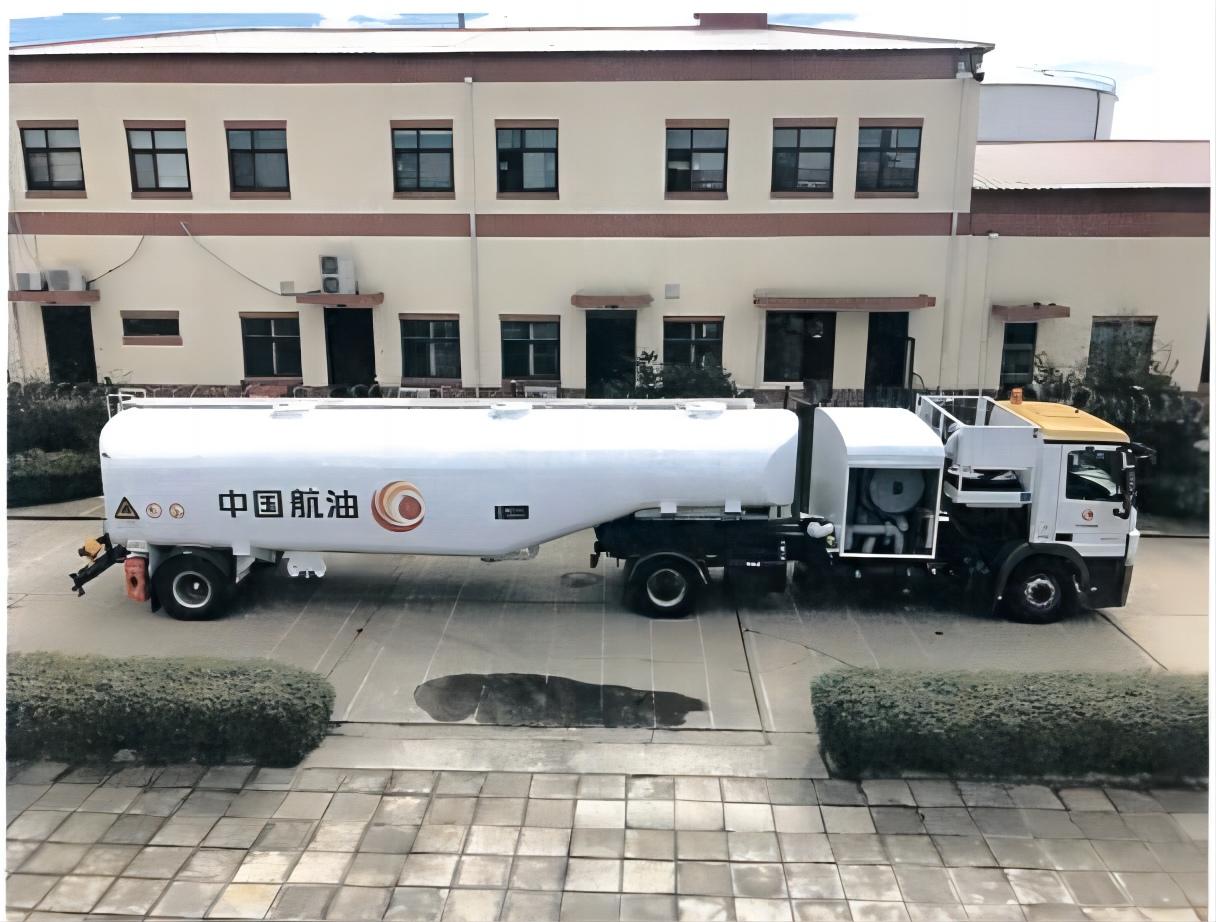

Actros Aircraft Refueller 47000L

Actros Aircraft Refueller 47000L
Customizing Aircraft Refuelling Truck
Maximum flow rate (L/min) 2400
Flow meter accuracy (%) 0.2
Reel single pipe pumping rate (L/min) 330
Lifting range of refueling platform (mm) 1565～4051

Availability:

Quantity:



Inquire Add to Basket

Model:
Actros2032, Axor1824
Port:
Shanghai, China
Payment Terms:
T/T
Transport Package:
Roro

Product Description

Item		Performance index

Chassis	manufacturer	Daimler AG	Daimler AG
	Model number	Actros2032	Axor1824
engine	manufacturer	Daimler AG	Daimler AG
	Model number	OM501LA.V/1	OM906LA.IV/1
gearbox	manufacturer	Daimler AG	Daimler AG
	Model number	G210-16/14.2-0.83	GT1
Rated tank capacity (L)		47000	47000
Reel hose fueling maximum flow (L/min)		1200	1200
Maximum flow rate (L/min)		2400	2400
Flow meter accuracy (%)		0.2	0.2
Reel single pipe pumping rate (L/min)		330	330
Aviation kerosene filtration accuracy		API/EI 1581	API/EI 1581
Overall dimensions (L × W × H) (mm)		16320×3050×3280	16370×3050×3150
Maximum speed (km/h)		30	30
Braking distance (m)		≤12.5	≤12.5
Service weight (kg)		17000	15700
Other properties		——	——
Lifting range of refueling platform (mm)		1565～4051	1565～4051

Assembly name	Model	Unit
Traction chassis	Actros 2032	Daimler AG
engine	OM501LA.V/1	Daimler AG
transmission	G210-16/14.2-0.83	Daimler AG
Traction front axle	AL4	Daimler AG
Traction rear axle	AM3	Daimler AG
Oil pump	HZS-1273	DICKOWPUMPEN KG
flowmeter	BM400	ISOIL IMPIANTI S.P.A
Filter separator	HV-2644	Parker Hannifin Corporation Velcon Filtration Divison
Semi axle	HZM18010	BPW Bergische Achsen Kommanditgesellschaft
tyre	315/80 R22.5	Bridgestone Corporation
Hydraulic pump	PGP511A0110CS8 F4NJ7J5B1B1	Parker Hannifin Manufacturing Germany GmbH &Co.KG
Hydraulic motor	VDSP20D301	Parker Hannifin Manufacturing Germany GmbH &Co.KG
Tank body	47000L	Aviation Refueling
Platform lift cylinder	45696	Aviation Refueling

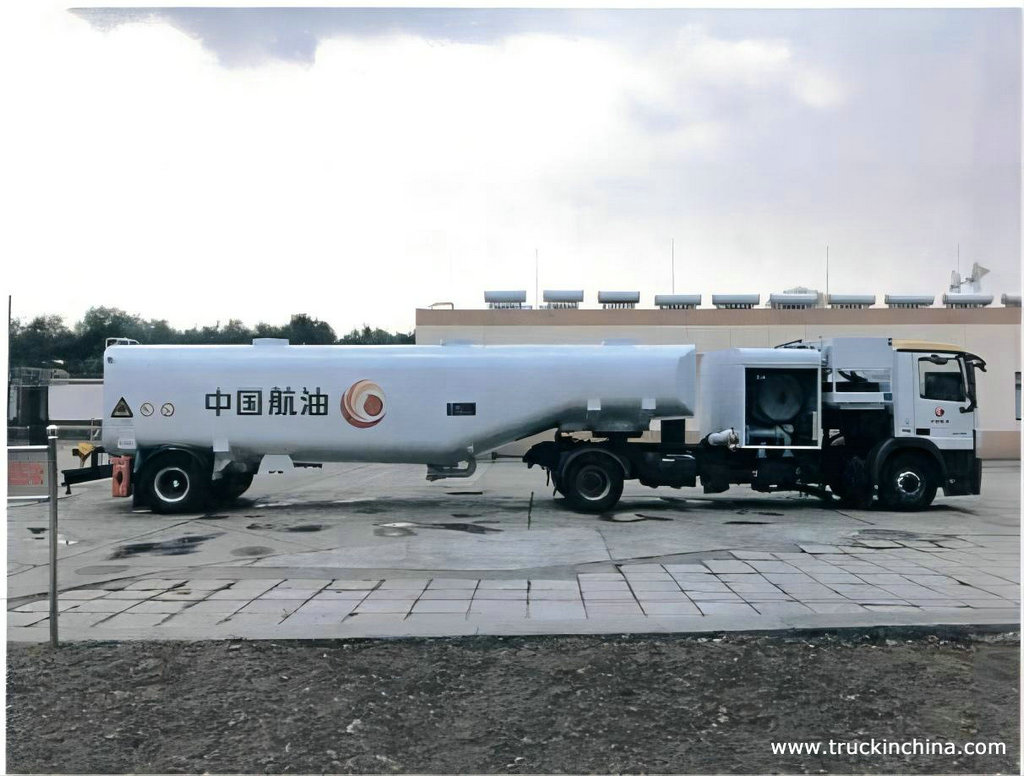

Aircraft Refueller, Aircraft Refuelling Truck (3)_1
