ISUZU Aircraft Air flow jet engine starting units ASU-600-300 with VML-410 Compresor 300ppm 43 Psi

Share to:

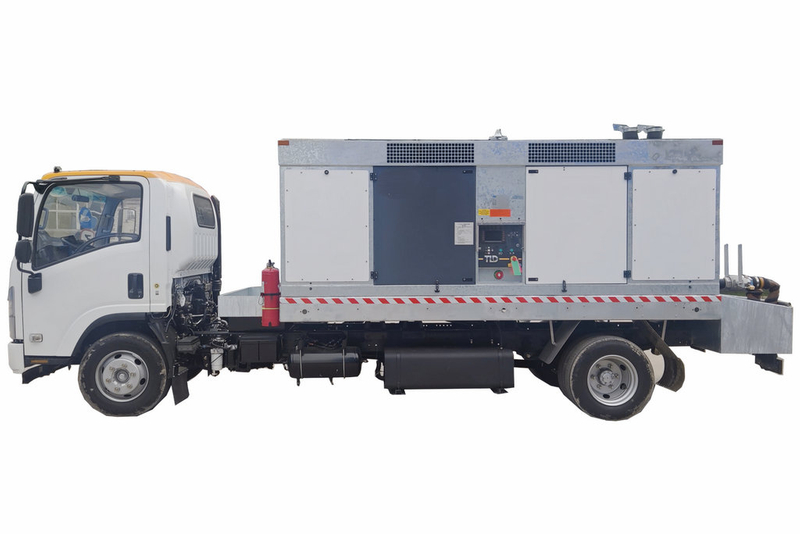

ISUZU Aircraft Air flow jet engine starting units ASU-600-300 with VML-410 Compresor 300ppm 43 Psi

ISUZU Aircraft Air flow jet engine starting units ASU-600-300 with VML-410 Compresor 300ppm 43 Psi
ISUZU aircraft jet engine start unit AIRCRAFT LAUNCHED AIR SUPPLY UNIT
Email us for Discount Price

Price: $ 330000

Discount Price: $ 318000

Availability:

Quantity:

Model:
ACE-600-300/ QL1110ANMAY
Brand:
ISUZU
Code:
87059099.90

ISUZU Aircraft Air flow jet engine starting units ASU-600-300 with VML-410 Compresor 300ppm 43 Psi

Chassis: Option of Isuzu commercial chassis or trailer mounted

Applicable aircraft types

Model: ACE-600-300

Aircraft: A300, A310, A320, A220, A330, A340, A350, B737, B747, B757, B767, B777, B787, MD11

ISUZU Aircraft Continuous Flow Jet Engine Starting Units Compresor 300ppm 43 Psi

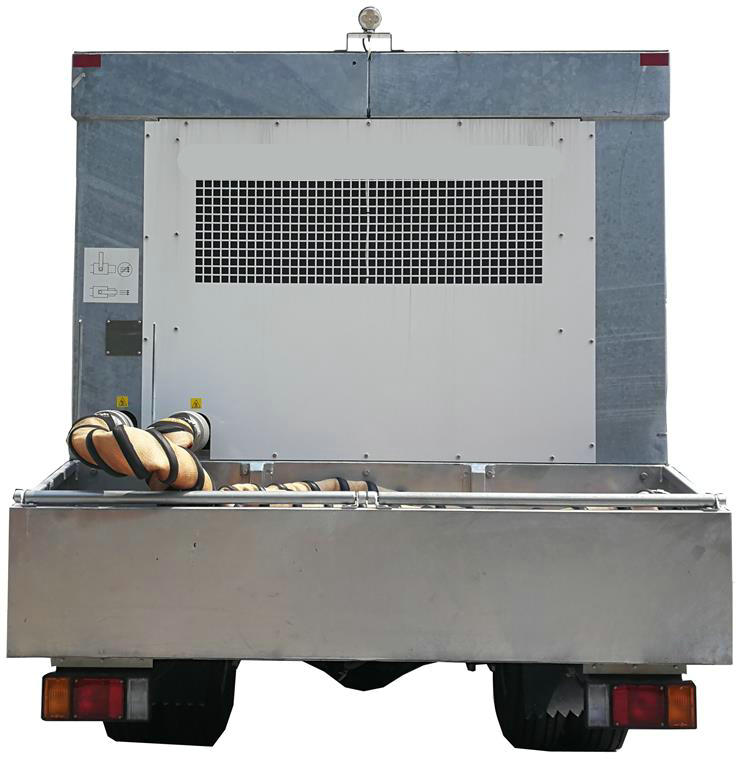

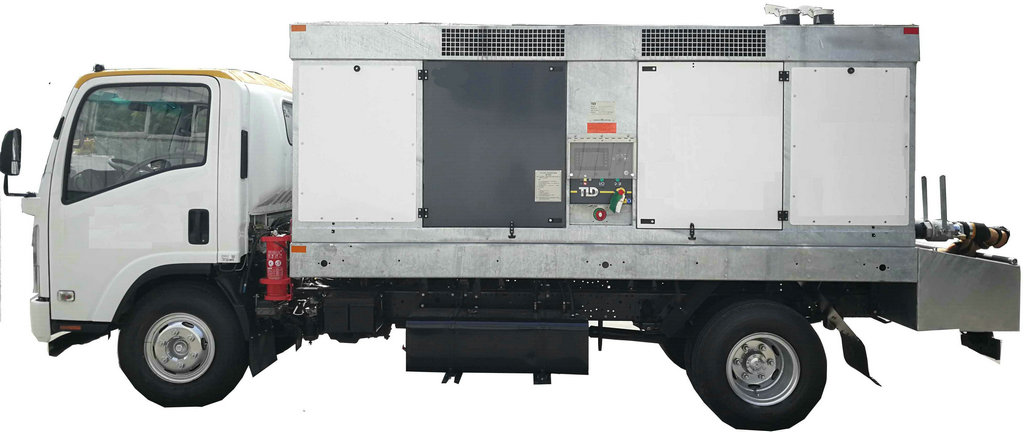

ASU-600-180 Air Start Unit (1)_1 ASU-600-180 Air Start Unit (2)

Item			ACE-600-300
			1	2	3
Work engine	Manufacturer		CUMMINS INC	DEUTZ AG	DEUTZ AG
	Model		X12	TCD2015V08	TCD2015V08
Compressor	Manufacturer		AERZENER MASCHINENFABRIK GMBH	AERZENER MASCHINENFABRIK GMBH	AERZENER MASCHINENFABRIK GMBH
	Model		VML-410	VML-410	VML-410
Air supply flow (PPM)			300	300	300
Maximum supply pressure (PSI)			43	43	43
Maximum air supply temperature (℃)			≤220	≤220	≤220
Other performance			——	——	——
Rated speed of operating engine (RPM)			1900	2100	2100
Chassis engine	Manufacturer		Qingling Isuzu	Qingling Isuzu	Qingling Isuzu
	Model		4HK1-TCG61	4HK1-TCG61	4HK1-TC51
Engine emissions			Euro 6	Euro 6	Euro 6
Max speed（km/h）			80	80	80
Overall dimension (length × wide × Height) (mm)			7245 x 2080 x 2750	7245 x 2080 x 2750	7249 x 2170 x 2800
Curb weight (kg)			8550	8550	8500
Outer diameter of channel circle (mm)			17500	17500	17000
Chassis		Manufacturer	Qingling Motors	Qingling Motors	Qingling Motors
		Model	QL1110ANMAY	QL1110ANMAY	QL1100A8MAY

ISUZU truck mounted continuous flow jet engine starting units producing 300 PPM at up to 43 psig start air pressure. Basic components include an air-cooled rotary screw compressor, diesel engine, and the TLD air regulating system.
