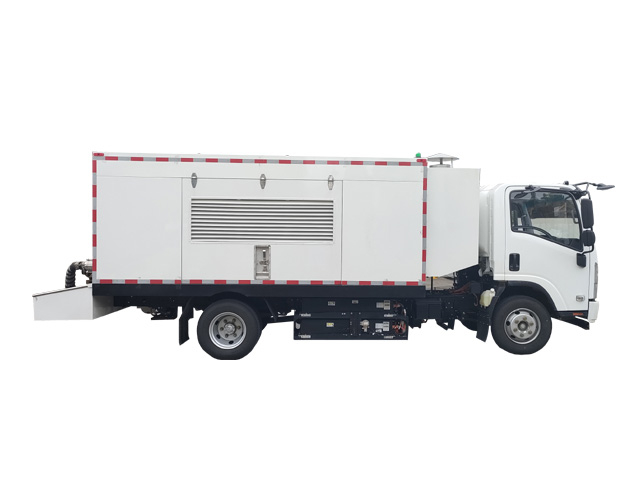

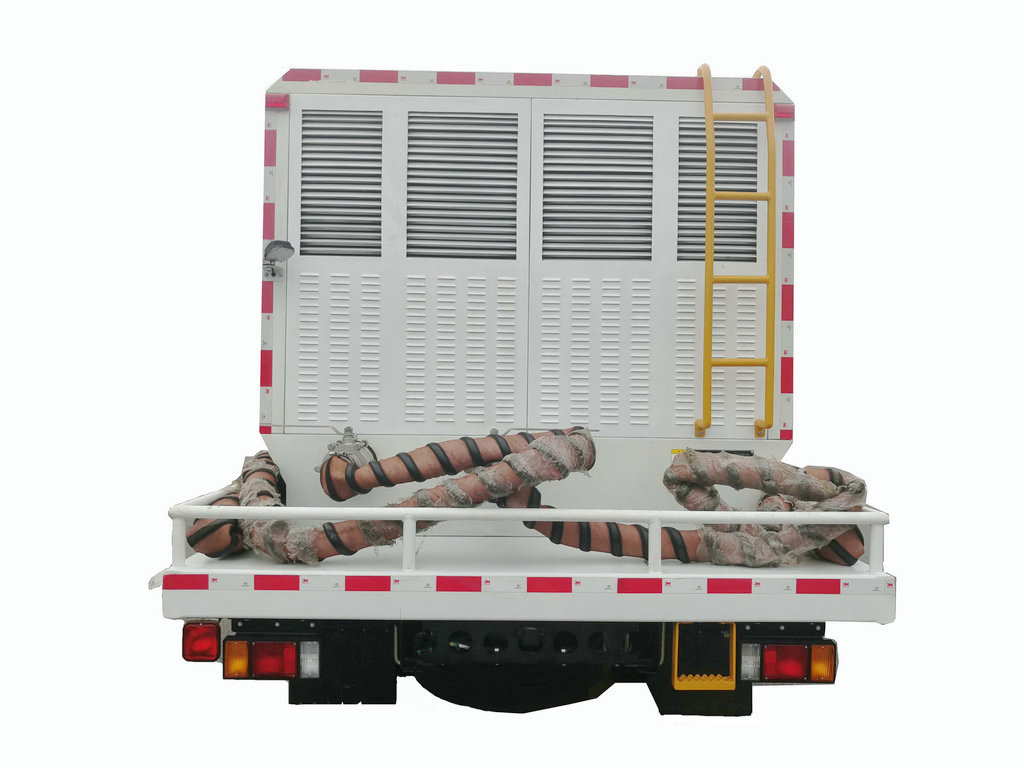

Electric ISUZU Aircraft Ground Air Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi

Share to:

Electric ISUZU Aircraft Ground Air Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi

Electric ISUZU Aircraft Ground Air Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi
ISUZU aircraft jet engine start unit AIRCRAFT LAUNCHED AIR SUPPLY UNIT
Email us for Discount Price

Price: $ 280000

Discount Price: $ 278000

Availability:

Quantity:

Model:
WGAS290D /QL1101BEVEMMAY
Brand:
ISUZU
Code:
87059099.90

ISUZU Aircraft Ground Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi

Features

Engine: Electric Drive Lvkon motor TZ370XS-LKM0851
CATL Energy
Compressor: low lube oil pressure, high lube oil temperature, safety valve to discharge pressure
High air outlet temperature
Low fuel indication
Emergency stop button

Aircraft Air Start Unit truck ISUZU WGAS290 Aircraft Ground (2)

Item		Equipment
Item		1	2
Drive motor	Manufacturer	Suzhou green Control Transmission Technology Co., Ltd	Suzhou green Control Transmission Technology Co., Ltd
Drive motor	Model	TZ370XS-LKM0851	TZ370XS-LKM0851
Drive motor controller	Manufacturer	Shenzhen Blue Ocean Huateng Technology Co., Ltd	Shenzhen Blue Ocean Huateng Technology Co., Ltd
Drive motor controller	Model	KTZ54X35S-LKC0851	KTZ54X35S-LKC0851
Energy storage device assembly	Manufacturer	CATL	CATL
Energy storage device assembly	Model	L173TB2	L173TB2
Air compressor	Manufacturer	GHH RAND	GHH RAND
Air compressor	Model	CD42S	CD42S
Air supply flow (PPM)		300	300
Maximum supply pressure (PSI)		43.5	43.5
Overall dimension of unit (length × wide × Height) (mm)		4820×2260×1926	4820×2260×1995
Curb weight (kg)		8700	8750
Maximum air supply temperature (℃)		≤220	≤220
Maximum speed (km / h)		80	80
Driving range (km)		210	210
Other performance		——	——
Chassis engine	Manufacturer	Qingling Motors Company Limited	Qingling Motors Company Limited
Chassis engine	Model	QL1101BEVEMMAY	QL1101BEVEMMAY
Work engine	Manufacturer	DEUTZ AG	DEUTZ AG
Work engine	Model	TCD2015V08	TCD16.0 V8
Outer diameter of channel circle (mm)		16000	16000
Rated speed of operating engine (RPM)		2100	2100
Total energy of energy storage device (KWH)		106.95	106.95

Technical Specifications

Model: WGAS290D

Engine: Cummins diesel engine

Compressor: Aerzen or GHH

Air Start:

Output Flow Rate: 290ppm

Output Pressure: 35~42psi adjustable

Output Air Temperature: Maximum 210°C / 410°F

Air Conditioning

Output Flow Rate: 290ppm

Output Pressure: 25~30psi

Air Flow:

suction pressure of 1 bar absolute
suction temperature of 20°C/68°F

Relative humidity : < 80%

Air Quality: Oil Free

Ambient Operating Temperature: -40°C ~ +50°C

Electrical System: 24V DC

Chassis: Option of Isuzu commercial chassis or trailer mounted

Applicable aircraft types

Model: WGAS290 /TYAS300

Aircraft: A300, A310, A320, A220, A330, A340, A350, B737, B747, B757, B767, B777, B787, MD11
